1. Bubuka
This manual provides detailed instructions for the installation, operation, and maintenance of your new APPASO APS211ORB-New 3-Hole Kitchen Faucet. Please read this manual thoroughly before installation and retain it for future reference. This faucet is designed for use in kitchen sinks with 2 or 3 holes and features an oil rubbed bronze finish, a pull-down sprayer with multiple modes, a separate handle, and a soap dispenser.
2. Émbaran Kasalametan
- PERHATOSAN: Salawasna pareumkeun suplai cai utama sateuacan ngamimitian padamelan pipa.
- Anggo alat pelindung pribadi anu pas, sapertos kacamata kaamanan sareng sarung tangan, salami instalasi.
- Pastikeun sadaya sambungan aman pikeun nyegah bocor. Ulah overighten.
- Upami anjeun henteu yakin kana bagian mana waé tina prosés pamasangan, konsultasi ka tukang ledeng anu mumpuni.
- Tetep bagian leutik jauh ti barudak.
3. Eusi Paket
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- Awak Kran Utama nganggo Sprayer Tarik-Turun
- Separate Handle
- Dispenser sabun
- Installation Hardware (nuts, washers, gaskets)
- Jalur Pasokan Cai Panas sareng Tiis
- Gravity Ball for Pull-Down Hose
- Manual Pitunjuk (dokumén ieu)
Gambar 3.1: Leuwihview of the APPASO APS211ORB-New kitchen faucet components, including the main faucet, separate handle, and soap dispenser.
4. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | APPASO |
| Ngaran modél | APS211ORB-New |
| Bahan | Beusi sténless |
| Tipe rengse | Minyak Digosok Perunggu |
| Tipe Pamasangan | Wastafel 2 nepi ka 3 Lubang |
| Jumlah liang | 3 |
| Jumlah gagang | 2 (faucet and separate handle) |
| Jangkung Spout | 10.5 inci |
| Dimensi produk | 16 "D x 12" W x 3" H |
| Item Beurat | 5.35 pon |
| Fitur husus | 360° Swivel, Patented Brush, Pull Down Sprayer, Soap Dispenser, Three-Function Sprayer |

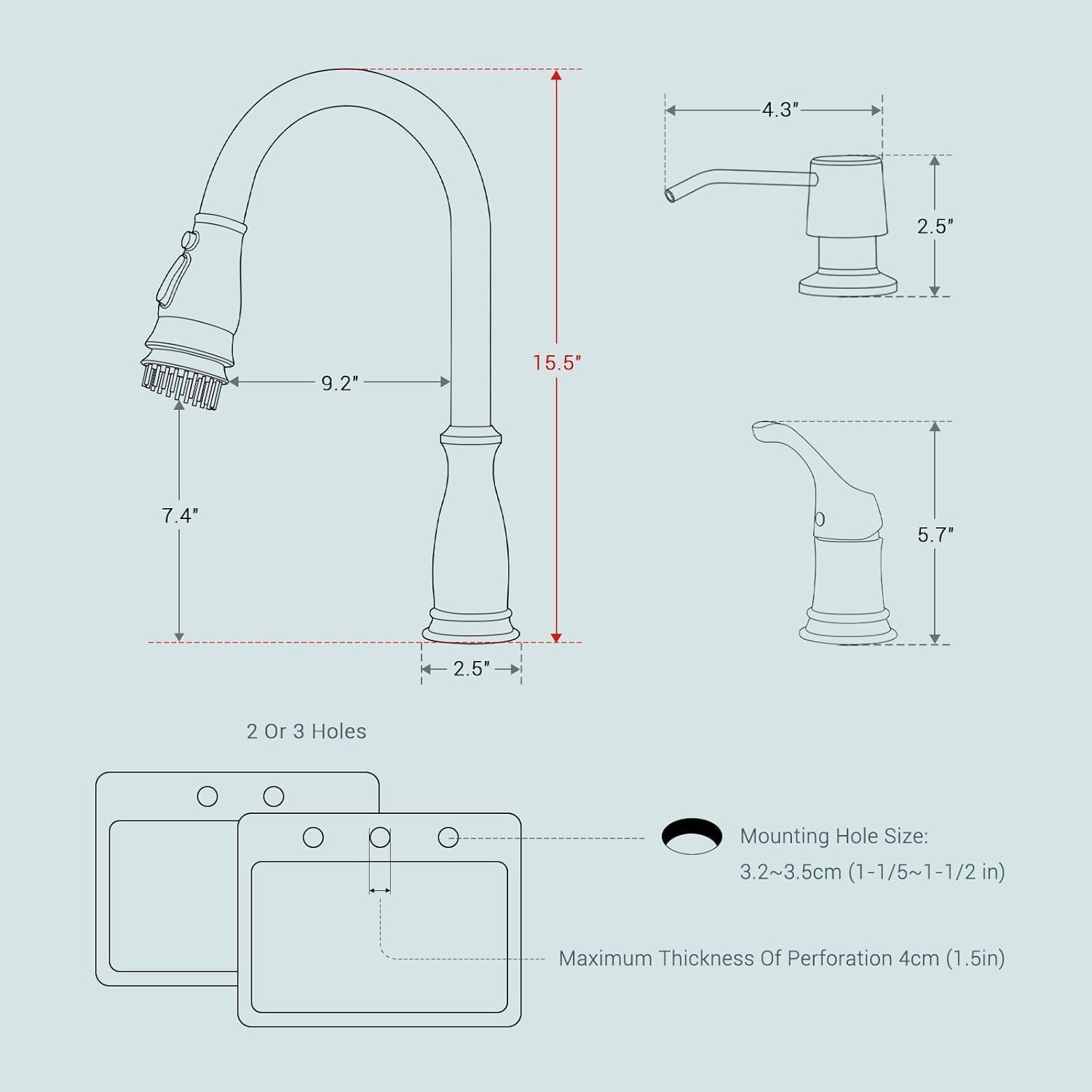

Image 4.1: Detailed dimensions of the APPASO APS211ORB-New faucet, handle, and soap dispenser, including mounting hole size requirements (1-1/5" to 1-1/2" diameter) and maximum counter thickness (1.5 inches).
5. Instalasi (Setup)
The APPASO APS211ORB-New faucet is designed for easy installation, typically taking around 20 minutes without specialized tools. It is compatible with 2 or 3-hole kitchen sinks.
5.1. Persiapan
- Pareuman suplai cai utama ka tilelep dapur anjeun.
- Bersihkeun wewengkon handapeun tilelep pikeun aksés.
- Cabut keran lami anjeun upami tiasa.
5.2. Faucet and Handle Installation
- Insert the main faucet body and the separate handle into the designated holes on your sink or countertop.
- From underneath the sink, secure the faucet and handle using the provided washers and mounting nuts. Ensure they are tightened firmly but do not overtighten.
- Connect the hot and cold water supply lines from the faucet to your water supply valves. Use thread sealant tape if recommended by local plumbing codes.
5.3. Pull-Down Hose and Gravity Ball Installation
- Connect the pull-down sprayer hose to the outlet under the faucet body.
- Attach the gravity ball to the pull-down hose. The gravity ball helps the sprayer retract smoothly into the spout. Position it approximately 6-8 inches from the sprayer head for optimal retraction.
Image 5.1: Illustration of the 20-inch PEX pull-down hose with gravity ball, demonstrating how it extends to cover the sink and retracts automatically.
5.4. Soap Dispenser Installation
- Insert the soap dispenser pump into the remaining hole on your sink or countertop.
- Ngamankeun eta tina underneath jeung nut disadiakeun.
- Attach the soap bottle to the dispenser pump.
- Fill the soap bottle with liquid soap from the top.
Gambar 5.2: Deukeut view of the smooth soap dispenser in operation, showing liquid soap being dispensed into a hand.
5.5. Léngkah ahir
- Hurungkeun suplai cai utama.
- Pariksa sadaya sambungan pikeun bocor.
- Alirkeun cai ngaliwatan keran salami sababaraha menit pikeun miceun kokotor naon waé.
6. Operasi
Your APPASO APS211ORB-New faucet offers versatile functionality for various kitchen tasks.
6.1. Aliran Cai sareng Kontrol Suhu
The separate handle controls both water flow and temperature. Lift the handle to increase water flow and move it left for hot water or right for cold water.
6.2. Pull-Down Sprayer with Three Modes
The pull-down sprayer features three distinct water modes:
- Modeu aliran: Provides a gentle, aerated flow for filling pots and general washing, minimizing splash.
- Mode semprot: Delivers a strong, wide spray for rinsing dishes and cleaning the sink.
- Broom Mode (Sweep): A powerful, concentrated blade of water for stubborn food residue and heavy-duty cleaning.
Switch between modes by pressing the button on the sprayer head.
Image 6.1: Visual representation of the three sprayer modes: Stream (gentle, no splash), Spray (strong water flow), and Broom (powerful cleaning).
Image 6.2: A hand demonstrating the powerful sweep mode for effective cleaning of dishes.
6.3. Patented Cleaning Brush
The sprayer head integrates a detachable cleaning brush, allowing you to scrub and rinse simultaneously. This feature enhances cleaning efficiency and convenience.
Image 6.3: Close-up of the patented cleaning brush integrated into the sprayer head, designed for simultaneous scrubbing and flushing.
Gambar 6.4: Detil view of the patented brush in action, illustrating its ability to help clean surfaces.
6.4. 360° Swivel Spout
The faucet spout can swivel 360 degrees, providing full coverage of your kitchen sink for maximum accessibility and ease of use.
Image 6.5: Illustration highlighting the 360-degree rotation capability of the faucet spout, emphasizing durability and style.
7. Pangropéa
Proper maintenance will ensure the longevity and optimal performance of your APPASO faucet.
7.1. Cleaning the Faucet Finish
The oil rubbed bronze finish features a 7-layer upgraded coating designed to be rust, dirt, and fingerprint-proof. To clean, simply wipe with a soft, damp lawon. Hindarkeun pembersih abrasive, bahan kimia kasar, atanapi bantalan scouring, sabab ieu tiasa ngaruksak finish.
Image 7.1: Diagram illustrating the 7-layer surface coating, designed for corrosion resistance, rust prevention, and a beautiful, practical finish.
7.2. Cartridge keramik
The faucet is equipped with a drip-free ceramic cartridge, tested for 500,000 cycles to ensure leak-proof performance and a long service life. No regular maintenance is typically required for the cartridge itself.
Image 7.2: Visual of the drip-free ceramic cartridge, highlighting its role in ensuring a long-lasting, leak-free faucet.
Image 7.3: Close-up of the highly airtight ceramic spool, emphasizing its smooth, wear-resistant, sturdy, and durable construction.
8. Cara ngungkulan
Upami anjeun mendakan masalah sareng keran anjeun, tingal solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Tekanan Cai Lemah | Clogged aerator or debris in the sprayer head. | Disconnect the sprayer head and run water to flush out any debris. Clean the aerator if necessary. |
| Bocor tina sambungan | Loose connections or improperly seated gaskets. | Turn off water supply. Check and tighten all connections. Ensure gaskets are correctly positioned. Do not overtighten. |
| Sprayer teu retract pinuh | Bal gravitasi diposisikeun teu leres atanapi selang kahalang. | Adjust the position of the gravity ball on the pull-down hose. Ensure the hose path under the sink is clear of obstructions. |
| Suhu cai henteu konsisten | Improper hot/cold water supply connections or issues with water heater. | Pastikeun jalur suplai panas sareng tiis parantos disambungkeun kalayan leres. Pariksa setélan pemanas cai anjeun. |
If the problem persists after attempting these solutions, please contact APPASO customer support.
9. Jaminan & Dukungan
APPASO products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, the ceramic cartridge is tested for 500,000 cycles, indicating a commitment to durability.
For technical assistance, warranty claims, or to purchase replacement parts, please contact APPASO customer support through their official channels. You can often find support information on the APPASO brand store on Amazon or their official websitus.
Nganjang ka Toko APPASO di Amazon pikeun inpo nu leuwih lengkep.
