1. Bubuka
The AXAGON ADSA-DC is a versatile dual dock station designed for connecting two 2.5" or 3.5" SATA hard disk drives (HDDs) or solid-state drives (SSDs) to your computer via a USB 3.2 Gen1 interface. It supports data transfer speeds up to 5 Gbps and features an independent offline cloning function, allowing direct duplication of drives without a computer connection.
2. Eusi Paket
Punten parios yén sadaya barang anu didaptarkeun di handap kalebet kana pakét anjeun:
- AXAGON ADSA-DC Dual HDD/SSD Dock Station
- USB-C to USB-A Cable with USB-C Adapter
- Power Adapter (12V/2.5A, 30W)
- Instruksi Manual
Image: Contents of the AXAGON ADSA-DC package, showing the dock, USB cable, power adapter, and user manual.
3. Fitur Produk
- Dukungan Drive Ganda: Accommodates two 2.5" or 3.5" SATA I/II/III HDDs or SSDs simultaneously.
- High-Speed Interface: USB 3.2 Gen1 (USB 3.0) with data transfer rates up to 5 Gbps.
- Offline Cloning: Standalone drive duplication without requiring a computer connection.
- ASMedia Chipset: Ensures reliable performance and compatibility.
- Dukungan UASP: Enhances data transfer speeds, especially with SSDs.
- Dukungan TRIM: Optimizes SSD performance and longevity.
- SMART Disk Information: Allows monitoring of drive health.
- Indikator LED: Provides status for power, drive activity, and cloning progress.
- Konstruksi awét: Features an aluminum body for heat dissipation and durability.
- Pad anti slip: Ensures stability on surfaces.
Gambar: Leuwihview of the dock station's capabilities, including 5Gbps USB speed, compatibility with 3.5" HDDs and 2.5" SSDs/HDDs, and the cloning function.
Image: Underside of the dock, illustrating advanced features such as SMART, UASP, and TRIM support, and its ability to handle drives of any capacity.
4. Setélan
- Sambungkeun Kakuatan: Plug the provided power adapter into the DC 12V port on the back of the dock station and then into a power outlet.
- Connect to Computer (for data transfer): Use the included USB-C to USB-A cable (or USB-C to USB-C if using the adapter) to connect the dock station's USB-C port to an available USB port on your computer.
- Selapkeun Drive: Gently slide your 2.5" or 3.5" SATA HDDs/SSDs into the drive slots until they are firmly seated. Ensure the SATA connectors align correctly.
Image: The dock station with both a 3.5" HDD and a 2.5" SSD correctly inserted into their respective slots.
Image: The back panel of the dock, detailing the USB-C port, power input, power button, and clone button, alongside the included connectivity accessories.
5. Parentah Operasi
5.1. Data Transfer Mode
- Ensure the dock station is powered on and connected to your computer via the USB cable.
- Insert your SATA HDD(s) or SSD(s) into the available slots.
- The drives will appear as removable storage devices in your computer's operating system.
- You can now access, read, and write data to the drives as you would with any other external storage device.
- To safely remove drives, always eject them through your operating system before physically removing them from the dock.
Image: The dock station in data transfer mode, connected to a laptop, demonstrating its capability for high-speed data access.
5.2. Offline Cloning Function
Important: The target drive will be completely overwritten during the cloning process. Ensure you have backed up any important data from the target drive before proceeding.
The target drive must have a capacity equal to or greater than the source drive.
- Pareum sareng pegatkeun sambungan: Ensure the dock station is powered off and disconnected from your computer.
- Insert Source Drive: Insert the drive you wish to clone (Source Drive) into the Slot 1 (Source).
- Insert Target Drive: Insert the drive you wish to clone to (Target Drive) into the Slot 2 (Target).
- Daya Hurung: Connect the power adapter and turn on the dock station. Do NOT connect the USB cable to a computer.
- Initiate Cloning: Press and hold the "CLONE" button for approximately 3-5 seconds until the cloning progress LEDs begin to flash.
- Monitor kamajuan: The cloning progress LEDs (25%, 50%, 75%, 100%) will illuminate sequentially to indicate the completion status.
- Cloning Complete: Once all four progress LEDs are solid, the cloning process is complete.
- Pareum sareng Cabut: Power off the dock station and safely remove both drives.
Image: The dock station during an offline cloning operation, with LED indicators showing the percentage of completion (25%, 50%, 75%, 100%).
6. Pangropéa
- beberesih: Use a soft, dry cloth to clean the exterior of the dock station. Avoid using liquid cleaners or solvents.
- Panyimpenan: Simpen alat dina tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
- Penanganan: Handle the dock station and drives with care to prevent physical damage.
- Ventilasi: Ensure the dock station has adequate ventilation during operation to prevent overheating.
Image: Detail of the dock station's aluminum body, highlighting its robust and easy-to-maintain surface.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Drives not recognized by computer. |
|
|
| Cloning process does not start or fails. |
|
|
| Laju mindahkeun data lambat. |
|
|
8. Spésifikasi
- model: ADSA-DC
- merek: AXAGON
- Antarmuka Hardware: USB 3.2 Gen1 (USB 3.0)
- Drive cocog: 2.5" and 3.5" SATA I/II/III HDDs/SSDs
- Laju Transfer Data Max: 5 Gbps
- Chipset: ASMedia
- Input kakuatan: DC 12V / 2.5A (30W)
- Ukuran produk: 3.94 x 1.97 x 0.5 inci (100 x 50 x 12.7 mm)
- Beurat barang: 3.53 ons (100 g)
- Fitur: UASP, TRIM, SMART, Offline Cloning

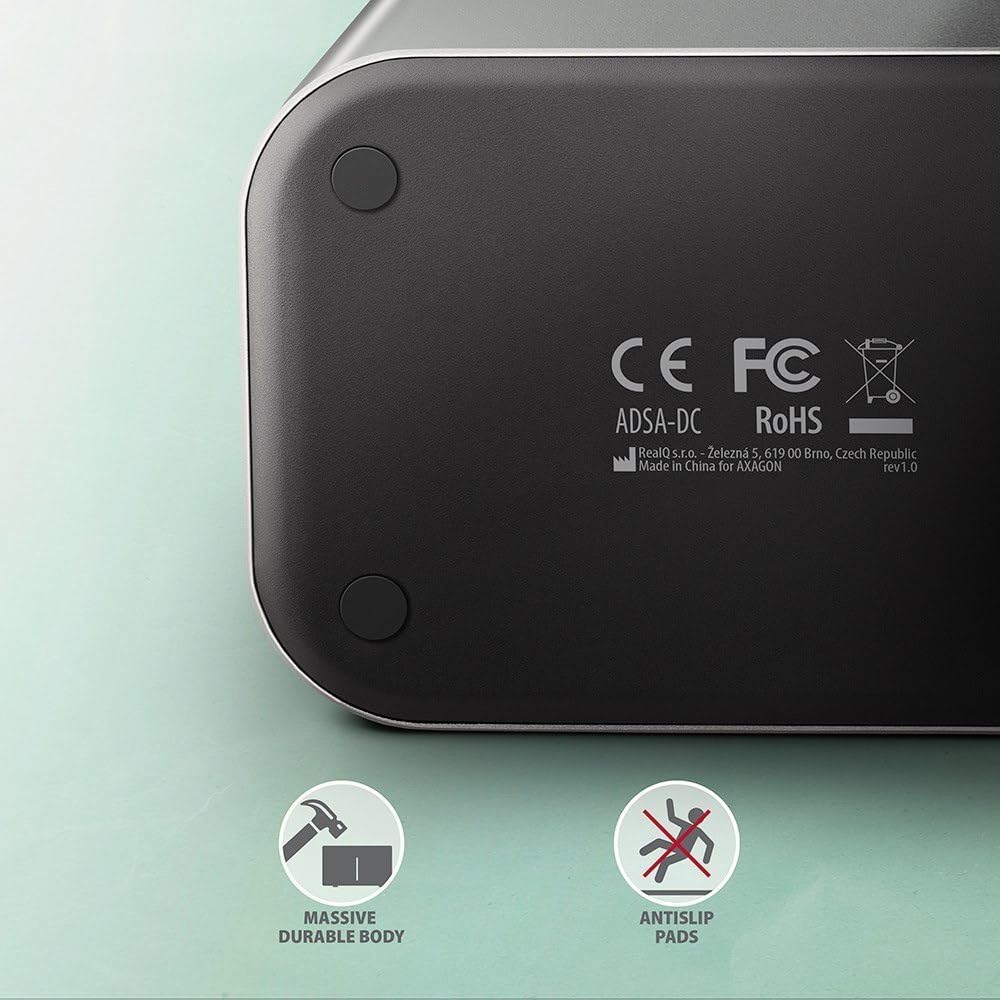

Image: The robust construction and anti-slip base of the dock station, ensuring stability during use.
9. Garansi jeung Rojongan
AXAGON products are designed and manufactured with high quality standards. For warranty information and technical support, please refer to the official AXAGON websitus atanapi ngahubungan distributor lokal Anjeun. Simpen resi pameseran anjeun pikeun klaim jaminan.
Pikeun pitulung salajengna, mangga buka: AXAGON Support Page
