Bubuka
This user manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Duravit DuraVelez DV1010002010 water-saving basin faucet. The DuraVelez series is designed with a focus on elegant simplicity and gently curved forms, offering both aesthetic appeal and functional efficiency for your bathroom.
Gambar 1: The Duravit DuraVelez DV1010002010 basin faucet, showcasindilapis ku lapisan krom sareng desain anu elegan.
Fitur produk
The Duravit DuraVelez faucet incorporates several features designed for comfort, efficiency, and durability:
- AirPlus Function: The water jet is enriched with air, resulting in a full, soft, and pleasant stream. This technology enhances the washing experience while contributing to water efficiency.
- Water-Saving Design: Engineered for economical water consumption, the faucet has a maximum flow rate of 5 liters per minute at 3 bars of pressure.
- Flexible Connection Hoses: Equipped with 3/8 inch flexible connection hoses, ensuring easy and straightforward connection to existing water fittings (connection size DN15).
- Durable Ceramic Cartridge: Utilizes a smooth and durable ceramic cartridge for particularly fluid operation and precise control of water flow and temperature.
- Ergonomic Control Lever: Features a gently curved control lever that is elegantly oriented upwards, providing a comfortable grip and allowing for simple and precise adjustment of water quantity and temperature.
Gambar 2: The AirPlus function icon, representing the air-enriched water stream for a softer feel.
Setup sareng Instalasi
The Duravit DuraVelez faucet is designed for easy installation. Please follow these general guidelines. For detailed steps, refer to the included installation diagram.
- Persiapan: Ensure the water supply is turned off at the main valve before beginning installation. Clear the area around the basin to allow for easy access.
- Pamasangan: Position the faucet on the basin or countertop. Secure it from underneath using the provided mounting hardware. Ensure the faucet is stable and properly aligned.
- Connecting Water Hoses: Connect the flexible 3/8 inch supply hoses from the faucet to your existing hot and cold water supply lines (DN15 connection size). Hand-tighten first, then use a wrench to secure, being careful not to overtighten.
- Drain Assembly (if applicable): This model is supplied without a pop-up waste. If you are installing a separate drain assembly, follow its specific instructions.
- Uji coba: Once all connections are secure, slowly turn on the main water supply. Check for any leaks at the connections. Operate the faucet to ensure proper hot and cold water flow.

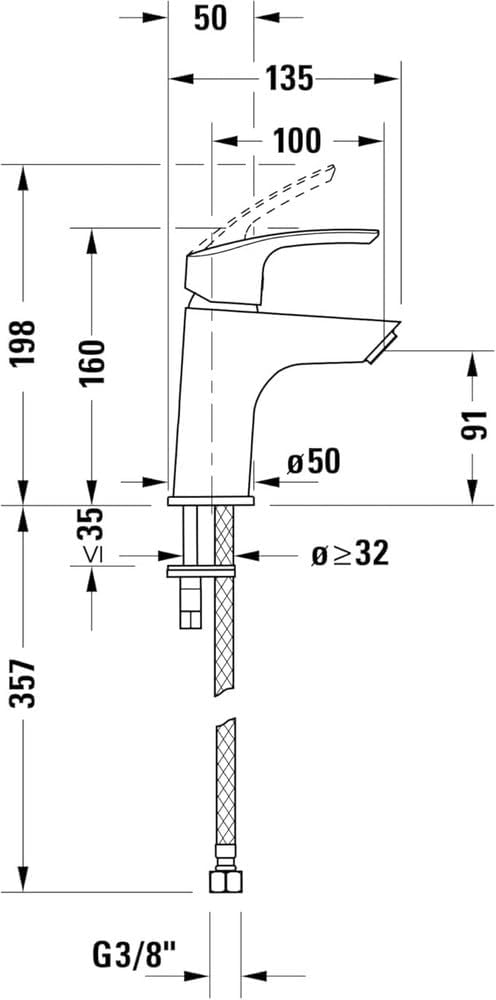

Gambar 3: Technical drawing illustrating the dimensions and connection points for the Duravit DuraVelez faucet. Note the G3/8" connection for supply lines.
Parentah Operasi
The Duravit DuraVelez faucet features a single lever for controlling both water flow and temperature.
- Hurungkeun/Pareuman: Lift the lever upwards to turn on the water flow. Push the lever downwards to turn off the water flow.
- Nyaluyukeun Aliran Cai: Beuki jauh anjeun ngangkat tuasna, beuki gede aliran cai.
- Nyaluyukeun Suhu: Gerakkan tuas ka kenca pikeun cai panas sareng ka katuhu pikeun cai tiis. Posisi tengah nyayogikeun cai campuran.
Gambar 4: The Duravit DuraVelez faucet in operation, demonstrating the smooth water flow.
Pangropéa
Regular maintenance will help preserve the appearance and functionality of your Duravit DuraVelez faucet.
- Ngabersihan Permukaan: Clean the chrome surface regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive sponges, or acidic cleaners, as these can damage the finish. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Pangropéa Aerator: Periodically unscrew the aerator at the tip of the spout and clean any mineral deposits or debris that may have accumulated. This helps maintain optimal water flow and the AirPlus function.
- Cék bocor: Occasionally check all connections for any signs of leaks. Tighten connections if necessary, but do not overtighten.
Pamérésan masalah
Upami anjeun mendakan masalah sareng keran anjeun, tingal masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Aliran Cai Lemah | Aerator tersumbat; klep pareum sabagian katutup; tekanan cai di imah-imah handap. | Clean the aerator. Ensure shut-off valves are fully open. Consult a plumber if household water pressure is consistently low. |
| Bocor ti Spout | Cartridge keramik dipaké; lebu dina cartridge. | Contact customer support for cartridge replacement or professional service. |
| Bocor di Dasar/Sambungan | sambungan leupas; ruksak O-cingcin atawa anjing laut. | Check and tighten supply line connections. Inspect and replace O-rings/seals if damaged. |
| Kasesahan Nyaluyukeun Suhu | Issue with ceramic cartridge or water heater settings. | Verify water heater settings. If problem persists, the cartridge may need inspection or replacement by a qualified professional. |
If the problem persists after attempting these solutions, please contact Duravit customer support or a qualified plumber.
spésifikasi
Key technical specifications for the Duravit DuraVelez DV1010002010 basin keran:
| Atribut | Rincian |
|---|---|
| merek | Duravit |
| Nomer modél | DV1010002010 |
| Warna | Chrome |
| Bahan | Kuningan |
| Ukuran produk (L x W x H) | 5 x 13.5 x 16 cm |
| Item Beurat | 1.23 kg |
| Fitur husus | AirPlus Function |
| Jumlah gagang | 1 |
| Jumlah liang diperlukeun | 1 |
| Laju aliran maksimum | 5 liters per minute (at 3 bars) |
| Ukuran sambungan | DN15 (3/8 inch flexible hoses) |
Garansi sareng Rojongan
Duravit stands behind the quality of its products. The DuraVelez DV1010002010 basin faucet comes with a comprehensive 5-taun jaminan produsén urang. Garansi ieu nyertakeun cacad dina bahan sareng pagawean dina panggunaan sareng jasa normal.
For warranty claims, technical assistance, or any questions regarding your product, please contact Duravit customer support through their official website or the contact information provided with your purchase documentation. Please retain your proof of purchase for warranty validation.
