1. Bubuka
This manual provides detailed instructions for the operation and maintenance of your MONODEAL Portable CD Player. This versatile device combines a CD player, FM radio, Bluetooth speaker, and USB media player, designed for both indoor and outdoor use. Please read this manual thoroughly before using the product to ensure proper function and longevity.
Gambar 1.1: Hareupeun view of the MONODEAL Portable CD Player.
2. Émbaran Kasalametan
- Ulah ngalaan alat ka suhu ekstrim atawa sinar panonpoé langsung.
- Keep the device away from water and moisture, despite its IPX7 waterproof rating, prolonged submersion is not recommended.
- Ulah nyobian ngabongkar atawa ngalereskeun unit sorangan. Rujuk sadayana jasa ka tanaga anu mumpuni.
- Anggo ngan ukur kabel ngecas sareng sumber listrik anu ditangtukeun.
- Hindarkeun dengekeun dina tingkat polumeu luhur pikeun période anu panjang pikeun nyegah karusakan dédéngéan.
3. Eusi Paket
Pastikeun yén sadaya item aya dina bungkusan:
- MONODEAL Portable CD Player
- Kabel Ngecas Tipe-C
- Pituduh Pamaké (manual ieu)
- After-sales Manual
4. Fitur Produk
- CD Player & FM Radio: Compatible with CD-DA/CD-R/CD-RW/MP3/WMA discs. Features random play, repeat play, and programming functions. Built-in FM tuner with 3 preset stations, long antenna, and upgraded DSP chip for enhanced reception.
- Bluetooth & USB Playback: Bluetooth receiving function allows pairing with mobile phones and tablets for wireless music streaming (15-meter range). USB port supports MP3 or WMA music files ti flash drive.
- Sora kualitas luhur: Equipped with built-in 2x 3W high-power speakers for clear and full stereo sound.
- Desain portabel: Features a convenient handle and IPX7 waterproof rating, making it suitable for various environments like kitchens, bathrooms, camping, jeung perjalanan.
- Pasokan Daya Ganda: Built-in 2000mAh rechargeable battery for portable use, or power via USB-C cable.
- Fungsi tambahan: Includes sleep timer, alarm clock, and a 3.5mm headphone jack for private listening.
Figure 4.1: The device functions as both a CD player and an FM radio.

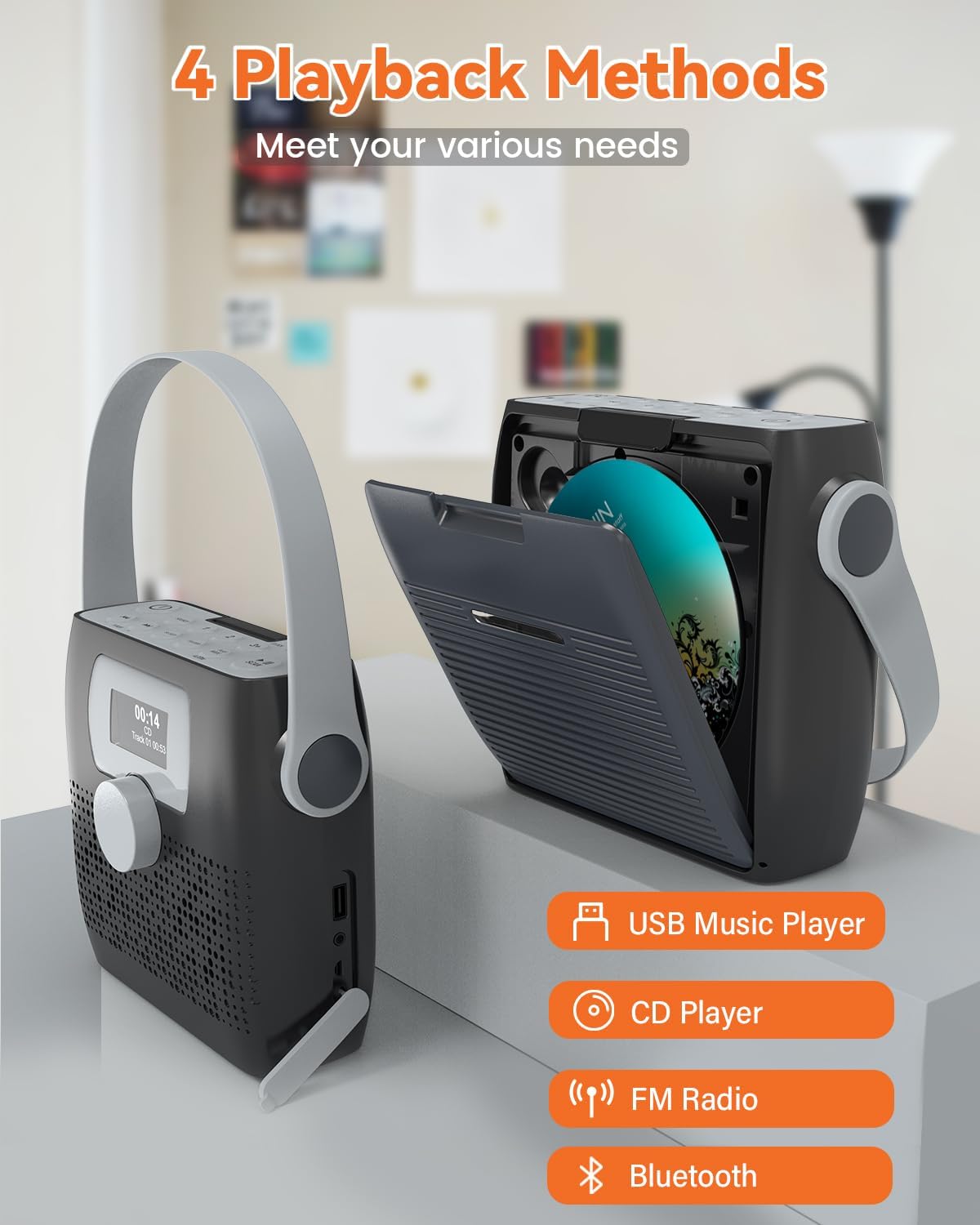

Figure 4.2: Four playback methods: USB Music Player, CD Player, FM Radio, and Bluetooth.
5. Kadali jeung tampilan
The device features an intuitive layout for easy operation:
- Témbong LED: Shows current mode, track information, time, and other settings.
- Volume Dial: Smooth rotary dial for precise volume control.
- Tombol: Clearly labeled buttons for power, source selection, track navigation, sleep timer, folder navigation, play mode, scan, and alarm settings.
Gambar 5.1: Top view highlighting the control buttons and LED display.
Video 5.1: A demonstration of the MONODEAL Portable CD Player and FM Radio's controls and display in action.
6. Setélan
6.1 suplai kakuatan
The MONODEAL CD Player can be powered in two ways:
- Batré Diwangun-di: The device has a built-in 2000mAh rechargeable battery. Fully charge the device before first use.
- Daya USB-C: Connect the provided Type-C charging cable to the USB-C port on the side of the player and plug the other end into a compatible USB power adapter (not included) or a USB port.
Figure 6.1: The device features a built-in 2000mAh battery for extended use.
6.2 Initial Setup (Clock & Alarm)
Refer to the "Clock" and "Alarm" buttons on the top panel to set the current time and configure alarm settings. Detailed instructions are provided in the "Operating Instructions" section.
7. Parentah Operasi
7.1 Playback CD
- Open the CD compartment cover located on the back of the unit.
- Insert a CD (CD-DA/CD-R/CD-RW/MP3/WMA compatible) with the label side facing up.
- Tutupkeun panutup kompartemen CD pageuh-pageuh.
- Pencét éta SUMBER tombol pikeun milih modeu CD.
- Ngagunakeun éta MUTER / Reureuh tombol pikeun ngamimitian atawa ngareureuhkeun playback.
- Ngagunakeun éta Sateuacanna / SUSUSUSNA tombol pikeun skip lagu.
- Saluyukeun polumeu nganggo VOLUME/ENTER dial.
Figure 7.1: The CD compartment is located on the back of the unit.
7.2 Radio FM
- Panjangkeun anteneu FM pikeun nampi panarimaan anu optimal.
- Pencét éta SUMBER tombol pikeun milih modeu FM.
- Pencét éta SCAN tombol pikeun otomatis nyeken sareng nyimpen stasiun anu sayogi.
- Ngagunakeun éta 1, 2, 3+ buttons to quickly select preset stations.
- Manually tune using the TUNER +/- kancing.
7.3 Modeu Bluetooth
- Pencét éta SUMBER button to select Bluetooth mode. The display will show "Bluetooth" and the device will enter pairing mode.
- On your mobile device (phone, tablet, etc.), enable Bluetooth and search for "MONODEAL MD708".
- Select "MONODEAL MD708" to pair. Once connected, you can stream audio wirelessly to the CD player.
Video 7.1: A demonstration of the MONODEAL Bluetooth Boombox CD Player with Speakers, showcasing its Bluetooth connectivity.
7.4 Playback USB
- Selapkeun USB flash drive nu ngandung audio MP3 atawa WMA filekana port USB di sisi unit.
- Pencét éta SUMBER tombol pikeun milih modeu USB.
- The device will automatically begin playing audio files ti USB drive.
- Ngagunakeun éta Sateuacanna / SUSUSUSNA tombol pikeun nganapigasi lagu.
- Ngagunakeun éta polder tombol pikeun napigasi antara polder dina drive USB.
7.5 Paké headphone
Connect 3.5mm headphones (not included) to the headphone jack on the side of the unit for private listening. The internal speakers will automatically mute when headphones are connected.
7.6 Timer Saré
Pangatur waktu sare ngamungkinkeun unit pikeun pareum sacara otomatis saatos periode anu ditangtukeun.
- Pencét éta SARE button repeatedly to cycle through available sleep timer settings (e.g., 120 min, 90 min, 60 min, 30 min, 15 min, 5 min, OFF).
- The selected time will be displayed on the screen. The unit will power off automatically after the set duration.
Figure 7.2: The display shows the current time and sleep timer settings.
8. Pangropéa
- beberesih: Ngusap unit ku kaén anu lembut sareng garing. Ulah make cleaners abrasive atawa pangleyur.
- Perawatan CD: Nanganan CD ku edges maranéhanana. Bersihkeun CD anu kotor nganggo kaen anu lemes sareng henteu lint, usap ti tengah ka luar.
- Panyimpenan: Lamun teu dipaké pikeun période nambahan, nyimpen alat dina tiis, tempat garing jauh tina sinar panonpoé langsung.
- Tahan cai: While IPX7 waterproof, ensure the USB and headphone port covers are securely closed when exposed to water. Do not submerge the unit.
Figure 8.1: The device is designed with IPX7 water resistance for outdoor use.
9. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya kakuatan | Batré béak atawa kabel daya teu nyambung. | Cas batréna nganggo kabel USB-C. Pastikeun kabelna nyambung pageuh. |
| CD teu diputer | CD is dirty, scratched, or inserted incorrectly. Incorrect source selected. | Clean the CD. Reinsert the CD correctly. Press the SOURCE button to select CD mode. |
| Panarimaan FM Goréng | Antena teu manjang atanapi sinyalna lemah. | Fully extend the FM antenna. Try repositioning the unit for better signal. |
| Bluetooth teu dipasangkeun | Device is not in pairing mode or too far from the source. | Ensure the unit is in Bluetooth mode. Move the devices closer. Restart both devices. |
| Teu aya sora ti panyatur | Volume too low or headphones connected. | Increase volume. Disconnect headphones if not desired. |
10. Spésifikasi
- Ukuran produk: 6.3 x 2.17 x 6.3 inci
- Beurat barang: 2.03 pon
- Jumlah modél: MD708
- merek: MONODEAL
- Téknologi konektipitas: Bantu, USB, Bluetooth
- warna: kulawu
- Tipe Speaker: Stereo (2x 3W)
- Batré: Diwangun-di 2000mAh
- Tahan cai: IPX7
- Supported CD Formats: CD-DA, CD-R, CD-RW, MP3, WMA
- Range Frékuénsi FM: 87.5-108MHz
11. Garansi jeung Rojongan
MONODEAL is committed to providing quality products. For any issues or inquiries, please contact our customer service. We offer 24-hour customer service to assist you with any problems you may encounter.
For further assistance, please refer to the After-sales Manual included in your package or visit the official MONODEAL store online.
