Imagebon 9-Inch Portable Car Display User Manual

1. Bubuka

Thank you for choosing the Imagebon 9-Inch Portable Car Display. This device integrates wireless Apple CarPlay and Android Auto, a 4K dash camera, and a 1080P backup camera, along with ADAS assistance and GPS navigation capabilities. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and a safe driving experience.

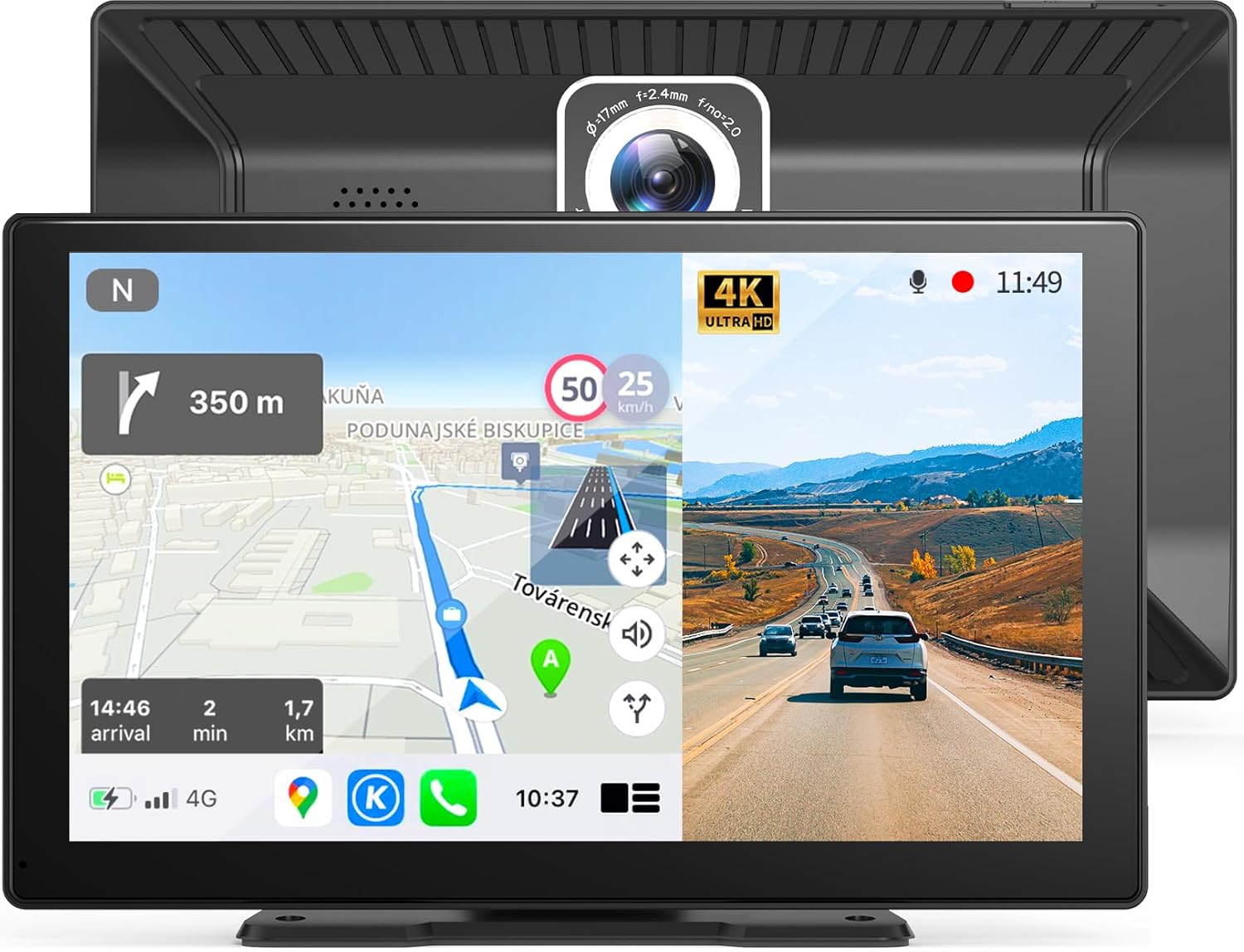

Figure 1.1: Imagebon 9-Inch Portable Car Display.

2. Naon dina Box

Saatos muka bungkusan, mangga pariksa yén sadaya komponén ieu kalebet:

• Imagebon 9-Inch Portable Car Display Unit
• 64 GB TF Card (MicroSD Card)
• Kabel AUX
• Carjer mobil
• Kaméra Nyadangkeun
• Manual pamaké
• 3M Sticky Mount
• Long-armed Suction Cup Mount

Figure 2.1: Included components in the product package.

3. Fitur Produk

• Wireless Apple CarPlay/Android Auto: Seamlessly connect your smartphone for navigation, calls, messages, and music via voice commands.
• 4K+1080P Dual Recording: Features an Ultra HD 4K (3840*2160P) front camera and a Full HD 1080P rear camera for comprehensive recording and backup assistance.
• Pamasangan Plug and Play: Simple setup by plugging into the cigarette lighter, allowing for quick integration into your vehicle.
• Phone Mirroring (AirPlay/Miracast): Project your mobile phone screen directly onto the car display.
• Pangalaman Audio Ditingkatkeun: Offers four audio output modes: built-in speaker, CarPlay/Android Auto, FM transmission, and AUX connection for versatile sound options.
• Sistem Bantuan Supir Canggih (ADAS): Includes features like front vehicle starting reminder, forward collision warning, and lane departure warning for enhanced safety. (Note: An additional GPS antenna may be required for full ADAS functionality.)

4. Setup jeung Instalasi

The Imagebon Portable Car Display is designed for easy installation. Follow these steps to set up your device:

4.1 Pasang Tampilan

Choose between the 3M sticky mount for a permanent fixture or the long-armed suction cup for flexible placement.

1. Pilih Lokasi: Choose a suitable location on your dashboard or windshield that does not obstruct your view atanapi ngaganggu kontrol nyetir.
2. Pasang Gunung: Secure the chosen mount to the selected surface. For the suction cup, ensure the surface is clean and press firmly to create a strong seal. For the 3M sticky mount, clean the surface thoroughly before applying.
3. Pasangkeun tampilan: Slide the display unit onto the mount until it clicks securely into place. Adjust the angle for optimal viewing.

Figure 4.1: Available mounting options for the display unit.

4.2 Sambungan Daya

Connect the car charger to the display unit and plug the other end into your vehicle's cigarette lighter socket. The device will power on automatically.

4.3 Pamasangan kaméra pungkur

For the 1080P backup camera functionality, install the rear camera and connect it to the display unit. The red wire of the backup camera should be connected to your vehicle's reverse light for automatic activation when reversing.

Figure 4.2: Wiring diagram for the main unit and rear camera.

5. Parentah Operasi

5.1 Wireless Apple CarPlay / Android Auto

To connect your smartphone for wireless CarPlay or Android Auto:

1. On the display unit, select the "CarPlay" or "Android Auto" icon.
2. Turn on Wi-Fi and Bluetooth on your smartphone.
3. Milarian pikeun the device's Bluetooth name (e.g., "XXXX_XXXX") and pair.
4. Confirm the connection on your phone. CarPlay or Android Auto will launch automatically.

Figure 5.1: Wireless CarPlay and Android Auto connection steps.

Once connected, you can control navigation, make calls, send messages, and play music using voice commands or the touchscreen.

5.2 Phone Mirroring (AirPlay / Miracast)

To mirror your phone's screen to the display:

1. On the display unit, select "AirPlay" or "Miracast".
2. Turn on Wi-Fi on your smartphone and search for the device's Wi-Fi name (e.g., "XXXX_XXXX").
3. Nyambung ka jaringan Wi-Fi.
4. On your phone, activate screen mirroring (e.g., "SmartScreen" or similar).

Figure 5.2: Phone mirroring via AirPlay or Miracast.

5.3 Dual Dash Cam Recording (4K Front + 1080P Rear)

alat nu terus ngarekam footage from both front and rear cameras. The included 64GB MicroSD card provides ample storage. Footage is recorded in a seamless loop, overwriting the oldest files nalika kartu pinuh.

Figure 5.3: Seamless loop recording for continuous coverage.

Figure 5.4: Dual camera recording views (Front + Rear, Front, Rear).

Ka view recorded videos or access settings, use the dedicated "Dash Cam" or "Files" application on the display. You can also connect to the device's Wi-Fi and use the RoadCam app on your smartphone for remote access and GPS tracking.

5.4 Real-Time Reverse View

When the rear camera is properly connected to your vehicle's reverse light, the display will automatically switch to the real-time reverse view when you engage reverse gear. You can slide the screen to switch between front and rear camera views. Backup guide lines will automatically appear.

Figure 5.5: Real-time reverse view with parking assist lines.

5.5 Modeu Kaluaran Audio

The display offers multiple ways to output audio to your car's sound system:

• Audio Asli: Audio plays directly from the display's built-in speaker.
• Audio AUX: Connect the provided AUX cable from the display to your car's AUX input for high-quality audio.
• Audio FM: Transmit audio to your car's FM radio by tuning to a specific frequency.
• Bluetooth Audio: For CarPlay/Android Auto, ensure your phone is directly connected to your original car's Bluetooth for audio output.

Figure 5.6: Available audio output options.

5.6 Napigasi GPS

Simply connect the display to Wi-Fi or your phone's hotspot to access real-time navigation apps such as Google Maps and Waze through CarPlay or Android Auto.

Figure 5.7: GPS navigation with popular map applications.

5.7 Sistem Bantuan Supir Canggih (ADAS)

The integrated ADAS enhances driving safety with features like:

• Front Vehicle Starting Reminder: Alerts you when the vehicle in front starts moving.
• Perhatosan Tabrakan Maju: Provides alerts to help prevent front-end collisions.
• Peringatan Keberangkatan Jalur: Notifies you if you drift out of your lane without signaling.

Note: An additional GPS antenna is required to activate some ADAS features.

Figure 5.8: ADAS features for enhanced driving safety.

6. Pangropéa

To ensure the longevity and optimal performance of your Imagebon Portable Car Display, follow these maintenance guidelines:

• beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun layar sareng bagian luarna. Hindarkeun pembersih atanapi pangleyur anu abrasif.
• Suhu: Hindarkeun ngalaan alat ka suhu anu ekstrim (panas pisan atanapi tiis pisan) kanggo waktos anu berkepanjangan.
• Panyimpenan: If storing the device for a long time, disconnect it from power and store it in a cool, dry place.
• Pembaruan firmware: Pariksa produsén urang websitus sacara périodik pikeun apdet firmware anu sayogi pikeun ningkatkeun kinerja sareng nambihan fitur énggal.

7. Cara ngungkulan

8. Spésifikasi

9. Garansi jeung Rojongan

Imagebon is committed to providing high-quality products and excellent customer service. For any questions, concerns, or technical support, please contact us via email:

Surélék: Imagebons@outlook.com

Our support team is available 24/7 to assist you and resolve any arising issues.
