MAIMEIMI 6-in-1 GPS Speedometer (Model MA-CX8254) Instruction Manual

1. Bubuka

This manual provides detailed instructions for the installation, setup, and operation of your MAIMEIMI 6-in-1 GPS Speedometer. This multi-functional digital gauge is designed for various vehicles including cars, motorcycles, boats, and marine vessels, offering comprehensive monitoring of key parameters. It integrates a GPS Speedometer, Tachometer, Voltmeter, Fuel Level Gauge, Water Temperature Gauge, and Oil Pressure Gauge, all within a waterproof 85mm unit.

2. Fitur Produk

• Desain multi-fungsi: Combines GPS Speedometer, Tachometer, Voltmeter, Fuel Level, Water Temperature, and Oil Pressure into a single unit with alarm functions.
• Ngalihkeun Unit: Allows selection of fuel level sensor type (0-190ohm European or 240-33ohm American) and units for speed (MPH, km/h, knots), water temperature (°F or °C), and pressure (psi or bar).
• Rentang Ukur:
  • GPS Speedometer: 0-600 (km/h, mph, knots)
  • Tachometer: 0-9999 RPM
  • Voltmeter: 9-32V
  • Fuel Level: 0-100%
  • Water Temperature: 40-120°C / 100-250°F
  • Oil Pressure: 0-10 BAR / 0-145 PSI
• Pamasangan Gampang: Designed for a standard 85mm (3 3/8") diameter hole with a 55mm (2 3/16”) depth.
• Awét sarta waterproof: Features a TFT screen and IP67 waterproof rating with anti-fogging protection.
• Tachometer Compatibility: Suitable for engines with 1-12 cylinders. If your specific engine cylinder number is not listed in the manual for speed ratio adjustment, contact support for guidance.

3. Produk Langkungview

The MAIMEIMI 6-in-1 GPS Speedometer integrates multiple gauges into a single, compact unit, providing essential vehicle information at a glance. The digital display offers clear readability for all parameters.

Gambar 3.1: Leuwihview of the 6-in-1 GPS Speedometer integrating multiple functions into one display.

The gauge displays various data points including fuel level, water temperature, oil pressure, voltmeter, trip meter, odometer, GPS speed, RPM, and engine hours. Each parameter is clearly labeled for easy interpretation.

Gambar 3.2: Detil view of the gauge's display, highlighting each function and its corresponding data range.

The unit allows for flexible unit switching for various measurements, ensuring compatibility with different regional standards and user preferences.

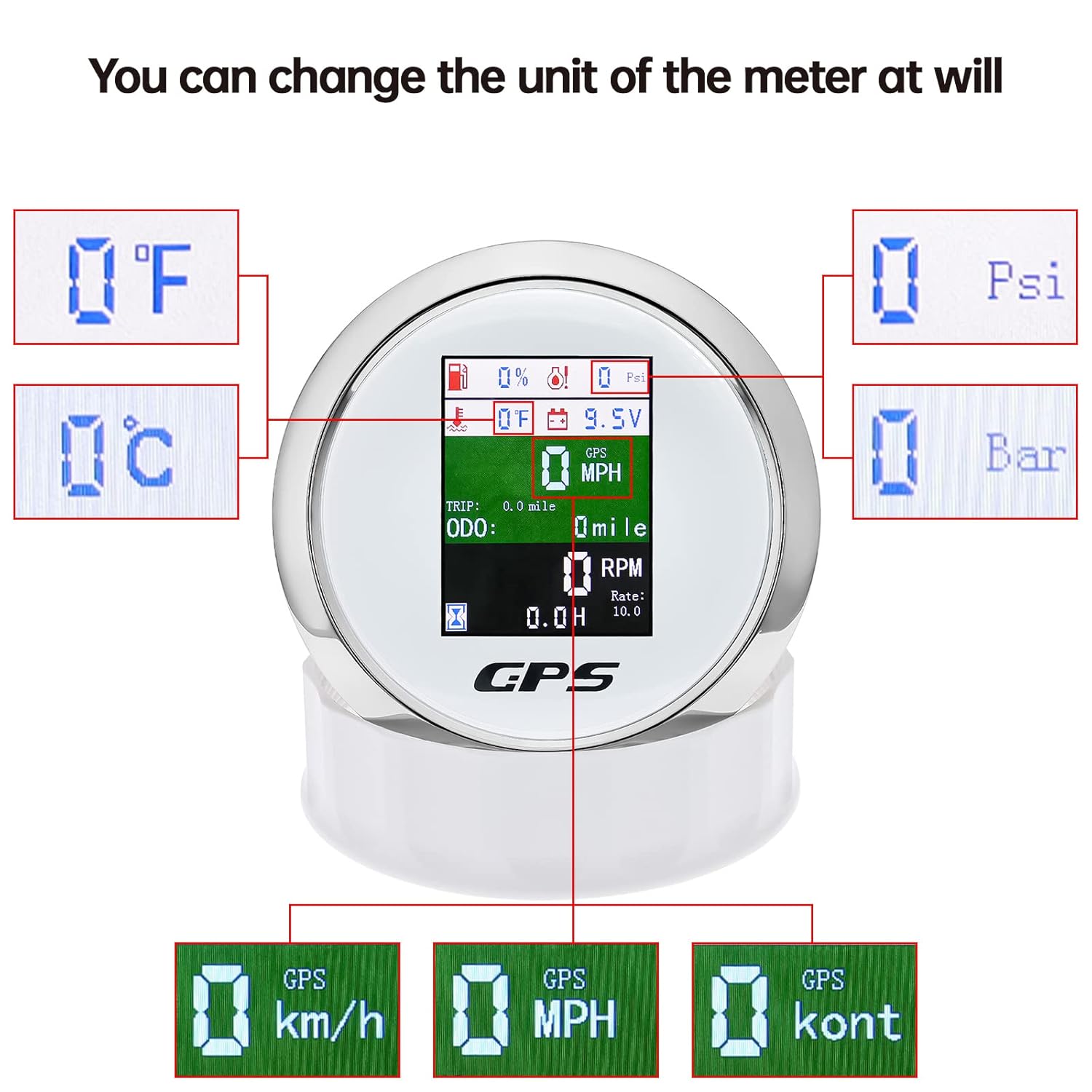

Figure 3.3: Illustration of the unit switching capability for temperature (°F/°C), pressure (Psi/Bar), and speed (km/h/MPH/Knots).

4. Pamasangan

4.1 Ukuran

The gauge requires an 85mm (3 3/8") diameter mounting hole and a depth of 55mm (2 3/16"). Ensure sufficient clearance behind the mounting surface for wiring and the gauge body.

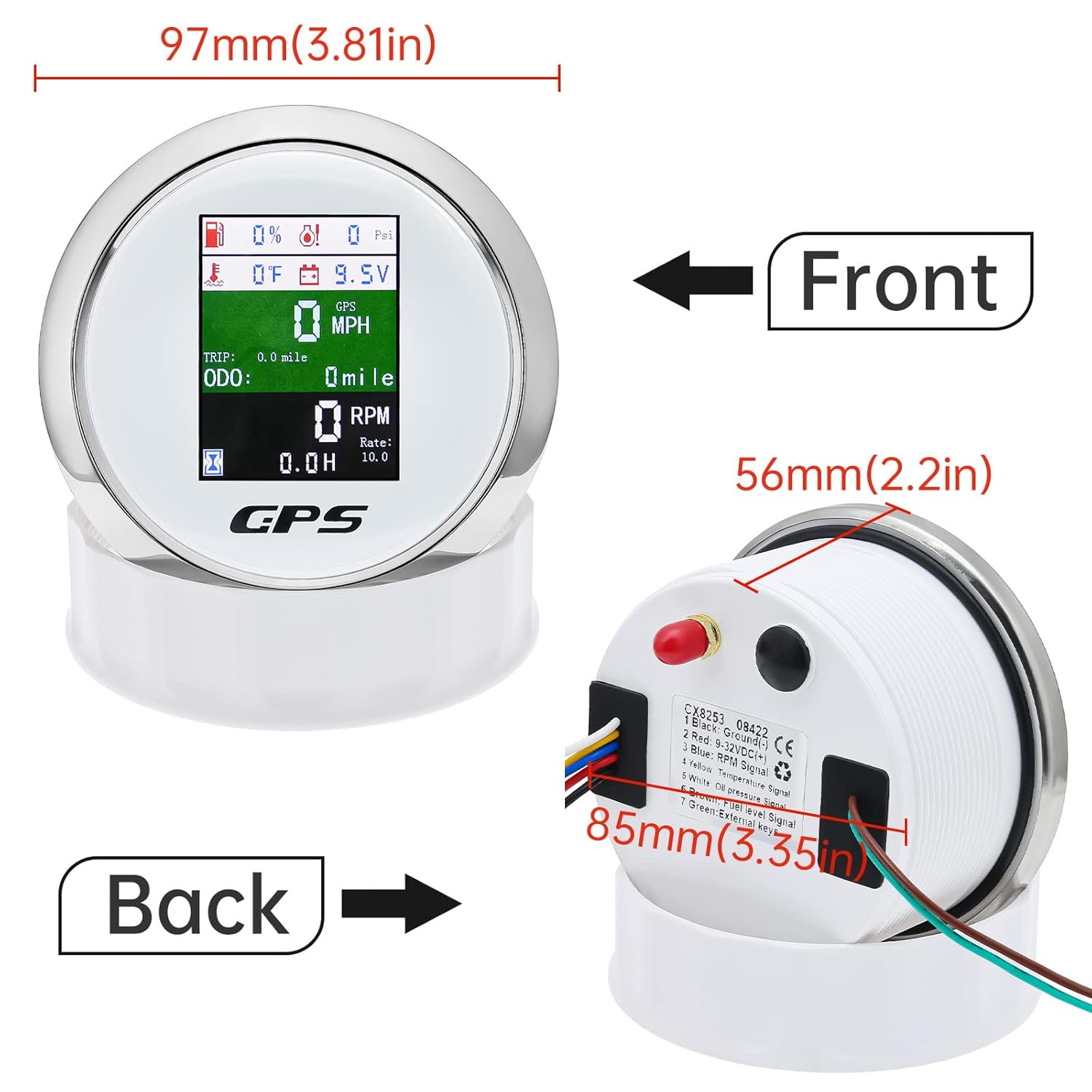

Figure 4.1: Front and back dimensions of the gauge for installation planning.

4.2 Diagram Wiring

Follow the wiring diagram carefully to ensure correct functionality and prevent damage to the unit or vehicle electrical system. The gauge operates on a 9-32V DC power supply.

Figure 4.2: Wiring connections for the multi-functional gauge.

• 1 Black: Ground (-)
• 2 Red: 9-32VDC (+)
• 3 Blue: RPM Signal
• 4 Yellow: Temperature Signal
• 5 White: Oil Pressure Signal
• 6 Brown: Fuel Level Signal
• 7 Green: External Keys

For detailed connection instructions, refer to the video below.

5. Setup jeung Konfigurasi

The gauge allows for various parameter adjustments to match your vehicle's sensors and preferences. Use the button on the back of the unit for configuration.

5.1 Parameter Selection Mode

To enter parameter selection mode, press and hold the button on the back of the unit, then power on the gauge. The LCD will display options such as OILP (Oil Pressure), HOUR (Working Hours), UNIT (Measurement Units), PULSE (Tachometer Ratio), OIL (Fuel Gauge Signal), and ATER (Water Temperature Signal).

• OILP - Oil Pressure: Select the appropriate oil pressure sensor range (e.g., 0-5Bar/0-72.5PSI or 0-10Bar/0-145PSI).
• HOUR - Working Hours: Adjust the digital part of the working hours. Measuring range is 0-99999.9 hours.
• UNIT - Set Units: Configure units for water temperature (°C/°F) and oil pressure (PSI/BAR).
• PULSE - Set Tach Ratio: Adjust the tachometer pulse ratio (e.g., P100 for 1 pulse/round). Measuring range is 0-39999.
• OIL - Set Fuel Gauge Signal: Select the correct fuel level sensor resistance (e.g., 0-190Ω, 0-180Ω, 10-180Ω, 240-33Ω, 240-30Ω).
• ATER - Set Water Temperature Signal: Choose the water temperature sensor resistance (e.g., 291.4-22.4Ω or 301-23Ω for 40-120°C/104-248°F).

Refer to the video in the Installation section for a visual guide on accessing and adjusting these parameters.

6. Parentah Operasi

Once installed and configured, the gauge will display real-time data for all six functions. The GPS speedometer will automatically acquire satellite signals to display speed. The tachometer will show engine RPM based on the configured pulse ratio. Other gauges will display readings from their respective sensors.

6.1 Fitur Tahan Cai

The gauge is IP67 waterproof, meaning it can withstand immersion in water up to 1 meter for 30 minutes. This makes it suitable for marine environments.

Figure 6.1: The gauge demonstrating its IP67 waterproof capability.

7. Pangropéa

The MAIMEIMI 6-in-1 GPS Speedometer is designed for durability and requires minimal maintenance.

• beberesih: Wipe the display and bezel with a soft, damp lawon. Hindarkeun pembersih abrasive atanapi pangleyur.
• Pamariksaan: Periodically check wiring connections for tightness and corrosion, especially in marine environments.
• Cék sénsor: Ensure all connected sensors (fuel, water temp, oil pressure) are free from debris and properly seated.

8. Cara ngungkulan

If you encounter issues with your MAIMEIMI 6-in-1 GPS Speedometer, consider the following troubleshooting steps:

• Taya Daya/Tampilan:
  • Check the power supply (Red wire) for 9-32V DC.
  • Verify the ground connection (Black wire).
  • Ensure all wiring is securely connected.
• Bacaan teu akurat:
  • spedometer: Pastikeun anteneu GPS boga jelas view ti langit.
  • Tachometer: Verify the PULSE setting matches your engine's specifications. If unsure, consult your engine manual or contact support.
  • Fuel Level/Water Temp/Oil Pressure: Check the sensor connections and ensure the gauge's settings (OIL, ATER, OILP) match the installed sensors.
• Display Issues (e.g., hard to see in sunlight): While the unit features a TFT screen, extreme direct sunlight can sometimes affect visibility. Try adjusting the viewing angle or providing shade if possible.
• Fungsi Alarm: Ensure all alarm thresholds are set correctly in the configuration mode (if applicable, not explicitly detailed in provided features but implied by "with alarm design").

If problems persist after following these steps, please contact MAIMEIMI customer support.

9. Spésifikasi

10. Garansi jeung Rojongan

For warranty information or technical support, please refer to the documentation included with your purchase or contact MAIMEIMI customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
