1. Bubuka
The Lanaform WL-100C is a versatile device designed to enhance your sleep and wake-up experience through light and sound simulation. It functions as a smart alarm clock, a bedside lamp, and a sleep aid, offering both sunrise and sunset simulations. This manual provides detailed instructions for setting up, operating, and maintaining your WL-100C device.
Image 1.1: Lanaform WL-100C device with its mobile application interface.
2. Émbaran Kasalametan
- Baca sadaya parentah sateuacan dianggo sareng tahan pikeun rujukan ka hareup.
- Do not immerse the device or power adapter in water or other liquids.
- Paké ngan adaptor kakuatan disadiakeun.
- Jauhkeun alat tina sumber panas sareng sinar panonpoé langsung.
- Ulah nyobian ngabongkar atanapi ngalereskeun alat nyalira. Hubungi petugas servis anu mumpuni.
- Pastikeun alat disimpen dina permukaan datar anu stabil.
3. Eusi Paket
Pastikeun yén sadaya item aya dina bungkusan:
- Lanaform WL-100C Smart Sunrise & Sunset Simulator
- Adaptor kakuatan
- Manual pangguna (dokumén ieu)

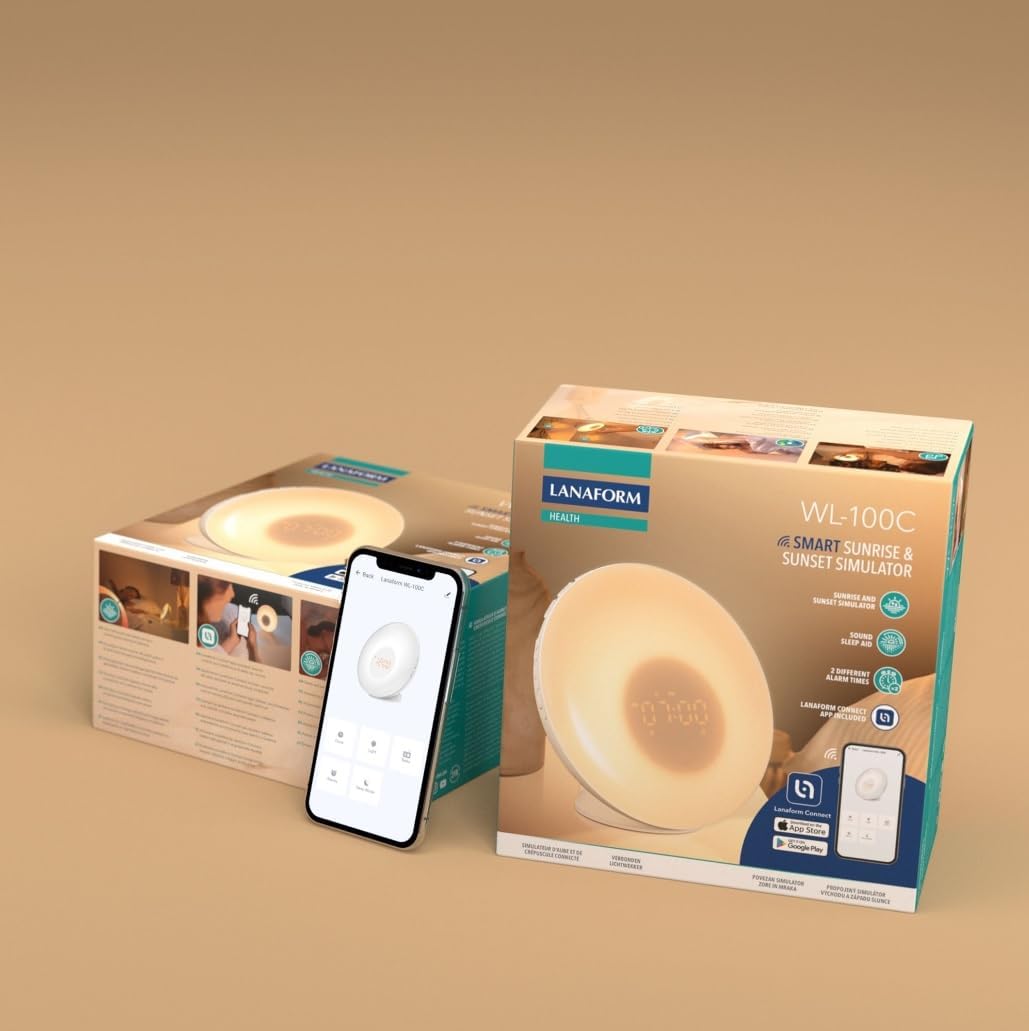

Image 3.1: The Lanaform WL-100C device and its packaging.
4. Alat Leuwihview
The WL-100C features an intuitive design with accessible controls and a clear display. Familiarize yourself with the main components:
- Panel hareup: Light panel, digital time display.
- Tombol Luhur: Control various functions such as time setting, alarm activation, light intensity, sound selection, and FM radio.
- Panel Pungkur: Power input, USB charging port, FM antenna.
Gambar 4.1: Hareupeun view of the Lanaform WL-100C device.
5. Setélan
5.1 Sambungan Daya
- Connect the power adapter to the DC input port on the rear of the WL-100C.
- Plug the adapter into a standard wall outlet. The device will power on and the display will illuminate.
5.2 App Installation (Lanaform Connect)
For advanced features and convenient control, download the Lanaform Connect application:
- Scan the QR code provided in the packaging or search for "Lanaform Connect" on the Apple App Store or Google Play Store.
- Pasang aplikasi dina smartphone Anjeun.
5.3 Nyapasangkeun Bluetooth
To connect the device to the Lanaform Connect app:
- Pastikeun Bluetooth diaktipkeun dina smartphone Anjeun.
- Open the Lanaform Connect app.
- Follow the in-app instructions to discover and pair with your WL-100C device. The device name will typically appear as "Lanaform WL-100C".
Image 5.1: Controlling the WL-100C via the Lanaform Connect mobile application.
6. Parentah Operasi
6.1 Setélan Waktu
The time can be set manually using the device buttons or automatically via the Lanaform Connect app after pairing.
6.2 Sunrise Simulation (Wake-up Light)
The sunrise simulation gradually increases light intensity over 30 minutes before your set alarm time, transitioning to a bright yellow light to simulate natural dawn.
- Aktipkeun: Enable this feature through the alarm settings on the device or via the app.
- Lilana: Fixed at 30 minutes prior to the alarm.
6.3 Sunset Simulation (Sleep Aid)
The sunset simulation gradually decreases light intensity, promoting a peaceful transition to sleep. You can set the duration for 15, 30, or 60 minutes.
- Aktipkeun: Select the sunset mode on the device or through the app.
- Lilana: Choose 15, 30, or 60 minutes for the light to dim completely.
6.4 Setélan alarem
The WL-100C supports two customizable alarms.
- Setélan Alarm: Use the dedicated alarm buttons on the device or the alarm section in the Lanaform Connect app to set desired wake-up times.
- Pilihan sora: Choose from 6 neutral sounds or select an FM radio station as your alarm sound.
- Volume: Adjust the alarm volume to your preference.
6.5 Operasi Radio FM
The integrated FM radio can be used as an alarm sound or for general listening.
- Ngepaskeun: Use the radio function buttons to scan for and save FM stations.
- anteneu: Ensure the FM antenna on the rear of the device is extended for optimal reception.
6.6 Bedside Lamp Fungsi
The device can be used as a regular bedside lamp kalayan kacaangan sareng suhu warna anu tiasa diatur.
- Caang: Adjust light intensity using the dedicated light control buttons or the app.
- warna: Customize light colors and ambiances via the Lanaform Connect app.
6.7 Fungsi Tunda
When an alarm sounds, press the Snooze button (usually located on top of the device) to temporarily pause the alarm and extend your sleep for a short period (e.g., 9 minutes). The alarm will sound again after the snooze period.
6.8 Palabuhan Ngecas USB
A USB port is available on the rear of the device for charging external devices like smartphones.
- Connect your device's USB charging cable to the WL-100C's USB port.
- Ensure the WL-100C is powered on for charging functionality.
6.9 App Control vs. Manual Control
All primary functions of the WL-100C can be controlled manually using the buttons on the device. For more detailed customization, such as specific light ambiances, advanced alarm scheduling, and sound selection, the Lanaform Connect application offers a comprehensive interface.
Gambar 6.1: Leuwihview of the WL-100C's multiple functions and customizable experience.
7. Pangropéa
7.1 beberesih
- Sateuacan beberesih, cabut colokan alat tina stop kontak listrik.
- Ngusap bagian luar ku kaén anu lemes sareng garing.
- Ulah make cleaners abrasive, pangleyur, atawa bahan kimia kasar.
7.2 Panyimpenan
If storing the device for an extended period, unplug it and keep it in a cool, dry place, away from direct sunlight and moisture.
8. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Alat teu hurung. | Adaptor listrik teu nyambung atanapi lepat. | Ensure the power adapter is securely plugged into the device and a working outlet. Try a different outlet. |
| Alarm teu disada. | Alarm teu diaktipkeun atawa volume teuing leutik. | Check alarm settings on the device or app. Increase alarm volume. |
| Sunrise/Sunset simulation not working. | Feature not enabled or incorrect settings. | Verify that the simulation is enabled and configured correctly in the alarm or sleep settings. |
| Cannot connect to Lanaform Connect app. | Bluetooth pareum atanapi alatna aya di luar jangkauan. | Ensure Bluetooth is enabled on your smartphone. Bring the device closer to your phone. Restart both the app and the device. |
| panarimaan radio FM goréng. | Antena teu manjang atanapi sinyalna lemah. | Fully extend the FM antenna. Try repositioning the device for better signal. |
9. Spésifikasi
- Jumlah modél: 1625
- Ukuran produk (L x W x H): 17.5 x 8.5 x 17.5 cm
- beurat: 400 gram
- Sumber Daya: AC/DC Adapter (Input: 100-240V, Output: 5V)
- Konektipitas: Bluetooth
- Fitur: Sunrise/Sunset Simulation, 2 Alarms, FM Radio, 6 Natural Sounds, Snooze Function, USB Charging Port, Bedside Lamp
- Pabrikan: Lanaform
- Negara asal: Bélgia
10. Émbaran jaminan
Lanaform products are manufactured to high-quality standards. For detailed warranty terms and conditions, please refer to the official Lanaform websitus atanapi kartu garansi anu kalebet dina pameseran anjeun. Simpen bukti pameseran anjeun pikeun klaim garansi naon waé.
11. Rojongan
For further assistance, technical support, or inquiries regarding your Lanaform WL-100C, please visit the official Lanaform website or contact their customer service department. Contact details can typically be found on the Lanaform websitus atanapi dina bungkusan produk Anjeun.
Websitus: www.lanaform.com
