Gorenje GGI9C20B Freestanding Gas Cooker

1. Bubuka

This manual provides essential information for the safe and efficient use of your Gorenje GGI9C20B Freestanding Gas Cooker. Please read all instructions carefully before installation, operation, and maintenance. Keep this manual for future reference.

2. Émbaran Kasalametan

Perhatosan Kaamanan Penting:

• Ensure proper ventilation in the kitchen when the appliance is in use.
• This appliance must be installed by a qualified technician in accordance with local regulations and gas safety standards.
• Do not store flammable materials near the cooker.
• Always supervise cooking, especially when using high heat.
• Jauhkeun barudak sareng piaraan tina alat salami operasi.
• The appliance surfaces become hot during use. Use oven mitts when handling hot items.
• Ulah nganggo pembersih anu abrasif atanapi barang seukeut anu tiasa ngaruksak permukaan.

3. Setup jeung Instalasi

Proper installation is crucial for the safe and optimal performance of your gas cooker. It is highly recommended that installation be performed by a certified professional.

3.1 Ngabongkar bungkusan

Carefully remove all packaging materials. Inspect the cooker for any signs of damage. Report any damage to your retailer immediately.

3.2 Nempatkeun jeung Dimensi

Position the cooker on a stable, level surface. Ensure adequate clearance from adjacent walls and cabinets as specified in the installation guide provided with the appliance. The cooker's dimensions are approximately 60 cm (Depth) x 90 cm (Width) x 87 cm (Height).

Figure 3.2.1: Gorenje GGI9C20B Gas Cooker with indicated dimensions for installation planning.

3.3 Gas and Electrical Connection

All gas and electrical connections must be carried out by a qualified and authorized technician. Ensure the gas supply pressure is correct and that the electrical supply matches the appliance's requirements (220V).

3.4 beberesih Awal

Before first use, clean the hob and oven interior with a damp cloth and mild detergent. Ensure all surfaces are dry before operating the cooker.

Gambar 3.4.1: Hareupeun view of the Gorenje GGI9C20B, ready for initial cleaning and setup.

4. Parentah Operasi

Familiarize yourself with the controls before operating the cooker.

Figure 4.0.1: Control panel and hob layout of the Gorenje GGI9C20B.

4.1 Hob Operation

Your cooker features 5 gas burners, including a powerful wok burner, and robust cast iron pan supports.

1. ignition: The cooker is equipped with a one-hand ignition device. To ignite a burner, press the corresponding knob down and rotate it counter-clockwise to the desired flame level. The igniter will spark automatically. Hold the knob for a few seconds after ignition to allow the thermocouple to heat up and activate the gas flow.
2. Penyesuaian seuneu: Rotate the knob to adjust the flame size. A larger flame provides more heat.
3. Pembakar Wok: The central wok burner is designed for high-heat cooking with a wok or large pans. Ensure the wok is properly seated on the dedicated support.
4. Pareuman: Rotate the knob clockwise until it clicks into the 'off' position.

4.2 Operasi Oven

The 105-litre multifunction oven features a fan for even heat distribution and catalytic self-cleaning sides.

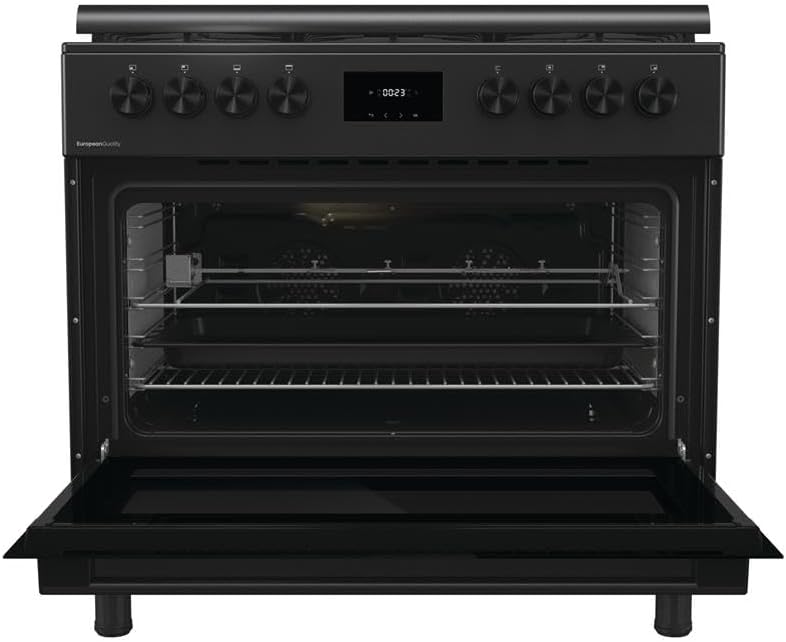

Figure 4.2.1: Interior of the Gorenje GGI9C20B oven with racks.

1. Pilihan fungsi: Use the oven function selector knob to choose the desired cooking mode (e.g., conventional baking, fan-assisted, grill).
2. Setélan suhu: Use the temperature control knob to set the desired oven temperature. The digital display may show the current temperature or a timer.
3. Preheating: Pikeun hasil anu pangsaéna, panasan heula oven kana suhu anu dipikahoyong sateuacan neundeun kadaharan di jerona.
4. Rak Oven: Position the oven racks at the appropriate height for your dish. The oven comes with 2 racks.
5. Lampu Oven: The oven light can be switched on to monitor cooking progress without opening the door.
6. Catalytic Self-Cleaning: The oven features catalytic panels on the sides that absorb and break down grease during normal cooking temperatures. For heavy soiling, run the oven at its maximum temperature for approximately one hour. Ensure the oven is empty during this process.

5. Pangropéa jeung beberesih

Regular cleaning and maintenance will prolong the life and efficiency of your cooker.

5.1 Kompor beberesih

• Allow the hob and pan supports to cool completely before cleaning.
• Remove the cast iron pan supports and burner caps/crowns. Wash them with warm soapy water. For stubborn stains, a non-abrasive cleaner suitable for cast iron can be used.
• Ngusap beungeut hob ku damp lawon jeung detergent hampang. Garing tuntas.
• Do not use abrasive pads, scourers, or harsh chemicals as they can damage the finish.

5.2 beberesih Oven

• Pastikeun ovenna tiis sateuacan dibersihkeun.
• The catalytic panels on the oven sides are self-cleaning. For other interior surfaces, wipe with a damp lawon jeung detergent hampang.
• The oven door features double glazing. Clean the glass with a glass cleaner, avoiding direct spray onto the seals.
• Remove oven racks and wash them in warm soapy water or a dishwasher.

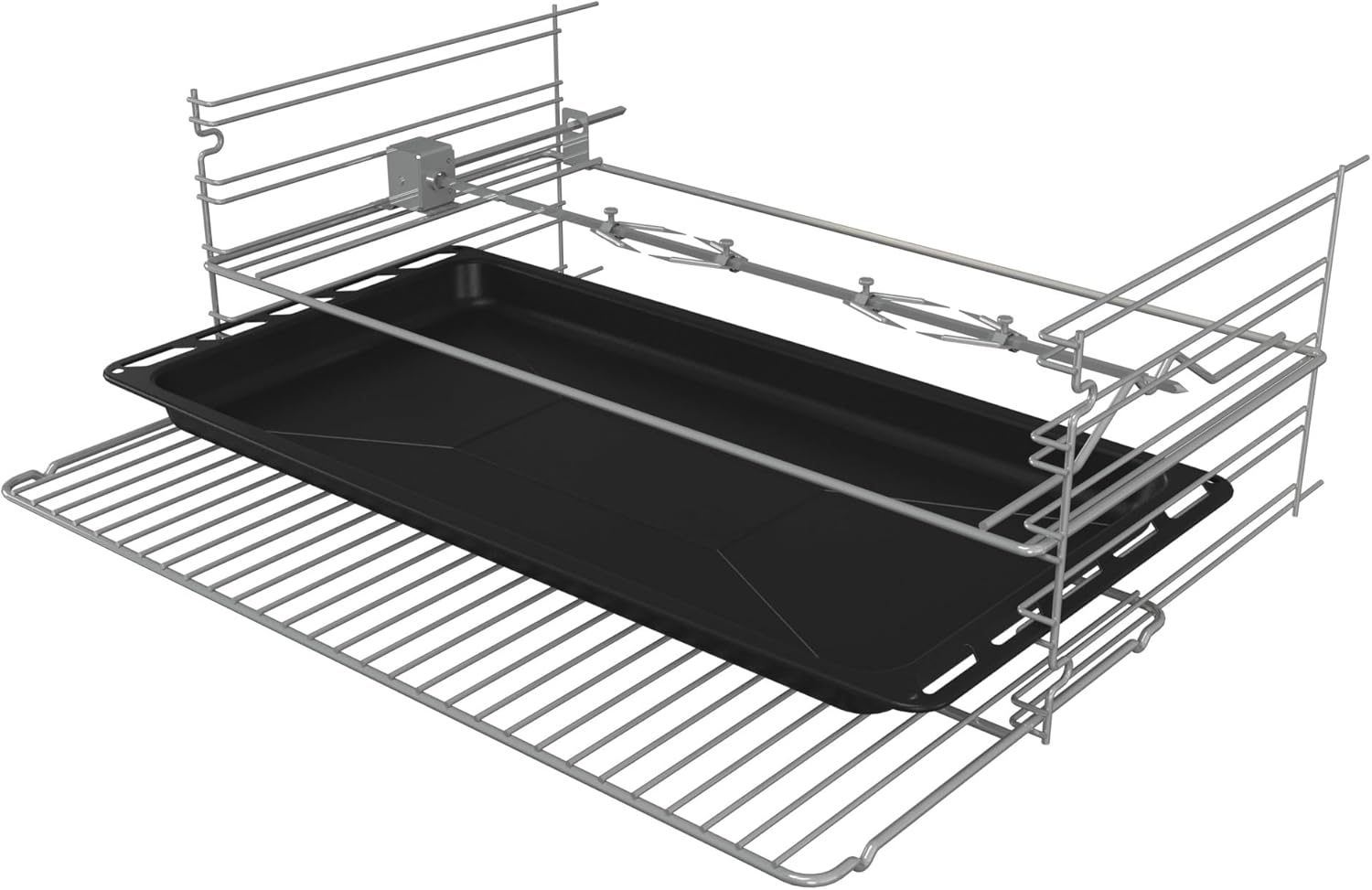

Figure 5.2.1: Oven accessories, including racks and tray, which can be removed for cleaning.

6. Cara ngungkulan

Sateuacan ngahubungan jasa, pariksa masalah umum ieu:

Upami masalahna teras-terasan saatos nyobian solusi ieu, mangga ngahubungi dukungan palanggan Gorenje atanapi teknisi layanan anu mumpuni.

7. Spésifikasi

Key technical specifications for the Gorenje GGI9C20B Freestanding Gas Cooker:

• model: GGI9C20B
• merek: Gorenje
• Tipe: Kompor Gas Freestanding
• Ukuran (L x W x H): 87 x 90 x 60 cm
• beurat: 68 kg
• Kapasitas Oven: 105 liter
• Jumlah Burners: 5 (including Wok burner)
• Pangrojong Pan: Beusi tuang
• ignition: One-hand ignition device
• Keunggulan Oven: Multifunction, Fan-assisted, Catalytic Self-Cleaning sides, Double glazed oven door
• Tipe Kontrol: Kenop
• tampilan: Témbongkeun Digital
• Voltage: 220V
• rengse: Matt Hideung

8. Garansi jeung Rojongan

Your Gorenje GGI9C20B Freestanding Gas Cooker comes with a Garansi 1 Taun ti tanggal beuli. Punten tahan bukti pameseran anjeun pikeun klaim garansi.

For technical assistance, spare parts, or warranty service, please contact Gorenje customer support. Refer to the contact information provided with your purchase documentation or visit the official Gorenje websitus pikeun detil rojongan régional.

Always ensure that any repairs or servicing are carried out by authorized service personnel to maintain the validity of your warranty and ensure safety.
