Buku Panduan Pangguna Bel Panto Nirkabel TECKNET

Bubuka

Thank you for choosing the TECKNET Wireless Doorbell. This manual provides detailed instructions for setting up, operating, and maintaining your new doorbell system. Please read this manual thoroughly before use to ensure proper functionality and to maximize your product experience.

The TECKNET Wireless Doorbell system is designed for convenience and reliability, featuring a long wireless range, multiple chime options, adjustable volume levels, and a durable, waterproof design suitable for various environments.

Eusi pakét

Punten parios yén sadaya barang anu didaptarkeun di handap kalebet kana pakét anjeun:

1 × Pemancar (Tombol Pencét)
2 × Panarima Colokkeun
1 × Adhesive Tape for Transmitter Mounting
2 × Screws for Transmitter Mounting
2 × Anchors for Transmitter Mounting
1 × User Manual (This Document)

TECKNET Wireless Doorbell Kit with one push button and two receivers

Image: The complete TECKNET Wireless Doorbell kit, including the transmitter and two plug-in receivers.

Fitur konci

1300ft Long Wireless Range: Ensures reliable signal transmission through various obstacles like cement, wood, and brick walls, providing extensive coverage for your home or property.
IP65 Waterproof & Energy-saving: The transmitter is built with eco-friendly ABS materials and features an IP65 waterproof rating, making it suitable for outdoor installation in diverse weather conditions. Intelligent power management provides an ultra-low power consumption and a 4.5-year lifespan for the push button.
60 Ringtones & 5 Volume Levels: Choose from 60 pleasant chimes and adjust the volume across 5 levels, from a silent 0dB to a loud 120dB, catering to different needs including those with hearing impairments or when quiet is required.
3 Modeu Gawé: Customize the doorbell's operation with options for LED light flashing only (for silent alerts or hearing impaired), ringing only, or a combination of ringing and LED light flashing.
Expandable & Multifunctional: Utilizes high-frequency electronic technology for strong anti-interference, allowing multiple units to operate independently. Beyond a doorbell, it can serve as a night light or a pager for the elderly.
Fungsi mémori: The doorbell system retains your last selected melody and volume level even after a power outage, ensuring consistent performance.

Infographic showing 60 chime tunes, 5 volume levels, 3 working modes, and 0-120dB volume range.

Image: Visual representation of the doorbell's features including chime tunes, volume levels, and working modes.

Diagram illustrating 400M/1300ft wireless range from transmitter to receiver through a house.

Image: Illustration of the extensive 1300ft wireless range, demonstrating signal penetration through various building materials.

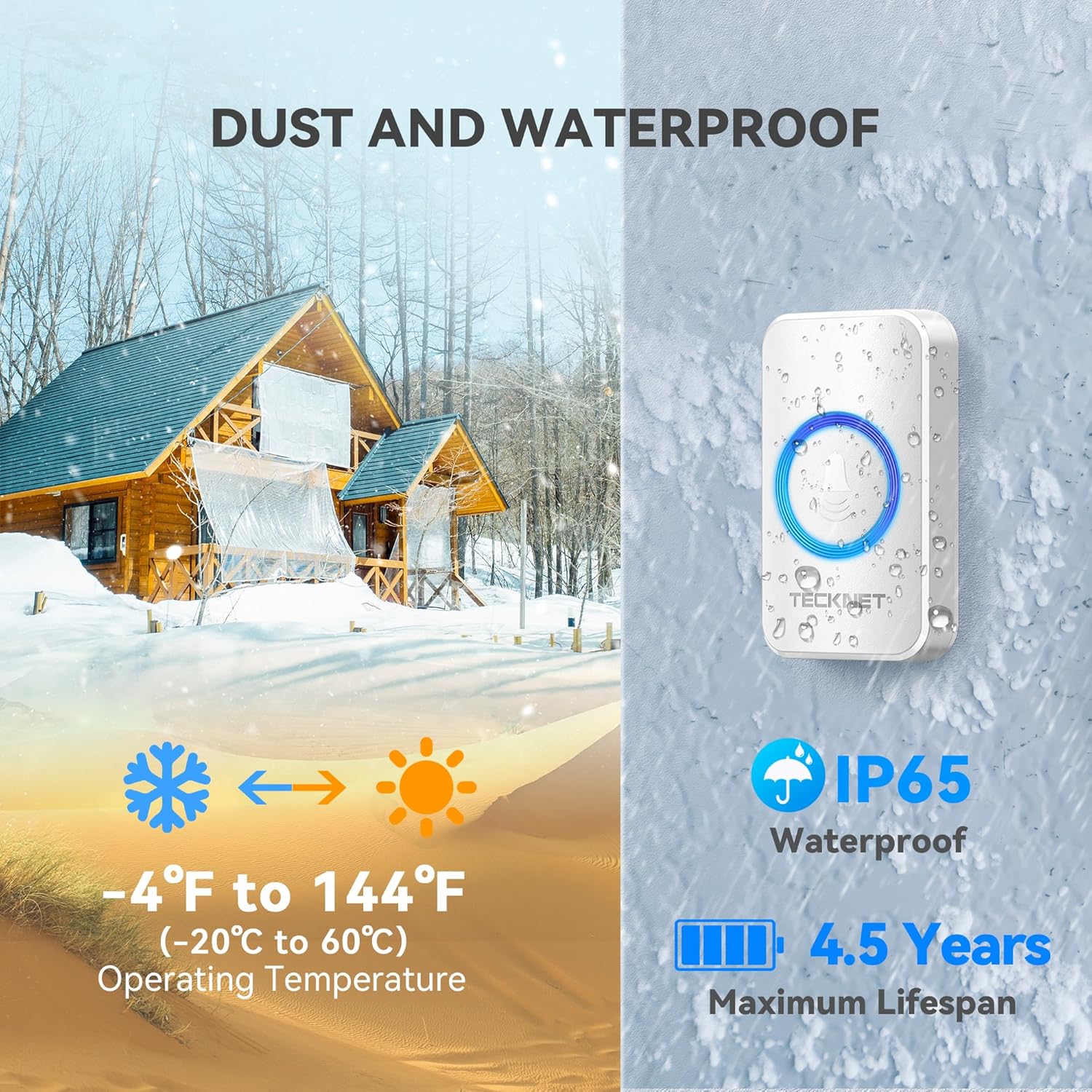

Image showing the doorbell transmitter in snowy and rainy conditions, highlighting IP65 waterproof rating and operating temperature range.

Image: The doorbell transmitter's IP65 waterproof rating and ability to withstand extreme temperatures.

Image showing a receiver with musical notes and a volume slider, indicating memory function.

Image: The memory function of the receiver, which saves the last set melody and volume level.

Disetél

1. Pamasangan Pemancar (Tombol Pencét)

The transmitter can be installed using either the provided adhesive tape or screws.

Method 1: Using Adhesive Tape
Clean the desired mounting surface thoroughly to ensure it is dry and free of dust or debris. Peel off the protective film from one side of the adhesive tape and apply it firmly to the back of the transmitter. Then, peel off the film from the other side and press the transmitter firmly onto the cleaned surface for at least 30 seconds.
Métode 2: Ngagunakeun Screws
Open the back cover of the transmitter. Mark the desired drilling points on the wall. Drill two holes at the marked positions and insert the provided anchors. Secure the transmitter's back cover to the wall using the screws. Snap the front part of the transmitter onto the secured back cover.

Two methods of installing the doorbell transmitter: using adhesive tape and using screws.

Image: Detailed steps for installing the transmitter using either adhesive tape or screws.

Person pressing the TECKNET wireless doorbell button installed on a wall.

Image: The doorbell transmitter installed and ready for use.

2. Setelan Panarima

Simply plug the receiver into any standard electrical outlet within the wireless range of the transmitter. Ensure the outlet is easily accessible and not obstructed.

TECKNET wireless doorbell receiver plugged into a wall outlet.

Image: The doorbell receiver plugged into a standard wall outlet.

Parentah Operasi

Once installed, your TECKNET Wireless Doorbell is ready for use. The following sections detail how to customize its settings.

Nyaluyukeun Tingkat Volume

The receiver offers 5 adjustable volume levels, ranging from 0dB (mute) to 120dB. To adjust the volume, locate the volume button on the side of the receiver and press it repeatedly until you reach your desired volume level. The LED indicator will flash to confirm the change.

Video: This video demonstrates how to adjust the volume levels on the TECKNET Wireless Doorbell receiver, showcasing the different sound intensities.

Image showing the doorbell receiver with different volume levels indicated from 0dB to 120dB, including a mute mode.

Image: Visual guide to the five volume levels, including the mute option, for the doorbell receiver.

Changing Ringtones

Your doorbell comes with 60 unique ringtones. To cycle through the available melodies, press the melody selection button on the side of the receiver. Each press will play the next ringtone. Stop pressing when you find your preferred chime.

Video: This video demonstrates how to change the ringtones on the TECKNET Wireless Doorbell receiver, showcasing a selection of the 60 available melodies.

Selecting Working Modes

The doorbell offers three working modes: LED+Ring tone, Ring tone only, and LED Flash only. To switch between modes, press the mode selection button on the side of the receiver. This allows you to choose the best alert method for your environment, such as silent flashing for sleeping babies or for individuals with hearing impairments.

Video: This video demonstrates how to cycle through the three working modes of the TECKNET Wireless Doorbell receiver: LED+Ring tone, Ring tone only, and LED Flash only.

Image showing a person pressing the doorbell and two scenarios: a person cooking and a couple watching TV, indicating the doorbell is loud enough for hearing impaired.

Image: The doorbell's effectiveness in various home environments, highlighting its suitability for individuals with hearing impairments.

Pangropéa

To ensure the longevity and optimal performance of your TECKNET Wireless Doorbell, follow these simple maintenance guidelines:

beberesih: Wipe the transmitter and receivers with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as they may damage the surface.
Transmitter Battery Replacement: The push button transmitter is designed for ultra-low power consumption with an estimated 4.5-year battery life. When the battery needs replacement, the LED indicator on the transmitter may dim or fail to light up when pressed, or the signal range may decrease. To replace the battery, carefully open the transmitter casing and replace the CR2032 battery with a new one, ensuring correct polarity.
Kaayaan Lingkungan: While the transmitter is IP65 waterproof, avoid submerging it in water. Ensure receivers are kept indoors and away from direct moisture.

Image showing the doorbell transmitter with an inset of a CR2032 battery, indicating 4.5 years of battery life.

Image: The long-lasting battery life of the transmitter, highlighting the CR2032 battery type.

Pamérésan masalah

If you encounter any issues with your TECKNET Wireless Doorbell, please refer to the following table for common problems and their solutions:

Masalah	Mungkin Cukang lantaranana	Solusi
Receiver does not ring.	Receiver teu dicolokkeun atanapi teu aya daya. Transmitter battery is low or dead. Distance between transmitter and receiver is too far or there is significant interference. Pemancar sareng panarima henteu dipasangkeun.	Pastikeun panarima geus aman plugged kana stop kontak gawé. Replace the CR2032 battery in the transmitter. Reduce the distance or relocate the receiver to an area with less interference (e.g., away from large metal objects, thick walls). Refer to the pairing instructions (if applicable, usually automatic or simple pairing process).
Jarak nirkabel anu pondok.	Obstacles (thick walls, metal structures) between units. Gangguan tina alat nirkabel anu sanés. Batré pemancar lemah.	Relocate receiver or transmitter to minimize obstacles. Move the doorbell system away from other electronic devices. Ganti batré pamancar.
Alarm palsu.	Interference from nearby wireless devices. Environmental factors (extreme temperature changes, strong winds if not securely mounted).	Change the operating frequency (if supported, not explicitly mentioned but common for interference). Ensure the transmitter is securely mounted and protected from extreme weather.

spésifikasi

Fitur	Rincian
Nomer modél	WA888
Range nirkabel	Up to 1300ft (400m) in open air
Nada dering	60 lonceng anu tiasa dipilih
Tingkat Volume	5 tingkat (0dB dugi ka 120dB)
Modeu Gawé	LED+Ring tone, Ring tone, LED Flash
Rating Tahan Cai Pemancar	IP65
Suhu Operasi	-4°F nepi ka 140°F (-20°C nepi ka 60°C)
Kahirupan batré pamancar	Approx. 4.5 years (CR2032 battery)
Bahan	ABS
Diménsi Produk (Pemancar)	2.8 x 1.6 inci (kira-kira.)
Diménsi Produk (Panarima)	2.9 x 2.9 x 1.18 inci (kira-kira)
Item Beurat	8.4 ons (total pakét)

Diagram showing compact mini size of transmitter and receiver with dimensions.

Image: Dimensions of the compact transmitter and receiver units.

Garansi sareng Rojongan

TECKNET offers an incredible garansi 3 taun for all customers on this wireless doorbell. This warranty covers manufacturing defects and ensures your peace of mind.

Should you encounter any issues or concerns during the use of your TECKNET Wireless Doorbell, our professional customer service team is always available to assist you and answer your questions. Please contact us through the retailer's support channels or visit the official TECKNET websitus pikeun pitulung.

We are committed to providing high-quality products and ensuring your satisfaction.
