FLYLINKTECH BD10 Car Jump Starter User Manual

Bubuka

This manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of your FLYLINKTECH BD10 Car Jump Starter. Please read this manual thoroughly before using the device to ensure proper function and safety.

Image: The BD10 Car Jump Starter unit with its attached red and black jumper cables, ready for use. The unit features a large digital display showing 100% charge.

Émbaran Kasalametan

Always observe the following safety precautions to prevent injury or damage to the device and vehicle:

• Ulah nyobian luncat ngamimitian batré beku.
• Pastikeun sambungan polaritas anu leres (beureum clamp mun positif, hideung clamp ka négatif) pikeun nyingkahan percikan api atanapi karusakan.
• Ulah nyambungkeun cl positif jeung negatifamps babarengan.
• Jauhkeun alat ti barudak.
• Do not expose the device to rain or immerse it in water. The device has an IP65 water resistance rating, but prolonged exposure should be avoided.
• Operate the device within the specified temperature range of -20°C to 60°C (-4°F to 140°F).
• If the device becomes excessively hot during use, discontinue operation and allow it to cool down.
• Ulah dibongkar alatna. Serahkan sadaya perawatan ka tanaga anu mumpuni.
• Anggo pelindung panon nalika damel sareng batré.

Image: Diagram illustrating the high safety features of the BD10 Jump Starter, including Spark-Proof, Reverse Polarity Protection, Over VoltagProtéksi e, Protéksi Sirkuit Pendek, Protéksi Muatan Leuwih, sareng Protéksi Suhu Luhur.

Naon dina Box

Saatos muka bungkusan, pariksa yén sadaya item di handap ieu kalebet:

• FLYLINKTECH BD10 Car Jump Starter Unit
• Kabel Jumper Pinter nganggo Clamps
• USB-C kana Kabel Ngecas USB-C
• USB-A ka USB-C ngecas Cable
• DC Car Charger Adapter
• Manual pangguna (dokumén ieu)
• Panyimpenan Case

Image: A flat lay of all items included in the product box: the jump starter unit, jumper cables, charging cables, DC adapter, user manual, and storage case.

Produk Leuwihview

The BD10 jump starter features a robust design with multiple functionalities:

• Tampilan LED Digital: Shows battery level, power status (IN/OUT), and error indicators.
• Tombol naekeun: For initiating the jump start function.
• Tombol Daya: To turn the device on/off and cycle through flashlight modes.
• USB-C Port (PD45W): Bi-directional port for charging the unit and charging other devices.
• USB-A Ports (x2, 18W max each): Pikeun ngecas alat sélulér.
• DC Output Port (15V/10A): Pikeun ngadayakeun alat 12V DC.
• Palabuhan Mimitian Luncat: Pikeun nyambungkeun kabel jumper pinter.
• Senter LED terpadu: With illumination, fast flashing, and SOS modes.

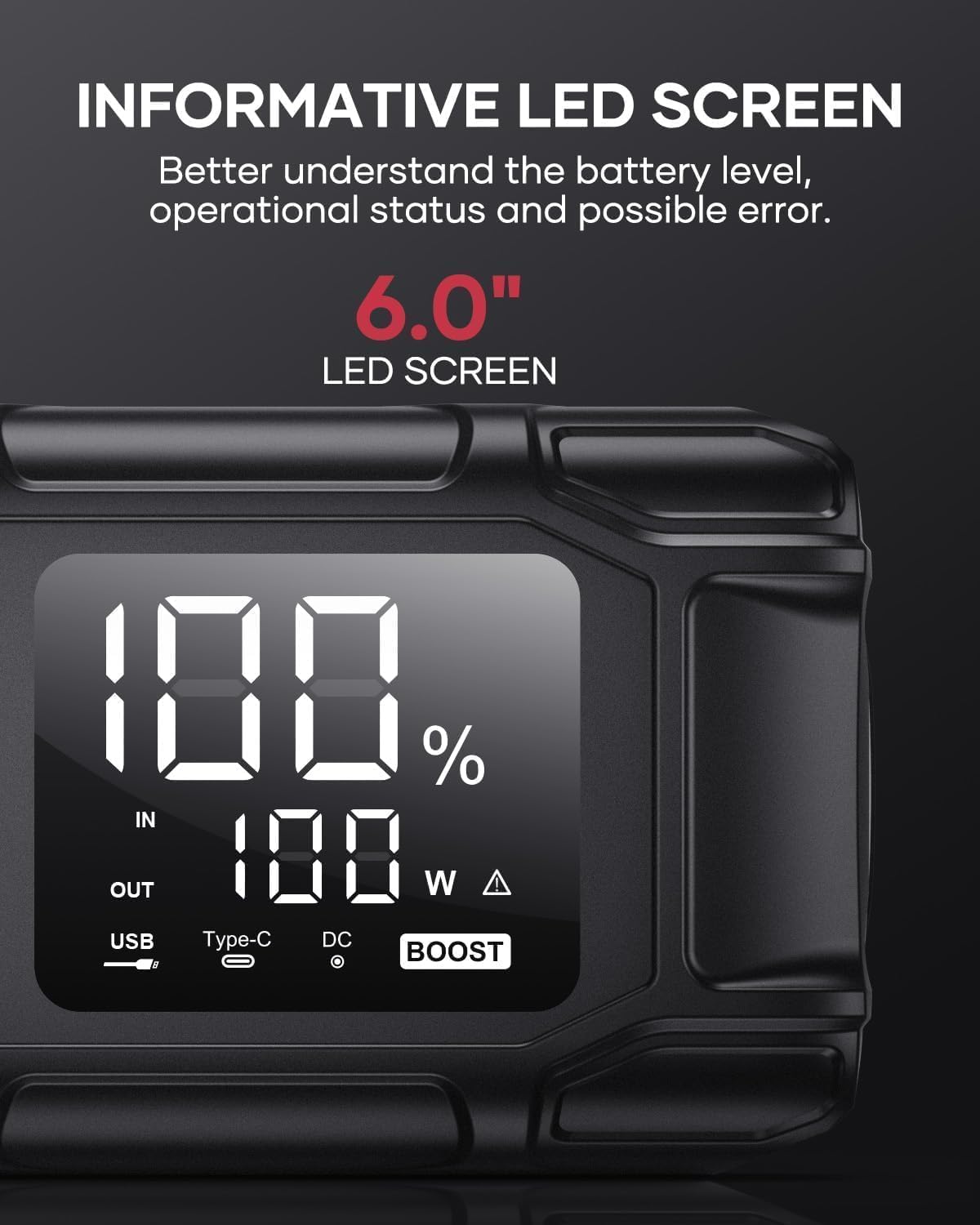

Image: Close-up of the BD10's informative 6.0-inch LED screen, clearly showing the battery percentage (100%), input/output status, and wattage.

Image: The BD10 Jump Starter with its integrated LED flashlight active, demonstrating its utility as an emergency light source with flashlight, SOS, and strobe modes.

Disetél

Ngecas Starter Luncat

Before first use, fully charge the BD10 jump starter. It is recommended to keep the device charged above 50% for optimal performance and battery longevity.

1. Sambungkeun kabel USB-C anu disayogikeun kana port input USB-C dina jump starter.
2. Connect the other end of the USB-C cable to a compatible USB wall charger (not included, 45W PD charger recommended for fastest charging).
3. The LED display will show "IN" and the charging percentage. The device is fully charged when the display shows 100%.

Note: A 45W PD charger can fully charge the unit in approximately 2 hours. Lower wattage chargers will take longer.

Image: The BD10 Jump Starter connected via its USB-C port for fast charging, with a table showing estimated charge times based on charger wattage (5W, 18W, 45W).

Parentah Operasi

Luncat Mimitian Kandaraan

The BD10 is designed to jump start 12V vehicles with all gas engines or diesel engines up to 12.0L.

1. Ensure the jump starter is sufficiently charged (at least 50%).
2. Pareuman konci kontak kandaraan sareng sadaya asesorisna (lampu, radio, jsb.).
3. Insert the blue plug of the smart jumper cables into the jump start port on the BD10 unit. Ensure it is fully seated.
4. Nyambungkeun beureum positip (+) clamp ka terminal positif (+) batré kendaraan.
5. Nyambungkeun hideung négatip (-) clamp ka terminal négatif (-) batré kandaraan.
6. Perhatikeun lampu indikator dina kabel jumper pinter.
   • Héjo padet: Siap pikeun ngamimitian langsung.
   • Solid Red with Beeping: Polaritas tibalik kadeteksi. Pegatkeun sambungan clamps sareng pasangkeun deui kalayan leres.
   • Héjo kedip-kedip: Batré voltage is too low. Press the "BOOST" button on the jump starter. The indicator will turn solid green.
7. Once the indicator is solid green, start the vehicle's engine.
8. Sakali kendaraan dihurungkeun, langsung cabut konci naamps from the vehicle battery, first the black negative clamp, teras cl positif beureumamp.
9. Disconnect the smart jumper cables from the BD10 unit.

Image: The BD10 Jump Starter connected to a car battery under the hood, demonstrating its primary function. The image highlights its 6000A peak current capability and suitability for various engine sizes.

Image: A four-step visual guide on how to start a car using the BD10: 1. Insert the clamp plug, 2. Attach clamps, 3. Power ON (Boost), 4. Start Vehicle.

Ngagunakeun salaku Power Bank

The BD10 can charge various electronic devices via its USB-A and USB-C ports.

1. Connect your device's charging cable to one of the USB-A ports or the USB-C port on the BD10.
2. The BD10 will automatically begin charging your device. The LED display will show "OUT" and the wattage keur output.

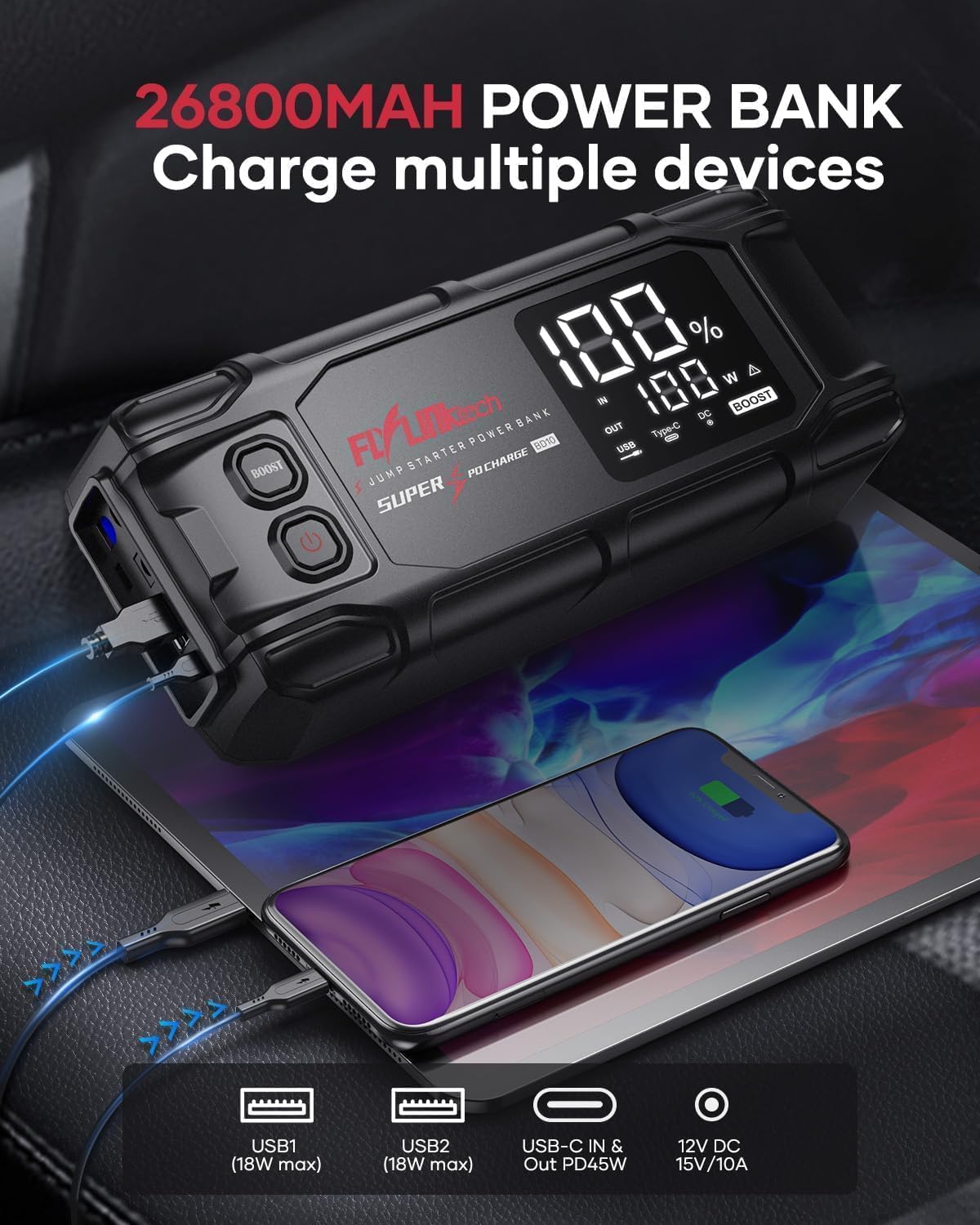

Image: The BD10 Jump Starter functioning as a power bank, simultaneously charging a smartphone and a tablet via its USB-A and USB-C ports, highlighting its 26800mAh capacity.

Nganggo Senter LED

The integrated LED flashlight has three modes: illumination, fast flashing, and SOS.

1. Press and hold the Power button for 3 seconds to turn on the flashlight (illumination mode).
2. Press the Power button once to switch to fast flashing mode.
3. Press the Power button again to switch to SOS mode.
4. Press the Power button one more time to turn off the flashlight.

Pangropéa

• Ngecas: Recharge the unit every 3-6 months, even if not used, to maintain battery health.
• beberesih: Lap unitna ku lawon anu garing sareng lemes. Entong nganggo bahan kimia anu keras atanapi pembersih anu abrasif.
• Panyimpenan: Store the jump starter in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided storage case for protection.
• Perawatan batré: Hindarkeun sering-sering ngecas batré pikeun manjangkeun umurna.

Pamérésan masalah

If you encounter issues with your BD10 jump starter, refer to the following common problems and solutions:

Image: Diagram showing various alarm situations and their corresponding beeping patterns or display indicators, such as low voltage, éksternal voltage too high, short circuit, safety mode, overcurrent, temperature issues, and reverse connection.

spésifikasi

Image: A visual representation of the BD10's capability to jump start various engine sizes, from 1.5L to 12.0L, emphasizing its 8000A peak current. The image also highlights 12V, All Gas, 12.0L Diesel, and 26800mAh Battery Capacity.

Garansi sareng Rojongan

FLYLINKTECH provides a limited warranty for the BD10 Car Jump Starter. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact FLYLINKTECH customer service through the following channels:

• Surélék: Refer to your product packaging or warranty card for the most current contact email.
• Websitus: Visit the official FLYLINKTECH websitus pikeun sumber rojongan tur inpo kontak.
• Toko Amazon: Anjeun ogé tiasa ngahubungi via FLYLINKTECH Store on Amazon.

Please have your product model number (BD10) and purchase date ready when contacting support.
