Manual Pamaké Blower Daun Tanpa Kabel Henx 40V

1. Bubuka

Thank you for choosing the Henx 40V Cordless Leaf Blower. This manual provides important information for the safe operation, assembly, maintenance, and troubleshooting of your new leaf blower. Please read this manual thoroughly before using the product and keep it for future reference.

The Henx 40V Cordless Leaf Blower is designed for clearing leaves, debris, and light snow from hard surfaces like driveways, sidewalks, patios, and lawns. Its ergonomic design and adjustable speed feature provide efficient and comfortable operation.

2. Émbaran Kasalametan penting

Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat-alat listrik pikeun ngirangan résiko seuneu, kejutan listrik, sareng tatu pribadi.

Peringatan Kasalametan Umum:

• Baca sadaya pitunjuk sateuacan ngaoperasikeun alat.
• Wear appropriate personal protective equipment (PPE) such as safety glasses, hearing protection, and sturdy footwear.
• Ulah ngoperasikeun blower dina kaayaan baseuh atawa hujan.
• Keep children, bystanders, and pets at a safe distance (at least 15 meters / 50 feet) from the operating area.
• Ulah pernah ngarahkeun nozzle blower ka jalma atawa sasatoan.
• Inspect the work area before use and remove any objects that could be thrown by the air stream.
• Ensure the air intake is clear of obstructions during operation.
• Remove the battery pack when not in use, before cleaning, or when performing maintenance.
• Use only the battery pack and charger specified by the manufacturer.
• Do not operate the blower if it is damaged or not functioning properly.
• Store the blower in a dry, secure place out of reach of children.

Kasalametan batré sareng carjer:

• Ulah ngecas batré dina damp atawa lokasi baseuh.
• Do not incinerate the battery pack, even if it is severely damaged or completely worn out. The battery can explode in a fire.
• Ulah pondok-circuit terminal batré.
• Do not open or disassemble the battery pack.
• Buang batré anu leres nurutkeun peraturan lokal.

3. Eusi Paket

Sacara saksama ngabongkar sadaya barang sareng pastikeun anjeun nampi ieu:

• Henx 40V Cordless Leaf Blower Unit
• Pakét Batré 40V
• Carjer batré
• Manual Pitunjuk (dokumén ieu)

Lamun aya item nu leungit atawa ruksak, mangga ngahubungan rojongan customer.

Gambar 3.1: The complete package contents including the Henx 40V Cordless Leaf Blower, its 40V battery pack, and the battery charger. The blower is shown with its nozzle attached, ready for use.

4. Komponén jeung Fitur

Familiarize yourself with the parts of your Henx 40V Cordless Leaf Blower.

Gambar 4.1: A lengkep view of the control panel located on the top of the blower's handle. It features an ON/OFF switch, speed adjustment buttons, and LED indicators for battery level or operational status. The ergonomic handle is also visible.

• Gagang ergonomis: Designed for comfortable grip and reduced fatigue during extended use.
• Panél kontrol: Includes power button and speed adjustment controls.
• Kompartemen batré: Located at the base of the handle, designed to securely hold the 40V battery.

Gambar 4.2: This image shows the connection point for the blower nozzle. The black button or latch mechanism is used to secure or release the nozzle from the main blower body, ensuring a firm attachment during operation.

• Nozzle Connection: Secure point for attaching the blower nozzle.
• asupan hawa: Located on the side of the blower, where air is drawn in.

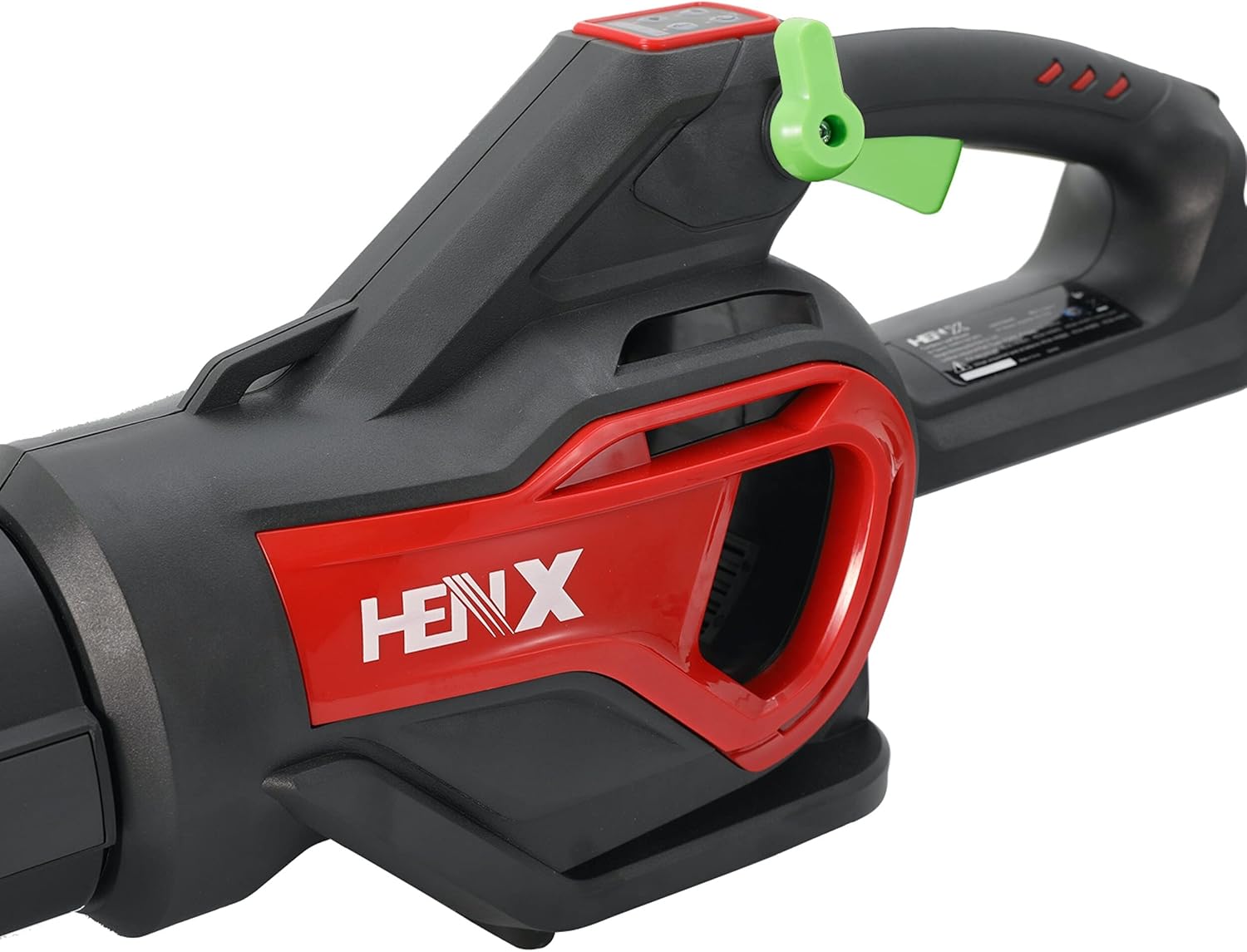

Gambar 4.3: Hiji sisi profile of the Henx leaf blower, highlighting the ergonomic handle design and the overall compact structure of the tool. The red and black color scheme is prominent.

Gambar 4.4: A nutup-up view of the air intake vent on the side of the Henx leaf blower. This vent is crucial for drawing air into the motor, and it's important to keep it clear of debris for optimal performance.

5. Setélan

5.1 Ngecas Batré

1. Sambungkeun carjer ka stop kontak listrik standar.
2. Slide the 40V battery pack into the charger. Ensure it clicks into place.
3. Lampu indikator dina carjer bakal nembongkeun status ngecas (contona, beureum keur ngecas, héjo keur dicas pinuh).
4. Saatos dicas pinuh, cabut batré tina carjer teras cabut colokan carjer tina stop kontak.
5. Allow the battery to cool down before use if it was hot from previous operation.

5.2 Ngagantelkeun Nozzle nu

1. Align the nozzle with the blower's air outlet.
2. Push the nozzle firmly onto the outlet until it locks into place. You may hear a click.
3. Ensure the nozzle is securely attached before operation.

5.3 Masang Batre

1. Pastikeun blower dipareuman.
2. Slide the charged battery pack into the battery compartment at the base of the blower's handle.
3. Push until it clicks securely into place.
4. Pikeun nyabut batréna, pencét tombol release (lamun aya) tur geser batré kaluar.

6. Parentah Operasi

6.1 Starting the Blower

1. Pastikeun batréna geus dicas pinuh tur dipasang bener.
2. Press the ON/OFF button on the control panel to start the blower.

6.2 Nyaluyukeun Speed

• The Henx 40V Blower features adjustable speed. Use the speed control buttons (usually '+' and '-') on the control panel to increase or decrease the airflow.
• Start with a lower speed for light debris and increase as needed for heavier tasks.

6.3 Operasi Tips

• Hold the blower firmly with both hands if necessary.
• Sapu ti sisi ka sisi, pindahkeun runtah di payuneun anjeun.
• Hindarkeun niupan lebu ka jalma, sato, atanapi barang anu rapuh.
• Pikeun kokotor anu bandel, anggo semburan hawa anu pondok sareng kuat.
• Do not block the air intake during operation.

6.4 Stopping the Blower

• Press the ON/OFF button again to turn off the blower.
• Remove the battery pack after each use and before storing.

7. Pangropéa

Pangropéa anu rutin mastikeun kinerja anu optimal sareng manjangkeun umur mesin blower daun anjeun.

• beberesih: After each use, wipe down the exterior of the blower with a damp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.
• asupan hawa: Regularly check the air intake vents for debris (leaves, grass, dust). Clear any blockages to prevent overheating and maintain airflow.
• Nozzle: Ensure the nozzle is free of obstructions.
• Perawatan batré:
  • Simpen batré di tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
  • Do not store fully discharged batteries for long periods. Charge them periodically if not in use.
  • Ulah ngalaan batréna kana cai atanapi kalembaban.
• Panyimpenan: Store the blower and battery in a dry, secure location, out of reach of children.

8. Cara ngungkulan

Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer.

9. Spésifikasi

10. Garansi jeung Rojongan

For warranty information or technical support, please refer to the warranty card included with your product or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

For further assistance, you may contact Overstock customer service or visit their official websitus.
