Bubuka
This manual provides detailed instructions for the installation, operation, and maintenance of your GOWIN Kitchen Faucet with Sprayer, Model FKR2027. Please read this manual thoroughly before installation and retain it for future reference.
Image: GOWIN Kitchen Faucet with Sprayer, Model FKR2027, in a matte black finish, installed in a modern kitchen sink.
Fitur produk
- Konstruksi kualitas luhur: Made from SUS 304 stainless steel with a matte black finish, ensuring resistance to rust and corrosion for long-lasting durability.
- Lead-Free Water Quality: Features a high-quality ceramic cartridge tested for 500,000 cycles to ensure drip-free performance. The bubbler includes plastic filter nets and 304 stainless steel housings for easy replacement and cleaning.
- 8-Inch Centerset Design: Modern two-handle design for precise temperature control. Handles rotate 90 degrees forward to activate hot and cold water. Compatible with 3-hole or 4-hole sink installations.
- Corong Putar 360-Derajat: The 90-degree elbow pipe design allows the spout to swivel 360 degrees, providing flexibility for various kitchen tasks and easy sink cleaning.
- Integrated Side Sprayer: The pull-out sprayer extends up to 35 inches and features a thumb-pressed mechanism for high-pressure directional spraying. The ABS hose is designed to withstand temperatures up to 200°C (392°F).
Image: Detailed diagram highlighting key features of the GOWIN Kitchen Faucet, including the 360-degree swivel spout, matte black finish, stainless steel body, two-handle operation, and side sprayer.
Gambar: Leuwihview of GOWIN Kitchen Faucet benefits, including 360-degree rotation, healthy materials, spot resistance, ceramic cartridge, water saving, anti-rust properties, and ease of cleaning.
Eusi pakét
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- Kitchen Sink Faucet (Main Unit)
- Sisi Sprayer
- Water Hoses (35-inch)
- Pamasangan Hardware
- Manual instalasi
Image: All components included in the GOWIN Kitchen Faucet package, laid out for inspection.
spésifikasi
| merek | GOWIN |
| Ngaran modél | FKR2027 |
| Bahan | Beusi sténless |
| Tipe rengse | Matte Black (Brushed) |
| Tipe Pamasangan | Dek Gunung |
| Jumlah gagang | 2 |
| Jumlah liang | 3 atawa 4 |
| Tipe Pamasangan | Centerset |
| Laju aliran maksimum | 1.8 Galon Per Menit |
| Jangkung Spout | 10 inci |
| Jangkauan Spout | 8.25 inci |
| Panjang Selang (Sprayer) | 45 inci |
| Dimensi produk | 8.25 "D x 10.5" W x 15" H |
| Item Beurat | 2.42 pon |
Instalasi (Setélan)
Before installation, ensure you have turned off the main water supply. Review the sink hole requirements and dimensions below.
Sink Hole Requirements
- Compatible with 3-hole or 4-hole kitchen sinks.
- Maximum counter top thickness without deck plate: 1.38 inches (35mm).
- Recommended hole size: 1.26 inches (32mm) minimum to 1.38 inches (35mm) maximum.

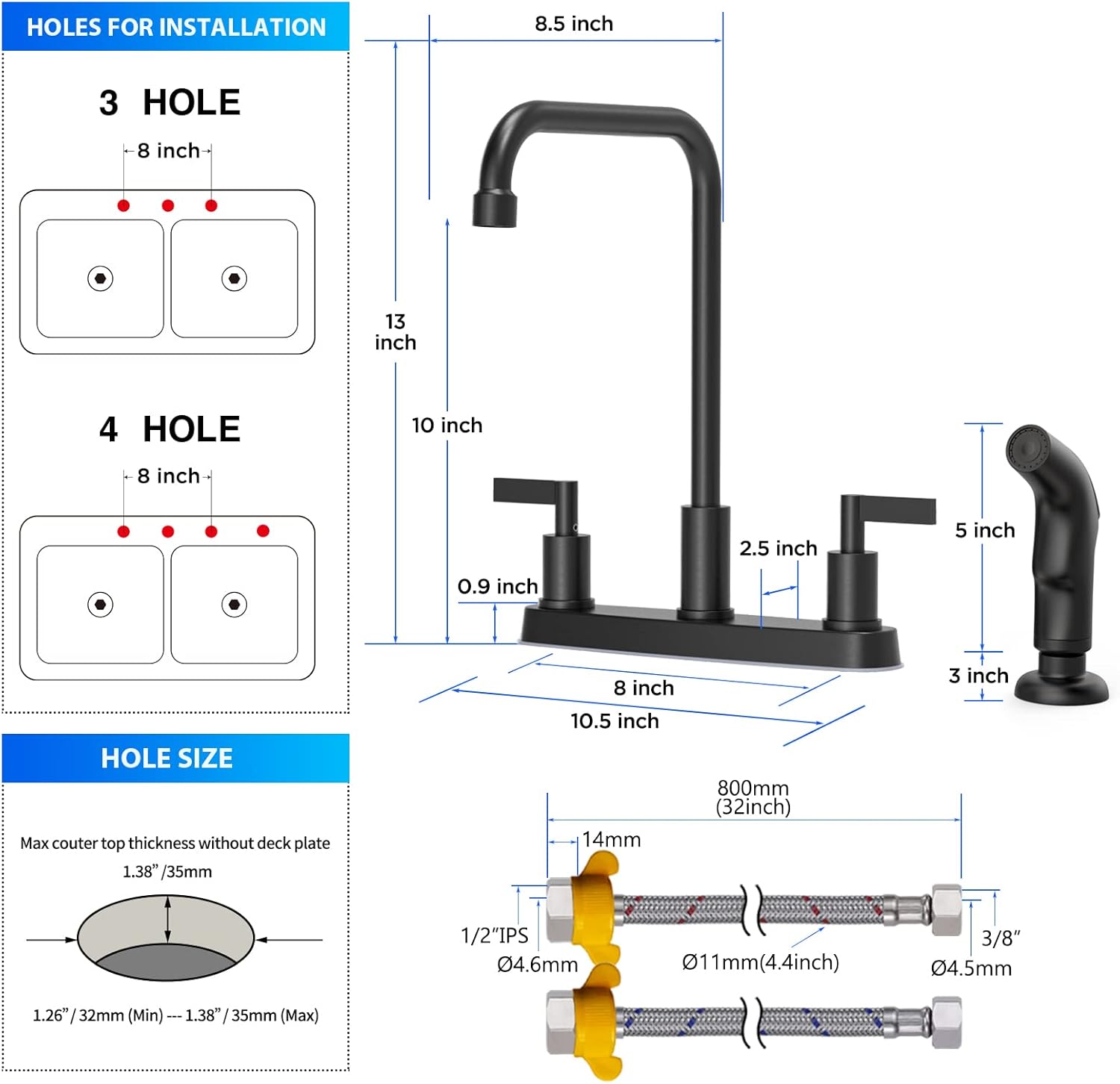

Image: Sink hole configuration and size requirements for installation.
Léngkah-léngkah Instalasi
- Step 1: Insert Faucet and Sprayer. Place the main faucet body and the side sprayer into the designated holes on your sink or countertop. Ensure the base plate is correctly aligned.
- Step 2: Secure Faucet and Sprayer. From underneath the sink, attach the mounting hardware (washers and nuts) to secure both the faucet and the sprayer firmly to the sink. Tighten securely but do not overtighten.
- Step 3: Connect Sprayer Hose. Connect the sprayer hose to the designated port on the main faucet body underneath the sink. Ensure a tight connection to prevent leaks.
- Step 4: Connect Water Supply Lines. Connect the hot and cold water supply lines from your home's plumbing to the corresponding inlets on the faucet. The hot water line is typically on the left, and the cold water line on the right. Use appropriate wrenches to tighten connections, avoiding overtightening.
Image: Illustration of inserting the faucet and sprayer into the sink holes.
Image: Illustration of securing the faucet and sprayer from below the sink.
Image: Illustration of connecting the side sprayer hose.
Image: Illustration of connecting the hot and cold water supply lines.
Operasi
Aliran Cai sareng Kontrol Suhu
- The faucet features two handles for independent control of hot and cold water.
- Rotate the left handle forward 90 degrees to turn on hot water.
- Rotate the right handle forward 90 degrees to turn on cold water.
- Saluyukeun duanana gagang pikeun ngahontal suhu cai sareng laju aliran anu dipikahoyong.
Image: Illustration of the two-handle operation for hot and cold water.
Side Sprayer Operation
- To use the side sprayer, simply pull it out from its holder.
- Press the thumb-activated button on the sprayer head to activate the high-pressure directional spray.
- Release the button to stop the spray.
- After use, guide the sprayer back into its holder.
Image: Demonstration of the pull-out side sprayer in action, highlighting its reach and spray function.
Pangropéa
Ngabersihan Keran
- Bersihkeun keran sacara teratur ku kaén anu lembut sareng sabun anu lembut.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the matte black finish.
- Wipe dry after cleaning to prevent water spots.
Bubbler Maintenance
- The bubbler (aerator) can be detached for cleaning.
- Periodically remove and clean the plastic filter nets to ensure optimal water flow and prevent mineral buildup.
Ceramic Cartridge Maintenance
The high-quality ceramic cartridge is designed for long-term, drip-free performance. In the event of a leak or reduced performance, the valve core can be replaced. This typically involves loosening the faucet handle with appropriate tools. It is recommended to consult a professional for cartridge replacement if you are unfamiliar with the process.
Image: Illustration of the ceramic valve and the process for accessing it for maintenance.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Aliran Cai Lemah | Aerator tersumbat; klep pareum sabagian katutup; saluran suplai bengkok. | Bersihkeun aerator; pastikeun klep pareum muka pinuh; pariksa saluran suplai upami aya anu lekukan. |
| Leaking from Faucet Spout | Kartrid keramik geus ruksak; sambunganna leupas. | Replace the ceramic cartridge; check and tighten all connections. |
| Leaking from Sprayer | Damaged sprayer head or hose; loose connections. | Inspect sprayer head and hose for damage and replace if necessary; tighten hose connections. |
| Taya Cai Panas / Tiis | Hot/cold water supply valves are closed; supply lines are blocked. | Ensure hot/cold water supply valves are fully open; check supply lines for obstructions. |
Garansi sareng Rojongan
The GOWIN Kitchen Faucet comes with a limited warranty. For specific warranty details, please refer to the documentation included with your purchase or contact GOWIN customer service.
If you have any questions, require assistance with installation, or encounter any issues with your product, please email our service team. We are committed to providing a satisfactory response within 24 hours.
Inpormasi kontak: Please refer to the contact details provided in your product packaging or on the official GOWIN websitus.
