1. Bubuka
This manual provides essential information for the safe and efficient operation of your AEG Series 8000 LR8E75490 WiFi Washing Machine. Please read these instructions carefully before using the appliance for the first time and keep them for future reference.
Fitur konci:
- PowerCare Technology: Effectively mixes detergent and fabric softener with water, distributing them evenly for superior cleaning results, even at 30°C in less than 1 hour.
- My AEG Care App: Allows remote control of the machine and assists in selecting appropriate programs for various textiles and stains. Monitor wash progress directly from your smartphone.
- Universal Drawer: Designed to dissolve detergent pods and caps 60% faster than traditional methods, enhancing cleaning performance in short and low-temperature programs.
- ProSteam Function: Refreshes clothes in just 25 minutes, neutralizing odors and reducing wrinkles with minimal water consumption (approx. 2 liters).
- Program Kabersihan: A Swissatest certified program combining wash and steam cycles at over 60°C to remove over 99.99% of bacteria and viruses, also reducing allergens.

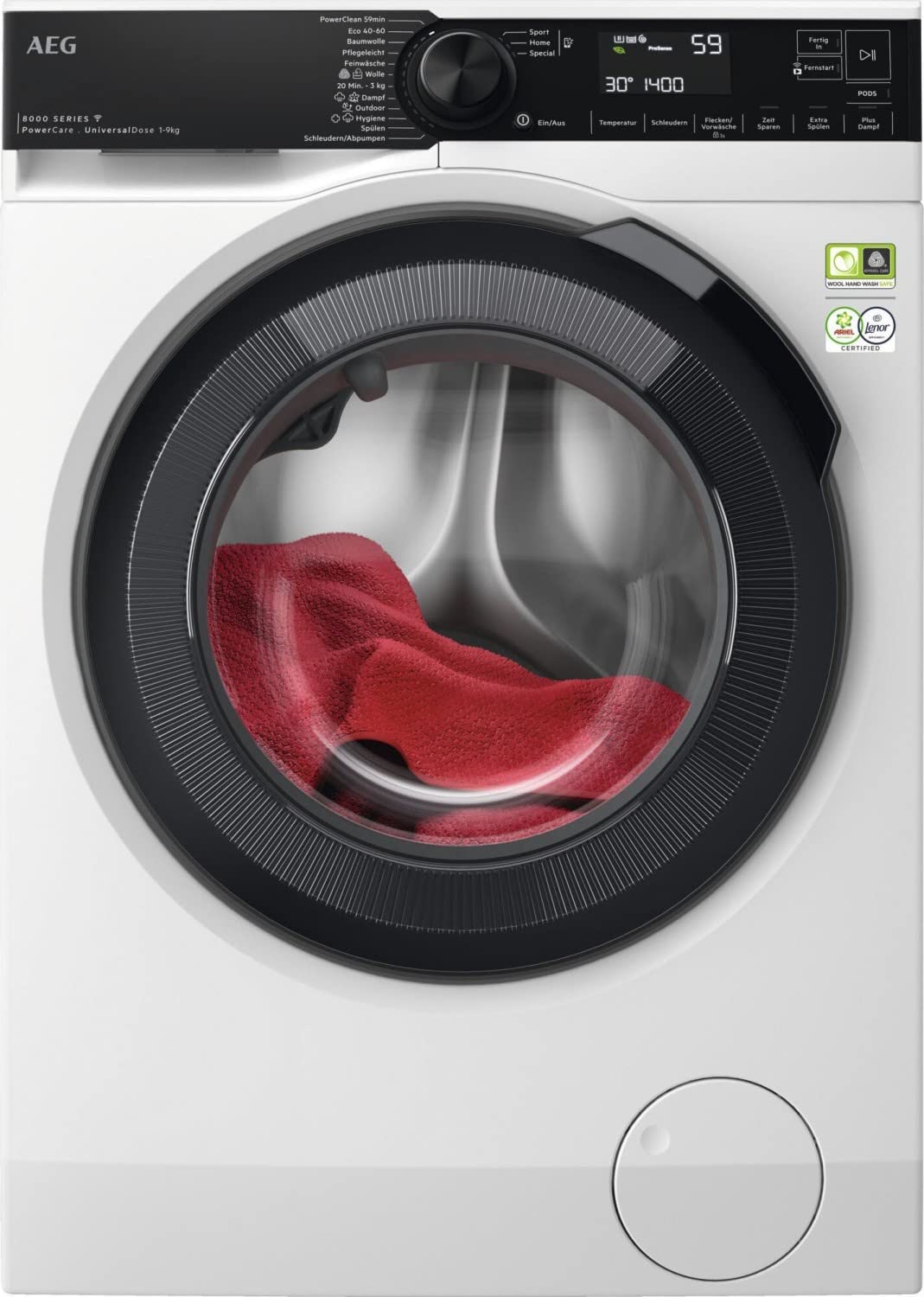

Image showing the front view of the AEG Series 8000 LR8E75490 WiFi Washing Machine, highlighting its modern design and control panel.
2. Émbaran Kasalametan
For your safety and to ensure correct use, always observe the following precautions:
- Pastikeun alat dibumikeun leres.
- Ulah ngantep barudak maén kalawan parabot.
- Jauhkeun piaraan tina alat.
- Do not open the detergent dispenser or door during operation.
- Cabut colokan alat sateuacan beberesih atanapi perawatan.
- Do not install the appliance in areas where the temperature may fall below 0°C.
- Paké ngan detergents jeung aditif cocog pikeun mesin cuci otomatis.
- In case of malfunction, switch off the appliance and disconnect it from the power supply. Do not attempt to repair it yourself. Contact authorized service personnel.
3. Setup jeung Instalasi
Ngabongkar bungkusan:
Carefully remove all packaging materials and transport bolts before installation. Keep packaging materials out of reach of children.
Naon anu aya dina Kotak:
- AEG Series 8000 LR8E75490 WiFi Washing Machine
- Selang solokan
- Selang lebet
- Manual pangguna (dokumén ieu)
panempatan:
Install the washing machine on a firm, level floor. Adjust the feet to ensure stability and prevent vibrations during operation. Ensure adequate ventilation around the appliance.
Sambungan cai:
- Connect the supplied inlet hose to the cold water tap and to the water inlet valve on the back of the machine.
- Pastikeun sadaya sambungan kedap pikeun nyegah bocor.
Sambungan solokan:
- Securely attach the drain hose to a standpipe or over the edge of a sink, ensuring it is not kinked or submerged in water.
- Selang solokan kudu ditempatkeun dina jangkungna antara 60 cm jeung 100 cm ti lanté.
Sambungan listrik:
Plug the power cord into a properly earthed electrical outlet. Ensure the voltage cocog sareng spésifikasi alat (230 Volt).
4. Parentah Operasi
Kontrol Panel Langkungview:
The control panel features a program selector dial, a display screen, and various touch buttons for options such as temperature, spin speed, delay start, and special functions.
Ngamuat laundry:
Open the door and load laundry into the drum. Do not overload the machine; refer to program guidelines for maximum load capacity (9 kg).
Nambahkeun Deterjen sareng Aditif:
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and fabric softener to its designated compartment. For pods or caps, place them directly into the Universal Drawer.
Pilihan Program:
Turn the program selector dial to choose the desired wash program. The display will show the default temperature, spin speed, and program duration. Adjust these settings using the corresponding buttons if needed.
Using Special Functions:
- PowerCare: This technology is integrated into many programs to optimize detergent mixing.
- ProSteam: Select a steam program for refreshing clothes or reducing wrinkles.
- Refill Function: If you forget an item, press the 'Pause' button to add more laundry during the initial stages tina hiji siklus.
- My AEG Care App: Download the app to your smartphone, connect it to your washing machine via WiFi, and follow the in-app instructions for remote control and program assistance.
Starting a Program:
Press the 'Start/Pause' button to begin the selected wash program.
5. Pangropéa
Pangropéa rutin ngajamin kinerja optimal sareng manjangkeun umur mesin cuci anjeun.
Ngabersihan Luar:
Ngusap permukaan luar kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
Ngabersihan Dispenser Deterjen:
Périodik cabut laci dispenser detergent jeung bilas dina cai ngocor pikeun miceun sagala résidu detergent. Ngabersihan perumahan laci ku sikat.
Ngabersihan Drum:
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) every few months to prevent odor and residue buildup.
Ngabersihkeun Saringan Solokan:
Locate the drain filter at the bottom front of the machine. Place a shallow container underneath to catch any water. Unscrew the filter slowly, clean it of lint and debris, then screw it back in tightly.
Sistem Kontrol Akua:
The machine is equipped with an Aqua Control System for full water protection. Regularly check the inlet hose for any signs of damage or leaks.
6. Cara ngungkulan
Sateuacan ngahubungan jasa, pariksa masalah umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin teu ngamimitian | Power cord not plugged in; door not closed properly; program not selected; 'Start/Pause' not pressed. | Check power connection; ensure door is latched; select a program; press 'Start/Pause'. |
| Mesin teu asup cai | Water tap closed; inlet hose kinked; water supply interrupted. | Buka ketok cai; ngalempengkeun selang; pariksa suplai cai rumah tangga. |
| Cai teu draining | selang solokan kinked atawa diblokir; saringan solokan mampet. | Luruskeun selang solokan; bersihan saringan solokan. |
| Geter / noise anu kaleuleuwihi | Mesin teu tingkat; bolts angkutan teu dipiceun; beban henteu rata. | Saluyukeun suku ka tingkat mesin; mastikeun bolts angkutan dipiceun; ngadistribusikaeun laundry. |
| Kodeu kasalahan dina tampilan | Specific malfunction detected. | Refer to the full manual for specific error code meanings or contact service. |
7. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | AEG |
| Nomer modél | LR8E75490 |
| Kapasitas | 9 kg |
| Max Spin Speed | 1400 rpm |
| Kelas Énergi Énergi | A |
| Konsumsi Énergi Taunan | 49 Kilowatt Jam Per Taun |
| Tingkat Noise (Spin) | 75 desibel |
| Diménsi Produk (W x D x H) | 25.98 x 23.5 x 33.35 inci |
| Item Beurat | 74.5 Kilogram (163.9 pon) |
| Tipe Pamasangan | Jalanan |
| Lokasi Aksés | Beban hareup |
| Voltage | 230 volt |
| Tipe Kontrol | Pencét Tombol |
| Fitur husus | Aqua Control System with Alarm, Automatic volume, Eco inverter motor, PowerClean program, Voice control via Google Assistant |
| Komponén Kaasup | Drain and inlet hose |
8. Garansi jeung Rojongan
Inpormasi Garansi:
Your AEG Series 8000 LR8E75490 Washing Machine comes with a standard manufacturer's warranty. Additionally, the Eco inverter motor is covered by a 10-year warranty upon registration. Please retain your proof of purchase for warranty claims.
Rojongan Palanggan:
For technical assistance, spare parts, or service requests, please contact AEG customer support. Refer to the official AEG websitus atanapi dokuméntasi pameseran anjeun pikeun detil kontak khusus pikeun daérah anjeun.
