1. Bubuka
This manual provides essential information for the installation, operation, and maintenance of your Kicker 45KM104 10-inch Marine Subwoofer and SSV Universal Marine Sub Box Enclosure. This product bundle is designed to deliver high-quality audio performance in marine environments, built to withstand the elements.
Please read this manual thoroughly before installation and use to ensure proper function and longevity of your marine audio system components.
2. Émbaran Kasalametan
Adherence to safety guidelines is crucial during installation and operation. Failure to do so may result in damage to the product, vessel, or personal injury.
- Always disconnect the vessel's battery before beginning any electrical installation.
- Pastikeun sadaya kabel diisolasi sareng diamankeun pikeun nyegah sirkuit pondok sareng karusakan.
- Consult a professional marine audio installer if you are unsure about any part of the installation process.
- Do not expose the subwoofer or enclosure to extreme temperatures or direct flame.
- Verify that the mounting location is structurally sound and free from obstructions.
- Use appropriate personal protective equipment during installation.
3. Eusi Paket
Pastikeun yén sadaya item anu didaptarkeun di handap aya dina pakét anjeun:
- Kicker 45KM104 10-inch Marine Subwoofer
- SSV Works US-10U Universal 10" Subwoofer Enclosure
- Charcoal LED Grill
- Pamasangan Hardware

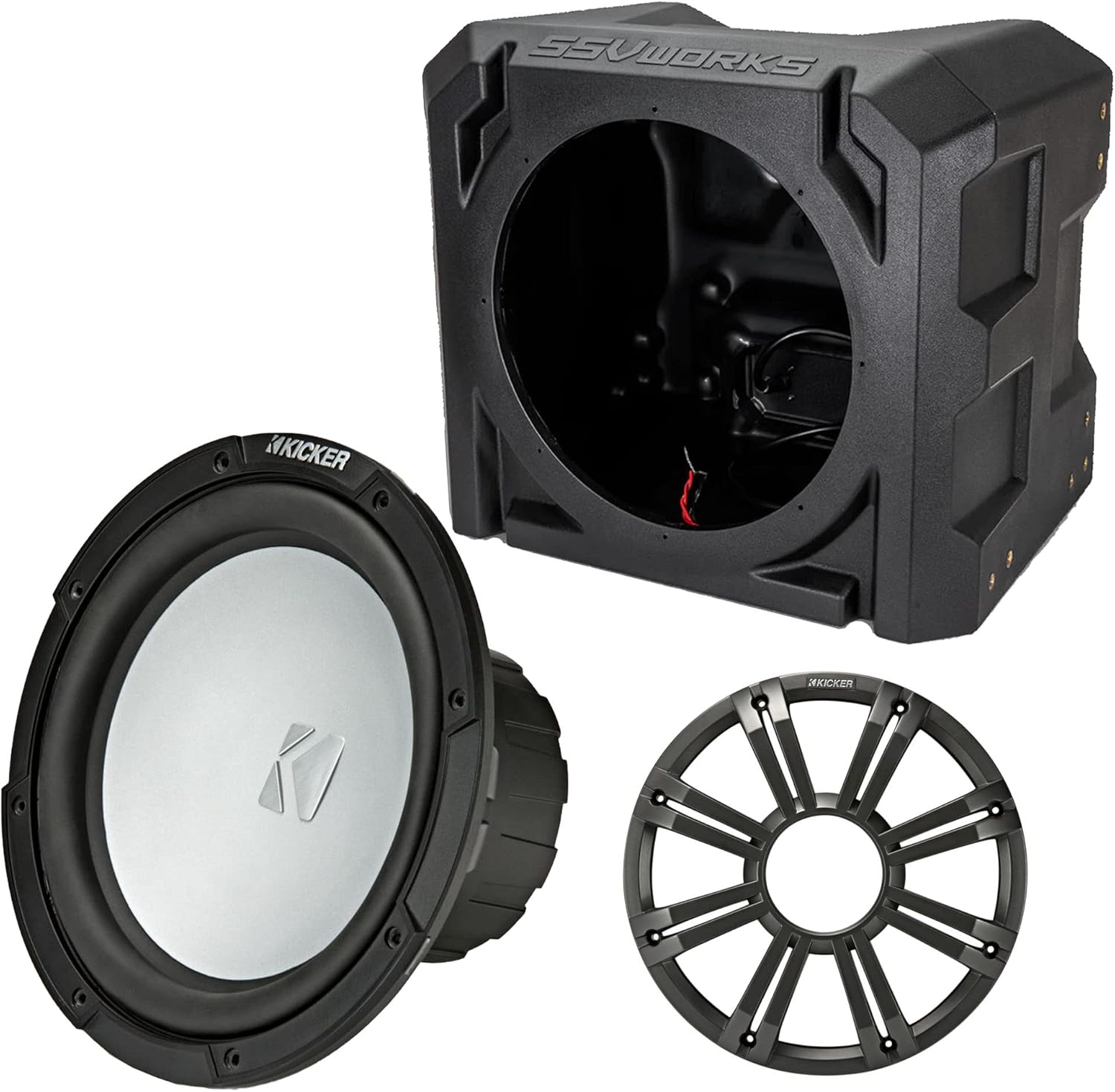

Image 1: Kicker 45KM104 10-inch Marine Subwoofer, SSV Universal Marine Sub Box Enclosure, and Charcoal LED Grill. This image displays all primary components included in the product bundle.
4. Fitur
The Kicker 45KM104 Marine Subwoofer and SSV Universal Enclosure offer a robust set of features designed for marine applications:
- Desain Tahan Cuaca: Subwoofer and enclosure are built to withstand salt/fog and UV exposure, meeting or exceeding ASTM standards for marine durability.
- Sealed Motor Structure: Ensures splash-proof operation for extended product life.
- Durable Cone and Surround: Features a tough Santoprene surround and marine-grade polypropylene cone for consistent bass output.
- Two-Ohm Voice Coil: Nyayogikeun pilihan kabel anu fleksibel pikeun rupa-rupa ampkonfigurasi Lifier.
- Corrosion-Resistant Polymer Basket: Enhances longevity in harsh marine environments.
- Protective Terminal Cap: Safeguards electrical connections.
- Universal Enclosure: The SSV Works US-10U enclosure provides a versatile solution for adding bass to your marine vehicle.

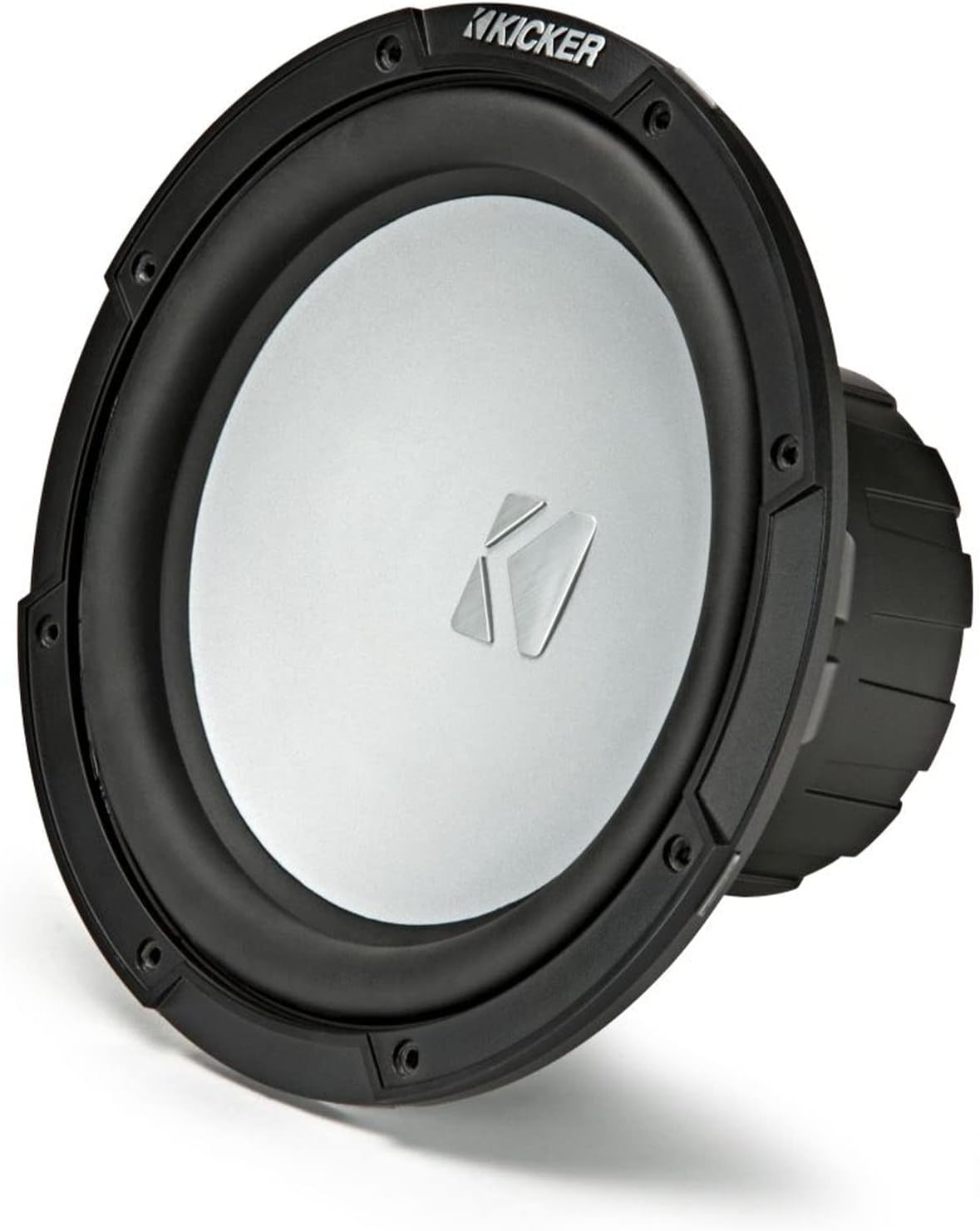

Gambar 2: Hareupeun view of the Kicker 45KM104 10-inch Marine Subwoofer, highlighting its durable polypropylene cone and Santoprene surround.
Gambar 3: Tukangeun view of the Kicker 45KM104 10-inch Marine Subwoofer, showing the robust motor structure and terminal connections.
Image 4: The Charcoal LED Grill, designed to protect the subwoofer while adding aesthetic appeal.
5. Setup jeung Instalasi
Proper installation is critical for optimal performance and product longevity. It is highly recommended that installation be performed by a qualified marine audio professional.
5.1 Enclosure Mounting
The SSV Works US-10U enclosure is designed for universal fitment. Identify a secure, dry location within your vessel that allows for adequate air circulation and does not obstruct any critical vessel functions. Use the provided mounting hardware to securely fasten the enclosure.
Gambar 5: Hareupeun view of the SSV Universal 10-inch Subwoofer Enclosure, ready for subwoofer installation.

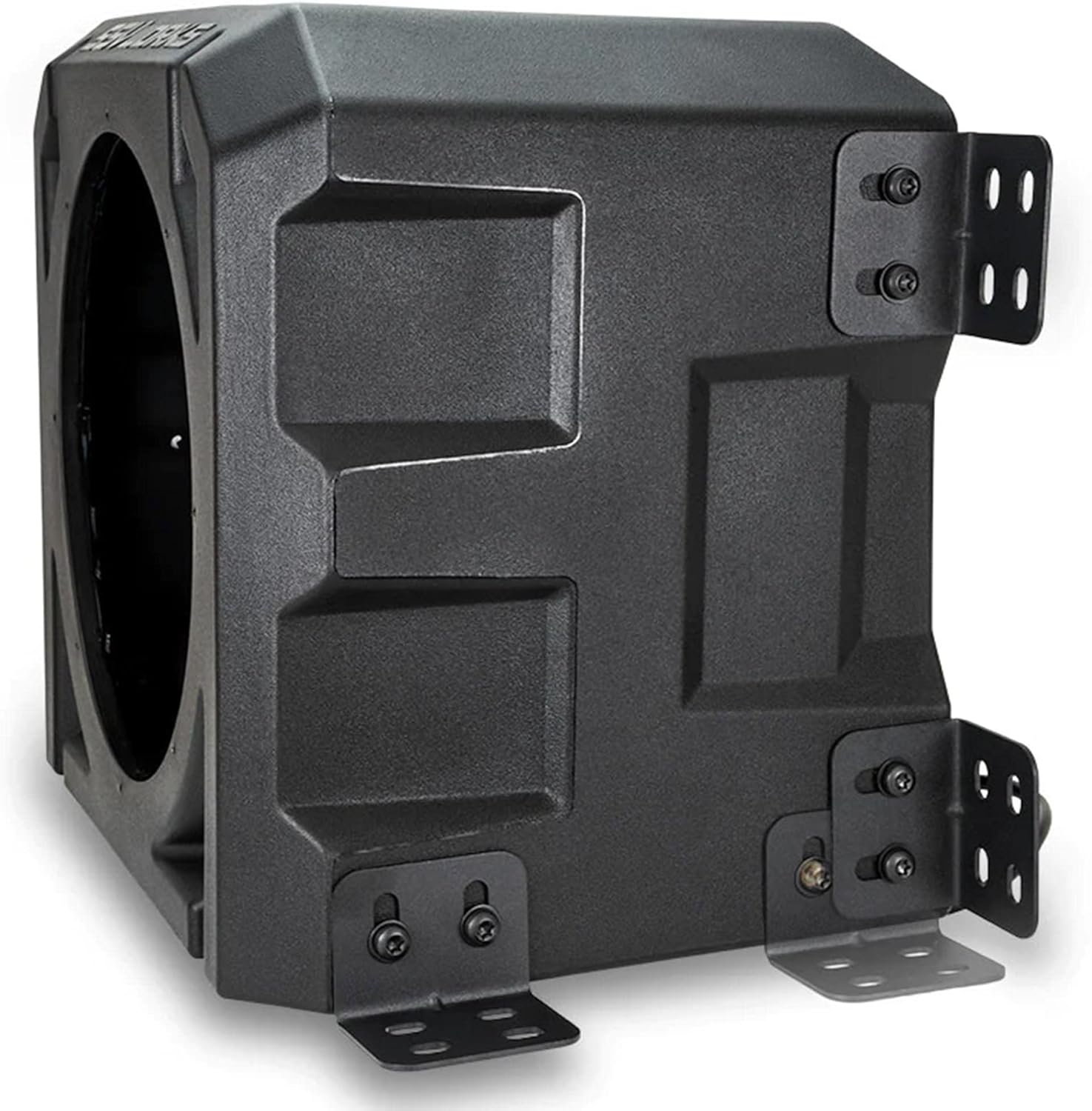

Gambar 6: Sisi view of the SSV Universal 10-inch Subwoofer Enclosure, showing the integrated mounting brackets for secure installation.
5.2 Subwoofer Installation into Enclosure
Carefully place the Kicker 45KM104 subwoofer into the opening of the SSV enclosure. Ensure the subwoofer is seated correctly before securing it with the provided screws. Do not overtighten the screws.
5.3 Kabel
Connect the subwoofer to your marine amplifier using appropriate gauge marine-grade speaker wire. The Kicker 45KM104 features a 4-Ohm voice coil. Refer to your amplifier's manual for correct wiring configurations and impedance matching. Ensure all connections are secure and protected from moisture.

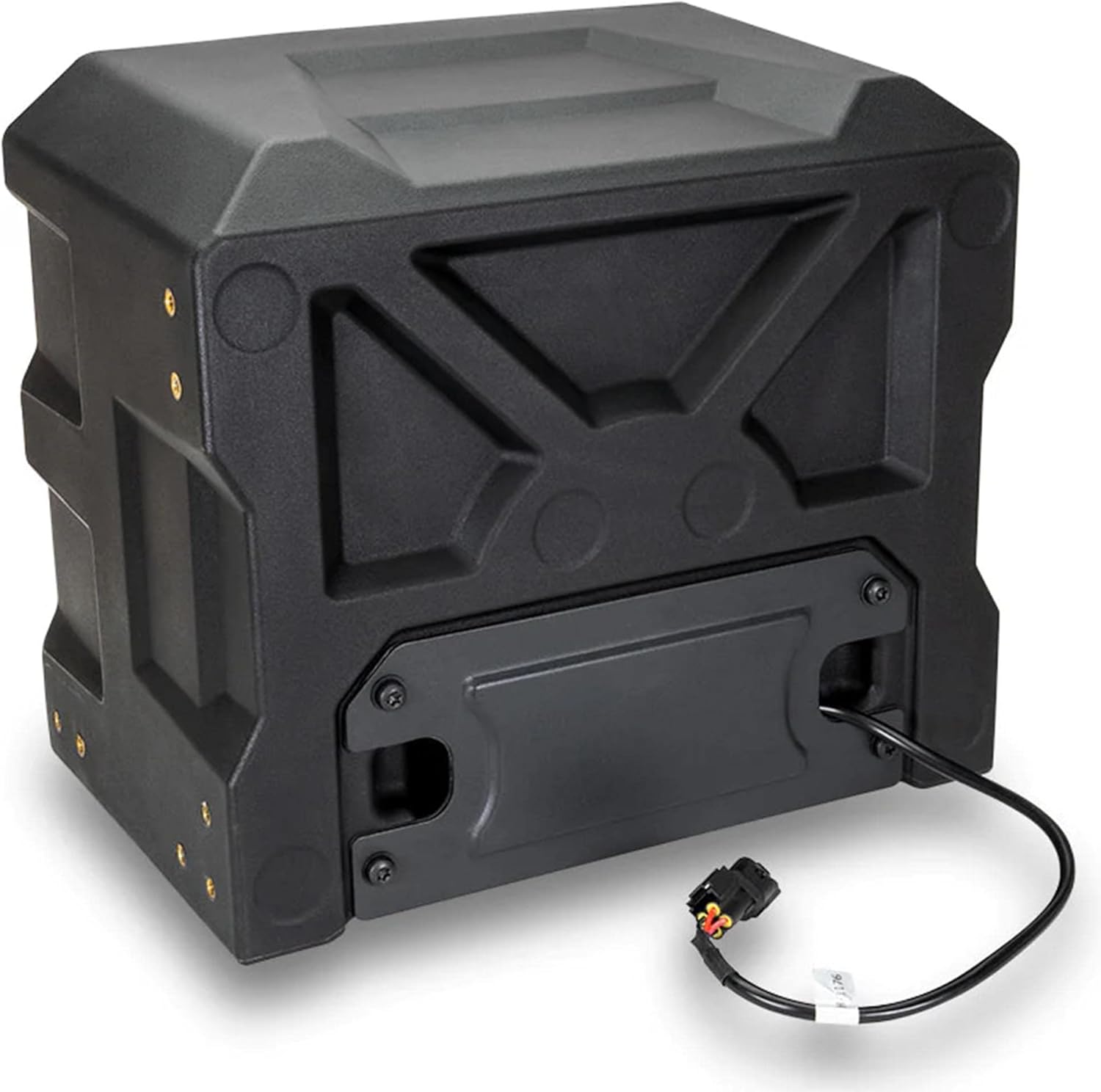

Gambar 7: Tukangeun view of the SSV Universal 10-inch Subwoofer Enclosure, showing the pre-wired connections for easy integration with your marine audio system.
6. Parentah Operasi
Once installed, operate your marine subwoofer system in conjunction with your marine audio head unit and amplifier. Follow these general guidelines:
- Hurungkeun/Pareuman: Turn on your audio system components in sequence: head unit, then amplifier. Turn off in reverse: amplifier, then head unit.
- Kontrol volume: Gradually increase volume to avoid sudden loud bursts. Avoid operating at maximum volume for extended periods to prevent damage.
- Setélan gain: Mastikeun amplifier gain settings are properly matched to your head unit's output to prevent distortion. Consult your amplifier's manual for detailed gain adjustment procedures.
- Setélan Crossover: Anggo filter low-pass (LPF) dina alat anjeun amplifier to send only low frequencies to the subwoofer, optimizing sound quality and protecting the subwoofer from higher frequencies it is not designed to reproduce.
7. Pangropéa
Regular maintenance helps ensure the longevity and performance of your marine subwoofer system:
- beberesih: Periodically wipe down the subwoofer and enclosure with a damp lawon pikeun miceun sésa uyah, kokotor, sareng lebu. Hindarkeun nganggo bahan kimia anu keras atanapi pembersih anu abrasif.
- Pamariksaan: Regularly inspect all wiring connections for corrosion or looseness. Check the subwoofer cone and surround for any signs of damage.
- Perlindungan: When the vessel is not in use, consider covering the subwoofer system to protect it from prolonged exposure to direct sunlight and harsh weather conditions.
8. Cara ngungkulan
If you encounter issues with your Kicker marine subwoofer system, refer to the following common troubleshooting steps:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya Sora ti Subwoofer | Taya kakuatan pikeun amplifier; loose wiring connections; amplifier in protect mode; incorrect input signal. | Cék amplifier power and ground connections. Verify remote turn-on wire. Inspect all speaker wire connections. Reset amplifier by cycling power. Ensure RCA cables are securely connected. |
| Sora Distort | Amplifier gain set too high; incorrect crossover settings; damaged subwoofer cone/surround; low voltage. | Ngurangan amplifier gain. Adjust LPF settings. Inspect subwoofer for physical damage. Check battery voltage and charging system. |
| Subwoofer Overheating | Improper impedance match; inadequate ventilation; prolonged high volume use. | Verify correct impedance wiring. Ensure enclosure has proper ventilation. Reduce listening volume. |
If the problem persists after attempting these solutions, contact Kicker customer support or a certified marine audio technician.
9. Spésifikasi
Key specifications for the Kicker 45KM104 Marine Subwoofer and SSV Universal Enclosure:
| Spésifikasi | Nilai |
|---|---|
| Jumlah modél produk | KickerBDL230208-03 |
| Ukuran Subwoofer | 10 inci (25 cm) |
| Subwoofer Impedance | 4-Ohm |
| Jenis Kandang | Universal 10" Sub Box Enclosure |
| Item Beurat | 28.7 pon |
| Ukuran Paket | 19 x 15 x 9 inci |
| Produsén | Kicker |
| Tanggal Kahiji Sadia | Pébruari 20, 2023 |
10. Émbaran jaminan
This Kicker product is covered by a 1-Taun Garansi Produsén. This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and warranty claim procedures, please refer to the official Kicker warranty documentation or visit the Kicker websitus.
11. Rojongan jeung Kontak
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Kicker customer support:
- Kicker Official Websitus: www.kicker.com
- Refer to the Kicker website for contact numbers, email support, and frequently asked questions.
For SSV Works enclosure specific inquiries, please visit the SSV Works official websitus.
- SSV Works Official Websitus: www.ssvworks.com
