1. Bubuka
Thank you for choosing the Cecotec HydroBoost 1400 Essential High Pressure Washer. This manual provides important information regarding the safe operation, assembly, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before first use and keep it for future reference. This powerful and efficient pressure washer is designed for various cleaning tasks around your home, garden, and car.
2. Parentah Kasalametan
Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat-alat listrik pikeun ngirangan résiko seuneu, kejutan listrik, sareng tatu pribadi.
- Baca sagala parentah: Familiarize diri jeung kadali sarta pamakéan ditangtoskeun tina washer tekanan.
- Anggo alat kaamanan anu pantes: Always wear safety glasses or goggles and protective clothing when operating the unit.
- Kasalametan listrik: Ensure the power outlet is properly grounded. Do not operate the unit with a damaged cord or plug. Keep all connections dry and off the ground.
- Tekanan cai: Never direct the water jet at people, pets, or electrical equipment. The high pressure can cause serious injury.
- Stabilitas: Jalankeun mesin cuci tekanan dina permukaan datar anu stabil pikeun nyegah tipping.
- Barudak sareng anu nongton: Jauhkeun barudak sareng jalma anu aya di tempat operasi.
- Kimia: Use only detergents recommended for pressure washers. Follow detergent manufacturer's instructions for use and disposal.
- Pangropéa: Pegatkeun sambungan catu daya sateuacan ngalakukeun pangropéa atanapi beberesih.
3. Eusi Paket
Carefully unpack all items and ensure you have received all components listed below. If any parts are missing or damaged, contact Cecotec customer support.
Image: The Cecotec HydroBoost 1400 Essential High Pressure Washer unit, high-pressure gun with lance, and soap bottle attachment.
- Cecotec HydroBoost 1400 Essential Pressure Washer Unit
- Gun Tekanan Tinggi
- Lanceuk
- Selang Tekanan Tinggi
- Panyambung Inlet Cai
- Adjustable Foam Soap Bottle
- Manual pangguna (dokumén ieu)
4. Fitur Produk
The Cecotec HydroBoost 1400 Essential is engineered with features to provide efficient and reliable cleaning performance:
- Motor 1400W anu kuat: Delivers strong pressure to effectively remove stubborn dirt.
- 105 Bar Admitted Pressure: Ideal for cleaning decks, balconies, patios, and pool curbs.
- High Flow Rate (408 litres/hour): Enables faster cleaning of larger surfaces.
- HardPump Aluminium Pump: Ensures optimal reliability and extended use times compared to composite pumps.
- Oversized Handle: Designed for effortless transport and convenient maneuverability.
- 9m Action Radius: Provides comfortable use and complete freedom of movement during cleaning tasks.
- Anti-Impurity Filter: Facilitates quick and easy connection of the water hose while protecting the pump.
- Quick Click System: Allows for fast and easy connection of the high-pressure hose and lance to the gun.
- Auto Start-Stop System: Trigger-activated system for optimum safety and control, protecting the motor and conserving water.
- Adjustable Foam Soap Bottle: For efficient application of detergents.
5. Setélan
Follow these steps to set up your pressure washer before first use:
- Posisi Unit: Place the pressure washer on a flat, stable surface near a water source and a grounded electrical outlet.
- Nyambungkeun suplai cai:
- Attach a standard garden hose (not included) to the water inlet connector on the pressure washer. Ensure the anti-impurity filter is in place.
- Connect the other end of the garden hose to your water tap.
- Hurungkeun keran cai sapinuhna pikeun mastikeun aliran cai ajeg ka unit.
- Assemble High-Pressure Gun and Lance:
- Connect the lance to the high-pressure gun using the quick click system. Ensure it clicks securely into place.
- Sambungkeun selang tekanan luhur ka gun tekanan tinggi.
- Connect the other end of the high-pressure hose to the outlet on the pressure washer unit.
Image: Hands demonstrating the quick and easy connection of the lance to the high-pressure gun.
- Ngabersihan hawa tina sistem: Before plugging in the unit, squeeze the trigger on the high-pressure gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges.
- Sambungkeun Kakuatan: Colokkeun kabel listrik kana stop kontak listrik grounded.
Image: A person using the Cecotec HydroBoost 1400 pressure washer to clean a patio, demonstrating typical setup and operation.
6. Parentah Operasi
Once the unit is set up, you can begin your cleaning tasks.
6.1 Operasi Dasar
- Ensure the water supply is fully open and the unit is plugged in.
- Turn on the pressure washer's power switch. The auto start-stop system means the motor will only run when the trigger is squeezed.
- Aim the lance at the surface to be cleaned, keeping a safe distance. Start with a wider spray pattern or greater distance and gradually move closer or adjust the nozzle for more concentrated cleaning if needed.
- Squeeze the trigger on the high-pressure gun to begin spraying. Release the trigger to stop the flow and the motor will automatically shut off.
- Work in sections, overlapping slightly to ensure even cleaning.
6.2 Using the Adjustable Foam Soap Bottle
The included adjustable foam soap bottle allows for effective application of detergents.
- Fill the soap bottle with a pressure washer-safe detergent, following the detergent manufacturer's dilution instructions.
- Attach the foam soap bottle to the high-pressure gun in place of the lance.
- Adjust the nozzle on the soap bottle to control the foam concentration.
- Apply the foam evenly to the surface you wish to clean. Allow the detergent to dwell for the recommended time (check detergent instructions).
- Remove the soap bottle and reattach the lance. Rinse the surface thoroughly with clean water.
Image: A man applying foam to a car with the pressure washer (left), and a split image demonstrating both foam application for car washing and direct high-pressure cleaning for hard surfaces (right).
6.3 Aplikasi beberesih
- Patios and Decks: Use a sweeping motion, keeping the nozzle a consistent distance from the surface.
- Kandaraan: Apply foam, let it soak, then rinse thoroughly. Avoid spraying directly into engine compartments or sensitive electrical components.
- Garden Furniture: Use a lower pressure or greater distance to avoid damaging delicate surfaces.
- Sapédah: Maintain a safe distance to prevent damage to bearings and seals.

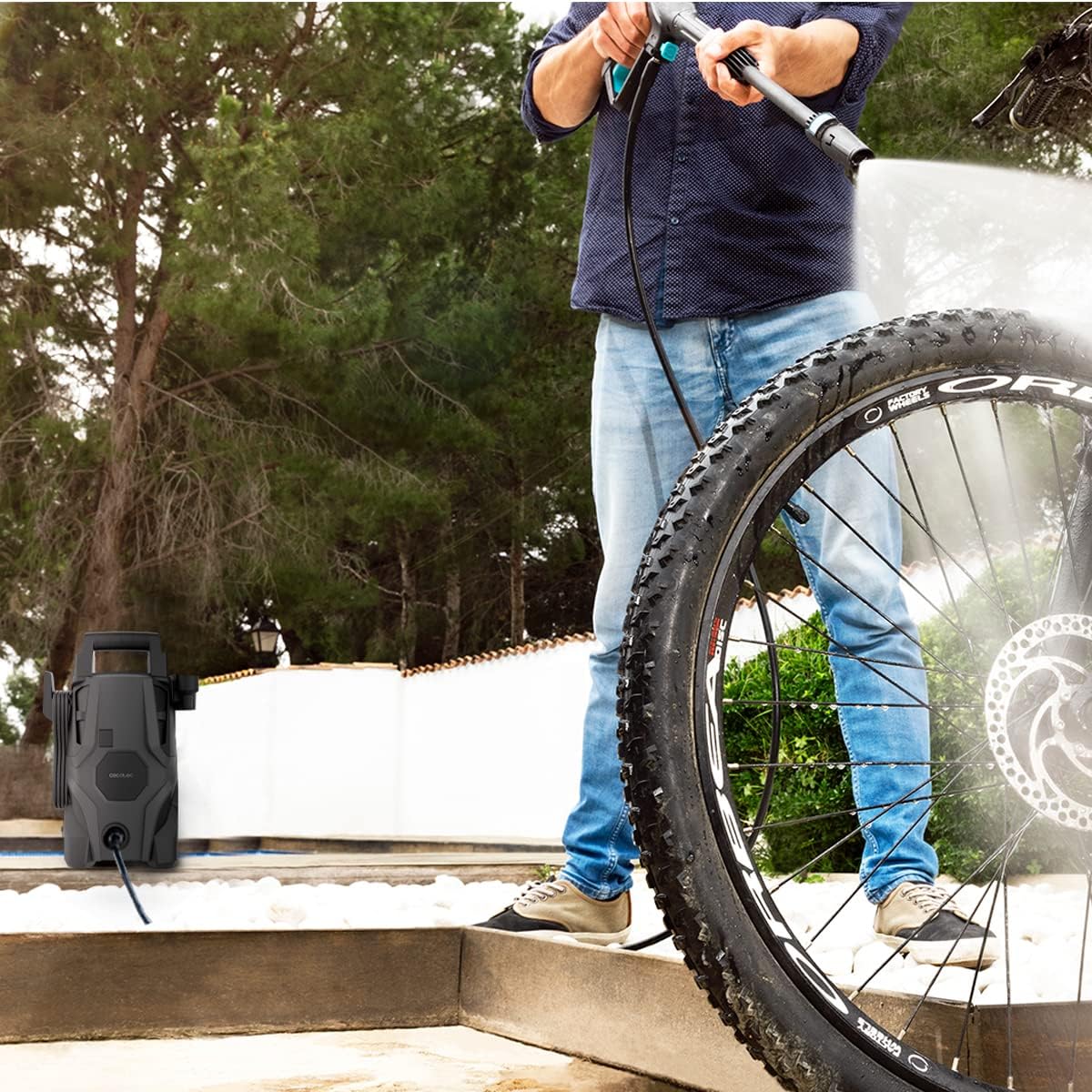

Image: A woman cleaning a pool deck, illustrating the 9-meter action radius (left). A man cleaning a bicycle, demonstrating another common application (right).
7. Pangropéa
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal tina mesin cuci tekanan anjeun.
7.1 Sanggeus Unggal Pamakéan
- Pareuman sareng pegatkeun sambungan: Turn off the power switch, unplug the unit, and turn off the water supply.
- Ngurangan tekanan: Squeeze the trigger on the gun to release any remaining pressure in the system.
- Cai solokan: Disconnect all hoses and drain any water from the pump, hoses, and gun.
- Unit Bersih: Ngusap bagian luar unit nganggo iklanamp lawon.
- Filter Inlet Cai Bersih: Regularly check and clean the anti-impurity filter at the water inlet to prevent blockages.
7.2 Panyimpenan
Store the pressure washer in a dry, frost-free area. Freezing temperatures can damage the pump and hoses.
Gambar: Tukangeun view of the pressure washer, illustrating the integrated storage for the high-pressure hose and gun.
8. Cara ngungkulan
Upami anjeun ngalaman masalah sareng mesin cuci tekanan tinggi anjeun, tingali tabel di handap ieu pikeun masalah umum sareng solusina.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Unit teu ngamimitian | Teu aya catu daya; Pareuman daya; Beban termal diaktipkeun. | Check power connection and outlet; Turn power switch ON; Allow unit to cool down for 30 minutes. |
| tekanan handap | Insufficient water supply; Clogged water inlet filter; Air in pump; Clogged nozzle. | Ensure water tap is fully open; Clean water inlet filter; Purge air from system (see Setup); Clean or replace nozzle. |
| Motor runs continuously when trigger is not squeezed | Air in pump; Leak in system; Bypass valve issue. | Purge air from system; Check all connections for leaks; Contact customer support if issue persists. |
| Cai bocor tina sambungan | sambungan leupas; Rusak O-cingcin. | Tighten sadaya sambungan; Mariksa jeung ngaganti O-cingcin ruksak. |
Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer Cecotec.
9. Spésifikasi
Technical specifications for the Cecotec HydroBoost 1400 Essential High Pressure Washer:
| Atribut | Nilai |
|---|---|
| Nomer modél | 08135 |
| Kakuatan | 1400 W |
| Tekanan Maksimum | 105 bar |
| Laju Ngalir | 408 liter/jam |
| Radius aksi | 9 méter |
| Bahan Pompa | Aluminium (HardPump) |
| Tipe Sumber Daya | Kabel Listrik |
| Dimensi produk | 36 x 34 x 58 cm |
| Item Beurat | 5.43 kg |
| Produsén | Cecotec |
10. Garansi jeung Rojongan
Cecotec products are manufactured to high quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Cecotec website. In case of technical issues, missing parts, or warranty claims, please contact Cecotec customer support directly. Have your model number (08135) and purchase details ready when contacting support.
Cecotec Resmi Websitus: www.cecotec.com (Catetan: Ieu placeholder a URL, please refer to your product documentation for the exact support contact information.)
