Buku Panduan Pangguna Skuter Listrik JOYOR T10

1. Bubuka

Welcome to the user manual for your new JOYOR T10 Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

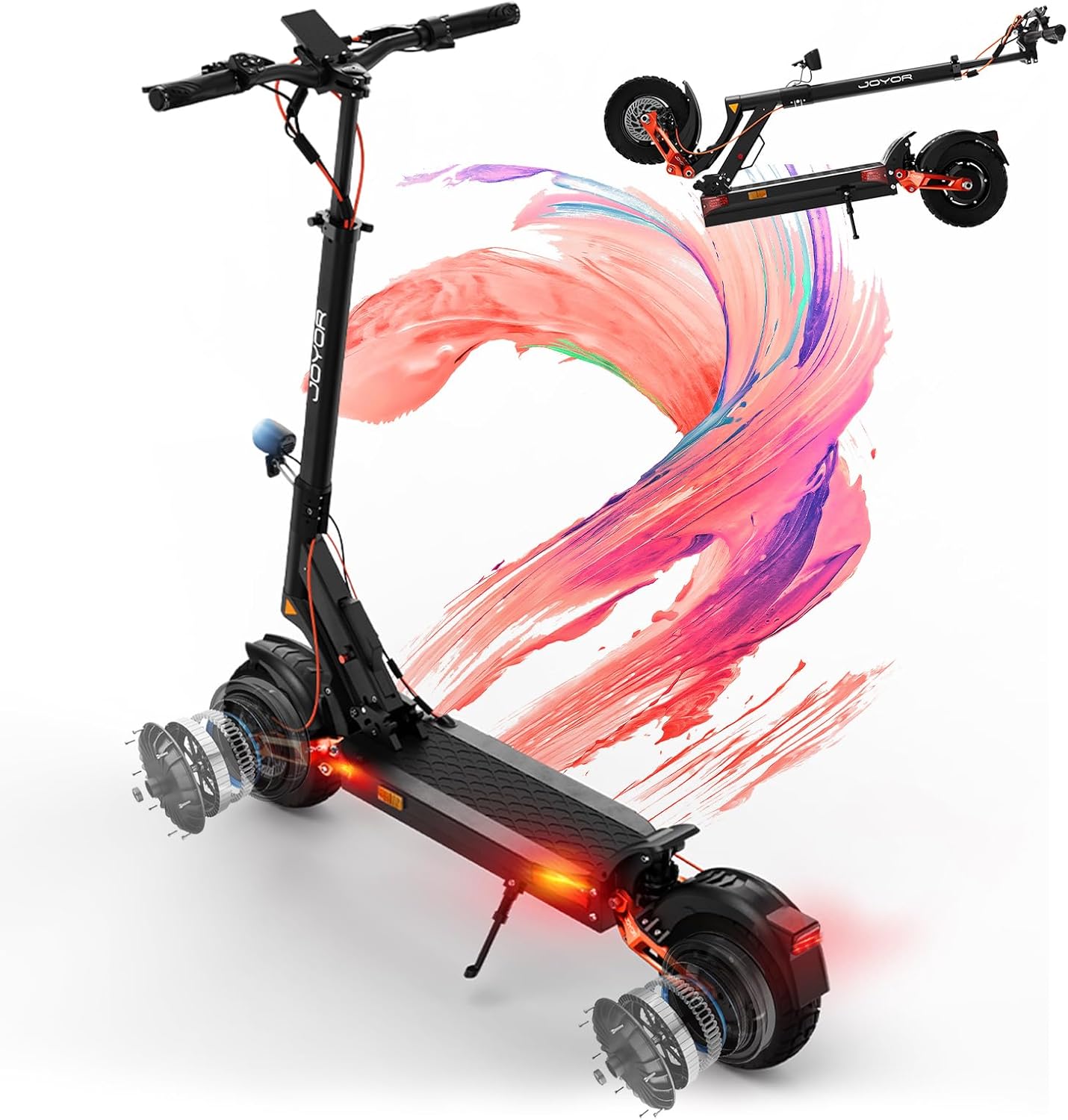

Gambar: Leuwihview of the JOYOR T10 Electric Scooter, highlighting its dual motor design and foldable frame.

2. Émbaran Kasalametan

Your safety is paramount. Operating an electric scooter carries inherent risks. Adhere to all local laws and regulations regarding electric scooter use.

2.1 Pedoman Kasalametan Umum

• Salawasna nganggo helm sareng alat pelindung anu pas (bantal dengkul, bantalan siku, pelindung pigeulang) nalika naek.
• Ulah numpak dina pangaruh alkohol atawa narkoba.
• Pastikeun sadaya komponén parantos dipasang kalayan pageuh sareng dina kaayaan anu saé sateuacan unggal perjalanan.
• Jaga kecepatan sareng jarak anu aman ti kendaraan sanés sareng pejalan kaki.
• Ulah numpak dina hujan badag, salju, atanapi dina permukaan anu és.
• The maximum load capacity for this scooter is 150 kg (330 lbs). Do not exceed this limit.
• This scooter is designed for adults and children under adult supervision. Always ensure the rider is capable and understands the operation.

2.2 Braking and Visibility

The JOYOR T10 is equipped with front and rear mechanical disc brakes for reliable stopping power. It also features comprehensive lighting for enhanced visibility.

• Familiarize yourself with the braking system and practice braking in a safe area.
• Always use both brakes simultaneously for effective stopping.
• Ensure the front headlight, rear warning light, and turn signals are functional before riding, especially at night.
• Use the horn to alert others when necessary.

Image: The scooter's safety features, including the front headlight, turn signals, and rear taillight, illuminated for night visibility.

3. Komponén produk na Fitur

The JOYOR T10 Electric Scooter is designed for performance and durability. Key features include:

• Motor Ganda anu Kuat: Equipped with two 1000W motors for strong acceleration and climbing ability.
• Batré Jarak Jauh: High-capacity lithium battery (48V/60V, 13/18/26Ah variants) offering a range of 55-85 KM on a single charge.
• 10-inch Off-Road Tires: Provides excellent grip and stability on various terrains.
• Hydraulic Shock Absorption: Front and rear hydraulic suspension system for a smooth and comfortable ride.
• Desain anu tiasa dilipat: Gampang dilipet pikeun panyimpenan sareng transportasi anu merenah.
• Fitur kaamanan canggih: Mechanical disc brakes, turn signals, horn, and bright LED lights.

3.1 Control Panel Leuwihview

Gambar: Detil view of the scooter's control panel and buttons.

1. Light/Speed Button
2. Tombol Fungsi
3. Push Mode/Speed Button
4. Tombol Daya
5. Hurungkeun Tombol Signal
6. Tombol Tanduk

3.2 Motor and Battery

Image: Illustration of the powerful dual motors integrated into the wheels.

Gambar: cross-section view showing the high-capacity lithium battery pack within the scooter's deck.

3.3 Suspension and Brakes

Image: Close-up of the front and rear hydraulic shock absorbers, designed for a smooth ride.

Gambar: Detil view of the rear mechanical disc brake system.

4. Setup jeung Majelis

Your JOYOR T10 Electric Scooter comes mostly assembled. Follow these steps for initial setup.

4.1 Unboxing sareng Inspeksi Awal

• Taliti piceun Scooter tina bungkusan na.
• Inspect for any visible damage during transit.
• Ensure all accessories (charger, tools, manual) are present.

4.2 Unfolding Scooter nu

The scooter is designed to be easily folded and unfolded.

1. Teundeun Scooter dina tempat nu datar.
2. Panggihan mékanisme tilepan caket dasar kolom setir.
3. Rotate the red handle outwards to unlock the folding mechanism.
4. Grasp the handle and pull it outwards to release the latch.
5. Carefully lift the steering column until it locks into the upright position. Ensure it clicks securely.
6. Kencengkeun naon waé anu gancang dileupaskeunamps on the handlebars if present.

Image: Instructions demonstrating the easy folding and unfolding process of the scooter.

4.3 Ngecas Awal

Sateuacan numpak anu munggaran, eusian pinuh batré skuter.

• Locate the charging port, usually near the battery compartment on the deck.
• Sambungkeun carjer kana skuter, teras colokkeun carjer kana stop kontak.
• The charging indicator on the charger will change (e.g., from red to green) when fully charged.
• Waktu ngecas sakitar 10-12 jam kanggo ngecas pinuh.
• Ulah ngecas batréna kaleuleuwihi. Cabut carjer saatos ngecas réngsé.

5. Parentah Operasi

5.1 Powering on / Pareum

• To power on: Press and hold the Power Button (4) on the control panel until the display illuminates.
• To power off: Press and hold the Power Button (4) again until the display turns off.

5.2 Riding Modes and Speed

The scooter typically has multiple speed modes.

• Use the Function Button (2) or Speed Button (3) to cycle through available speed modes (e.g., Eco, Standard, Sport).
• The display will show your current speed and selected mode.
• The maximum speed is approximately 25 km/h (15.5 mph) as per standard regulations, but the scooter is capable of higher speeds in unlocked modes (check local laws).

5.3 Lights, Horn, and Turn Signals

• Press the Light Button (1) to turn the front headlight and rear warning light on/off.
• Press the Turn Signal Button (5) to activate the left or right turn signal.
• Press the Horn Button (6) to sound the horn.

5.4 Tip Numpak

• Start by pushing off with your foot to gain initial momentum before engaging the throttle.
• Jaga kasaimbangan dina posisi nangtung bari dua suku napak dina dek.
• Lean into turns for better stability.
• Anticipate stops and use brakes smoothly.

6. Pangropéa

Regular maintenance ensures the longevity and safe operation of your JOYOR T10 Electric Scooter.

6.1 beberesih

• Ngusap handap Scooter kalawan iklanamp lawon sanggeus unggal pamakéan.
• Ulah nganggo jet cai anu tekananna luhur atanapi ngalelepkeun skuter kana cai.
• Avoid using abrasive cleaners that could damage the finish.

6.2 Kamanusaan sarta Studi Ban

• Pariksa tekanan ban sacara rutin. Tingali témbok sisi ban pikeun PSI anu disarankeun.
• Pariksa ban heula bisi aya nu geus aus, bocor, atawa ruksak sateuacan unggal numpak.
• Proper tire pressure improves range and ride comfort.

6.3 Sistim marake

• Regularly check the brake levers for proper tension and responsiveness.
• Inspect brake pads for wear. Replace them if they are worn down.
• Ensure brake cables are not frayed or damaged.

6.4 Kamanusaan sarta Studi Batré

• Ngecas batré sapinuhna saméméh neundeun jangka panjang.
• Simpen skuter di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• If storing for extended periods, charge the battery to about 50-70% every 1-2 months to prevent deep discharge.

7. Cara ngungkulan

Bagian ieu alamat masalah umum Anjeun bisa sapatemon jeung Scooter Anjeun.

For issues not listed here or if solutions do not resolve the problem, please contact JOYOR customer support.

8. Spésifikasi

9. Garansi jeung Rojongan

JOYOR provides a limited warranty for its products. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.

9.1 Rojongan Palanggan

If you have any questions, require technical assistance, or need to claim warranty service, please contact JOYOR customer support through the retailer where you purchased the product or visit the official JOYOR websitus pikeun inpo kontak.
