PRUNUS J-180

PRUNUS J-180 Vintage Buku Panduan Pamaké Speaker Bluetooth Radio Retro

Modél: J-180

1. Bubuka

Thank you for choosing the PRUNUS J-180 Vintage Retro Radio Bluetooth Speaker. This device combines classic aesthetics with modern functionality, offering multiple ways to enjoy your audio. With its portable design and robust features, it is an ideal companion for various settings.

PRUNUS J-180 Vintage Retro Radio Bluetooth Speaker

Figure 1.1: PRUNUS J-180 Vintage Retro Radio Bluetooth Speaker. This image shows the front view of the red vintage-style radio with a smartphone placed on its integrated stand.

2. Naon dina Box

  • Manual Pamilik
  • Retro Speaker (PRUNUS J-180)
  • Ari USB
  • AUX cord

3. Fitur Produk

  • Clear and Loud Sound: Equipped with a powerful speaker for crystal clear audio.
  • Multi-functional Wireless Speaker: Supports Bluetooth connection, TF card, USB drive, and AUX input.
  • Elegant Appearance & Portable Size: Compact (6.7 x 3.1 x 4.3 inches, 1.3 lbs) with a handle for easy portability. Features a phone stand design.
  • Hirup batré anu panjang: Includes an 1800mAh rechargeable battery for extended use.
  • 3-Band Radio with Good Reception: Receives AM, FM, and SW bands with a long retractable antenna.
PRUNUS J-180 with phone on stand

Figure 3.1: The PRUNUS J-180 features a convenient phone stand on top, allowing for hands-free viewbari ngadengekeun audio.

PRUNUS J-180 showing multiple input options

Gambar 3.2: Sisi view of the PRUNUS J-180 highlighting its versatile input options: TF card slot, USB port, and AUX input.

4. Setélan

  1. Ngeusi batre: Before first use, fully charge the speaker using the provided USB cord. Connect the USB cord to the DC 5V charging port on the side of the speaker and to a compatible USB power source. The charging indicator light will illuminate while charging and turn off when fully charged.
  2. Hurungkeun/Pareuman: Rotate the 'VOLUME' knob clockwise to turn the speaker on. Rotate it counter-clockwise until it clicks to turn it off.
  3. Extending the Antenna: For optimal radio reception, extend the telescopic antenna located at the back of the unit.
Close-up of PRUNUS J-180 charging port

angka 4.1: Tutup-up view of the DC 5V charging port on the side of the PRUNUS J-180, showing the charging indicator light.

5. Parentah Operasi

  1. Kontrol volume: Adjust the 'VOLUME' knob to increase or decrease the sound level.
  2. Pilihan Mode: Use the mode buttons (e.g., BT/FM, TF, USB, AUX) to switch between different playback modes.
  3. Operasi Radio (AM/FM/SW):
    • Pilih pita anu dipikahoyong (FM, AM, atanapi SW) nganggo saklar pita.
    • Rotate the 'TUNING' knob to scan for radio stations. The tuning indicator will help identify strong signals.
  4. Sambungan Bluetooth:
    • Switch to Bluetooth mode. The speaker will enter pairing mode.
    • On your device (smartphone, tablet), search for 'PRUNUS J-180' in the Bluetooth settings and connect.
    • Sakali disambungkeun, Anjeun bisa muterkeun audio tina alat Anjeun ngaliwatan speaker.
  5. TF Card / USB Disk Playback:
    • Insert a TF card or USB disk with MP3 audio files kana slot anu saluyu.
    • The speaker will automatically switch to the corresponding mode and begin playback.
    • Anggo tombol kontrol puter balik (puter/pause, lagu salajengna/saméméhna) pikeun ngatur musik anjeun.
  6. Input AUX:
    • Connect an external audio device (e.g., MP3 player, phone) to the AUX port using the provided AUX cord.
    • Spéker bakal otomatis pindah ka modeu AUX.
PRUNUS J-180 radio bands

Figure 5.1: The front panel of the PRUNUS J-180 showing the AM, FM, and SW radio frequency bands and the tuning knob.

Video 5.1: An official product video demonstrating the various features and operating modes of the PRUNUS J-180 Retro Radio Bluetooth Speaker, including radio tuning, Bluetooth connectivity, and media playback options.

6. Pangropéa

  • Keep the speaker dry and away from moisture.
  • Ngabersihan beungeut ku lawon lemes, garing. Ulah make cleaners abrasive atawa pangleyur.
  • Hindarkeun ngalaan speaker ka suhu anu ekstrim.
  • Upami teu dianggo salami lami, simpen speaker di tempat anu tiis sareng garing.
  • The 1800mAh battery is replaceable. If battery performance degrades significantly, consider replacing it with a compatible 3.7V 18650 rechargeable battery.

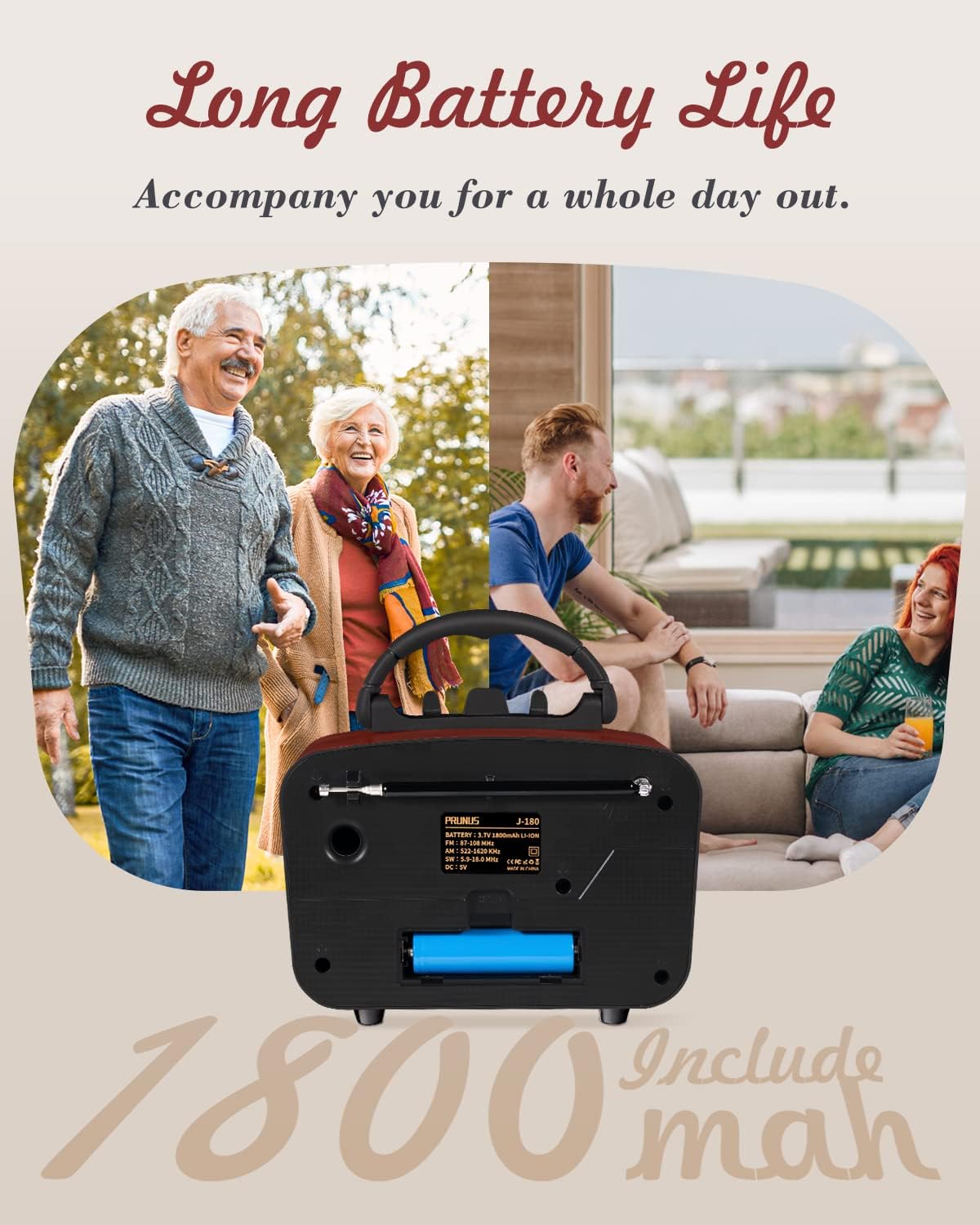

PRUNUS J-180 battery compartment

Gambar 6.1: Bagian tukang view of the PRUNUS J-180, showing the battery compartment with the 1800mAh rechargeable battery installed.

7. Cara ngungkulan

Masalah Mungkin Cukang lantaranana Solusi
Henteu aya kakuatan / Henteu hurung Batré béak. Cas speaker nepi ka pinuh nganggo kabel USB anu disayogikeun.
panarimaan radio goréng Antena teu manjang atanapi daérah sinyal lemah. Fully extend the telescopic antenna. Try moving the speaker to a different location.
Bluetooth teu nyambung Spiker teu dina modeu pasangan atanapi alat teu tiasa kapendak. Ensure the speaker is in Bluetooth mode. Check your device's Bluetooth settings and try reconnecting.
Kartu USB/TF teu tiasa diputer Teu dirojong file format or card/drive issue. Pastikeun audio files are in MP3 format. Try a different TF card or USB drive.
Charging light does not turn off Battery may be fully charged or charging circuit issue. The red charging light should go out when fully charged. If it remains on after extended charging (e.g., 24 hours), unplug the device. Consider replacing the battery if it consistently fails to indicate full charge.

8. Spésifikasi

  • Ukuran produk: 6.7 x 3.2 x 4.3 inci
  • Beurat barang: 1.3 pon
  • Jumlah modél: J-180
  • Batré: Diperlukeun 1 batré Lithium Ion (kalebet), 1800mAh
  • Téknologi konektipitas: Speaker Bluetooth
  • warna: Beureum
  • Sumber Daya: Listrik Kabel (DC 5V)
  • Pita Radio: FM, AM, SW
PRUNUS J-180 dimensions

Figure 8.1: Diagram showing the dimensions of the PRUNUS J-180: 6.7 inches (length), 3.2 inches (width), and 4.3 inches (height).

9. Jaminan & Dukungan

For detailed warranty information and customer support, please refer to the official PRUNUS Store or the user manual PDF provided with your purchase.
