IXTECH Portable Power Bank 10000mAh Magnetic Phone Charger

1. Bubuka

The IXTECH Portable Power Bank (Model IX-CD-08) is a versatile charging solution designed for mobile devices. Featuring a 10000mAh battery capacity, it supports both magnetic wireless charging (Mag-Safe compatible) and wired charging via USB-A and USB Type-C ports. This compact device allows for simultaneous charging of up to three devices, providing reliable power on the go.

2. Fitur Produk

• Fast-Charging Magnetic Phone Charger: Designed for quick and convenient charging of Mag-Safe compatible phones and cases.
• Ultra-Portable and Compact: Small form factor for easy portability, fitting into pockets or bags.
• Real-Time Power Monitoring LED Display: An advanced AI chip ensures stable output and battery protection, with a clear LED screen showing remaining power.
• Powerful 22.5W Charging Speeds: The 10000mAh battery delivers 22.5 watts of output, capable of charging devices from 0% to 50% in approximately 25 minutes.
• Intelligent Adaptive Device Support: Capable of charging up to three individual devices simultaneously.
• Kasaluyuan ngecas nirkabel: For phones without built-in Mag-Safe, a magnetic ring (included in the box) can be attached to the phone case to enable magnetic wireless charging.

3. Eusi Paket

Pastikeun yén sadaya item aya dina pakét anjeun:

• IXTECH Magnetic Wireless Charging Power Bank (Model IX-CD-08)
• Kabel Ngecas USB Tipe-C
• Magnetic Ring (for non-Mag-Safe compatible phone cases)

Image: The IXTECH Power Bank and its packaging, illustrating the included charging cable.

4. Setélan

4.1 Ngecas Awal Bank Daya

Before first use, fully charge your IXTECH Power Bank. Connect the provided USB Type-C charging cable to the power bank's Type-C port and plug the other end into a compatible USB power adapter (not included). The LED display will show the charging progress, indicating 100% when fully charged.

4.2 Attaching the Magnetic Ring (Optional)

If your phone case is not Mag-Safe compatible, you can use the included magnetic ring to enable magnetic wireless charging. Carefully align and attach the ring to the back of your phone case according to the instructions provided with the ring. Ensure it is centered for optimal magnetic connection and charging efficiency.

5. Parentah Operasi

5.1 Daya Hurung/Pareuman

To turn on the power bank, press the power button located on the side. The LED display will illuminate, showing the current battery percentage. The power bank will automatically turn off after a period of inactivity to conserve power.

5.2 Mariksa Level Batré

Pencét tombol daya sakali pikeun view percen batréna sésatage on the digital LED display.

5.3 Ngecas Nirkabel

1. Ensure the power bank is turned on.
2. Align your Mag-Safe compatible phone (or phone with attached magnetic ring) with the magnetic charging area on the power bank. The magnets will securely attach the phone to the power bank.
3. Wireless charging will begin automatically. The LED display may show a wireless charging indicator.

Image: The IXTECH Power Bank wirelessly charging a smartphone, demonstrating the magnetic attachment.

Image: A visual representation of the 'Snap and Go' magnetic charging feature.

Image: A user holding a smartphone with the IXTECH Power Bank attached, demonstrating ease of use during charging.

5.4 Ngecas Kabel

The power bank features a USB-A output port and a USB Type-C input/output port. These ports can be used to charge devices that do not support wireless charging or for faster wired charging.

1. Ensure the power bank is turned on.
2. Connect your device's charging cable to either the USB-A port or the USB Type-C port on the power bank.
3. Connect the other end of the cable to your device. Charging will commence automatically.

Image: A detailed diagram highlighting the magnetic wireless charger, digital display screen, USB-A output port, and USB Type-C input/output port.

5.5 Ngecas Sababaraha Alat Sacara Babarengan

The IXTECH Power Bank can charge up to three devices concurrently: one wirelessly and two via the USB-A and USB Type-C ports. Connect your devices as described in sections 5.3 and 5.4.

Image: The IXTECH Power Bank simultaneously charging three smartphones, one wirelessly and two via cables.

6. Pangropéa

• Tetep bank kakuatan garing sarta jauh tina Uap.
• Hindarkeun suhu anu ekstrim.
• Bersihkeun alat ku kaen anu lemes sareng garing. Ulah make bahan kimia kasar atawa bahan abrasive.
• Nyimpen dina tiis, tempat garing lamun teu dipaké.

7. Cara ngungkulan

• Alat teu ngecas: Ensure the power bank is turned on and has sufficient charge. Check all cable connections. For wireless charging, ensure proper alignment and Mag-Safe compatibility (or use of magnetic ring).
• Ngecas lalaunan: Verify that your device and cable support fast charging. Charging multiple devices simultaneously may reduce individual charging speeds.
• Bank kakuatan henteu ngecas: Use the provided USB Type-C cable and a compatible power adapter. Ensure connections are secure.
• Magnetic attachment is weak: Ensure your phone case is Mag-Safe compatible or that the magnetic ring is correctly installed and centered on your case.

8. Spésifikasi

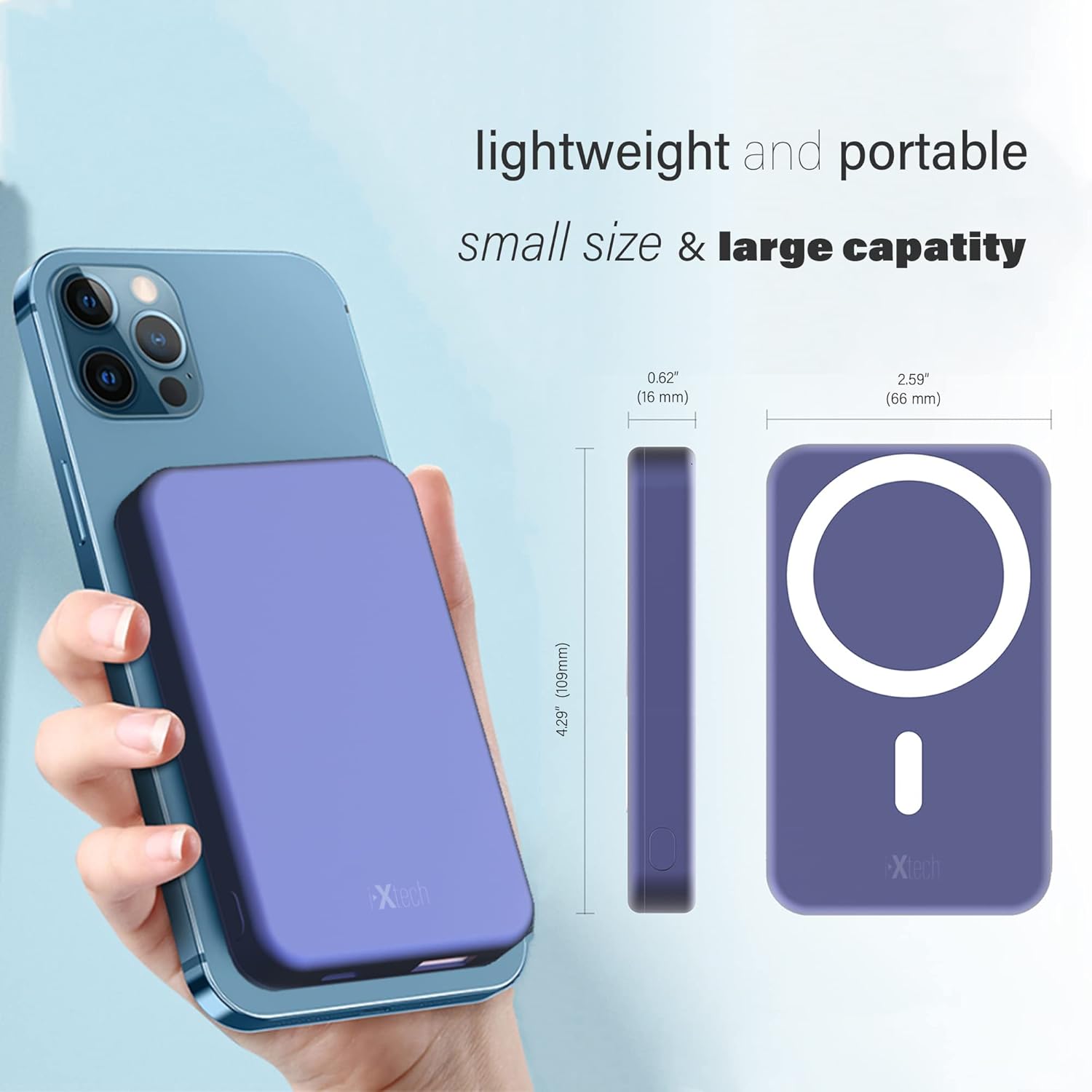

Image: The IXTECH Power Bank shown next to a smartphone, illustrating its compact size and dimensions.

Image: Close-up of the IXTECH Power Bank's digital display, showing the battery percentage.

9. Émbaran Kasalametan

• Ulah ngabongkar, ngaropéa, atawa ngalereskeun alat.
• Ulah nepi ka muragkeun, nabrak, atawa ngagebug alat kalawan kuat.
• Jauhkeun tina seuneu, cai, sareng cairan korosif.
• Do not expose to direct sunlight or high temperatures for extended periods.
• Buang produk sacara tanggung jawab nurutkeun peraturan lokal.

10. Garansi jeung Rojongan

For warranty information and customer support, please refer to the documentation included with your purchase or contact IXTECH directly through their official websitus atanapi saluran layanan palanggan. Simpen bukti pameseran anjeun pikeun klaim garansi.
