1. Bubuka
The Godox TL180 RGBWW Tube Light is a versatile lighting solution designed for various visual projects, including filmmaking, content creation, photography, and videography. This 180cm RGBWW tube light offers an extended light-emitting area and increased power, providing enhanced creative control. It features adjustable hue, saturation, intensity, 40 preset color gels, and a variable color temperature range from 2700K to 6500K. The TL180 also includes 14 preset light effects with multiple modes and can be controlled via on-board operation, the Godox Light App, RC-R9 remote, or DMX controller. It operates on AC power or a built-in lithium battery.
Figure 1: Godox TL180 RGBWW Tube Light in a creative lighting setup.
2. Émbaran Kasalametan
- Do not expose the device to water or moisture. This product is not water resistant.
- Use only the specified power adapter and accessories provided by Godox.
- Ulah ngabongkar atanapi ngarobih alatna. Perbaikan ngan ukur kedah dilakukeun ku petugas servis anu diidinan.
- Keep the device away from flammable materials and extreme temperatures.
- Mastikeun ventilasi ditangtoskeun salila operasi pikeun nyegah overheating.
- Avoid direct eye exposure to the light source, as it can cause discomfort.
3. Naon dina Box

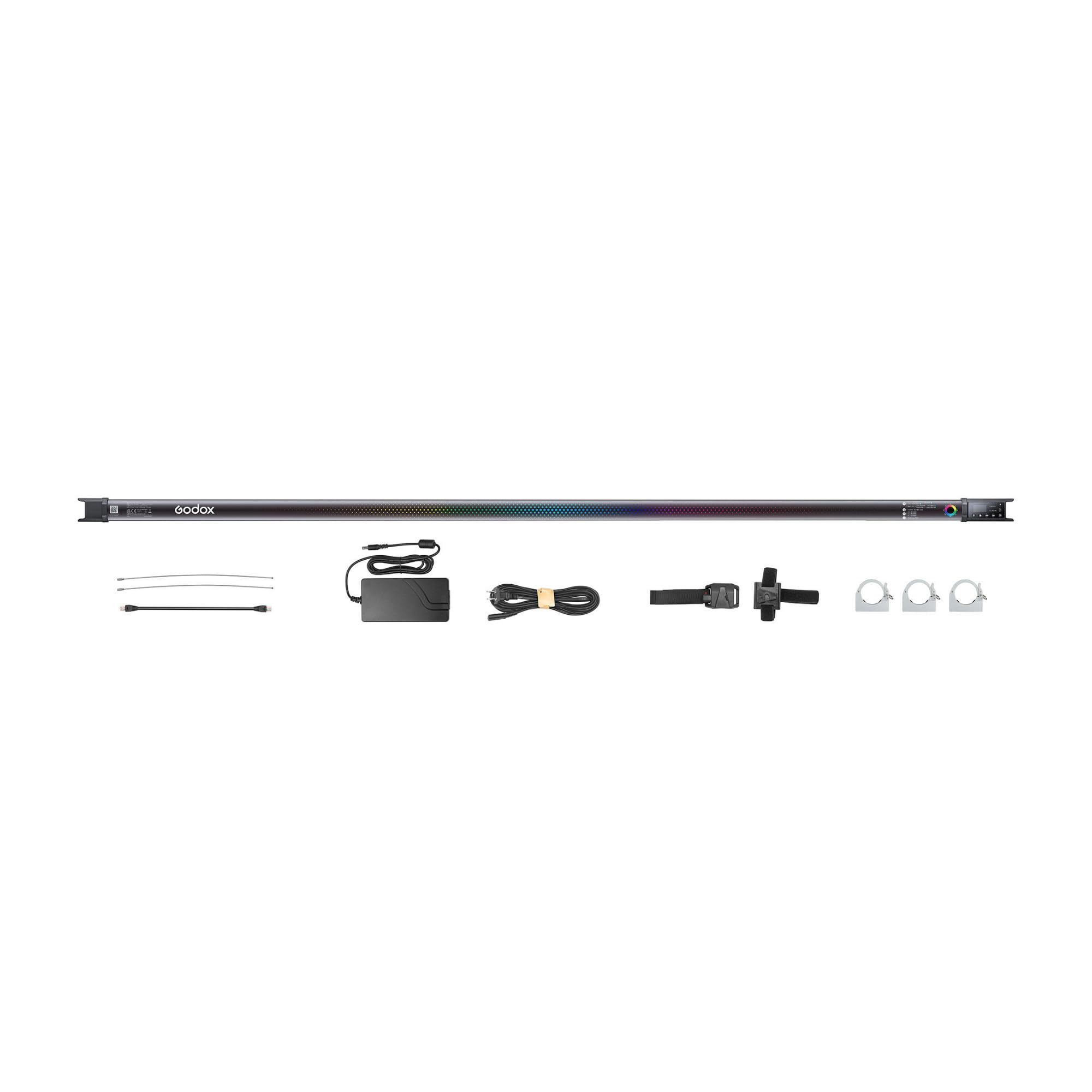

The standard package for the Godox TL180 RGBWW Tube Light includes:
- Godox TL180 RGBWW Tube Light
- Adaptor AC
- Kabel Baja
- Klip
- Multi-light Bracket
4. Produk Langkungview
The Godox TL180 is an elongated tube light designed for versatile lighting applications. It features a control panel at one end for on-board adjustments and various mounting points along its body.
Figure 2: Godox TL180 RGBWW Tube Light (front and back views).
5. Setélan
5.1 Powering Alat
- Daya AC: Connect the provided AC adapter to the light's power input and then to a suitable power outlet.
- Batré Diwangun-di: The TL180 features an internal rechargeable lithium battery. Ensure the battery is fully charged before use for up to 160 minutes of operation at 100% brightness.
5.2 Pilihan pamasangan
The TL180 offers flexible mounting options:
- Clips and Steel Cables: Use the included clips and steel cables to securely attach the light to various surfaces or rigging points.
- Multi-light Bracket: Utilize the multi-light bracket to combine several TL180 units for a larger light source or to create specific geometric patterns.
Figure 3: Multi-light bracket for combining TL180 units.
Gambar 4: Kelample of multiple TL180 lights mounted on a stand.
6. Parentah Operasi
6.1 Daya Hurung/Pareuman
Locate the power button on the control panel of the tube light. Press and hold to power on or off the device.
6.2 Nyaluyukeun Suhu Warna (Modeu CCT)
In CCT mode, you can adjust the color temperature from 2700K (warm white) to 6500K (cool white) to match ambient light or achieve desired skin tones. Use the control dial or app interface to fine-tune the setting.
6.3 RGB Mode
Access the RGB mode to select from a full spectrum of colors. Adjust the hue (H), saturation (S), and intensity (I) to create any desired color. The TL180 also offers 40 preset color gels for quick selection.
6.4 Special Light Effects
The TL180 features 14 preset light effects, each with 2-3 modes, totaling 39 special effects. These include:
- Siklus RGB
- Kilat
- Partéi
- Kilat
- Bohlam Pegat
- TV
- Lilin
- Seuneu
- Kembang api
- Music (light changes color in sync with sound variations)
- Mobil Polisi
- Treuk seuneu
- Ambulan
- SOS
Gambar 5: Leuwihview of special light effects.
6.5 Métode kontrol
The TL180 can be controlled using several methods:
- On-board Operation: Anggo tombol fisik sareng kenop dina panel kontrol lampu.
- Aplikasi Lampu Godox: Download the official Godox Light App (available for Android and iOS) to control the light wirelessly via Bluetooth. This allows for individual or group control of lights.
- RC-R9 Remote: (Sold separately) Use the dedicated remote control for convenient wireless adjustments.
- DMX Controller: For professional setups, the TL180 supports DMX control systems.
7. Pangropéa
7.1 beberesih
Gently wipe the light's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or internal components.
7.2 Panyimpenan
When not in use, store the TL180 in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.
8. Cara ngungkulan
- Lampu teu hurung: Ensure the battery is charged or the AC adapter is properly connected and receiving power.
- Remote/App not connecting: Check that the light is powered on and Bluetooth is enabled on your control device. Ensure the remote control has fresh batteries.
- Kaluaran cahaya anu teu konsisten: Verify that the light is not overheating. If using multiple lights, check DMX or group settings for conflicts.
- Batré teu ngecas: Confirm the AC adapter is functioning correctly and the charging port is clean.
If issues persist, contact Godox customer support for assistance.
9. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | GODOX |
| Ngaran modél | TL180 |
| Rentang Suhu Warna | 2700K - 6500K |
| Akurasi Warna (CRI) | 96 |
| Color Accuracy (TLCI) | 98 |
| Control kacaangan | 0-100% |
| Battery Life (100% brightness) | 160 menit |
| Item Beurat | 2210 Gram (4.87 lbs) |
| Dimensi produk | 180 cm (6 feet) length, 20.08"W (width dimension provided in data, likely referring to a specific measurement point) |
| Téhnologi konektipitas | Wired (AC), Wireless (Bluetooth for App, RF for Remote, DMX) |
| Alat nu cocog | Cameras, Smartphones, DMX lighting control systems |
| Tingkat Résistansi Cai | Henteu Tahan Cai |
10. Garansi jeung Rojongan
10.1 Émbaran jaminan
The Godox TL180 RGBWW Tube Light comes with a 1 Taun Garansi kawates. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
10.2 Rojongan Palanggan
Kanggo dukungan téknis, layanan, atanapi patarosan salajengna, mangga buka GODOX resmi websitus atanapi ngahubungan departemén layanan palanggan maranéhna. Anjeun oge bisa manggihan inpo leuwih lengkep jeung produk di Toko GODOX di Amazon.
