1. Bubuka
The LoraTap Wireless Roller Shutter Module (Model SC511SC) with RF Remote Control provides a convenient and efficient solution for controlling motorized roller shutters, blinds, and awnings. This system operates on an 868MHz radio frequency, ensuring stable and reliable communication without the need for Wi-Fi or Bluetooth connectivity. It is designed to be compatible with existing traditional wall switches, allowing for both manual and remote control operation.
This manual provides detailed instructions for the installation, operation, and maintenance of your LoraTap Wireless Roller Shutter Module and its accompanying RF remote control.
2. Eusi Paket
Punten parios yén sadaya barang anu didaptarkeun di handap kalebet kana pakét anjeun:
- 1 x LoraTap RF Roller Shutter Module (SC511SC)
- 1 x 3-Button RF Remote Control
- 1 x Key Cord
- 1 x Obeng
- Several Screws for installation
- 3 x Wiring Cables
- 1 x Wall Mount Bracket for Remote Control
- 2 x Double-Sided Adhesive Tapes
- 1 x Pituduh Pamaké (manual ieu)
Gambar 2.1: Contents of the LoraTap Wireless Roller Shutter Module package, including the module, remote, and accessories.
3. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | SC511SC |
| Operasi Voltage | AC 100-250V |
| Frékuénsi | 50/60Hz |
| Max. Beban Daya | 300W |
| Operasi Ayeuna | 1A |
| Ukuran Modul (L x W x H) | 48 x 47 x 22 mm |
| Remote Control Dimensions (LxWxH) | 90 x 30 x 10 mm |
| Téhnologi nirkabel | 868MHz RF |
| Indoor Remote Range | Up to 30 meters (through walls) |
| Outdoor Remote Range | Nepi ka 200 méter |
| Compatible Motor Type | 4-wire motor (with Neutral wire) |
Gambar 3.1: Physical dimensions of the LoraTap module and remote control.
4. Émbaran Kasalametan jeung Precautions
Please read and understand all safety instructions before installation and use. Improper installation can lead to electric shock, fire, or other hazards.
- Pamasangan profésional disarankeun: Electrical work should be performed by a qualified electrician.
- Pareum listrik: Salawasna pegatkeun daya dina pemutus sirkuit sateuacan masang atanapi ngalayanan modul.
- Voltage kasaluyuan: Ensure the module's operating voltage (100-250V AC) matches your electrical system.
- Kasaluyuan motor: This module is designed for 4-wire motors only (typically with Blue, Brown, Black, Green/Yellow wires). A neutral wire is required for operation. Do not attempt to connect to 3-wire motors.
- Kapasitas beban: Do not exceed the maximum load power of 300W.
- Pamakéan jero rohangan: The module is intended for indoor use in dry environments.
Gambar 4.1: Motor compatibility and wiring color codes. Ensure your motor has 4 wires including a neutral wire.
5. Pamasangan
5.1 Daptar pariksa Pra-Pamasangan
- Pastikeun daya dina pemutus sirkuit utama PAREUM.
- Confirm your roller shutter/blind motor is a 4-wire type.
- Verify that your wall switch box has sufficient depth (minimum 60mm recommended) to accommodate the module.
5.2 Diagram Wiring
Follow the wiring diagram carefully. Incorrect wiring can damage the module or motor.
Gambar 5.1: Wiring connections for the LoraTap SC511SC module.
Léngkah-léngkah Wiring:
- Connect the Live (L) and Neutral (N) input wires from your power supply to the corresponding 'Input AC~' terminals on the module.
- Connect the motor's Neutral (N) wire to the 'Output N' terminal on the module.
- Connect the motor's 'Up' wire (e.g., Brown) to the 'L1' terminal on the module.
- Connect the motor's 'Down' wire (e.g., Black) to the 'L2' terminal on the module.
- If using a traditional wall switch, connect the switch's Live (L) input to the 'L' terminal on the module.
- Connect the switch's 'Up' output to the 'S1' terminal on the module.
- Connect the switch's 'Down' output to the 'S2' terminal on the module.
- Pastikeun sadaya sambungan aman sareng insulated.
5.3 Instalasi fisik
The compact design of the module allows it to be installed directly into most standard wall switch boxes. Ensure there is enough space for the module and wiring.
Gambar 5.2: Recommended wall box depth for module installation.
- After wiring, carefully place the module into the wall box.
- Re-attach the traditional wall switch (if applicable) over the module.
- Balikkeun kakuatan dina circuit breaker.
Gambar 5.3: Module installed behind a traditional wall switch.
6. Parentah Operasi
6.1 Nyapasangkeun kadali jauh
The remote control and module are typically pre-paired from the factory. If re-pairing is needed or for adding additional remotes:
- Press and hold the 'Pairing Button' on the module for approximately 3 seconds until the indicator light flashes.
- Within 10 seconds, press any button on the remote control you wish to pair.
- The indicator light on the module will stop flashing, indicating successful pairing.
6.2 Operasi Dasar
Once installed and paired, you can control your roller shutters/blinds using either the traditional wall switch or the RF remote control.
- Ngagunakeun Remote Control:
Tombol Luhur (▲): Press to open/raise the roller shutter.
Tombol Ka Handap (▼): Press to close/lower the roller shutter.
Stop Button (▮▮): Press to stop the roller shutter at any desired position. - Using the Traditional Wall Switch:
A short press on the 'Up' or 'Down' button of your traditional switch will initiate the movement. A second short press will stop the movement.
Gambar 6.1: LoraTap module and remote control.
6.3 Remote Control Range and Portability
The 868MHz RF technology provides an extended and stable control range. The remote control can be used as a portable device or mounted on a wall using the provided bracket and adhesive tapes/screws.
- rentang jero rohangan: Up to 30 meters, capable of passing through walls, windows, and ceilings.
- Rentang luar: Up to 200 meters in open areas.

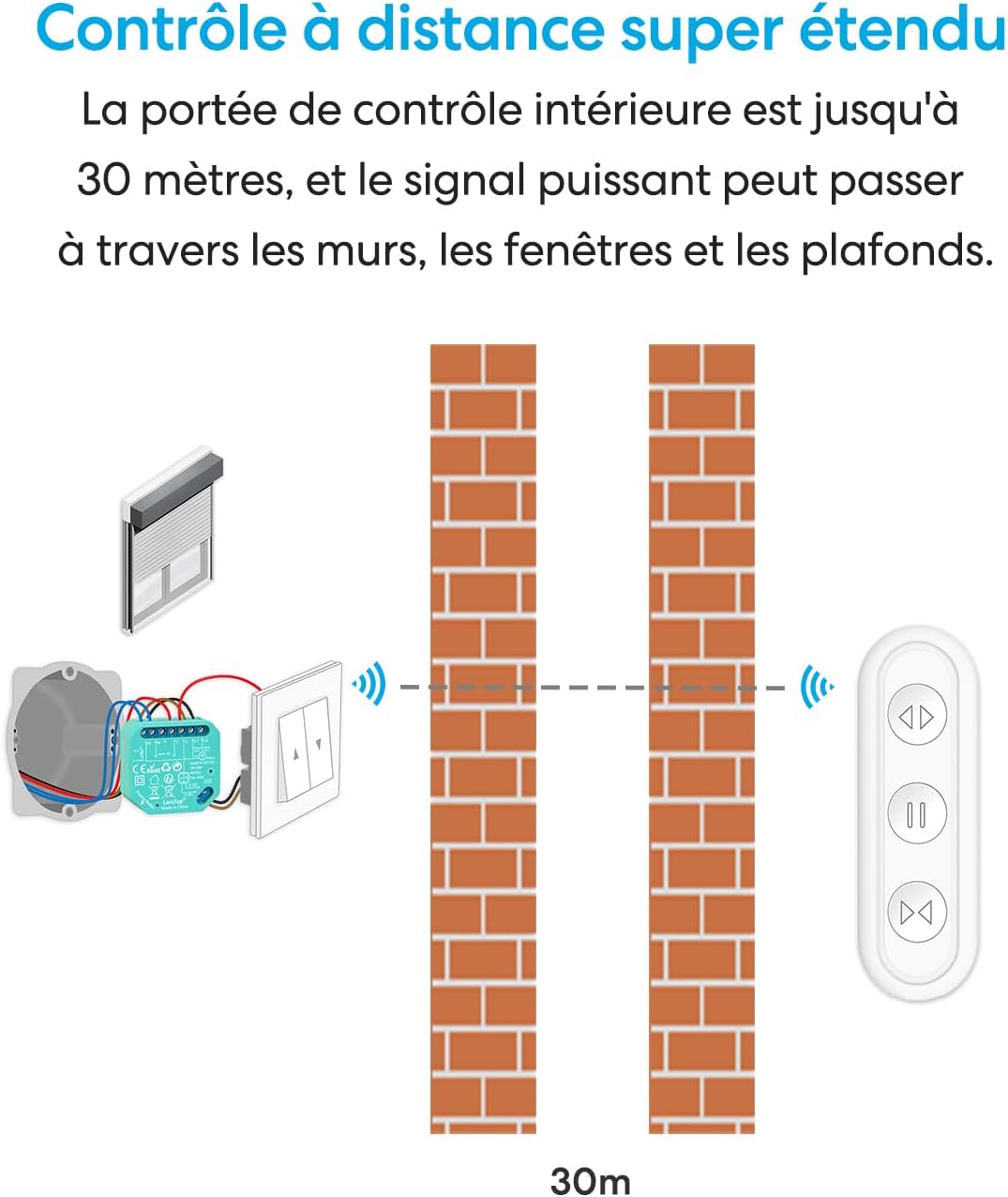

Gambar 6.2: Remote control range capability.
Gambar 6.3: Remote control portability and mounting options.
7. Pangropéa
The LoraTap Wireless Roller Shutter Module requires minimal maintenance.
- beberesih: Wipe the remote control and any exposed parts of the module with a soft, dry cloth. Do not use abrasive cleaners or liquids.
- Ngagantian Batré (Kadali Jauh): If the remote control's range decreases or it becomes unresponsive, the battery may need replacement. Refer to the remote control's specific instructions for battery type and replacement procedure.
- Module Access: For any maintenance on the module itself, always disconnect power at the circuit breaker first.
8. Cara ngungkulan
If you encounter issues with your LoraTap Wireless Roller Shutter Module, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Module not responding to remote control. | Remote not paired, remote battery low, module not powered. | Re-pair the remote control (Section 6.1). Replace remote battery. Check power supply to the module. |
| Roller shutter does not move or moves intermittently. | Incorrect wiring, motor issue, module overload. | Verify wiring according to Figure 5.1. Check motor for faults. Ensure motor power does not exceed 300W. |
| Limited remote control range. | Obstructions, interference, low remote battery. | Ensure no major metal obstructions. Replace remote battery. |
| Traditional wall switch not working. | Incorrect wiring to S1/S2 terminals, switch fault. | Check wiring to S1/S2 terminals (Figure 5.1). Test the traditional switch independently if possible. |
9. Skenario Aplikasi
The LoraTap Wireless Roller Shutter Module is versatile and can be used in various settings for convenient control of motorized window coverings and awnings.
Gambar 9.1: Diverse application examples for the LoraTap module.
Gambar 9.2: Ease of use for all ages and situations.
10. Garansi jeung Rojongan
LoraTap products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official LoraTap websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
Sumberdaya Online: For additional support, FAQs, and product updates, please visit the LoraTap Brand Store on Amazon.
