Bubuka
Thank you for choosing the Total Tools 20V 2Ah Battery Pack. This instruction manual provides important information on the safe operation, maintenance, and troubleshooting of your battery pack. Please read this manual thoroughly before first use and keep it for future reference.
This battery pack is designed to provide reliable power for your compatible Total Tools 20V cordless power tools, ensuring optimal performance and extended runtime.
Parentah Kasalametan
Salawasna turutan pancegahan kaamanan dasar nalika nganggo produk listrik pikeun ngirangan résiko seuneu, kejutan listrik, sareng tatu pribadi.
- Ngecas: Only use chargers specified by Total Tools for this battery pack. Using an incompatible charger may cause fire, electric shock, or injury.
- Panyimpenan: Store the battery pack in a cool, dry place, away from direct sunlight, heat sources, and moisture. Do not store in temperatures exceeding 50°C (122°F).
- Penanganan: Do not short-circuit the battery terminals. Avoid dropping or subjecting the battery pack to strong impacts. Do not open, disassemble, or modify the battery pack.
- pembuangan: Miceun bungkus batré sacara tanggung jawab numutkeun peraturan lokal. Ulah miceun kana runtah rumah tangga atanapi ku cara dibeuleum.
- Ruksakna: If the battery pack is damaged, leaking, or shows signs of overheating, discontinue use immediately and contact Total Tools customer service.
- Barudak: Jauhkeun bungkus batré tina jangkauan barudak.
Produk Leuwihview
Familiarize yourself with the components of your Total Tools 20V 2Ah Battery Pack:
- Battery Housing: Awét casing protecting the internal cells.
- Tombol Leupaskeun Batré: Used to detach the battery from the tool or charger.
- Ngecas Kontak: Metal terminals for connecting to a compatible charger.
- Lampu Indikator Batré: LEDs that show the current charge level of the battery.
Gambar 1: Top view of the battery pack, highlighting the charge indicator and branding.
Gambar 2: Sisi view of the battery pack, illustrating the release button.
Gambar 3: Handap view of the battery pack, displaying the electrical contacts.

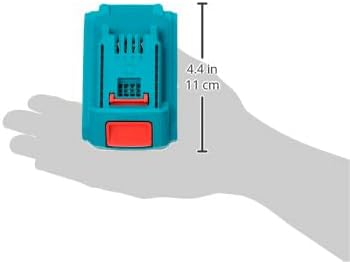

Figure 4: Battery pack held in hand, showing its compact size and approximate dimensions.
spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | Total |
| Nomer modél | TFBLI20011 |
| Voltage | 20 volt |
| Kapasitas batré | 2.0 Ampere-hour (Ah) |
| Ukuran (L x W x H) | 10 x 20 x 37 cm |
| Item Beurat | 209 gram |
| Warna | Multi-warna |
Disetél
Ngeusi batre Pack
- Ensure you have a compatible Total Tools 20V battery charger.
- Colokkeun carjer ka colokan listrik standar.
- Slide the battery pack onto the charger, ensuring it clicks securely into place.
- Lampu indikator carjer bakal némbongkeun status ngecas. Tingali manual carjer anjeun pikeun pola lampu anu khusus.
- Once fully charged, remove the battery pack from the charger. Do not leave the battery on the charger for extended periods after it is fully charged.
Note: For optimal performance, fully charge the battery pack before its first use.
Ngoperasikeun
Attaching the Battery Pack to a Tool
- Ensure both the battery pack and the tool are clean and free of debris.
- Align the battery pack with the battery slot on your Total Tools 20V cordless power tool.
- Slide the battery pack firmly into the slot until you hear a click, indicating it is securely locked in place.
Detaching the Battery Pack from a Tool
- Press and hold the battery release button located on the battery pack.
- While holding the button, slide the battery pack out of the tool's battery slot.
Mariksa Tingkat Ngeusi batre
Press the battery indicator button (if available) on the battery pack. The LED lights will illuminate to show the remaining charge:
- All lights on: Full charge
- Fewer lights on: Decreasing charge level
- One light blinking: Low charge, recharge soon
Pangropéa
- beberesih: Keep the battery pack and its terminals clean. Wipe with a dry, soft cloth. Do not use water or chemical cleaners.
- Panyimpenan: When not in use for extended periods, store the battery pack in a cool, dry place, ideally with a partial charge (around 50%). Avoid storing fully charged or fully discharged.
- Suhu: Do not expose the battery pack to extreme temperatures. This can reduce battery life and performance.
- Pamakéan Biasa: For best battery life, use and recharge the battery regularly. Avoid deep discharges.
Pamérésan masalah
Battery Pack Not Charging
- Ensure the charger is properly plugged into a working power outlet.
- Verify that the battery pack is securely seated on the charger.
- Check for any visible damage to the battery pack or charger. If damaged, do not use.
- Ensure the ambient temperature is within the recommended charging range (typically 0°C to 40°C / 32°F to 104°F).
Battery Pack Not Powering Tool
- Check if the battery pack is fully charged using the battery indicator lights.
- Ensure the battery pack is securely attached to the tool.
- Confirm that the tool itself is functioning correctly with another battery (if available).
- Verify that the battery pack is compatible with your specific Total Tools model.
If issues persist after following these steps, please contact Total Tools customer support.
Garansi sareng Rojongan
Total Tools products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your purchase or visit the official Total Tools websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
