Onforu 2 Pack 75W Flood Lights Outdoor Instruction Manual

1. Produk Langkungview

The Onforu 2 Pack 75W Flood Lights are designed for outdoor use, providing 7000 lumens of bright, 6500K daylight white illumination. These LED floodlights feature three adjustable heads, allowing for a wide lighting coverage of up to 270 degrees. Constructed from durable aluminum, they offer efficient heat dissipation and are rated IP65 waterproof for reliable performance in various weather conditions. The lights are switch-controlled, meaning they operate via a standard wall switch and do not include motion sensors, solar power, or dusk-to-dawn functionality.

Image 1: Onforu 2 Pack 75W Flood Lights Outdoor, Brown color.

2. Eusi Paket

Unggal pakét ngandung item di handap ieu:

• 2 x Onforu 75W LED Flood Light Fixtures
• 2 x ningkatna Kurung
• 1 x Manual Instruksi
• Instalasi Hardware (screws, mur kawat)

3. Spésifikasi

Image 2: Detailed dimensions and adjustable angles of the floodlight heads.

Image 3: Illustration of the rugged metal design and efficient heat dissipation fins.

4. Émbaran Kasalametan

Mangga baca tur ngartos sagala parentah kaamanan saméméh instalasi tur pamakéan. Gagalna nuturkeun paréntah ieu tiasa nyababkeun shock listrik, seuneu, atanapi bahaya anu sanés.

• PERHATOSAN: Résiko shock listrik. Pegatkeun sambungan kakuatan dina sekering atawa circuit breaker saméméh instalasi atawa ngalayanan.
• Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni atanapi jalmi anu wawuh kana konstruksi sareng operasi produk ieu sareng bahaya anu aya hubunganana.
• Mastikeun suplai voltage is correct (120 Volts) before connecting the fixture.
• Do not look directly into the LED light source when illuminated, as it may cause eye damage.
• Ensure all connections are secure and properly insulated to prevent water ingress.
• Ulah ngarobih perlengkapan atanapi nganggo éta pikeun tujuan anu sanés tibatan anu dimaksud.

5. Pamasangan

These floodlights can be installed on a wall or soffit. Follow these steps for proper installation:

5.1 Persiapan

1. Pareuman kakuatan dina pemutus sirkuit atanapi kotak sekering.
2. Carefully unpack the floodlight and all components.
3. Identify the mounting location (wall or soffit) and ensure it is suitable for electrical wiring.

5.2 Pasang bracket

1. Attach the provided mounting bracket to the junction box using the appropriate screws. Ensure the bracket is securely fastened.

5.3 Kabel

1. Connect the fixture's wires to the house wiring:
   • Nyambungkeun hideung wire (Live) from the fixture to the hideung wire (Live) from the junction box.
   • Nyambungkeun bodas wire (Neutral) from the fixture to the bodas wire (Neutral) from the junction box.
   • Nyambungkeun hejo wire (Ground) from the fixture to the hejo or bare copper wire (Ground) from the junction box.
2. Secure all wire connections with the provided wire nuts and ensure they are tightly twisted.
3. Taliti nyelapkeun kawat kana kotak simpang.

Image 4: Wiring diagram for connecting the floodlight to a junction box.

5.4 Attaching the Fixture

1. Align the floodlight base with the mounting bracket and secure it with the provided screws. Ensure a tight seal to maintain IP65 waterproof rating.

Gambar 5: Examples of wall-mounted and soffit-mounted installations, demonstrating multi-angle rotation.

6. Operasi

The Onforu 75W Flood Lights are designed for simple, reliable operation.

6.1 Control kakuatan

• These floodlights are switch-controlled only. They do not feature a motion sensor, solar power, or dusk-to-dawn sensor.
• To turn the lights ON or OFF, use the connected wall switch.

Image 6: The floodlight is controlled by a standard wall switch.

6.2 Adjusting Light Heads

The three light heads are independently adjustable, allowing you to direct light precisely where needed.

• Each side head can be rotated up to 335 degrees horizontally and 90 degrees vertically.
• The center head can be rotated up to 110 degrees vertically.
• Loosen the adjustment screws on each head, position the light as desired, and then tighten the screws to secure the position.

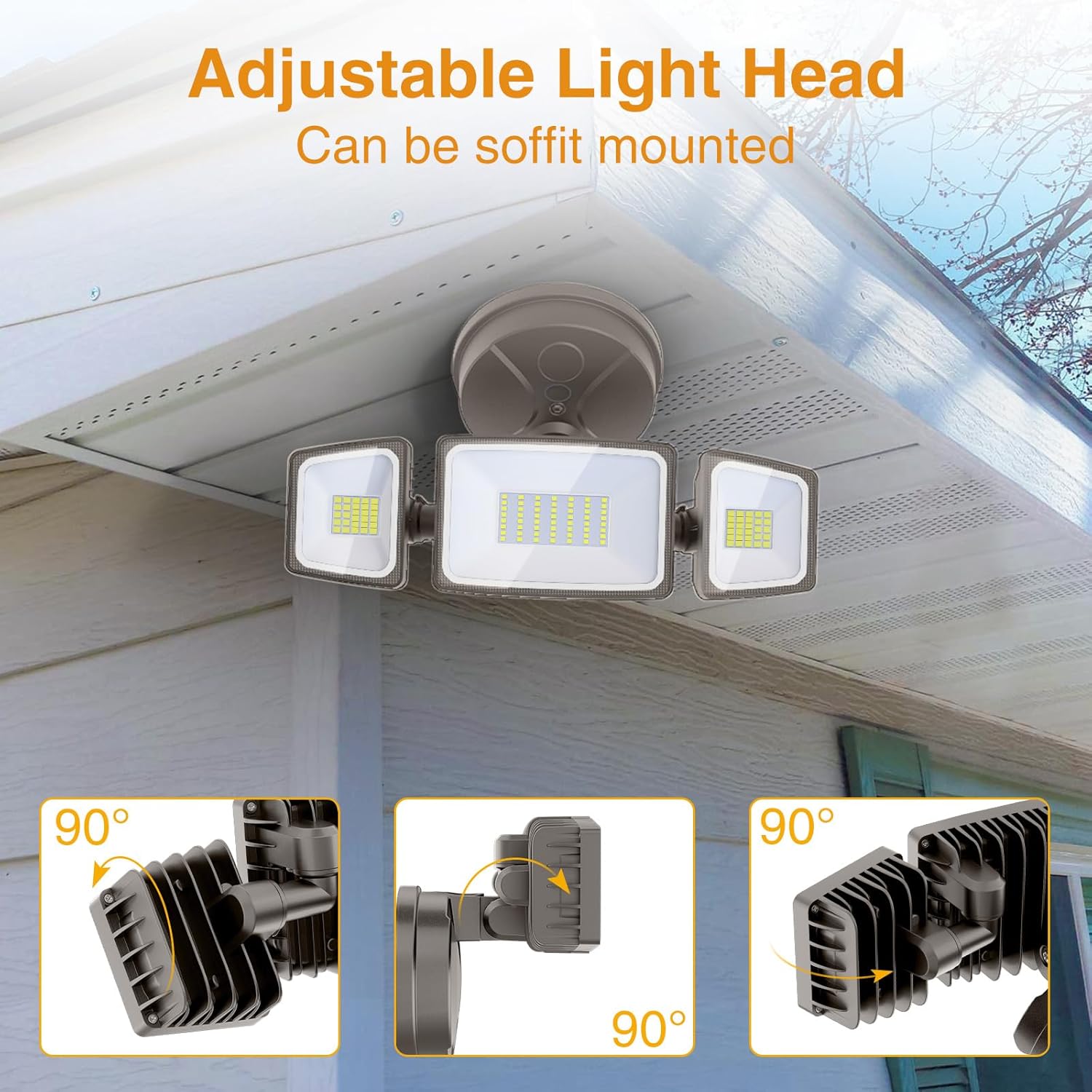

Image 7: The adjustable light heads provide flexible illumination for various outdoor areas.

7. Pangropéa

Regular maintenance ensures optimal performance and longevity of your floodlights.

• beberesih: Periodically clean the light heads with a soft, damp lawon pikeun miceun kokotor jeung lebu. Ulah make cleaners abrasive atawa pangleyur.
• Pamariksaan: Annually inspect the fixture for any signs of damage, loose wiring, or wear. Ensure all mounting screws are tight.
• Dissipation panas: Keep the cooling fins on the back of the light heads clear of obstructions to ensure proper heat dissipation.

8. Cara ngungkulan

If you encounter issues with your floodlights, refer to the following common problems and solutions:

• Lampu teu hurung:
  • Check the power supply at the circuit breaker or fuse box.
  • Pastikeun saklar témbok dina posisi ON.
  • Pastikeun sadaya sambungan kabel aman.
• Cahayana redup atawa kedip-kedip:
  • Pariksa sambungan kabel leupas.
  • Pastikeun catu daya stabil.
  • Confirm the fixture is receiving the correct voltage (120V).
• Water inside the fixture:
  • Geura pegatkeun daya.
  • Inspect the installation for proper sealing and ensure the mounting plate is flush with the surface.
  • Contact customer support if the issue persists after re-installation.

9. Garansi jeung Rojongan

Onforu provides a garansi 2 taun for this product, covering defects in materials and workmanship under normal use. For warranty claims, technical assistance, or any questions regarding your Onforu floodlights, please contact Onforu customer support.

Pabrikan: Onforu

Pikeun pitulung salajengna, mangga buka di Onforu Store on Amazon.
