1. Produk Langkungview
The GEYA GRT8-M1 is a 16A multifunction time relay designed for various industrial and home automation applications. It features 10 distinct time functions, offering versatile control options for electrical circuits. This relay is designed for DIN rail mounting and operates on an AC230V power supply.
fitur konci ngawengku:
- Special 10 Functions: 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, and 1 latch relay function.
- Nyaman jeung well-disusun fungsi jeung time-rentang setelan ku switch Rotary.
- Time range: 0.1s-10 days, divided into 10 ranges.
- LED indicator for relay status.
- Ultra-small size, 18mm width, 35mm DIN rail mounting.
Gambar 1: Hareupeun view of the GEYA GRT8-M1 Multifunction Time Relay, showing the control knobs and terminal connections.
Gambar 2: Sisi view of the GEYA GRT8-M1 relay, displaying model information and basic electrical ratings.
2. Spésifikasi Téknis
The following table details the technical parameters for the GRT8-M1 model.

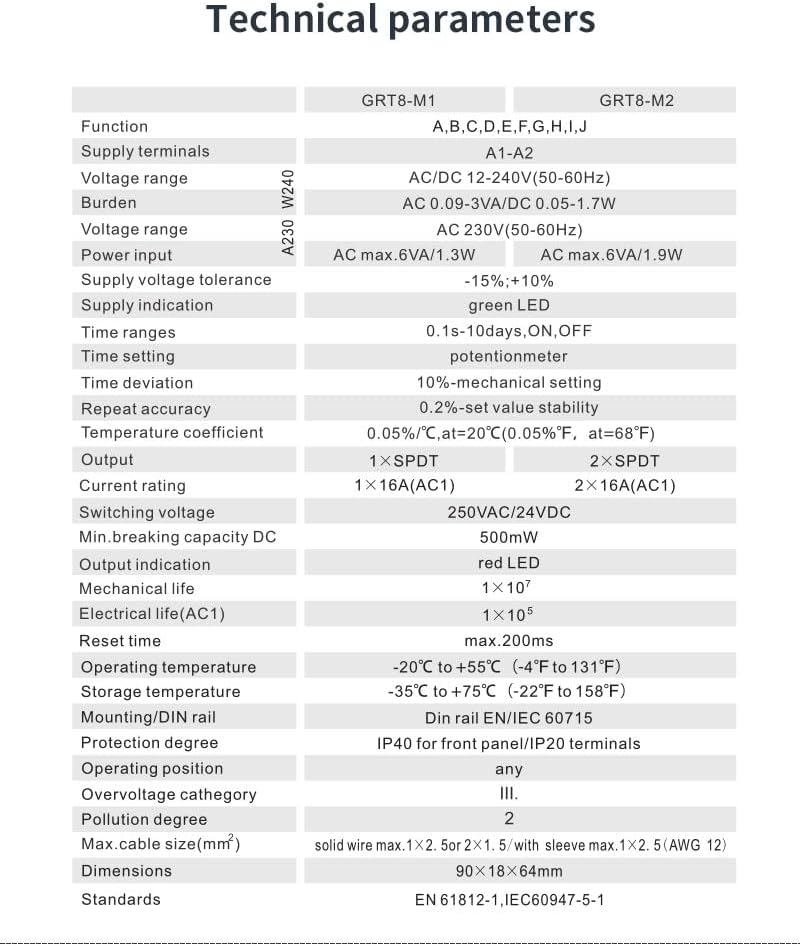

Figure 3: Technical specifications table comparing GRT8-M1 and GRT8-M2 models.
| Parameter | Value (GRT8-M1) |
|---|---|
| Fungsi | A, B, C, D, E, F, G, H, I, J |
| terminal suplai | A1-A2 |
| Voltage rentang | AC230V (50-60Hz) |
| Beungbeurat | AC 0.09-3VA |
| Input kakuatan | AC max.6VA / 1.3W |
| Pasokan voltage kasabaran | -15%; +10% |
| indikasi suplai | LED héjo |
| Rentang waktu | 0.1s-10days, ON, OFF |
| Setélan waktos | poténsiometer |
| Panyimpangan waktos | 10% -setélan mékanis |
| Ulang akurasi | 0.2% -set stabilitas nilai |
| Koéfisién suhu | 0.05%/°C, at 20°C |
| Kaluaran | 1 × SPDT |
| Peunteun ayeuna | 1×16A (AC1) |
| Ngalihkeun voltage | 250VAC/24VDC |
| Min.megatkeun kapasitas DC | 500mW |
| Indikasi kaluaran | LED beureum |
| Kahirupan mékanis | 1×107 |
| Electrical life (AC1) | 1×105 |
| Reset waktos | max.200ms |
| Suhu operasi | -20°C nepi ka +55°C |
| Suhu neundeun | -35°C nepi ka +75°C |
| Pamasangan / DIN rel | DIN rail EN/IEC 60715 |
| Gelar panyalindungan | IP40 pikeun panel hareup / terminal IP20 |
| posisi operasi | sagala |
| Overvoltage kategori | III. |
| Gelar polusi | 2 |
| Max.cable size (mm²) | solid wire max.1×2.5 or 2×1.5 with sleeve max.1×2.5 (AWG 12) |
| Diménsi | 90 × 18 × 64 mm |
| Standar | EN 61812-1, IEC60947-5-1 |
3. Instalasi jeung Wiring
The GRT8-M1 relay is designed for DIN rail mounting. Ensure all power is disconnected before installation or wiring.
3.1 Sambungan Terminal
- A1, A2: Power Supply Terminals (AC230V)
- S: Trigger Terminal (Control Input)
- 15: Kontak umum
- 16: Normally Closed (NC) Contact
- 18: Normally Open (NO) Contact
3.2 Diagram Wiring
Refer to the following diagrams for typical wiring configurations. Always consult local electrical codes and standards.
Figure 4: Internal wiring schematics for GRT8-M1 (1 SPDT output) and GRT8-M2 (2 SPDT outputs).
Gambar 5: Kelample wiring diagram for function 'E' (Off Delay with S Break) controlling a lamp. L and N represent Live and Neutral connections. Signal is connected to terminal S.
Kabel Example for E Function:
- The relay is powered up.
- When the trigger 'S' is not connected, the bulb will not light.
- When 'S' and A1 are connected, the bulb will turn on.
- When 'S' is off, the relay delays for the set time, then the bulb will turn off.
- Terminal 15-18 is Normally Open (NO), 15-16 is Normally Closed (NC).
4. Operasi jeung Setélan
The GRT8-M1 features three rotary switches for setting time range, time percentage, and function mode.
Figure 6: Illustration of the three rotary knobs for Time Range, Time Percentage, and Function selection.
4.1 Time Range Setting (Knob 1)
The top knob (labeled 1) selects the time range. Available ranges are 0.1s, 1s, 10s, 1m, 10m, 1h, 10h, 1d, 10d, ON, OFF.
- 0.1s - 10 days: Adjustable time delay.
- ON: Output is permanently ON.
- Pareuman: Output is permanently OFF.
4.2 Time Percentage Setting (Knob 2)
The middle knob (labeled 2) adjusts the time within the selected range from 10% to 100%.
Example: If Time Range is set to "10m" and Time Percentage is set to "50%", the actual time delay will be 5 minutes.
4.3 Function Selection (Knob 3)
The bottom knob (labeled 3) selects one of the 10 delay functions (A-J).
Gambar 7: Leuwihview of the 10 delay modes, categorized by control method.
10 Delay Functions:
- Controlled by Power Supply Voltage:
- A: On Delay (Power on)
- B: Interval (Power on)
- C: Repeat Cycle (Starting off)
- D: Repeat Cycle (Starting on)
- E: Off Delay (S Break)
- Controlled by Control Input (S Terminal):
- F: Single Shot (Single Shot Trailing Edge)
- G: Non-Retriggerable
- H: Hurung/Pareuman Tunda
- I: Latching relay
- J: generator pulsa
5. Pangropéa
The GEYA GRT8-M1 time relay is designed for reliable, long-term operation with minimal maintenance. Follow these guidelines:
- beberesih: Keep the device clean and free from dust and debris. Use a dry, soft cloth for cleaning. Do not use abrasive cleaners or solvents.
- Pamariksaan: Periodically inspect wiring connections to ensure they are secure. Check for any signs of overheating or damage to the casing.
- Lingkungan: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent malfunction.
- Henteu aya bagian anu tiasa dianggo pikeun pangguna: The device contains no user-serviceable parts. Do not attempt to open or repair the unit, as this will void the warranty and may pose a safety risk.
6. Cara ngungkulan
If you encounter issues with your GRT8-M1 time relay, consider the following common troubleshooting steps:
- No Power Indication (Green LED Off):
- Pariksa catu daya voltage at terminals A1 and A2. Ensure it matches the specified AC230V.
- Verify all power connections are secure and correctly wired.
- Check for tripped circuit breakers or blown fuses in the power circuit.
- Output Not Switching (Red LED Off/Incorrect):
- Confirm the selected function (Knob 3) and time range/percentage (Knobs 1 & 2) are appropriate for your application.
- If using a control input (S terminal), ensure the trigger signal is correctly applied and within specifications.
- Verify the load connected to terminals 15, 16, 18 is correctly wired and not exceeding the relay's current rating (16A).
- Check the load itself (e.g., bulb, motor) to ensure it is functional.
- Timing salah:
- Re-check the Time Range (Knob 1) and Time Percentage (Knob 2) settings.
- Ensure the selected function (Knob 3) corresponds to the desired timing behavior.
- Operasi intermittent:
- Inspect all wiring for loose connections or damaged insulation.
- Ensure the operating environment is stable and free from excessive electrical noise or temperature fluctuations.
If the problem persists after performing these checks, contact qualified personnel or the manufacturer for assistance. Do not attempt to repair the device yourself.
7. Émbaran Kasalametan
Please read and understand all safety instructions before installing or operating this device. Failure to follow these instructions may result in electrical shock, fire, or serious injury.
- Personil anu mumpuni: Installation and wiring must be performed by qualified electrical personnel in accordance with all national and local electrical codes.
- Pegatkeun Daya: Always disconnect power to the circuit before installing, wiring, or performing any maintenance on the relay.
- Voltage Peunteun: Mastikeun suplai voltage matches the relay's specified voltage (AC230V).
- Peunteun ayeuna: Do not exceed the maximum current rating of the relay (16A).
- Lingkungan: Install the device in a dry, well-ventilated area, free from corrosive gases, excessive dust, and extreme temperatures.
- Grounding: Ensure proper grounding where applicable.
- Perlindungan: Use appropriate overcurrent protection (e.g., circuit breakers) in the circuit.
8. Garansi jeung Rojongan
For warranty information and technical support, please refer to the official GEYA websitus atanapi ngahubungan distributor lokal Anjeun. Simpen resi pameseran anjeun salaku bukti pameseran.
Pabrikan: ZHEJIANG GEYA ELECTRICAL CO.,LTD
Kontak: ngarujuk kana GEYA Store on Amazon for further contact details or product information.
