Hysure Small Dehumidifier User Manual

Produk Leuwihview

The Hysure Small Dehumidifier (Model Q4) is a compact and portable dehumidification solution designed to reduce excess moisture in various small to medium-sized spaces. It features a 1400ml (49oz) water tank, automatic shut-off when full, and quiet operation, making it suitable for bedrooms, bathrooms, closets, RVs, and offices. This dehumidifier also includes 7 optional colorful LED lights to enhance its aesthetic appeal.

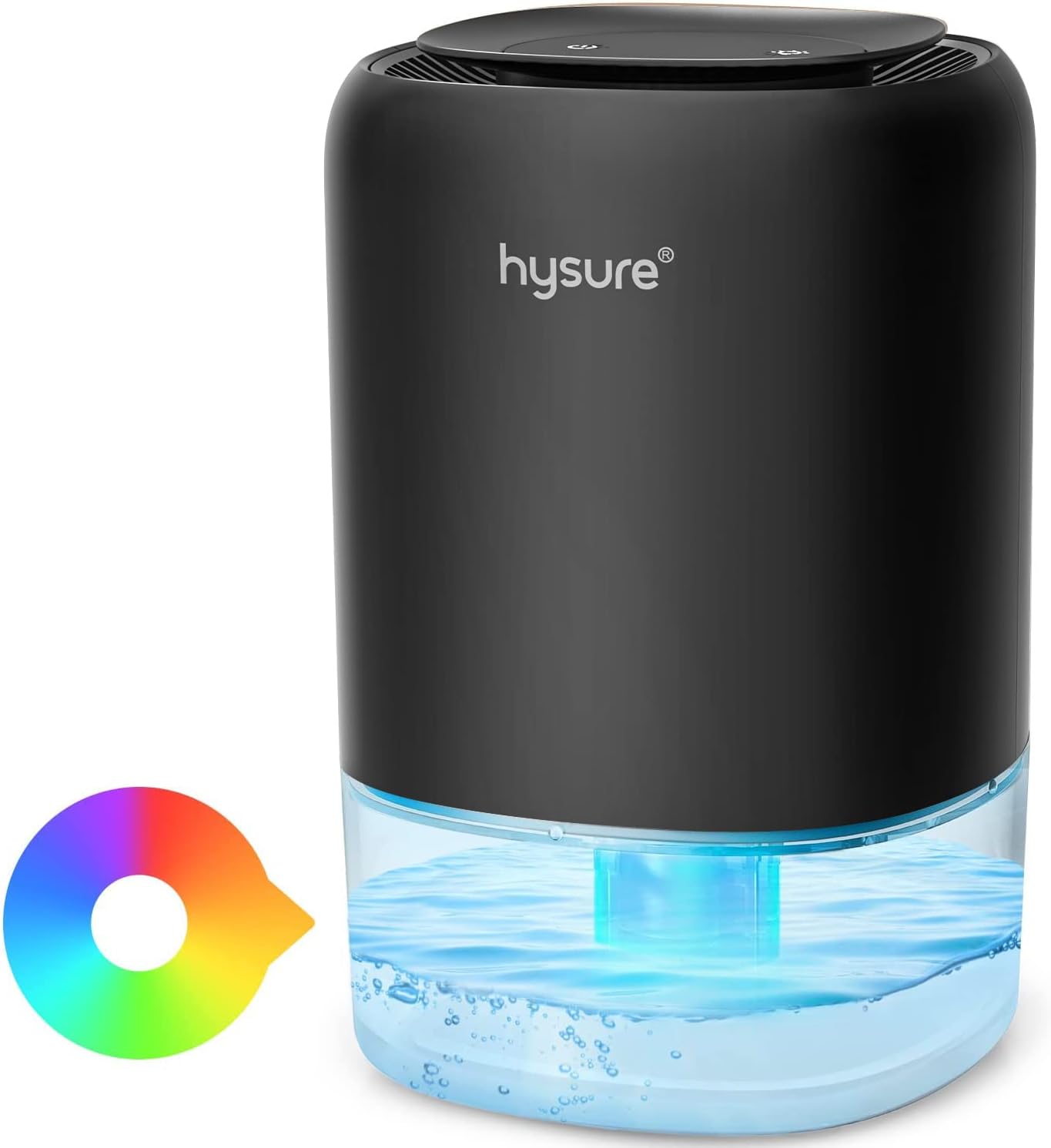

Gambar: Hareupeun view of the Hysure Small Dehumidifier, showcasing its compact design, transparent water tank, and the illuminated base indicating colorful light options.

Fitur konci

• Dehumidification efisien: Removes up to 350ml of moisture per day (at 86°F, 80% RH) from areas up to 2200 cubic feet.
• Tangki Cai Kapasitas ageung: Equipped with a 1400ml (49oz) detachable water tank for less frequent emptying.
• Pareum Otomatis: The unit automatically turns off when the water tank is full, indicated by a flashing yellow light, preventing overflow.
• Operasi Ultra-Tepi: Operates at less than 30dB, ensuring minimal disturbance for sleep, study, or work.
• 7 Lampu LED Warna-warni: Features optional mood lighting with 7 different colors to create a pleasant ambiance.
• Desain portabel sareng kompak: Lightweight and small, making it easy to move and place in various locations.

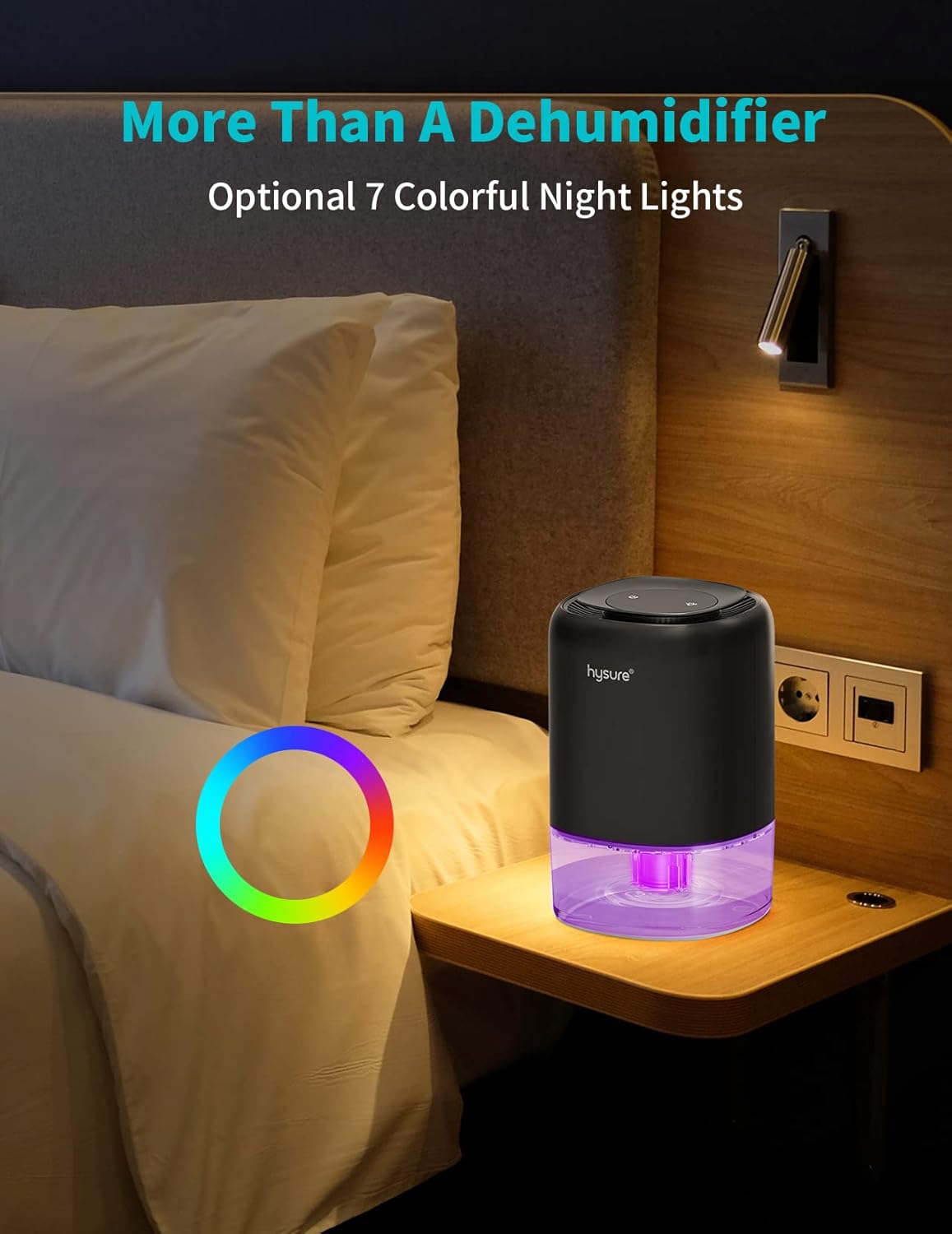

Image: The Hysure dehumidifier placed on a nightstand next to a bed, illustrating its compact size and the optional colorful night light feature in a bedroom setting.

Image: A visual representation highlighting the 7 optional mood lights and the 12V high-efficient dehumidification using semiconductor refrigeration technology, showing humidity reduction from 80% to 40%.

Setup sareng Instalasi

1. Bongkar Dehumidifier: Carefully remove the dehumidifier and all accessories from the packaging. Ensure all components are present: the dehumidifier unit, power adapter, and instruction manual.
2. Pilih Lokasi: Place the dehumidifier on a flat, stable surface in the desired area. Ensure there is at least 20cm (8 inches) of space around the unit for proper air circulation. Avoid placing it directly against walls or furniture.
3. Sambungkeun Kakuatan: Insert the power adapter plug into the DC input port on the back of the dehumidifier. Then, plug the power adapter into a suitable electrical outlet (AC 100-240V, 50/60Hz).
4. Cék awal: Before turning on, ensure the water tank is correctly seated in the base.

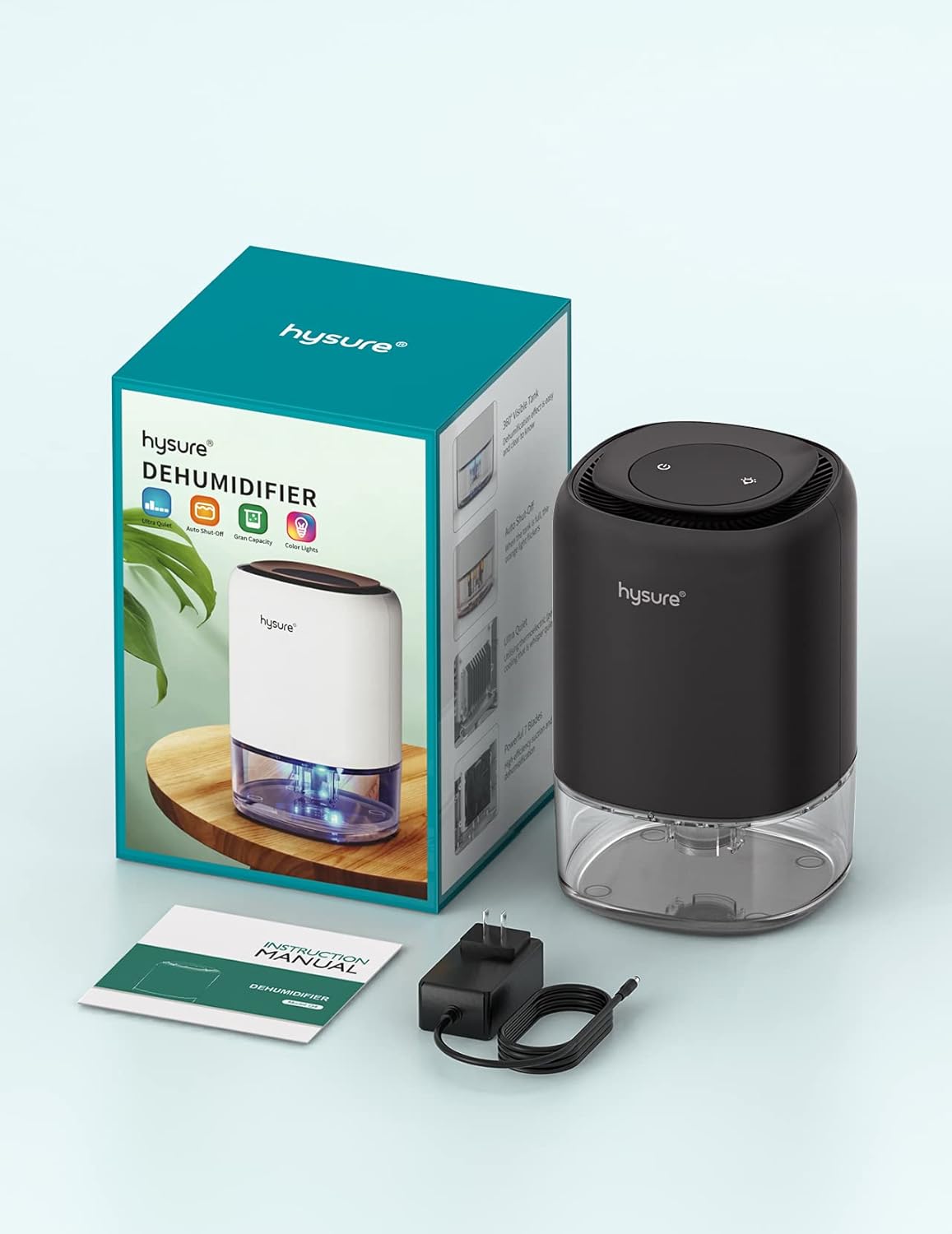

Image: The Hysure dehumidifier, its retail box, instruction manual, and power adapter, illustrating the items included in the package.

Parentah Operasi

1. Hurungkeun/Pareuman: Press the power button located on the top of the unit to turn the dehumidifier on or off. The indicator light will illuminate when the unit is operating.
2. Select LED Light Mode: Press the light button (sun icon) on the top panel to cycle through the 7 colorful LED light options or to turn the light off.
3. Pareum Otomatis: The dehumidifier will automatically stop operating when the water tank is full. The indicator light will flash yellow to alert you that the tank needs to be emptied.

Image: A person reading next to the Hysure dehumidifier, emphasizing its quiet operation (less than 30dB) suitable for peaceful environments.

Image: A graphic illustrating the 360° visible water tank and the range of 7 LED light colors available for selection.

Image: The dehumidifier with its water tank illuminated by a flashing yellow light, indicating the auto shut-off feature when the tank is full.

Pangropéa

Ngosongkeun Tangki Cai

When the water tank is full, the dehumidifier will automatically shut off, and the indicator light will flash yellow. Follow these steps to empty the tank:

1. Pareuman Unit: Press the power button to turn off the dehumidifier and unplug it from the power outlet.
2. Remove the Tank: Gently pull the water tank out from the bottom of the dehumidifier unit.
3. Open and Empty: Open the tank cover and carefully pour out the collected water.
4. Ngabersihan tank: Rinse the water tank with clean water. For thorough cleaning, use a mild detergent and soft cloth. Do not use abrasive cleaners.
5. Reinstall the Tank: Place the tank cover back securely and slide the empty water tank back into the dehumidifier until it clicks into place.
6. Resume Operation: Plug the dehumidifier back in and press the power button to restart operation.

Image: A step-by-step visual guide demonstrating how to detach the main body, open the tank cover, and empty the 1400ml water tank for easy cleaning.

Ngabersihan Dehumidifier

• Bersihan Luar: Ngusap bagian luar unit kalayan lemes, damp lawon. Ulah make bahan kimia kasar atawa bahan abrasive.
• Hawa Inlet / Outlet: Periodically check the air inlet and outlet for dust or debris. Use a soft brush or vacuum cleaner to gently remove any blockages to ensure optimal performance.

Pamérésan masalah

spésifikasi

Image: The Hysure dehumidifier with its approximate dimensions (15.3cm/6in width and 24cm/9.4in height) clearly marked.

Émbaran Kasalametan

• Sok cabut dehumidifier sateuacan beberesih atanapi ngalakukeun pangropéa naon waé.
• Ulah meungpeuk inlets hawa atawa outlet.
• Entong neuleumkeun unit, kabel listrik, atanapi nyolok kana cai atanapi cairan sanés.
• Jauhkeun tina jangkauan barudak sareng piaraan.
• Paké ngan adaptor kakuatan disadiakeun.
• Entong ngajalankeun dehumidifier upami kabel listrik atanapi colokan rusak.
• Parabot ieu didesain kanggo panggunaan hungkul.

Garansi sareng Rojongan

For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official Hysure websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
