1. Bubuka
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Scheppach HC06 oil-free air compressor. Please read these instructions thoroughly before using the compressor to ensure proper function and to prevent injury or damage.
The Scheppach HC06 is a compact, oil-free air compressor designed for various applications such as airbrushing, bolting, tire inflation, and sanding. It features a 6-liter tank and operates quietly.
2. Parentah Kasalametan
Salawasna perhatikeun pancegahan kaamanan di handap ieu pikeun ngirangan résiko kejutan listrik, seuneu, sareng tatu anu parah.
- Baca Manual: Familiarize yourself with all controls and proper use before operating the compressor.
- Nganggo panyalindungan panon: Always wear safety glasses or goggles when operating the compressor or using air tools.
- Ventilasi: Operate the compressor in a well-ventilated area. Do not operate near flammable liquids or gases.
- Kasalametan listrik: Pastikeun catu daya cocog sareng voltage specified on the compressor (220-240V). Do not use in wet conditions or expose to rain. Always use a grounded outlet.
- Kaamanan tekanan: Never exceed the maximum operating pressure of the compressor or the air tool being used. Do not direct compressed air at people or animals.
- Pangropéa: Pegatkeun sambungan catu daya sateuacan ngalakukeun pangropéa atanapi perbaikan.
- Barudak sareng Panyusun: Jauhkeun barudak sareng anu ningali tina compressor operasi.
3. Pedaran Produk sareng Komponen
The Scheppach HC06 air compressor is designed for portability and ease of use. It features an oil-free pump, reducing maintenance requirements.
Komponén Kaasup:
- Scheppach HC06 Air Compressor Unit
- 5-meter Air Hose
- Manual pamaké
Produk Leuwihview:

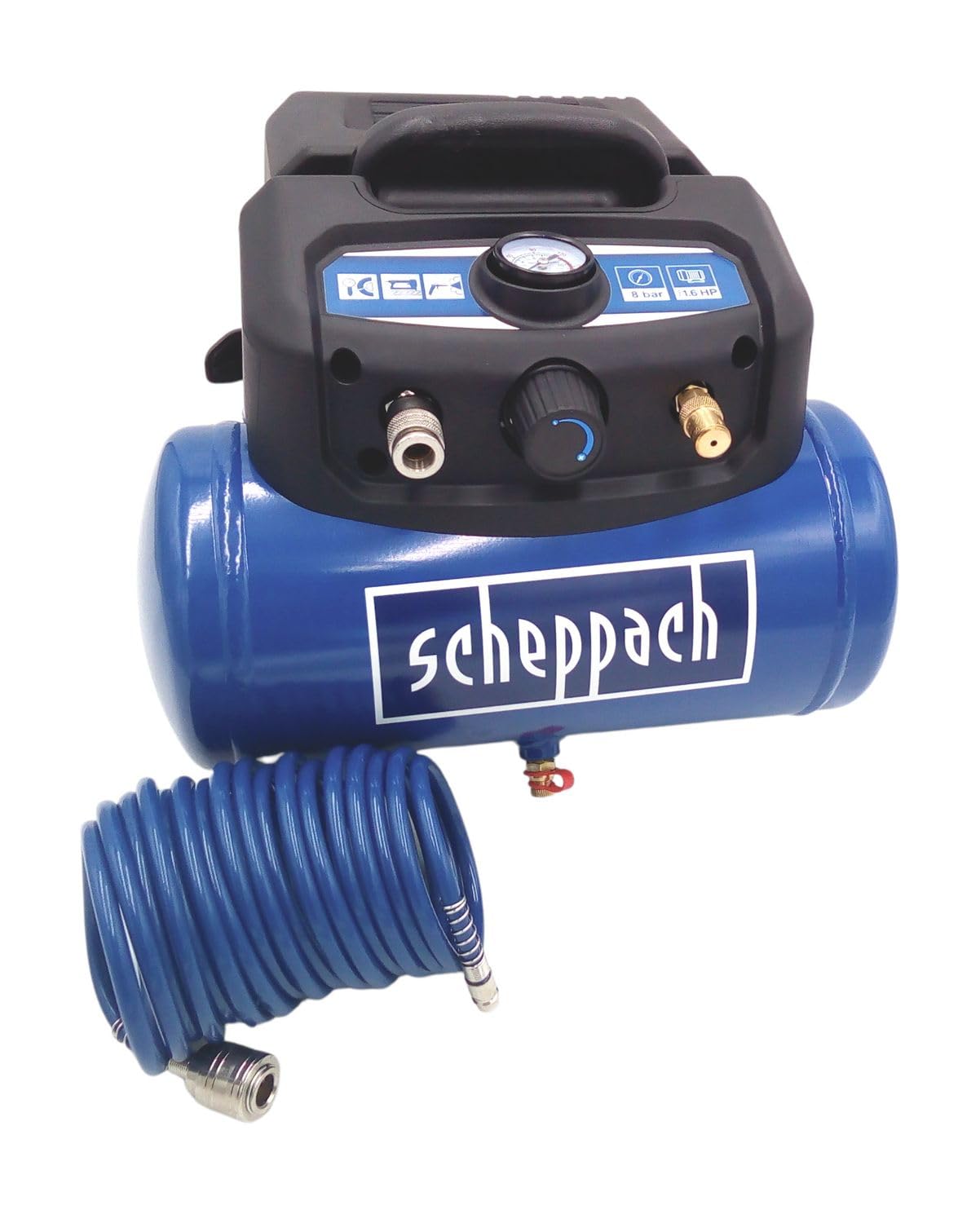

Gambar 1: Hareupeun view of the Scheppach HC06 air compressor, showing the main unit and handle.
Gambar 2: Samping view of the Scheppach HC06 air compressor, highlighting the compact design.
Gambar 3: Tukangeun view of the Scheppach HC06 air compressor, showing the power switch and label.
4. Setélan
- Ngabongkar bungkusan: Carefully remove the compressor from its packaging. Inspect for any shipping damage. Report any damage to your supplier immediately.
- panempatan: Place the compressor on a stable, level surface in a clean, well-ventilated area. Ensure there is sufficient space around the unit for air circulation.
- Sambungan selang: Connect the supplied 5-meter air hose to the compressor's air outlet. Ensure a secure connection to prevent air leaks.
- Sambungan listrik: Ensure the power switch is in the "OFF" position. Plug the power cord into a grounded electrical outlet (220-240V, 50Hz).
5. Parentah Operasi
- Ngamimitian Compressor: Turn the power switch to the "ON" position. The compressor will start to build pressure in the tank. It will automatically shut off once the maximum pressure (8 bar) is reached.
- Alat Nyambungkeun Udara: Attach your desired air tool (e.g., airbrush, tire inflator, impact wrench) to the free end of the air hose. Ensure the connection is secure.
- Using the Air Tool: Operate your air tool as per its specific instructions. The compressor will automatically restart when the tank pressure drops below a preset level.
- Ngeureunkeun Operasi: When finished, turn the power switch to the "OFF" position. Disconnect the air tool.
- Draining Kondensasi: After each use, or at least daily, drain any condensation from the air tank. This prevents rust and extends the life of the tank. Locate the drain valve at the bottom of the tank, place a suitable container underneath, and open the valve until all moisture is expelled. Close the valve securely.
Pamakéan anu disarankeun: This compressor is suitable for airbrushing, bolting, tire inflation, and sanding applications.
6. Pangropéa
Regular maintenance ensures the longevity and safe operation of your compressor. Always disconnect the power supply before performing any maintenance.
- Operasi bébas minyak: The Scheppach HC06 is an oil-free compressor, meaning no oil changes or lubrication of the pump are required.
- Kondensasi solokan: As mentioned in the operating instructions, drain the air tank daily or after each use to remove accumulated moisture.
- beberesih: Keep the compressor clean. Wipe down the exterior with a damp cloth. Ensure air vents are free from dust and debris to prevent overheating. Do not use harsh chemicals or abrasive cleaners.
- Pariksa Selang sareng Sambungan: Periodically check the air hose and all connections for wear, damage, or leaks. Replace damaged components immediately.
- Panyimpenan: Store the compressor in a dry, clean, and frost-free location when not in use.
7. Cara ngungkulan
Before attempting any repairs, ensure the compressor is disconnected from the power supply.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Compressor teu ngamimitian | Teu aya catu daya; Pareuman daya; Beban termal diaktipkeun. | Check power cord and outlet; Turn power switch ON; Allow compressor to cool down, then restart. |
| Low air pressure or continuous running | Air leak in hose or connections; Drain valve open; Faulty check valve. | Check and tighten all connections; Close drain valve; Contact customer support for service. |
| Noise atawa geter kaleuleuwihan | Loose components; Compressor not on a stable surface. | Check for and tighten any loose parts; Place compressor on a firm, level surface. |
| Uap dina hawa dikomprés | Condensation buildup in tank. | Drain the air tank thoroughly. |
If you encounter problems not listed here or if solutions do not resolve the issue, please contact Scheppach customer support.
8. Spésifikasi Téknis
| Modél | HC06 |
| Produsén | Scheppach |
| Ukuran (L x W x H) | 40 x 37 x 38 cm |
| Beurat | 9.7 kg |
| Warna | Biru |
| Jinis kakuatan | Kabel Listrik |
| Voltage | 220-240 Volt |
| Daya Maksimum | 1200 Watt |
| Kapasitas Aliran Udara | 6 Liter per menit |
| Kapasitas tank | 6 liter |
| Tekanan Maksimum | 8 bar |
| Panjang selang | 5 méter |
| Fitur husus | Operasi bébas minyak |
| Dianjurkeun Mangpaat | Airbrushing, Bolting, Tire inflation, Sanding |
9. Garansi jeung Rojongan
For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Scheppach provides customer support for product inquiries and technical assistance.
Kasadiaan suku cadang: Information regarding the availability of spare parts is currently unavailable. Please contact Scheppach customer service for further assistance.
For further assistance, please visit the official Scheppach websitus atanapi ngahubungan departemén layanan palanggan maranéhna.
