1. Émbaran Kasalametan
Mangga baca sadaya pitunjuk kalayan saksama sateuacan dipasang sareng dianggo. Upami henteu nuturkeun pitunjuk ieu tiasa nyababkeun karusakan harta benda atanapi cilaka pribadi. Simpen manual ieu kanggo rujukan ka hareup.
- Salawasna mareuman suplai cai utama sateuacan ngamimitian pamasangan atanapi pangropéa.
- Anggo alat pelindung pribadi anu pas, sapertos kacamata kaamanan sareng sarung tangan, salami instalasi.
- Pastikeun sadaya sambungan aman sareng bébas bocor sateuacan malikkeun suplai cai.
- Ulah make cleaners abrasive atawa bahan kimia kasar dina finish keran, sabab ieu bisa ngabalukarkeun karuksakan.
2. Produk Langkungview

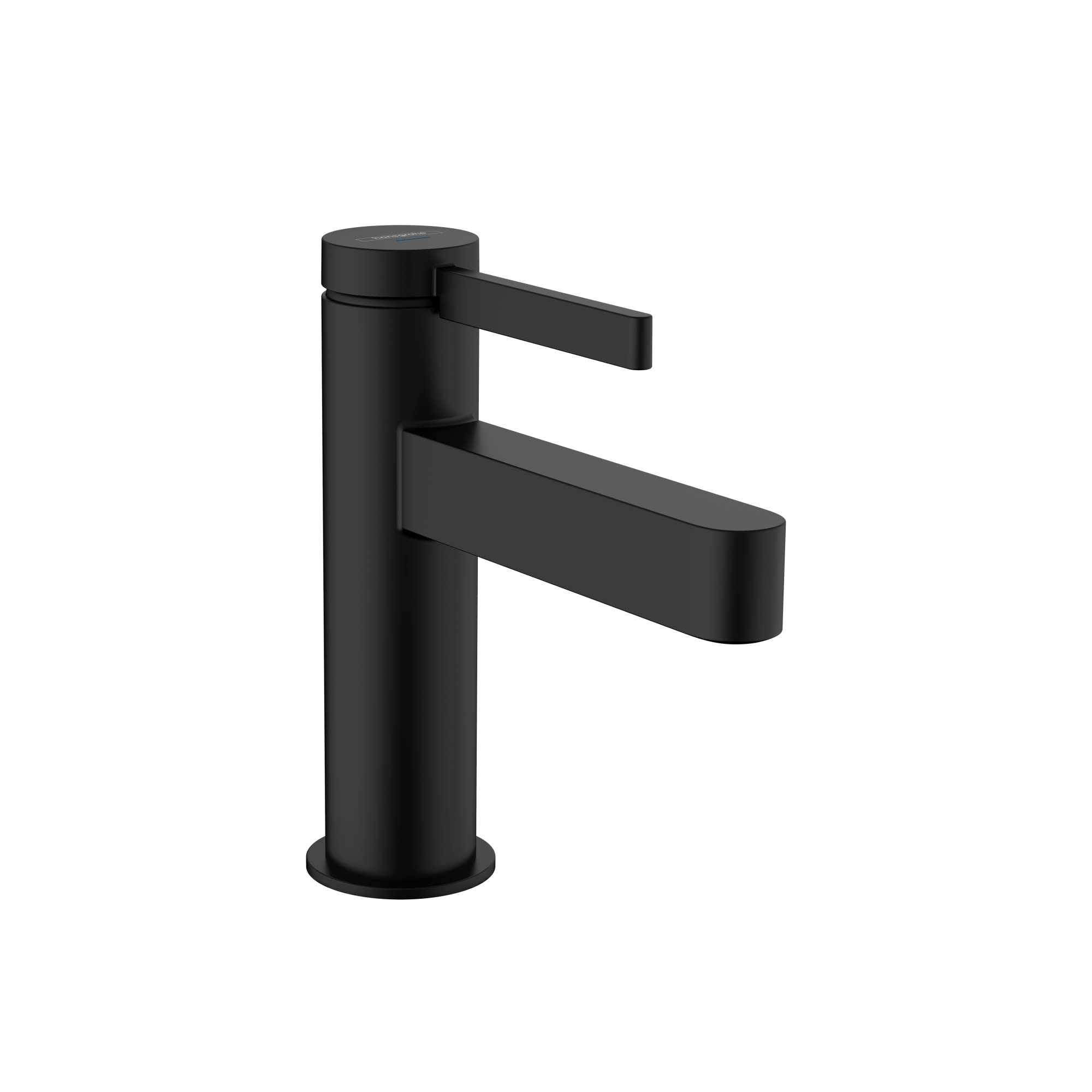

The hansgrohe Finoris Modern 1-Handle 1-Hole Bathroom Sink Faucet (Model 76010671) is designed for a contemporary bathroom aesthetic. It features a single handle for water flow and temperature control, a durable matte black finish, and water-saving EcoRight technology.
Figure 2.1: hansgrohe Finoris Faucet installed in a modern bathroom setting, with a person washing hands.
Fitur konci:
- Desain modern: Slim shape and precise geometric design.
- Konstruksi awét: Equipped with a high-quality, smooth-running ceramic mixing system.
- Éfisiensi cai: Flow rate reduced to a maximum of 1.2 GPM (EcoRight technology).
- Solokan Terpadu: Includes a push-open drain fitting for a sleek appearance without a pull rod.
- Pamasangan Gampang: Connects to water supply via flexible 3/8-inch connection hoses.
- Matte Hideung Finish: Provides an expressive contrast suitable for modern architecture.
- Zona Nyaman 100: Optimized spout height and reach for comfortable use.
3. Naon Kaasup
pakét ngandung komponén handap:
- hansgrohe Finoris Bathroom Faucet (Matte Black)
- Selang Sambungan Fleksibel (3/8 inci)
- Push-Open Drain Fitting
- Parentah instalasi
- Pamasangan Hardware
4. Pitunjuk Instalasi
This section provides general steps for installing your hansgrohe Finoris faucet. Refer to the detailed installation instructions included in your package for specific diagrams and safety warnings.
4.1. Persiapan
- Pareuman suplai cai utama ka kamar mandi anjeun.
- Clear the area around the sink and ensure you have all necessary tools.
- Remove your old faucet and clean the sink surface.
4.2. Instalasi Keran
- Insert the flexible connection hoses through the single hole in your sink or countertop.
- Position the faucet body over the hole.
- From underneath the sink, secure the faucet using the provided mounting hardware. Ensure it is tightened firmly but do not overtighten.
- Connect the flexible hoses to your hot and cold water supply lines (3/8-inch connections). Ensure a watertight seal.
Gambar 4.1: A close-up view of the faucet's aerator and handle mechanism, highlighting the design and functionality.
4.3. Instalasi solokan
- Install the push-open drain fitting into the sink drain hole according to the included instructions.
- Ensure all seals are properly seated to prevent leaks.
- Connect the drain fitting to your P-trap assembly.
5. Parentah Operasi
The hansgrohe Finoris faucet features a single lever handle for easy control of water flow and temperature.
- Hurungkeun/Pareuman: Angkat gagangna ka luhur pikeun ngahurungkeun cai. Nyorong gagang ka handap pikeun mareuman cai.
- Nyaluyukeun Suhu: Pindahkeun cecekelan ka kénca pikeun cai panas jeung ka katuhu pikeun cai tiis.
- Nyaluyukeun Aliran: The salajengna anjeun angkat gagang, nu gede aliran cai.
6. Pangropéa sarta perawatan
Proper care will help maintain the finish and functionality of your hansgrohe faucet.
- beberesih: Clean the faucet regularly with a soft cloth and a mild soap solution. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Hindarkeun Pembersih Kasar: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any products containing bleach, acids, or alcohol, as these can damage the matte black finish.
- Pangropéa Aerator: Upami aliran cai turun, aerator tiasa mampet. Cabut sékrési aerator tina spout, bersihkeun lebu, teras pasang deui.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Aliran cai lemah | Aerator tersumbat; valves shut-off ditutup sawaréh; tekanan cai low. | Ngabersihan atawa ngaganti aerator; mastikeun valves Cicing-off pinuh kabuka; pariksa tekanan cai rumah tangga. |
| Bocor tina spout | O-ring atanapi kartrid anu tos usang. | Contact hansgrohe customer support for replacement parts or professional assistance. |
| Masalah suhu cai | Incorrect hot/cold supply connections; water heater settings. | Verify hot and cold supply lines are correctly connected; adjust water heater temperature. |
8. Spésifikasi
- merek: hansgrohe
- Ngaran modél: Finoris Single-Hole Faucet 100 with Pop-Up Drain
- Jumlah modél: 76010671
- warna: Matte Hideung
- Bahan: Kuningan
- Jumlah cecekelan: 1
- Jumlah liang: 1
- Tipe Pamasangan: Dek Gunung
- Laju aliran: 1.2 GPM (Galon Per Menit)
- Jangkungna spout: 5 inci
- Jangkauan Spout: 4 inci
- Beurat barang: 4.1 pon
- Ukuran produk: 15.75 "D x 4.1" W x 2.96" H
- Komponén Kaasup: Bathroom Faucet, Connection Hoses, Installation Instructions, Push-Open Drain
9. Émbaran jaminan
This hansgrohe product comes with a jaminan kawates. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or visit the official hansgrohe websitus.
10. Rojongan Palanggan
If you have any questions, require technical assistance, or need to order replacement parts, please contact hansgrohe customer support. Contact information can typically be found on the hansgrohe websitus atawa dina dokuméntasi disadiakeun kalawan produk Anjeun.
Sumberdaya Online: www.hansgrohe-usa.com
