1. Bubuka
This manual provides essential information for the safe and effective operation, assembly, and maintenance of your LawnMaster M2EB1637M 1600W 37cm Electric Lawn Mower. Please read these instructions carefully before using the product and retain them for future reference. Proper use and care will ensure optimal performance and extend the lifespan of your lawn mower.
2. Parentah Kasalametan
Always prioritize safety when operating electrical equipment. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Baca sakabéh manual: Pahami sadaya peringatan sareng pitunjuk sateuacan dianggo.
- Alat Pelindung Pribadi: Wear appropriate eye protection, sturdy footwear, and long trousers. Avoid loose clothing that could get caught in moving parts.
- Kasalametan listrik: Ensure the power supply matches the mower's rating. Use a residual current device (RCD) for added protection. Keep the power cord clear of the cutting area and avoid damaging it.
- Wewengkon Gawé: Keep children, pets, and bystanders away from the operating area. Clear the lawn of stones, sticks, wires, and other debris before mowing.
- Operasi: Do not operate the mower in wet conditions or when grass is wet. Always push the mower forward, never pull it towards you. Maintain a firm grip on the handles.
- Rem sabeulah: The LawnMaster M2EB1637M features a patented mechanical brake that stops the blade within 3 seconds of releasing the control handles, enhancing user safety.
- Pangropéa: Disconnect from the power supply before cleaning, adjusting, or performing any maintenance.
3. Eusi Paket
Pastikeun yén sadaya komponén aya sareng henteu ruksak nalika ngabongkar:
- LawnMaster M2EB1637M Electric Lawn Mower Unit
- Majelis Pakem Luhur
- Handap cecekelan Majelis
- Grass Collector (40L capacity)
- Klip kabel
- Manual pamaké
4. Setup jeung Majelis
Follow these steps to assemble your lawn mower before first use.
4.1 Nanganan Majelis
- Attach the lower handle assembly to the main mower unit using the provided bolts and knobs. Ensure it is securely fastened.
- Connect the upper handle assembly to the lower handle. Align the holes and secure with the remaining bolts and knobs.
- Route the power cable along the handle using the cable clips to prevent it from interfering with operation.
4.2 Grass Collector Assembly
Assemble the two halves of the grass collector if they are separate. Ensure the clips or latches are fully engaged.

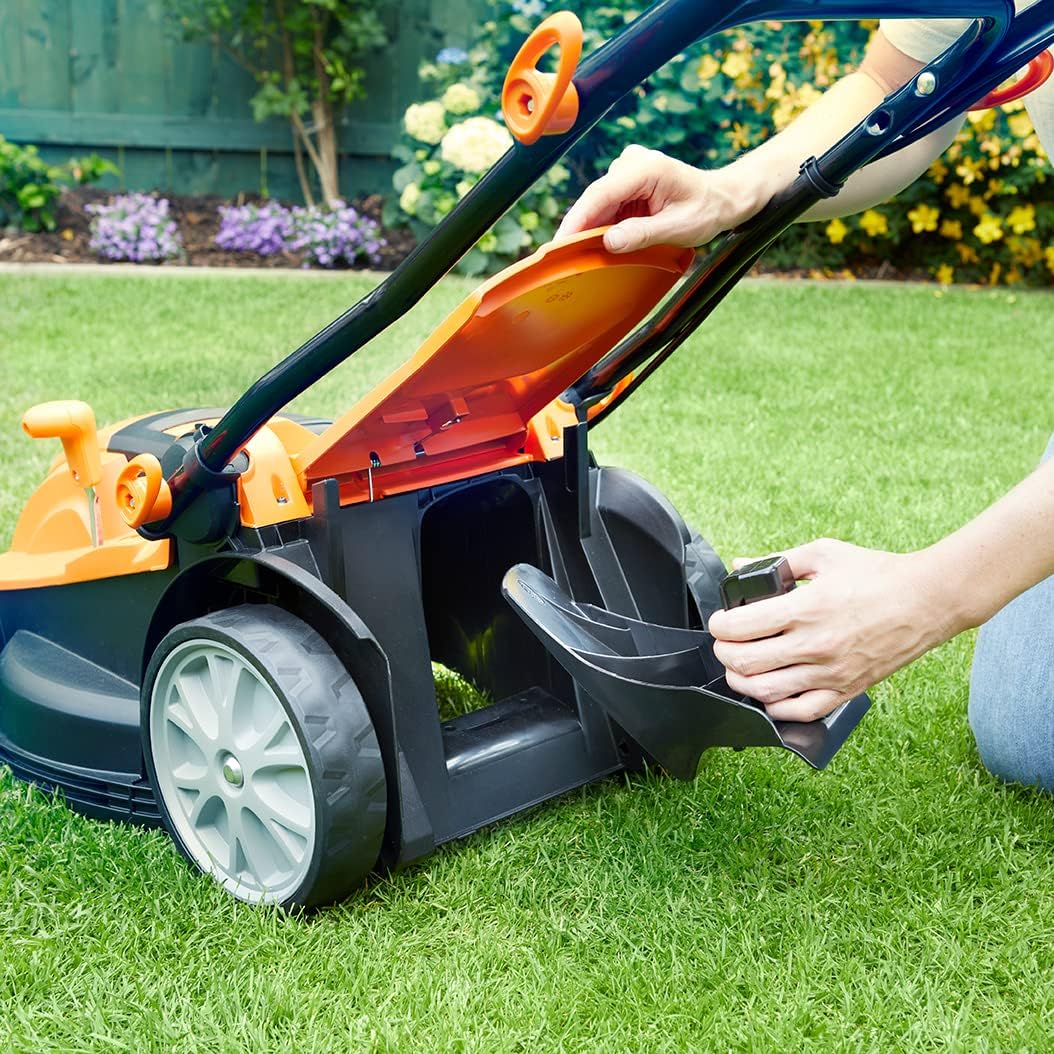

Image: A hand demonstrating the attachment of the grass collector to the rear of the lawn mower.
4.3 Attaching the Grass Collector
Lift the rear flap of the mower and hook the grass collector onto the designated points. Ensure it is seated correctly to prevent grass clippings from escaping.
4.4 Nyaluyukeun jangkungna motong
The LawnMaster M2EB1637M offers 6 adjustable cutting heights from 20mm to 70mm. Locate the height adjustment lever on the side of the mower deck.
Image: A hand operating the orange lever to adjust the cutting height of the lawn mower.
Move the lever to select your desired cutting height. Ensure all wheels are at the same height setting for an even cut.
5. Parentah Operasi
Before each use, perform a quick check of the mower and its surroundings.
5.1 Cék Pra-Operasi
- Pariksa kabel listrik pikeun karusakan naon waé.
- Ensure the blade is securely fastened and not damaged.
- Check that the grass collector is correctly attached.
- Clear the lawn of any foreign objects.
5.2 Mimitian jeung Ngeureunkeun
- Plug the mower into a suitable power outlet.
- Press and hold the safety button, then pull the bail lever towards the handle. The motor will start.
- To stop the mower, release the bail lever. The patented mechanical brake will stop the blade within 3 seconds.
5.3 Téhnik Mowing
For best results, mow in straight, overlapping lines. Avoid overloading the motor by cutting excessively long or wet grass. The 1600W motor with T-Drive technology automatically adjusts torque to maintain blade speed, even in challenging conditions like wet or high grass.
Image: The LawnMaster M2EB1637M electric lawn mower actively cutting grass in a well-maintained garden.
5.4 Grass Collection
Monitor the grass collector during operation. Empty it regularly to maintain efficient grass collection and prevent clogging. A full collector can reduce cutting performance.
6. Pangropéa
Regular maintenance ensures the longevity and safe operation of your lawn mower. Always disconnect the power supply before performing any maintenance.
6.1 beberesih
- After each use, clean the mower deck and grass collector.
- Anggo sikat atanapi lawon pikeun miceun potongan jukut sareng runtah. Ulah nganggo cai langsung kana komponén listrik.
- Pastikeun bukaan ventilasi bersih tina halangan.
6.2 Kamanusaan sarta Studi agul
The mower is equipped with a high-carbon steel blade for durability. Regularly inspect the blade for sharpness and damage. A dull or damaged blade can lead to poor cutting performance and strain the motor. If necessary, have the blade sharpened or replaced by a qualified service technician.
6.3 Panyimpenan
Store the lawn mower in a dry, secure location, out of reach of children. The handles can be folded for compact storage.
Image: The LawnMaster M2EB1637M electric lawn mower stored compactly in a shed, demonstrating its vertical storage capability.
Image: A person carrying the LawnMaster M2EB1637M electric lawn mower, highlighting its lightweight and portable design when folded.
7. Cara ngungkulan
Bagian ieu ngabahas masalah umum anu anjeun tingali. Pikeun masalah teu didaptarkeun di dieu, kontak rojongan customer.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Motong henteu ngamimitian | Taya catu daya Safety button/bail lever not engaged Kabel listrik rusak | Pariksa sambungan kakuatan Pastikeun tombol kaamanan sareng tuas jaminan parantos aktip Inspect cord, replace if damaged (contact service) |
| kinerja motong goréng | Sabeulah kusam atawa ruksak Kolektor jukut pinuh Motong jangkungna teuing low pikeun kaayaan jukut jukut baseuh | Ngasah atawa ngaganti sabeulah Pangumpul jukut kosong Adjust to a higher cutting height Motong jukut nalika jukut garing |
| Geter kaleuleuwihi | Ruksak atawa henteu saimbang sabeulah Komponén leupas | Inspect blade for damage, replace if necessary Pariksa sagala fasteners sarta tighten sakumaha diperlukeun |
8. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | M2EB1637M |
| Sumber Daya | Listrik (Kawat) |
| Daya Motor | 1600 W |
| Lebar motong | 37 cm |
| Ngala Jangkung | 6 posisi (20 mm - 70 mm) |
| Kapasitas Koléktor Jukut | 40 L |
| Bahan Sabeulah | Baja karbon tinggi |
| Ukuran produk (L x W x H) | 76.5 x 46 x 41 cm |
| Item Beurat | 13.4 kg |
9. Garansi
The LawnMaster M2EB1637M Electric Lawn Mower is covered by a 2-Taun jaminan kawates from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, neglect, accident, alteration, or improper maintenance. Please retain your proof of purchase for warranty claims.
10. Rojongan Palanggan
For technical assistance, spare parts, or warranty inquiries, please contact LawnMaster customer service. Refer to the product packaging or the official LawnMaster websitus pikeun inpo kontak panganyarna.
Gambar: Sacara umum view of the LawnMaster M2EB1637M electric lawn mower, showcasing desain sareng komponenana.
