Bubuka
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your HOFTRONIC Flex60 LED Strip Light. Please read this manual thoroughly before use and retain it for future reference.
Image: The HOFTRONIC Flex60 LED Strip Light, 25 meters in length, coiled on its reel, emitting a bright daylight white light.
Parentah Kasalametan
- Pastikeun catu daya dipegatkeun samemeh dipasang atawa diropéa.
- This product operates on 230V AC. Installation should be performed by a qualified professional if you are unsure.
- Do not bend the LED strip sharply or apply excessive force, as this may damage the internal circuitry.
- The LED strip is IP65 rated, meaning it is protected against dust and low-pressure water jets. For outdoor use, ensure all connections are properly sealed with the provided glue to maintain waterproofing.
- Do not immerse the LED strip in water.
- Jauhkeun tina jangkauan barudak.
- Do not cover the LED strip with materials that could impede heat dissipation during operation.
Fitur produk
- Caang luhur: Equipped with 60 high-lumen SMD 2835 LED chips per meter, providing 308 lumens per meter.
- Énergi Éfisién: Consumes only 7 Watts per meter.
- Umur panjang: Designed for a lifespan of up to 50,000 hours.
- Awét & Tahan Cuaca: IP65 rated for protection against dust and water, and UV resistant, suitable for both indoor and outdoor applications.
- Flexible & Customizable: Can be cut every meter to adjust length and is extendable up to 100 meters (additional connectors/strips sold separately).
- Plug & Play: Direct connection to 230V AC power supply without the need for a separate transformer. Includes overcurrent protection.
- Dimmable: Compatible with external dimmers (dimmer not included).
Image: The LED strip demonstrating its IP65 water and dust resistance.
Image: Detail of the high lumen SMD 2835 LED chips used in the strip.
Image: Visual representation of the LED strip's extended 50,000-hour lifespan.
Disetél
- Buka bungkusan sareng mariksa: Carefully unroll the LED strip and inspect it for any visible damage. Ensure all components are present.
- Nangtukeun Panjang: Measure the desired length for your installation. The Flex60 LED strip can be cut at every meter mark, indicated by a cutting symbol on the strip. Use sharp scissors for a clean cut.
- Sambungkeun Kabel Daya: Attach the provided power cable with the overcurrent protection plug to the cut end of the LED strip. Ensure a secure and proper connection.
- Waterproofing (for Outdoor Use): If installing outdoors, apply the provided waterproof glue to seal the connection point between the power cable and the LED strip. This ensures the IP65 rating is maintained.
- Pamasangan: Secure the LED strip to your desired surface using appropriate mounting clips or adhesive (not included). Ensure the surface is clean and dry for optimal adhesion.
Image: The LED strip being cut at a designated mark, illustrating its adjustable length feature.
Image: A visual guide demonstrating the simple plug-and-play connection method for the LED strip.
Image: Detailed dimensions of the power connector and cable for the LED strip.
Image: A person installing the LED strip light under the eaves of an outdoor structure.
Parentah Operasi
- Daya Hurung: Once the LED strip is securely installed and connected, plug the power cable into a standard 230V AC electrical outlet. The LED strip will illuminate.
- Dimming (Opsional): If you wish to dim the light, connect a compatible external dimmer (not included) between the power outlet and the LED strip's power plug. Follow the dimmer's instructions for operation.
- Pareum listrik: To turn off the LED strip, simply unplug it from the electrical outlet or use the switch on your external dimmer if one is installed.
Aplikasi Examples
The HOFTRONIC Flex60 LED Strip Light is versatile and can be used in various indoor and outdoor settings to enhance ambiance and provide functional lighting.
Image: The LED strip installed under kitchen cabinets, providing ambient lighting.

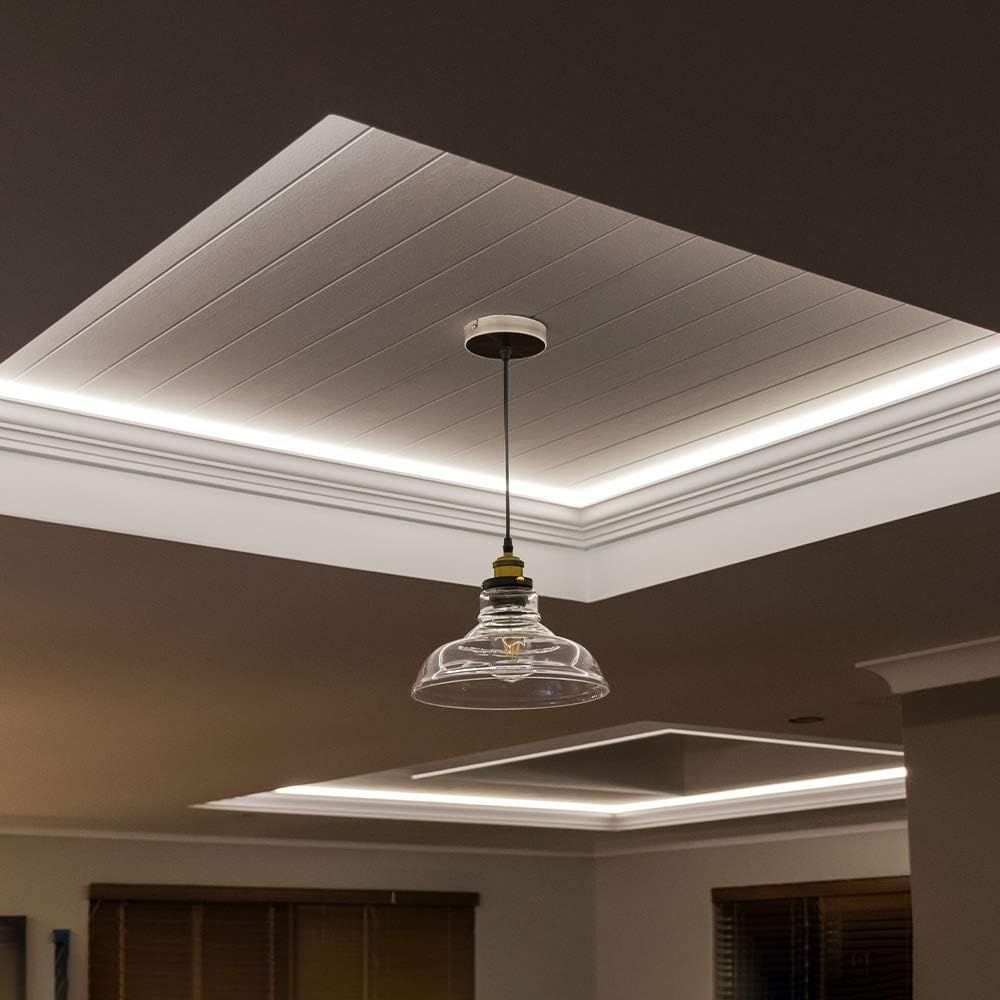

Image: The LED strip integrated into ceiling coving for indirect lighting.
Image: An outdoor garden shed and pathway creatively lit by HOFTRONIC Flex60 LED strips.
Gambar: Témbongkeun kolasecasing diverse applications of the LED strip, including architectural accents and decorative lighting.
Pangropéa
- beberesih: Ensure the LED strip is unplugged before cleaning. Gently wipe the surface with a soft, dry or slightly damp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.
- Pariksa sambungan: Periodically inspect the power connection and any sealed areas (for outdoor use) to ensure they remain secure and waterproof.
- Panyimpenan: If storing the LED strip for an extended period, coil it loosely and keep it in a dry, cool place away from direct sunlight.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Strip LED teu hurung. | No power supply; loose connection; faulty power plug. | Check if the power plug is securely inserted into a working outlet. Ensure the connection between the strip and the power cable is firm. Test the outlet with another device. |
| Part of the LED strip is not lighting. | Damage to a section of the strip; improper cut. | Inspect the unlit section for visible damage or a faulty cut. If a section is damaged, it may require replacement of that segment or the entire strip. |
| Cahayana kedip-kedip atawa teu konsisten. | Loose connection; unstable power supply; incompatible dimmer (if used). | Check all connections. Ensure the power supply is stable. If using a dimmer, ensure it is compatible with LED strip lights. |
| Fungsi dimming teu jalan. | Incompatible dimmer; dimmer not connected correctly. | Ensure the external dimmer is specifically designed for LED strip lights and is correctly installed according to its instructions. |
spésifikasi
| Atribut | Nilai |
|---|---|
| merek | HOFTRONIC |
| Nomer modél | 5423871 |
| Panjangna | 25 méter |
| Ukuran (L x W x H) | 2500 x 1.2 x 0.6 cm (25m x 12mm x 6mm) |
| Suhu Warna | 6000K (Bodas Siang) |
| Tipe LED | SMD 2835 |
| LED per Méter | 60 |
| Fluks Luminous | 7700 lm (total) / 308 lm/meter |
| Konsumsi Daya | 7 W/meter |
| Masukan Voltage | 230V AC |
| Jangka waktu hirup | 50,000 jam |
| Peunteun IP | IP65 (tahan lebu sareng cai) |
| Dimmable | Yes (with external dimmer, not included) |
| Kelas Énergi Énergi | F |
| Mangpaat husus | Jero rohangan jeung Luar |
Image: The EU Energy Label for the HOFTRONIC Flex60 LED Strip Light, indicating an energy efficiency class of F.
Kanggo inpo produk lengkep, tingal EPREL Product Database (QR Code 861800).
Garansi sareng Rojongan
HOFTRONIC provides a warranty for this product. For any issues or questions regarding your HOFTRONIC Flex60 LED Strip Light, please contact HOFTRONIC customer service. When contacting support, please have your order number readily available for efficient assistance.
