STANLEY 12 Gallon Wet/Dry Vacuum (Model SL18199P) Instruction Manual

Émbaran Kasalametan penting

Baca sareng pahami sadaya pitunjuk sateuacan nganggo panyedot debu ieu. Upami henteu nuturkeun sadaya pitunjuk anu didaptarkeun di handap ieu tiasa nyababkeun sengatan listrik, kahuruan, sareng/atanapi tatu anu parah.

• Always disconnect the plug from the power outlet before making any adjustments, changing accessories, or storing the vacuum.
• Do not use the vacuum on wet surfaces when operating in dry vacuum mode.
• Ulah nyokot cair kaduruk atawa combustible, kayaning béngsin, atawa dipaké di wewengkon mana maranéhna bisa jadi aya.
• Ulah nyokot naon bae anu kaduruk atawa ngaroko, kayaning roko, korek api, atawa lebu panas.
• Jauhkeun rambut, pakean longgar, ramo, sareng sadaya bagian awak tina bukaan sareng bagian anu obah.
• Paké perawatan tambahan nalika meresihan dina tangga.
• Ulah make tanpa saringan di tempat.
• Upami kabel suplai rusak, éta kedah digentos ku produsén atanapi agén jasana atanapi jalma anu mumpuni anu sami pikeun ngahindarkeun bahaya.

Produk Leuwihview

The STANLEY 12 Gallon Wet/Dry Vacuum (Model SL18199P) is a versatile cleaning tool designed for both wet and dry pickup, and also functions as a blower. It features a 5.5 peak horsepower motor and a 12-gallon collection tank.

Gambar 1: Komponen Produk. This diagram illustrates the main parts of the vacuum: (1) Carry Handle, (2) Large On/Off Switch, (3) Vacuum Port, (4) Drain Port, (5) Blower Port, (6) Two Lid Latches, (7) Dust Tank, (8) Caster.

Naon Kaasup

Your STANLEY 12 Gallon Wet/Dry Vacuum package includes the following items:

angka 2: Asesoris kaasup. The package contains: (A) Crevice nozzle, (B) Extension wand x 2, (C) Floor nozzle, (D) Utility nozzle, (E) 1-7/8" Hose, (F) Cartridge filter, (G) Disposable filter bag, (H) Product manual.

• 1 x Stanley SL18199P Wet / Dry Vacuum
• 1 x 1-7/8"x6 Super Flexible Hose
• 2 x Extension Wands
• 1 x Gulper Nozzle (also referred to as Floor Brush)
• 1 x Nozzle Lantai
• 1 x Celah Nozzle
• 1 x Dust Bag
• 1 x Saringan Kartrid

Parentah Setup

Follow these steps to assemble your wet/dry vacuum before first use.

1. Ngabongkar komponén: Carefully remove all parts from the packaging. Ensure all items listed in the "What's Included" section are present.
2. Pasang Casters:
   • Hurungkeun tank koleksi tibalik ka handap.
   • Insert each caster assembly into the designated slots on the base of the tank.
   • Secure each caster with the provided screws using a screwdriver.
3. Pamasangan Filter:
   • Release the lid latches and remove the motor head from the collection tank.
   • For dry vacuuming, ensure the cartridge filter is securely installed over the filter cage on the underside of the motor head. Twist the filter cap to lock it in place.
   • For wet vacuuming, remove the cartridge filter. A foam filter (not included in this model's description but standard for wet vacs) may be used for wet pickup, or the unit can be used without a filter for large liquid spills.
   • If using a disposable dust bag for dry pickup, install it inside the tank, aligning the collar with the intake port.
4. Pasang selang: Insert the larger end of the flexible hose into the vacuum port on the front of the collection tank until it clicks securely.
5. Attach Extension Wands and Nozzle: Connect the extension wands to the smaller end of the hose. Then, attach the desired cleaning nozzle (e.g., floor nozzle, crevice nozzle) to the end of the extension wand.

Parentah Operasi

The STANLEY 12 Gallon Wet/Dry Vacuum offers three primary functions: dry vacuuming, wet vacuuming, and blowing.

Ngumbah garing

For dry pickup of debris, dust, and dirt:

1. Pastikeun saringan kartrij bersih sareng dipasang kalayan leres. Kantong lebu anu tiasa dianggo ogé tiasa dianggo pikeun miceun runtah anu langkung gampang.
2. Sambungkeun selang ka port vakum.
3. Attach the desired dry cleaning accessory (e.g., floor nozzle for large areas, crevice nozzle for tight spaces).
4. Colokkeun kabel listrik kana stop kontak listrik anu cocog.
5. Turn the vacuum ON using the large on/off switch.
6. Pituduh nozzle kana daérah anu badé dibersihkeun.
7. Saatos réngsé, pareuman vacuum cleaner teras cabut colokanna.

Figure 3: Indoor Dry Vacuuming. The vacuum is effective for cleaning dry debris on various indoor surfaces.

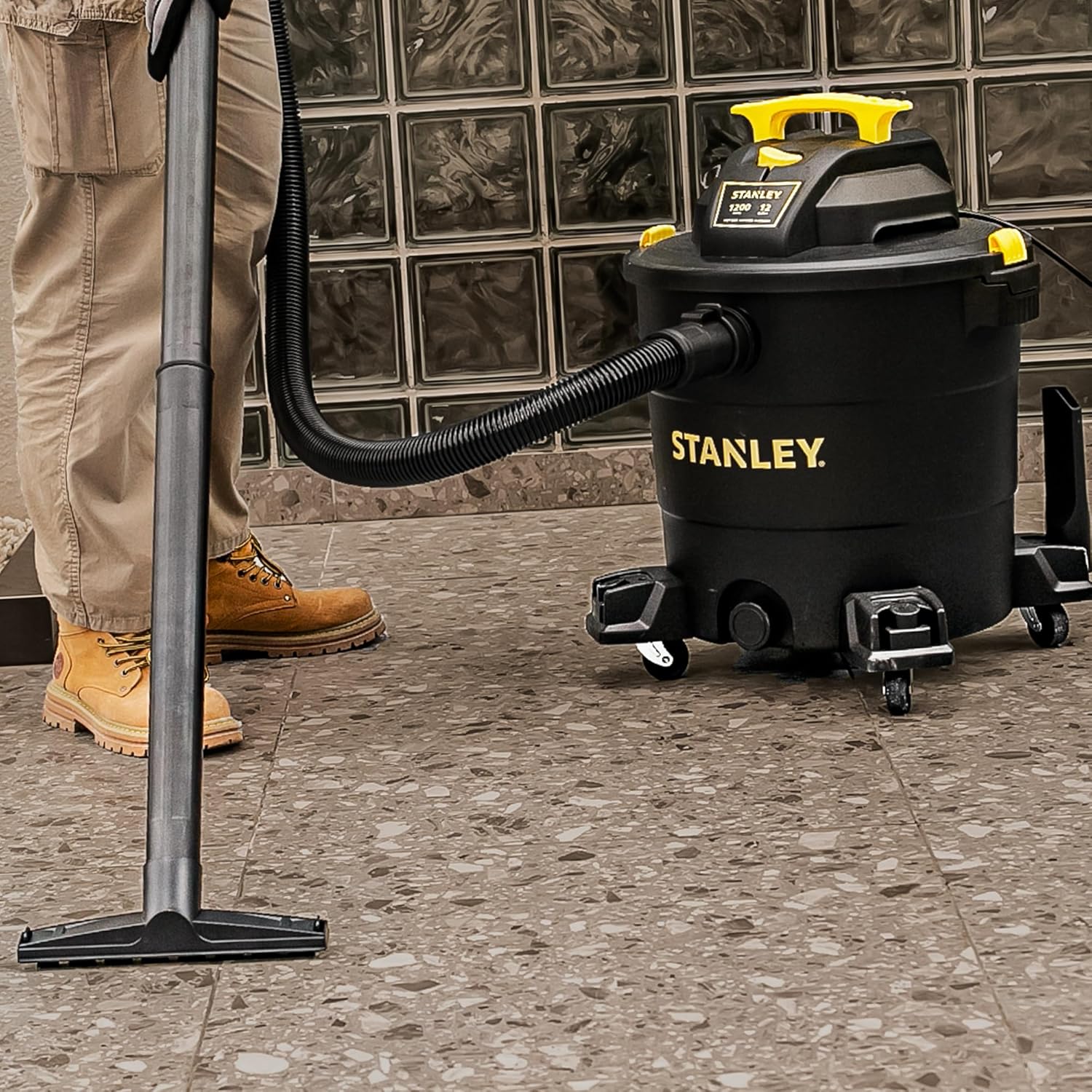

Figure 4: Floor Nozzle in Use. The floor nozzle is suitable for cleaning larger areas with dry debris like sawdust.

Figure 5: Crevice Nozzle in Use. The crevice nozzle is ideal for reaching into narrow gaps and corners, such as between couch cushions or car seats.

Ngumbah vakum

For picking up liquids:

1. Remove Dry Filter: Before wet vacuuming, remove the cartridge filter and any disposable dust bag. Using a dry filter for wet pickup can damage the filter and the motor.
2. Sambungkeun selang ka port vakum.
3. Attach a wet-specific nozzle (e.g., utility nozzle or floor nozzle without brushes).
4. Colokkeun kabel listrik kana stop kontak listrik anu cocog.
5. Hurungkeun vakum.
6. Guide the nozzle over the liquid spill. The vacuum will automatically shut off when the liquid reaches a critical level in the tank (safety buoy technology).
7. Saatos réngsé, pareuman vacuum cleaner teras cabut colokanna.
8. Empty the liquid from the tank using the drain port.

Figure 6: Wet Pickup Operation. The vacuum efficiently cleans liquid spills from hard surfaces.

Fungsi Blower

To use the vacuum as a blower:

1. Ensure the collection tank is empty and clean.
2. Cabut selang tina liang vakum.
3. Lebetkeun selang kana liang blower anu aya dina sirah motor.
4. Colokkeun kabel listrik kana stop kontak listrik anu cocog.
5. Hurungkeun vakum.
6. Direct the hose towards the area where you want to blow debris (e.g., leaves, sawdust).
7. Saatos réngsé, pareuman vacuum cleaner teras cabut colokanna.

Figure 7: Blower Function. The blower port allows for clearing debris from outdoor areas or workshops.

Pangropéa

Pangropéa rutin ngajamin kinerja anu optimal sareng manjangkeun umur vacuum cleaner anjeun.

• Saringan beberesih: The cartridge filter should be cleaned regularly, especially after dry vacuuming. Tap the filter gently to dislodge dust, or rinse it with water if heavily soiled. Allow it to air dry completely before reinstallation.
• Ngabersihan tank: Empty and clean the collection tank after each use, especially after wet vacuuming, to prevent odors and mold growth.
• Selang sareng Asesorisna: Inspect the hose and accessories for blockages or damage. Clean as needed.
• Panyimpenan: Store the vacuum and its accessories in a clean, dry place. The onboard accessory storage helps keep everything organized.

Figure 8: Filter Maintenance. Regular cleaning of the cartridge filter and proper installation of the dust bag are crucial for performance.

Pamérésan masalah

Upami anjeun mendakan masalah sareng vakum anjeun, tingal masalah sareng solusi umum ieu:

spésifikasi

Garansi sareng Rojongan

This STANLEY product is covered by a 12-month warranty from the date of purchase. For warranty claims, technical support, or service inquiries, please contact the manufacturer's customer service. Keep your proof of purchase for warranty validation.

For further assistance, refer to the official STANLEY websitus atanapi ngahubungan garis rojongan customer maranéhanana.
