Buku Panduan Pangekstrak Lebu Festool CT 48 E HEPA

1. Bubuka

This instruction manual provides essential information for the safe and efficient operation, setup, and maintenance of your Festool CT 48 E HEPA Dust Extractor. Please read this manual thoroughly before using the product and keep it for future reference.

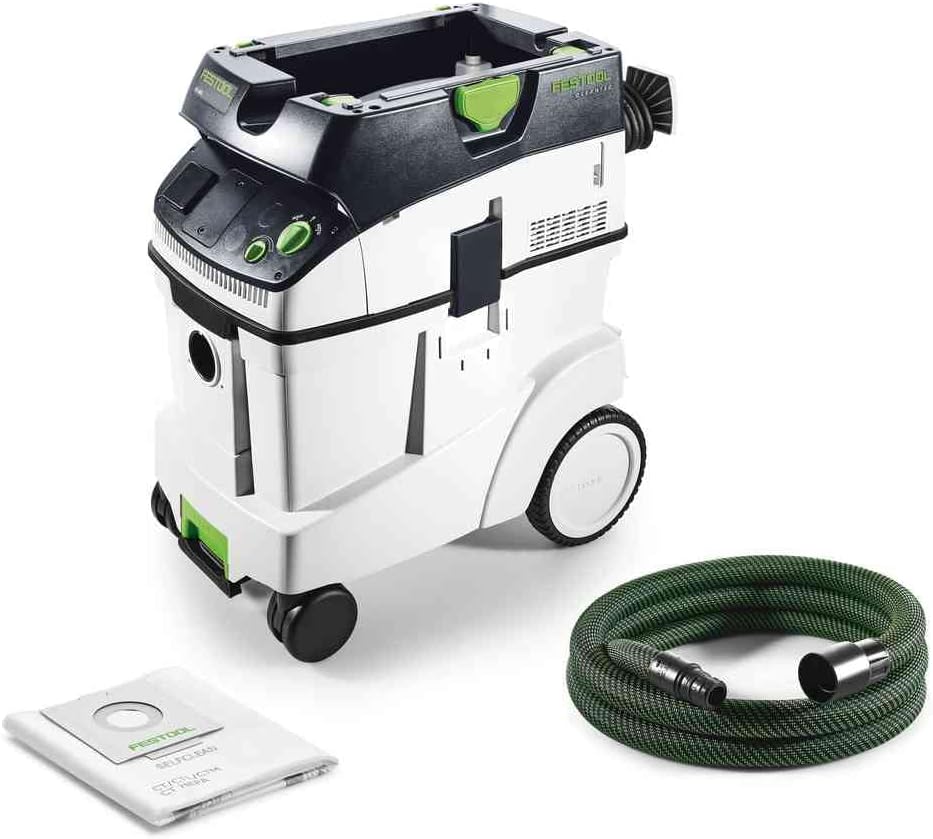

Gambar 1.1: The Festool CT 48 E HEPA Dust Extractor, shown with its anti-static hose and a disposable filter bag. This image highlights the main unit's design and key accessories.

2. Émbaran Kasalametan

Salawasna perhatikeun pancegahan kaamanan di handap ieu pikeun nyegah tatu sareng karusakan produk.

• Baca sagala parentah: Biasakeun diri anjeun sareng pedoman operasi sareng kaamanan sateuacan dianggo.
• Use appropriate personal protective equipment (PPE): Wear safety glasses, hearing protection, and a dust mask when operating the extractor.
• Pastikeun ventilasi anu leres: Operate the dust extractor in a well-ventilated area.
• Do not vacuum hazardous materials: Avoid vacuuming flammable liquids, explosive dusts, or hot materials.
• Unplug before maintenance: Salawasna pegatkeun kabel daya sateuacan ngalakukeun pangropéa atanapi ngaganti asesoris.
• Maintain the product: Keep the dust extractor in good working condition. Regularly check for damaged parts.
• Anti-static function: The anti-static design prevents static development during work. Ensure proper grounding.

3. Eusi Paket

Saatos ngabongkar bungkusan, pariksa yén sadaya komponén aya sareng henteu ruksak:

• Festool CT 48 E HEPA Dust Extractor Unit
• Hose Garage
• 1-1/16" x 11.5 ft. Anti-Static Suction Hose
• Filter HEPA (dipasang sateuacana)
• Disposable Filter Bag (pre-installed or included)

4. Setélan

4.1 Majelis Awal

1. Unpack the unit: Carefully remove the dust extractor and all accessories from the packaging.
2. Pariksa karusakan: Check for any signs of damage during transit. Contact your dealer if any damage is found.
3. Install filter bag: Ensure a disposable filter bag is correctly installed inside the container. Refer to the "Maintenance" section for detailed instructions on filter bag installation.

4.2 Connecting the Suction Hose

The re-designed smooth suction hose features a conical geometry for improved airflow and a CLEANTEC tool connection sleeve for a secure fit.

1. Locate the suction port on the dust extractor.
2. Connect the larger end of the anti-static suction hose to the dust extractor's suction port using the bayonet fitting. Twist until secure.
3. Attach the CLEANTEC tool connection sleeve at the other end of the hose to your Festool power tool. Ensure a secure connection.
4. If a longer hose is required, two suction hoses can be connected using the bayonet fitting.

4.3 SYS-DOCK and Cable Winder

The integrated SYS-DOCK allows for instant attachment of SYSTAINER, SORTAINER, or SYS-Tool Boxes, transforming your dust extractor into a mobile workstation. The cable winder features a new folding mechanism for easy cable management.

• To attach a Systainer, align it with the SYS-DOCK and engage the T-LOC mechanism.
• Wrap the power cord around the cable winder for organized storage.

5. Parentah Operasi

5.1 Powering On and Suction Adjustment

1. Plug the dust extractor into a suitable power outlet.
2. Puterkeun saklar daya ka posisi "ON".
3. Adjust the suction power using the control knob. The CT 48 E offers multiple power levels for various applications.
4. For tool-triggered dust extraction, connect your power tool to the integrated power outlet on the dust extractor. The extractor will start automatically when the tool is activated.

5.2 Bluetooth Remote Capabilities (Optional)

The CT 48 E can be retrofitted with a Bluetooth module (sold separately) for remote control functionality.

• Kadali jauh: With the Bluetooth module and a remote control (sold separately) attached to the suction hose, you can start the dust extractor remotely for occasional cleanup tasks.
• Automatic Start with Cordless Tools: When used with Festool Bluetooth Battery Packs (sold separately), the Bluetooth module will automatically start the dust extractor when your cordless tool is switched on, ensuring a dust-free working environment.

6. Pangropéa

6.1 Filter Bag Replacement

The CT 48 E uses SELFCLEAN filter bags for optimal use of available volume and consistent suction. Replace the filter bag when the suction performance decreases or the bag full indicator illuminates.

1. Pegatkeun kakuatan: Unplug the dust extractor from the power source.
2. Open the container: Release the latches and remove the top section of the dust extractor.
3. Remove old bag: Carefully remove the full filter bag, ensuring the opening is sealed to prevent dust escape. Dispose of the bag according to local regulations.
4. Install new bag: Insert a new Festool SELFCLEAN filter bag, ensuring it is properly seated and sealed around the inlet.
5. Close the container: Reattach the top section and secure the latches.

6.2 HEPA Filter Cleaning/Replacement

The HEPA filter ensures high-efficiency particulate air filtration. While the self-cleaning filter bags help maintain filter life, the HEPA filter may require occasional cleaning or replacement.

• Refer to the specific instructions provided with your HEPA filter for cleaning procedures.
• Replace the HEPA filter if it is damaged or if suction performance remains low after cleaning the filter bag.

6.3 beberesih umum

• Ngusap bagian luar unit nganggo iklanamp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.
• Periodically check the hose and connections for blockages or damage.

7. Cara ngungkulan

If you encounter issues with your Festool CT 48 E, consult the table below for common problems and solutions.

If the problem persists after attempting these solutions, please contact Festool customer support.

8. Spésifikasi

9. Garansi jeung Rojongan

9.1 Émbaran jaminan

The Festool CT 48 E HEPA Dust Extractor comes with a 3-taun jaminan produsén urang. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official Festool websitus atanapi ngahubungan rojongan customer.

9.2 Rojongan Palanggan

For technical assistance, service, or to inquire about accessories and parts, please contact Festool customer support.

You can visit the official Festool store for more information and support: Toko Festool di Amazon.
