This user manual provides comprehensive instructions for the installation, operation, and maintenance of your Okin 2 Button Round Hand Control Handset. This replacement part is designed for power recliners, electric recliners, and lift chairs, ensuring smooth and reliable control of your furniture's reclining functions. It features a 5-pin round plug and is compatible with various brands including OKIN, Dewert, Limoss, and Ashley, provided the plug type matches.

Émbaran Kasalametan

Mangga baca sadaya pitunjuk kaamanan kalayan saksama sateuacan dipasang sareng dianggo. Upami henteu nuturkeun pitunjuk ieu tiasa nyababkeun cilaka atanapi karusakan kana produk.

• Nanganan kalayan ati-ati: Avoid dropping or subjecting the control to strong impacts.
• Avoid liquids: Do not expose the control to water or any other liquids. This can cause electrical short circuits and damage.
• Hindarkeun panas kaleuleuwihan: Keep the control away from direct heat sources or extreme temperatures.
• Bagian listrik: Ensure you are comfortable with handling electrical parts before attempting installation. If unsure, consult a qualified technician.
• Pegatkeun daya: Always disconnect power to the recliner or lift chair before attempting any installation or maintenance.
• Kasaluyuan colokan: Verify that the 5-pin round plug and 90-degree L-shape connector match your existing recliner motor's port before purchase and installation.

Produk Leuwihview

The Okin 2 Button Round Hand Control Handset is a durable replacement part designed for seamless integration with compatible power recliners. It features a simple two-button interface for intuitive control.

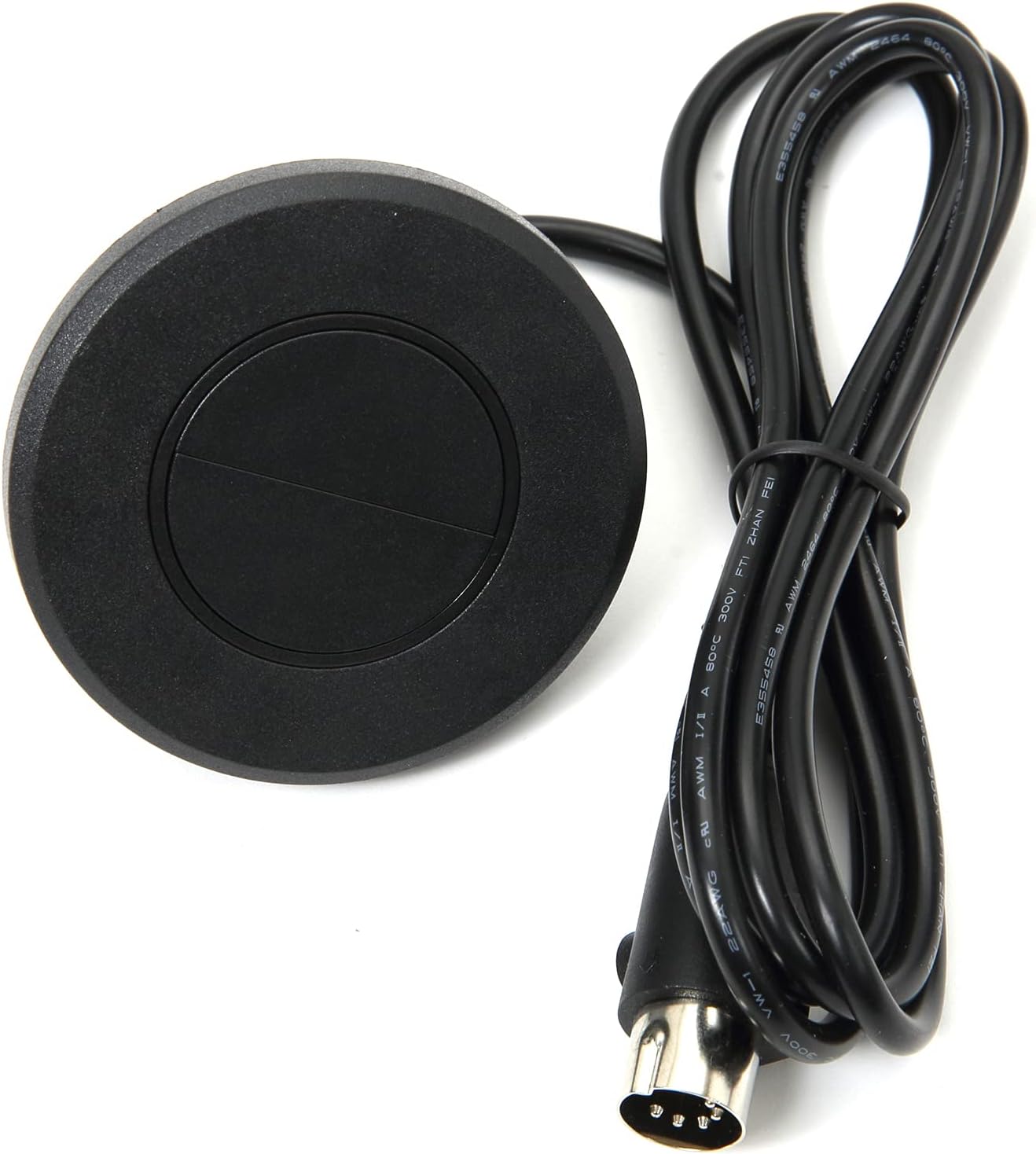

Gambar 1: Hareupeun view of the Okin 2 Button Round Hand Control Handset, showing the two buttons, attached cable, and 5-pin plug.

Gambar 2: Ti luhur ka handap view of the control handset, highlighting the round shape and two distinct buttons.

Gambar 3: Underside of the control showing the product label with model number (JLDK.04.06.10-YJ-NEW) and manufacturer information.

Gambar 4: Pahareup-hareup view of the 5-pin round plug, which connects the handset to the recliner motor.

Gambar 5: Illustration demonstrating the connection of the 5-pin straight plug to a recliner motor port.

Setup sareng Instalasi

This replacement handset is designed for easy installation. Follow these steps carefully:

1. Pegatkeun Daya: Before beginning, ensure the recliner or lift chair is unplugged from the wall outlet to prevent electrical shock.
2. Locate Existing Control: Identify the current hand control and its connection point to the recliner's motor or control box.
3. Hapus Control Old: Carefully disconnect the old 5-pin plug from the motor. Note the orientation if possible, though the 5-pin design typically ensures correct alignment.
4. Insert New Control: Take the new Okin 2 Button Round Hand Control Handset. Align the 5-pin plug with the corresponding port on your recliner's motor or control box. Gently push the plug in until it is securely seated. The 90-degree L-shape connector ensures a snug fit in tight spaces.
5. Secure the Handset: If your recliner has a designated slot for the round handset, insert it firmly. The design allows for a flush mount into compatible furniture.
6. Sambungkeun deui Daya: Once the new handset is securely installed, plug the recliner or lift chair back into the wall outlet.
7. Fungsi Uji: Test both buttons on the handset to ensure the recliner extends and retracts smoothly.

Catetan: This control is compatible with direct circuits and various brands including OKIN, Dewert, Limoss, and Ashley. Always verify the plug type (5-pin round) before installation.

Parentah Operasi

The Okin 2 Button Round Hand Control Handset provides simple and intuitive operation for your power recliner or lift chair.

• Extend/Recline: Pencét jeung tahan tombol luhur pikeun manjangkeun footrest jeung recline korsi. Leupaskeun tombol nalika posisi nu dipikahoyong geus ngahontal.
• Retract/Return: Press and hold the bottom button to retract the footrest and return the chair to its upright position. Release the button when the desired position is reached.

The control is designed for smooth and continuous movement. Avoid rapidly pressing buttons or forcing the chair's mechanism.

Pangropéa

To ensure the longevity and optimal performance of your Okin Hand Control Handset, follow these simple maintenance guidelines:

• beberesih: Wipe the surface of the control with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the unit. Do not use abrasive cleaners or solvents.
• Pamariksaan kabel: Periodically inspect the cable for any signs of wear, fraying, or damage. If damage is observed, discontinue use and replace the handset.
• Pariksa sambungan: Ensure the 5-pin plug remains securely connected to the motor. A loose connection can lead to intermittent operation.
• Panyimpenan: If the recliner is not in use for an extended period, it is advisable to unplug it from the power outlet.

Pamérésan masalah

If you encounter issues with your Okin Hand Control Handset, refer to the following common problems and solutions:

Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer.

spésifikasi

Garansi sareng Rojongan

Okin is committed to providing high-quality products and excellent customer service. While specific warranty details are not provided in this manual, we offer dedicated support to assist you with any questions or concerns regarding your product.

For assistance, please refer to the contact information provided with your purchase or visit the official Okin website. Our support team is ready to ensure a seamless setup process and address any operational issues you may encounter.

Pabrikan: OKIN Refined Electric Technology Co.,Ltd
