Bubuka
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Koolatron Modelo Mini Refrigerator, model MOD90. Please read these instructions thoroughly before using the appliance and retain them for future reference.
Gambar: Hareupeun view of the Koolatron Modelo Mini Refrigerator, highlighting its compact design, Modelo branding, built-in bottle opener, and 3.2 cubic foot capacity.
Émbaran Kasalametan penting
PERHATOSAN: Pikeun ngirangan résiko kahuruan, kejutan listrik, atanapi tatu nalika nganggo alat anjeun, tuturkeun pancegahan dasar ieu:
- Baca sagala parentah saméméh ngagunakeun kulkas.
- Ulah nyabak permukaan anu tiis, khususna nalika leungeun diusapamp atawa baseuh. Kulit tiasa nempel kana permukaan anu tiis pisan.
- Pernah ngabersihan bagian kulkas ku cairan anu gampang kaduruk. Haseup tiasa nyiptakeun bahaya seuneu atanapi ngabeledug.
- Entong nyimpen atanapi nganggo béngsin atanapi uap sareng cairan anu gampang kaduruk di sakuriling ieu atanapi alat anu sanés. Haseup tiasa nyiptakeun bahaya seuneu atanapi ngabeledug.
- Before performing any maintenance or cleaning, unplug the refrigerator from the power outlet.
- Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kalebet murangkalih) anu ngirangan kamampuan fisik, indrawi atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
- Barudak kedah diawaskeun pikeun mastikeun yén aranjeunna henteu maén sareng alatna.
- California Proposisi 65 Peringatan: Produk tiasa ngandung bahan anu diawaskeun ku California Proposition 65.
Fitur produk
The Koolatron Modelo Mini Refrigerator MOD90 is designed for convenience and efficient cooling. Key features include:
- Kapasitas ageung: 3.2 cubic feet (90 Liters) of storage space.
- Rak adjustable: Three repositionable tempered glass shelves allow for flexible storage configurations.
- Panyimpenan panto: Ample space in the door, including a Dispense-a-Can compartment that holds five standard cans.
- Built-In Bottle Opener: A durable steel bottle opener is conveniently attached to the exterior for easy access.
- Pendinginan Kompresor: Efficient and reliable compressor technology maintains temperatures between 32°F (0°C) and 50°F (10°C).
- Kontrol Suhu anu tiasa diatur: Easily set your desired cooling level.
- Panto malik: The door can be hinged on either the left or right side to suit your space.
- Flat-Back Design: Space-saving design with enclosed evaporator coils for flush placement against walls.
- Operasi sepi: Engineered to operate with minimal noise, suitable for various living spaces.
Gambar: Interior view of the refrigerator, illustrating the three tempered glass shelves and door storage, including the Dispense-a-Can feature.
Image: Detail of the integrated steel bottle opener located on the side of the refrigerator.
Image: Close-up of the internal rotary dial for adjusting the refrigerator's temperature settings.
Setup sareng Instalasi
Ngabongkar bungkusan
- Cabut sadaya bahan kemasan, kalebet dasar busa sareng pita perekat.
- Inspect the refrigerator for any damage during transit. Report any damage to your retailer immediately.
- Ngabersihan interior sareng luar kulkas nganggo iklanamp kaén sateuacan dianggo.
panempatan
- Place the refrigerator on a firm, level surface strong enough to support the unit when fully loaded.
- Bere jarak sahenteuna 5 inci (12.7 cm) antara tonggong sareng sisi kulkas sareng témbok gigireunana pikeun mastikeun sirkulasi hawa anu leres.
- Avoid placing the refrigerator in direct sunlight or near heat sources (e.g., stoves, heaters, radiators).
- Do not install in areas where the temperature will fall below 50°F (10°C) or rise above 90°F (32°C).
Leveling
The refrigerator has adjustable leveling legs. Turn the legs clockwise to raise the unit and counter-clockwise to lower it. Ensure the refrigerator is level to prevent vibrations and ensure proper door sealing.
Sambungan Listrik
- Plug the refrigerator into a dedicated 110V AC, 60Hz grounded electrical outlet.
- Entong nganggo kabel penyambung atanapi adaptor anu teu dibatas.
- Ngidinan kulkas nangtung nangtung sahenteuna 2-4 jam sateuacan nyolokkeunana supados refrigerant netep.
Pamasangan Panto Malik
The door hinges can be reversed to open from the left or right side. Refer to the detailed diagrams in the full product manual for specific instructions on reversing the door.
Image: Dimensional drawing of the refrigerator, indicating a height of 33 inches, depth of 18.75 inches, and width of 17.5 inches.
Parentah Operasi
Mimitian-Up
After plugging in the refrigerator, allow it to cool for approximately 2-3 hours before placing items inside. This ensures the interior reaches the desired temperature.
Kontrol Suhu
The temperature control dial is located inside the refrigerator compartment. It typically ranges from '1' (warmest) to '7' (coldest). Adjust the dial to your desired setting. A setting of '4' or '5' is generally recommended for normal use.
- Turn the dial towards higher numbers for colder temperatures.
- Turn the dial towards lower numbers for warmer temperatures.
- The optimal operating temperature range is between 32°F (0°C) and 50°F (10°C).
Image: Detail of the temperature control knob with settings from 1 to 7, located within the refrigerator compartment.
Perawatan sareng Pangropéa
beberesih
- Interior: Clean the interior regularly with a solution of mild detergent and warm water. Rinse thoroughly and dry. Do not use abrasive cleaners or harsh chemicals.
- Luar: Wipe the exterior with a soft cloth and mild detergent. For the Modelo graphics, use a soft, damp cloth and avoid harsh scrubbing to prevent damage.
- Seal panto: Bersihkeun gasket panto sacara rutin pikeun mastikeun segelna pageuh.
- Rak: The tempered glass shelves are removable for easy cleaning. Wash with mild soap and water, rinse, and dry thoroughly before replacing.
Image: Detail of the removable tempered glass shelves, designed for easy cleaning and flexible storage.
Defrosting
This refrigerator features manual defrost. Frost will accumulate on the interior cooling plate. When the frost layer becomes approximately 1/4 inch (6 mm) thick, defrost the unit:
- Cabut colokan kulkas tina stop kontak listrik.
- Cabut sadaya barang tuang sareng tempatkeun dina cooler sanés.
- Leave the door open to allow the frost to melt naturally. Place towels at the bottom to absorb water.
- Ulah nganggo barang seukeut atawa alat pemanas pikeun miceun ibun, sabab ieu bisa ngaruksak sistem pendingin.
- Once defrosted, clean and dry the interior thoroughly before plugging the unit back in and returning food items.
Kakuatan Outage
Bisi hiji kakuatan outage, keep the refrigerator door closed as much as possible to maintain internal temperature. Most food items will remain cold for several hours.
Liburan
For long vacations, unplug the refrigerator, empty all contents, clean the interior, and leave the door slightly ajar to prevent odors and mold growth.
Pamérésan masalah
Sateuacan ngahubungan layanan palanggan, ulangview masalah umum sareng solusi ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kulkas teu beroperasi | Not plugged in; circuit breaker tripped; temperature control set to 'OFF' or too warm. | Ensure plug is secure; reset circuit breaker; adjust temperature control to a colder setting. |
| Suhu teu cukup tiis | Door opened too frequently; large quantity of warm items added; poor air circulation; temperature control set too warm. | Minimize door openings; allow warm items to cool slightly before placing in fridge; ensure adequate space around unit; adjust temperature control to a colder setting. |
| Ngabentuk ibun kaleuleuwihan | Panto henteu disegel leres; kalembaban anu luhur; sering muka panto. | Check door gasket for proper seal; defrost unit manually; minimize door openings. |
| Noises (vibrating, rattling) | Refrigerator not level; loose parts; items inside rattling. | Adjust leveling legs; ensure all internal components are secure; rearrange items to prevent rattling. |
| Panto henteu nutup leres-leres | Refrigerator not level; door gasket dirty or damaged; items obstructing door. | Level the unit; clean or replace door gasket; remove obstructions. |
spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Koolatron |
| Nomer modél | MOD90 |
| Kapasitas | 3.2 Suku Kubik (90 Liter) |
| Ukuran produk (D x W x H) | 18.75 x 17.5 x 33 inci |
| Item Beurat | 1 Pounds (Note: This weight may refer to packaging or a component, actual unit weight is higher) |
| Tipe Pamasangan | Jalanan |
| Warna | Brilliant White |
| Voltage | 110 Volt (AC) |
| Wattage | 85 watt |
| Sistem Defrost | Manual |
| Jumlah Panto | 1 |
| Tipe Rak | Kaca Tempered |
| Komponén Kaasup | 3 Rak |
| Sertifikasi | ETL |

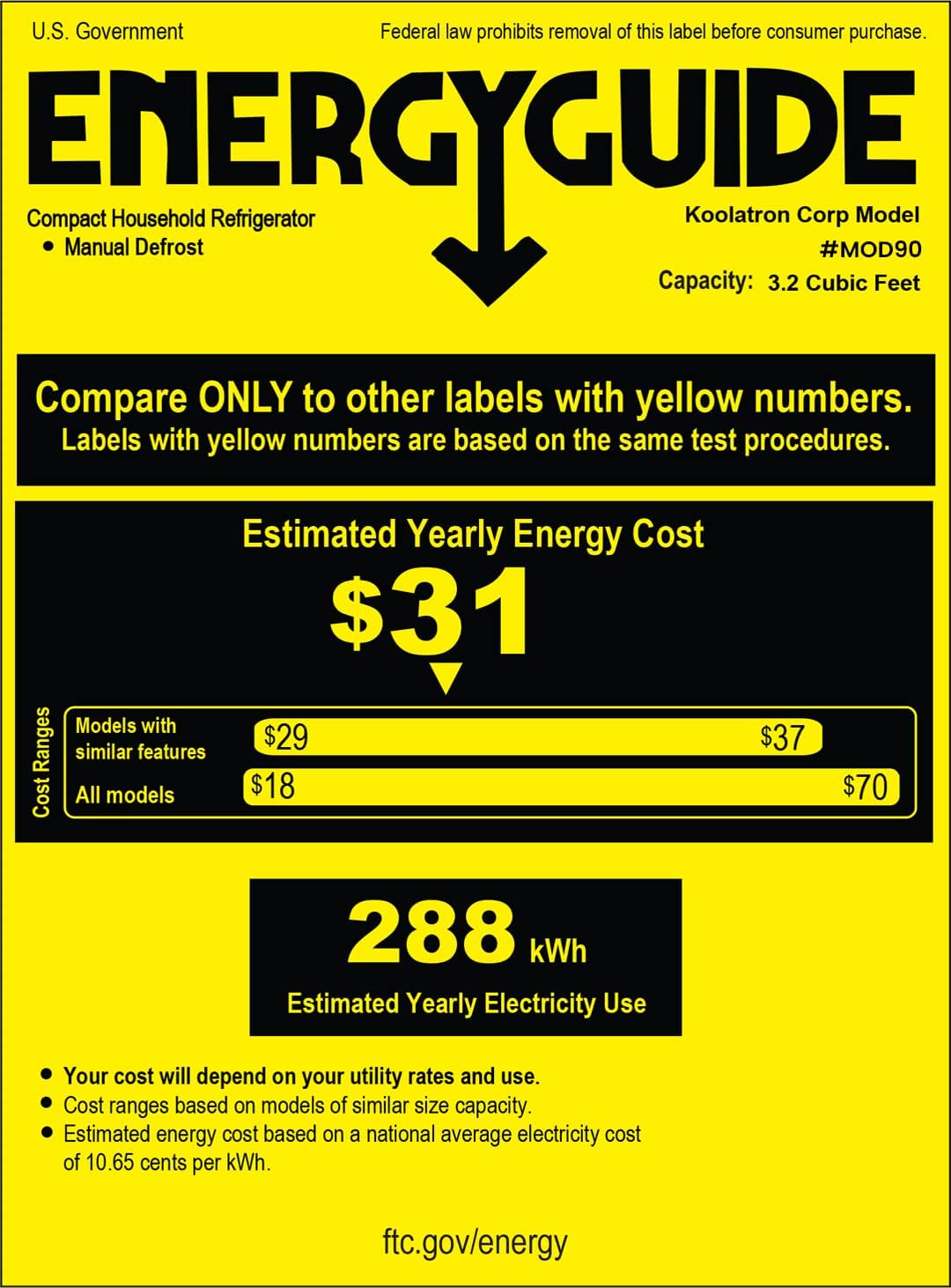

Image: U.S. Government Energy Guide label for the Koolatron Compact Household Refrigerator Model MOD90, indicating an estimated yearly energy cost of $31 and 288 kWh estimated yearly electricity use.
Émbaran jaminan
This Koolatron Modelo Mini Refrigerator comes with a 1-taun jaminan produsén urang ti tanggal beuli. Garansi ieu nyertakeun cacad dina bahan sareng pagawean dina panggunaan normal. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
The warranty does not cover damage resulting from misuse, accident, alteration, neglect, unauthorized repair, or improper installation. For full warranty terms and conditions, please refer to the documentation included with your product or contact Koolatron customer support.
Ngarojong
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Koolatron customer support. Visit the official Koolatron websitus pikeun inpo kontak jeung sumber tambahan.
