Hansgrohe Vernis Blend Lavabo Mixer 190 with Pull-Rod Waste, Matte Black (Model 71552670)

Produk Leuwihview

The Hansgrohe Vernis Blend 190 lavabo mixer, model 71552670, is designed for modern bathrooms, featuring a matte black finish and a high spout suitable for vessel sinks. This single-lever mixer includes a pull-rod waste set for convenient operation. It incorporates Hansgrohe's AirPower technology, which enriches the water with air to create a soft, voluminous, and splash-free jet. The integrated ceramic cartridge ensures smooth and precise control of water flow and temperature, providing long-lasting durability and reliable performance.

This manual provides essential information for the safe installation, operation, and maintenance of your Hansgrohe Vernis Blend lavabo mixer.

Figure 1: Hansgrohe Vernis Blend 190 Lavabo Mixer in Matte Black.

Setup sareng Instalasi

Before beginning installation, ensure all necessary components are present and that the water supply is turned off. Installation should be performed by a qualified professional if you are unsure about any steps.

Komponén Kaasup:

• Lavabo mixer
• Flexible connection hoses (G ⅜)
• Ngalereskeun set
• Parentah perakitan (manual ieu)
• Pull-rod waste set (synthetic)

Léngkah-léngkah pamasangan:

1. Nyiapkeun permukaan ningkatna: Ensure the sink or countertop has a single hole with a diameter suitable for the mixer's base (typically Ø 32-35mm).
2. Mount the mixer: Insert the mixer into the mounting hole. Secure it from underneath using the provided fixing set.
3. Connect water supply: Attach the flexible connection hoses to the hot and cold water supply lines. Ensure a tight seal to prevent leaks. The connection size is DN15 with G ⅜ flexible hoses.
4. Install the pull-rod waste set: Assemble and install the synthetic pull-rod waste set into the sink drain according to the separate instructions provided with the waste set. Connect the pull-rod to the mixer mechanism.
5. Pariksa bocor: Once installed, slowly turn on the main water supply and check all connections for any signs of leakage.

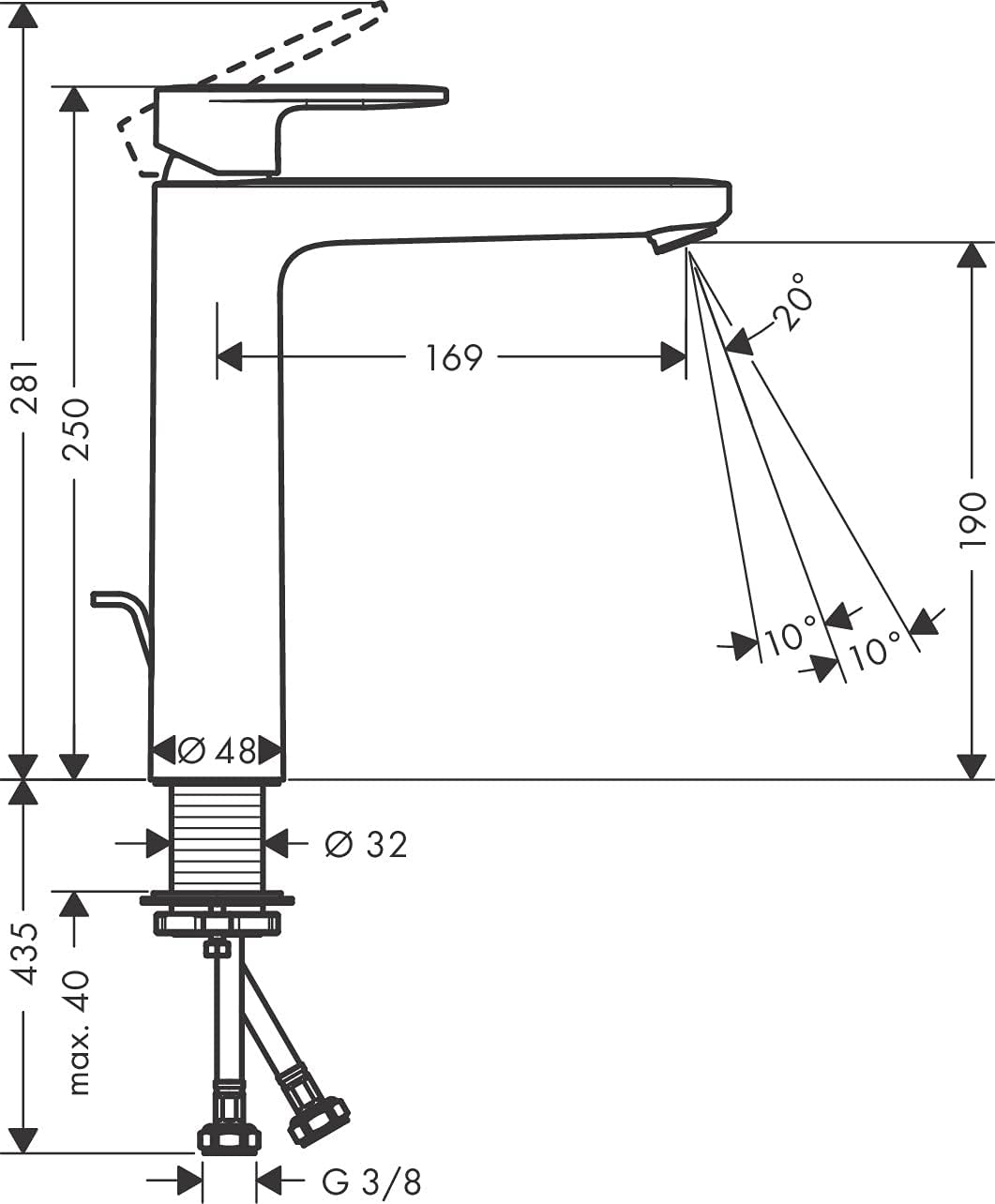

Figure 2: Technical drawing with dimensions for installation. Note the spout height of 190mm and overall dimensions.

Figure 3: Visual representation of easy installation. The mixer is designed for straightforward mounting.

Figure 4: The pull-rod waste set is included for convenient basin drainage control.

Parentah Operasi

The Vernis Blend lavabo mixer is designed for intuitive and comfortable daily use.

Aliran Cai sareng Kontrol Suhu:

• Lever Operation: Gagang tuas tunggal ngontrol aliran cai sareng suhu.
  • Lift the lever to increase water flow.
  • Pindahkeun uas ka kenca pikeun cai panas sareng ka katuhu pikeun cai tiis.
• Téknologi AirPower: The mixer's aerator enriches the water with air, creating a soft, voluminous water jet that reduces splashing and enhances the washing experience.
• EcoSmart Technology (where applicable): This mixer may feature EcoSmart technology, which limits water flow to conserve water and energy without compromising performance.

Waste Set Operation:

• The integrated pull-rod waste set allows for easy opening and closing of the basin drain. Pull the rod up to close the drain and push it down to open it.

Figure 5: AirPower technology ensures less water splashing for a comfortable experience.

Figure 6: EcoSmart technology helps save water and money by optimizing flow.

Figure 7: The durable ceramic cartridge ensures smooth and precise control.

Perawatan sareng Pangropéa

Proper care will help maintain the matte black finish and ensure the longevity of your Hansgrohe mixer.

Instruksi beberesih:

• Use only mild soap and water with a soft cloth for cleaning.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals (e.g., ammonia-based, bleach-based) as these can damage the matte black finish and internal components.
• Bilas sacara saksama ku cai bersih saatos beberesih sareng garing ku kaén anu lembut pikeun nyegah bintik cai.
• Regularly clean the aerator to remove any mineral deposits that may affect water flow. The aerator can typically be unscrewed by hand or with a special tool (if provided).

Pangropéa umum:

• Pariksa sadaya sambungan sacara périodik pikeun ayana bocor sareng kencengkeun upami diperyogikeun.
• If water flow becomes restricted, clean the aerator. If the issue persists, consult a professional plumber.

Pamérésan masalah

This section addresses common issues you might encounter with your lavabo mixer.

If you experience issues not listed here or if the suggested solutions do not resolve the problem, please contact Hansgrohe customer support or a qualified plumber.

Spésifikasi produk

Émbaran jaminan

Hansgrohe provides a manufacturer's warranty for this product.

• Garansi Pabrikan: 5 taun ti tanggal pameseran.
• Kasadiaan suku cadang: Spare parts are guaranteed to be available for up to 15 years after the product line is discontinued.

Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Hansgrohe websitus atanapi ngahubungan rojongan customer.

Rojongan Palanggan

For technical assistance, spare parts, or warranty inquiries, please contact Hansgrohe customer support.

• Hansgrohe Resmi Websitus: Nganjang www.hansgrohe.com for product information, FAQs, and contact details specific to your region.
• Inpormasi kontak: Tingal bagian kontak dina resmi websitus pikeun nomer telepon atanapi alamat email.

Nalika ngahubungi dukungan, punten gaduh nomer modél produk anjeun (71552670) sareng bukti pameseran sayogi sayogi.
