Manual pamaké Kugoo G2 Pro Electric Scooter

1. Bubuka

Thank you for choosing the Kugoo G2 Pro Electric Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

The Kugoo G2 Pro is designed for urban commuting and recreational use, featuring an 800W motor, 10-inch pneumatic tires, dual disc brakes, and dual suspensions for a comfortable and powerful riding experience.

2. Émbaran Kasalametan

Kasalametan anjeun penting pisan. Salawasna taat kana tungtunan kaamanan handap:

• Maké Alat Pelindung: Always wear a helmet, knee pads, elbow pads, and appropriate footwear when riding.
• Pariksa Sateuacan Numpak: Before each use, inspect the scooter for loose parts, tire pressure, brake functionality, and battery level.
• Patuh UU Lalu Lintas: Follow all local traffic laws and regulations. Ride defensively and be aware of your surroundings.
• Avoid Hazardous Conditions: Do not ride in heavy rain, on slippery surfaces, or in areas with poor visibility.
• One Rider Only: This scooter is designed for a single rider. Do not carry passengers.
• Watesan Umur sareng Beurat: Ensure the rider meets the recommended age (Adult) and does not exceed the maximum weight capacity of 150 kg.
• Rem anu leres: Familiarize yourself with the dual disc braking system. Apply brakes smoothly to avoid skidding.
• Kaamanan Ngecas: Only use the provided charger. Do not overcharge the battery.

3. Eusi Paket

Saatos muka bungkusan, mangga pariksa yén sadaya item di handap ieu kalebet:

• Kugoo G2 Pro Electric Scooter (main unit)
• Battery Pack (pre-installed)
• adaptor kakuatan / carjer
• Manual pamaké
• Pakakas (pikeun perakitan)

Lamun aya item nu leungit atawa ruksak, mangga ngahubungan rojongan customer langsung.

4. Majelis jeung Setup

4.1 Unfolding Scooter nu

The Kugoo G2 Pro features a two-step seamless folding mechanism for easy transport and storage.

1. Teundeun Scooter dina tempat nu datar.
2. Tempatkeun kait tilepan deukeut dasar gagang stang.
3. Lepaskeun kaitna teras angkat gagang stang kalayan ati-ati dugi ka konci dina posisi nangtung. Pastikeun mékanisme konci parantos dipasang sapinuhna.
4. Kencengkeun naon waé anu gancang dileupaskeunamps on the handlebars if present.

Figure 4.1: Kugoo G2 Pro Electric Scooter in its fully assembled, unfolded state.

Figure 4.2: The Kugoo G2 Pro in its compact, folded configuration for storage or transport.

4.2 Ngecas Awal

Before your first ride, fully charge the scooter's battery. The charging port is typically located on the side of the deck. Connect the charger to the scooter and then to a power outlet. The indicator light on the charger will change (e.g., from red to green) when charging is complete.

The scooter is equipped with a 48V/12.5AH long-range lithium battery.

5. Parentah Operasi

5.1 Powering on / Pareum

Press and hold the power button on the handlebar display to turn the scooter on. Repeat the action to turn it off.

5.2 Ngartos LCD Display

The HD Intuitive LCD Display provides real-time information about your ride:

Figure 5.1: The scooter's LCD display, showing battery level, current speed, and mileage information.

• Témbongkeun batré: Némbongkeun tingkat muatan batré ayeuna.
• Tampilan laju: Nunjukkeun laju anjeun ayeuna.
• Mileage tampilan: Ngalacak jarak anu ditempuh.
• Modeu laju: Displays the selected riding mode (ECO, STD, TURBO).
• Kacepetan Rata-rata: Shows the average speed of your current ride.

5.3 Modeu Speed

The Kugoo G2 Pro offers three distinct speed modes:

• Mode Eco: Modeu hemat énergi pikeun jarak anu langkung jauh sareng kecepatan anu langkung handap.
• Modeu STD: Standard mode for balanced performance.
• Mode TURBO: High-performance mode for maximum speed (up to 45km/h) and acceleration.

Switch between modes using the designated button on the handlebar.

5.4 System ngerem

The scooter is equipped with dual disc brakes (front and rear) for effective stopping power. Apply both brakes simultaneously and smoothly for controlled deceleration. Avoid sudden or harsh braking, especially at high speeds.

Figure 5.2: Illustration of the dual shock absorption system and disc brakes for enhanced ride comfort and safety.

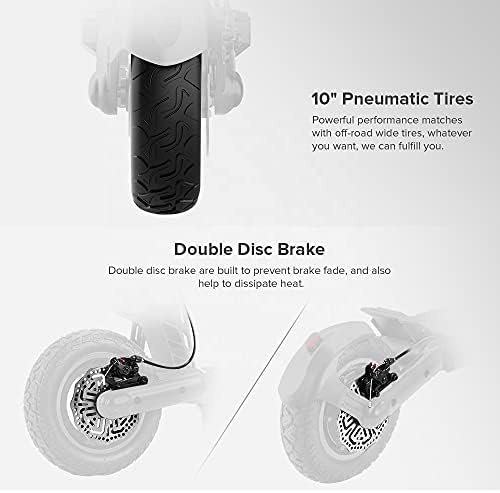

Figure 5.3: Detail of the 10-inch pneumatic tires and the double disc brake system, designed for stability and effective stopping.

5.5 Tip Numpak

• Start slowly and gradually increase speed.
• Maintain a balanced posture with feet firmly on the spacious 8-inch platform.
• Lean into turns rather than steering sharply.
• Be mindful of pedestrians, cyclists, and vehicles.
• Use the scooter's lights for visibility, especially at night.

Figure 5.4: A rider demonstrating the use of the Kugoo G2 Pro Electric Scooter in an outdoor setting.

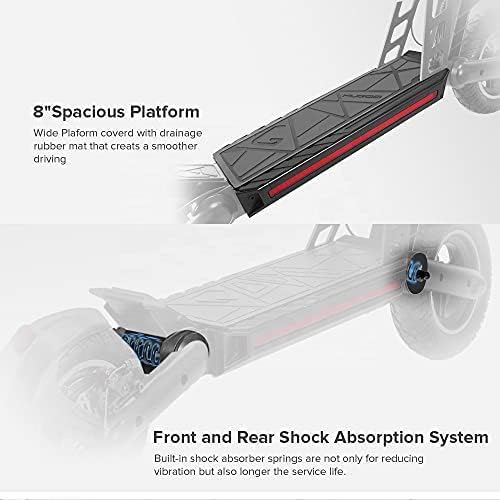

Gambar 5.5: Detil view of the 8-inch spacious platform with slip-proof rubber mat and the integrated front and rear shock absorption system.

6. Pangropéa

Regular maintenance ensures the longevity and safe operation of your Kugoo G2 Pro scooter.

• Tekanan Ban: Check the pressure of the 10-inch pneumatic tires regularly. Maintain recommended pressure for optimal performance and range.
• Pamariksaan rem: Periodically inspect the dual disc brakes for wear and tear. Ensure brake levers are responsive and cables are not frayed. Adjust if necessary.
• beberesih: Bersihkeun skuter ku iklanamp cloth. Avoid using high-pressure water jets or harsh chemicals, which can damage electronic components.
• Perawatan batré: Store the scooter in a cool, dry place. If storing for an extended period, ensure the battery is charged to about 50-70% and recharge every 30-60 days to prevent deep discharge.
• Pariksa gantung: The dual suspension system requires minimal maintenance, but periodically check for any unusual noises or reduced dampkinerja ing.
• Pengikat: Check all screws and bolts regularly and tighten them as needed to prevent loosening due to vibrations.

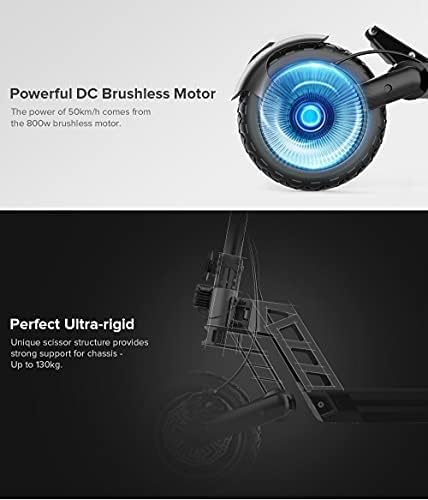

Figure 6.1: Illustration highlighting the powerful DC Brushless Motor and the ultra-rigid chassis structure, designed for durability and performance.

7. Cara ngungkulan

This section addresses common issues you might encounter with your Kugoo G2 Pro scooter.

For issues not listed here or if solutions do not resolve the problem, please contact Kugoo customer support.

8. Spésifikasi

Detailed technical specifications for the Kugoo G2 Pro Electric Scooter:

• Ukuran produk: 120 x 62 x 121 cm
• Beurat barang: 22 kg
• Kapasitas beurat maksimum: 150 kg
• Daya Motor: 800W
• Batré: 48V/12.5AH Lithium Battery (included)
• Ukuran roda: 10 Inci (Ban Pneumatik)
• Jenis rem: Front Braking, Rear Braking (Dual Disc Brakes)
• Suspensi: Dual Suspension (Front and Rear)
• Bahan pigura: alumunium
• Fitur husus: Lipat
• Warna: Hideung
• Rentang Umur (Deskripsi): Dewasa
• Ngaran modél: G2 PRO
• Pabrikan: YONGKANG KUGOOO TECHNOLOGY CO.,LTD

9. Garansi jeung Rojongan

For warranty information, please refer to the documentation provided at the time of purchase or visit the official Kugoo websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.

If you require technical assistance, have questions about operation, or need to order replacement parts, please contact Kugoo customer support. Contact details can typically be found on the manufacturer's websitus atanapi dina bungkusan produk.

Catetan: Unauthorized modifications or repairs may void your warranty.
