1. Bubuka
Thank you for choosing the Hisense BI61111AX Built-in Multifunction Oven. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions carefully before use and keep them for future reference.
Gambar 1: Hareupeun view of the Hisense BI61111AX Built-in Multifunction Oven.
2. Émbaran Kasalametan
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, burns, or injury. This appliance is intended for domestic use only.
- Kasalametan listrik: Ensure the oven is correctly earthed and connected to a suitable power supply. Do not use adapters or extension cords.
- Barudak sareng Jalma Rentan: Alat ieu tiasa dianggo ku murangkalih umur 8 taun ka luhur sareng jalmi anu gaduh kamampuan fisik, indrawi atanapi méntal anu kirang atanapi kirang pangalaman sareng pangaweruh upami aranjeunna parantos dipasihan pangawasan atanapi instruksi.
- Permukaan Panas: The oven and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
- beberesih: Sok pegatkeun sambungan alat tina catu daya sateuacan beberesih.
- Pangropéa: Ulah nyobian ngalereskeun atawa ngaropéa alat sorangan. Kontak tanaga layanan mumpuni pikeun sakabéh perbaikan.
3. Naon dina Box
Saatos ngabongkar bungkusan, pastikeun sadaya komponén aya sareng henteu ruksak:
- Hisense BI61111AX Oven Unit
- Instruksi Manual
- 1 Baking Tray (leccarda)
- 1 Wire Rack (griglia in acciaio)
Lamun aya item nu leungit atawa ruksak, mangga ngahubungan pangecér Anjeun.
4. Setup jeung Instalasi
Installation should be performed by a qualified technician in accordance with local safety regulations. Ensure the appliance is disconnected from the power supply before installation.
Figure 2: Oven dimensions and installation cutout requirements (Depth x Width x Height: 56.4P x 59.5l x 59.5H cm).
Léngkah-léngkah pamasangan:
- Ngabongkar bungkusan: Carefully remove the oven from its packaging. Retain packaging materials for potential future transport or recycling.
- panempatan: Position the oven into the prepared cabinet opening. Ensure there is adequate ventilation around the appliance as per the installation diagram.
- Sambungan listrik: Connect the oven to the main power supply. Verify that the voltage sareng frékuénsi cocog sareng spésifikasi dina piring rating alat.
- Ngamankeun Oven: Ngamankeun oven ka kabinet ngagunakeun screws disadiakeun.
- Pamakéan munggaran: Sateuacan nganggo heula, bersihkeun interior oven nganggo iklanamp cloth. Run the oven empty for approximately 30 minutes at 200°C to burn off any manufacturing residues and odors. Ensure the room is well-ventilated during this process.
Video 1: This video demonstrates the general process of installing an oven column. While not specific to the Hisense BI61111AX, it illustrates common installation steps such as unpacking, positioning, and securing the oven. Always refer to the specific instructions provided in your product's manual for precise details.
5. Parentah Operasi
Your Hisense BI61111AX oven features intuitive controls for various cooking functions. The front panel includes rotary knobs for function selection and temperature, along with a digital timer.
Figure 3: Oven control panel with function and temperature knobs, and digital timer.
Operasi dasar:
- Hurungkeun: Rotate the function selector knob to choose your desired cooking mode.
- Setel Suhu: Puter kenop suhu pikeun nyetel suhu masak nu dipikahoyong.
- Atur Timer: Use the timer buttons to set the cooking duration or a delayed start. The oven will automatically turn off once the set time has elapsed.
- Preheating: For best results, preheat the oven to the desired temperature before placing food inside, especially for baking.
Pidéo 2: Pidéo ieu nyayogikeun gambaran umumview of a Bosch oven's controls, including setting functions and the timer. While not specific to the Hisense BI61111AX, the interface and operation principles are similar for many modern ovens.
6. Fitur husus
Your Hisense oven is equipped with several advanced features to enhance your cooking experience:
- XXL Cavity (77 Liters) for Multi-level Cooking: The generous 77-liter capacity allows for cooking large dishes or multiple items simultaneously. The Thermo-Ventilation system ensures uniform heat distribution across all levels for consistent results.
Figure 4: Illustration of the oven's 77-liter XXL cavity and multi-level cooking capability.
- Rapid Preheat Function: This function allows the oven to reach 200°C in approximately 6 minutes, significantly reducing waiting times and enabling quicker cooking starts.
Figure 5: Visual representation of the Rapid Preheat function.
- Pizza Function (up to 300°C): A dedicated Pizza 300°C mode ensures a crispy base and even cooking, perfect for homemade pizzas, focaccias, and other baked goods.
Gambar 6: Kelample of a pizza cooked using the dedicated Pizza function.
- AirFry Function for Crispy Cooking: The AirFry mode allows you to achieve golden and crispy foods with little to no oil, ideal for lighter versions of fries, vegetables, and snacks.
Figure 7: Comparison illustrating the crispy results of the AirFry function.
7. Pangropéa jeung beberesih
Bebersih sareng perawatan rutin bakal mastikeun umur panjang sareng kinerja optimal oven anjeun.
- Steam Clean Function (Aqua Clean): This function uses steam to soften grease and cooking residues. Pour water into the oven cavity, select the Steam Clean function, and set the temperature to 90°C for approximately 30 minutes. Once the oven has cooled, simply wipe away the softened residues with a soft cloth.
Figure 8: Oven interior during the Steam Clean cycle.
Video 3: This video demonstrates the AquaClean function, showing how to add water to the oven cavity and the steam cleaning process. It highlights the ease of cleaning after the steam cycle.
- beberesih umum: For external surfaces, use a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads that could damage the stainless steel and glass finish.
- beberesih panto: The oven door can be removed for thorough cleaning if necessary. Refer to the detailed instructions in the full manual for door removal and reinstallation.
8. Cara ngungkulan
Upami anjeun ngalaman masalah sareng oven anjeun, tingali tabel di handap ieu pikeun masalah umum sareng solusina. Upami masalahna teras-terasan, hubungi dukungan palanggan.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Oven teu hurung | No power supply; door not closed properly; timer not set. | Check power connection; ensure door is fully closed; set the timer. |
| Hasil masak henteu rata | Incorrect temperature or cooking time; food placed incorrectly. | Adjust temperature/time; ensure food is centered and not overcrowding the oven. |
| Haseup atanapi bau nalika dianggo munggaran | Résidu pabrik ngaduruk. | This is normal. Ventilate the room well. It should dissipate after initial use. |
9. Spésifikasi
Key technical details for the Hisense BI61111AX Built-in Multifunction Oven:
- Kapasitas: 77 liter
- merek: Hisense
- Ngaran modél: BI61111AX
- warna: Inox (Stainless Steel)
- Métode pemanasan: Convection (Termoventilato)
- Jenis suluh: Listrik
- Jenis pamasangan: Diwangun-di
- Kakuatan listrik: 3500 watt
- Voltage: 220 volt
- Fitur husus: Timer, Steam Clean, Pizza 300°C, AirFry, Rapid Preheat
- Ukuran (DxLxH): 56.4P x 59.5l x 59.5T cm
- Beurat barang: 29 kg
- Bahan: Stainless Steel, Kaca
- Kelas Éfisiensi Énergi: A
Figure 9: Energy label for the Hisense BI61111AX oven, indicating Class A efficiency and 77L capacity.

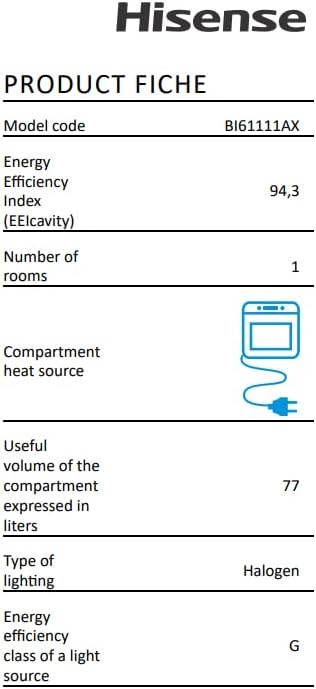

Figure 10: Product Fiche providing additional technical specifications for the Hisense BI61111AX oven.
10. Garansi jeung Rojongan
Your Hisense BI61111AX oven comes with a 2-taun jaminan produsén urang. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
For technical assistance, service requests, or to inquire about spare parts, please contact Hisense customer support or your authorized retailer. Refer to the contact information provided in the separate warranty card or on the official Hisense websitus.
