TOTAL HVLP Spray Gun 550W TT5006-2 Instruction Manual

1. Bubuka

Hatur nuhun pikeun meuliasing the TOTAL HVLP Spray Gun 550W, Model TT5006-2. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new spray gun. Please read these instructions carefully before use and keep them for future reference.

This HVLP (High Volume Low Pressure) spray gun is designed for efficient and precise application of various coatings, making it suitable for a range of painting tasks.

2. Parentah Kasalametan penting

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using this product. This section highlights critical safety information.

2.1. Kasalametan Listrik

• Pastikeun catu daya voltage matches the rating on the spray gun (220-240V~50/60Hz).
• Do not operate the spray gun in wet conditions or expose it to rain.
• Always disconnect the power plug from the outlet before cleaning, servicing, or when not in use.
• Never carry the tool by its power cord or yank the cord to disconnect it from an outlet.
• Jauhkeun kabel listrik tina panas, oli, ujung seukeut, atanapi bagian anu gerak.

2.2. Chemical Safety

• Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and a respirator mask when handling paints and solvents.
• Pastikeun ventilasi nyukupan di wewengkon gawé pikeun nyegah akumulasi haseup bahaya.
• Ulah nyemprot bahan anu gampang kaduruk caket seuneu anu muka, lampu pilot, atanapi sumber panyalaan anu sanés.
• Refer to the paint and solvent manufacturer's safety data sheets (SDS) for specific handling and disposal instructions.

2.3. Pancegahan Umum

• Jauhkeun barudak sareng anu aya di sakitar nalika ngoperasikeun pistol semprot.
• Ulah pernah nunjuk gun semprot ka jalma atawa sato.
• Do not operate the spray gun if any part is damaged or missing.
• Use only manufacturer-recommended accessories and replacement parts.
• Maintain the tool with care. Keep cutting tools sharp and clean for better and safer performance.

3. Eusi Paket

Upon unpacking, ensure all items listed below are present and in good condition. If any parts are missing or damaged, contact your retailer immediately.

• TOTAL HVLP Spray Gun (Motor Unit and Spray Head)
• Paint Container (800ml)
• Gelas Ukur Viskositas
• Cleaning Needle/Brush
• Manual pamaké

Gambar 1: Packaging box illustrating the TOTAL HVLP Spray Gun and its key features, including adjustable flow rate, copper nozzle, stainless tank, and three spray patterns.

4. Majelis

Follow these steps to assemble your spray gun before first use.

1. Attach the Spray Head: Align the spray head with the motor unit and twist clockwise until securely locked.
2. Gantelkeun Wadah Cat: Screw the paint container onto the bottom of the spray head until it is firmly attached.
3. Check Nozzle and Air Cap: Ensure the nozzle and air cap are correctly seated and tightened. The spray gun features a copper nozzle for durability.

Gambar 2: Fully assembled TOTAL HVLP Spray Gun, showing the spray head, trigger, handle, and the attached metal paint container.

Gambar 3: Samping view of the assembled spray gun, highlighting the ergonomic handle and the connection between the spray head and the motor unit.

5. Setup jeung Persiapan

5.1. Paint Preparation and Viscosity

Proper paint viscosity is crucial for optimal spraying results. Always follow the paint manufacturer's recommendations for thinning. Use the provided viscosity measuring cup to check the paint's consistency.

• Fill the viscosity cup with the prepared paint.
• Measure the time it takes for the liquid to flow out completely. Compare this time to the paint manufacturer's guidelines or general recommendations for spray guns (e.g., 20-50 seconds for most paints).
• Adjust paint viscosity by adding appropriate thinner (water for water-based paints, solvent for oil-based paints) until the desired flow time is achieved.

5.2. Filling the Paint Container

• Ensure the paint is properly mixed and thinned.
• Unscrew the paint container from the spray head.
• Pour the prepared paint into the container, ensuring not to overfill (maximum capacity 800ml).
• Securely screw the paint container back onto the spray head.

6. Parentah Operasi

6.1. Nyaluyukeun Pola Semprotan

The TOTAL HVLP Spray Gun offers three adjustable spray patterns: horizontal, vertical, and round. Rotate the air cap ears to select the desired pattern.

• Horizontal Fan: For up-and-down spraying motion.
• Vertical Fan: For side-to-side spraying motion.
• Round Pattern: For small areas, corners, or detailed work.

6.2. Nyaluyukeun Laju Aliran

The adjustable flow rate knob on the trigger allows you to control the amount of paint being sprayed. Turn the knob clockwise to decrease flow and counter-clockwise to increase flow.

6.3. Téhnik nyemprot

• Hold the spray gun perpendicular to the surface, approximately 6-12 inches (15-30 cm) away.
• Maintain a consistent distance and speed for even coverage.
• Start spraying off the workpiece and release the trigger off the workpiece to avoid paint buildup at the edges.
• Overlap each pass by about 50% to ensure uniform application.
• Always test the spray pattern and flow rate on a scrap piece of material before applying to your main project.

7. Pangropéa jeung beberesih

Proper cleaning and maintenance will extend the life of your spray gun and ensure consistent performance.

7.1. Beberesih Saatos Unggal Dianggo

1. Wadah Kosong: Kosongkeun sésa cet tina wadahna.
2. Rinse Container: Fill the container with appropriate cleaning solution (water for water-based paints, solvent for oil-based paints).
3. Spray Cleaner: Spray the cleaning solution through the gun until it runs clear.
4. ngabongkar: Disconnect the spray head from the motor unit and unscrew the paint container.
5. Komponén bersih: Thoroughly clean the paint container, suction tube, nozzle, and air cap with the cleaning solution and the provided cleaning brush/needle.
6. Ngusap handap: Wipe all external surfaces of the spray gun with a damp cloth. Do not immerse the motor unit in liquid.
7. Garingkeun sareng Pasang deui: Ngidinan sadaya bagian nepi ka garing lengkep saméméh reassembling atawa nyimpen.

7.2. Panyimpenan

Store the spray gun in a clean, dry place, out of reach of children and away from extreme temperatures.

8. Cara ngungkulan

9. Spésifikasi

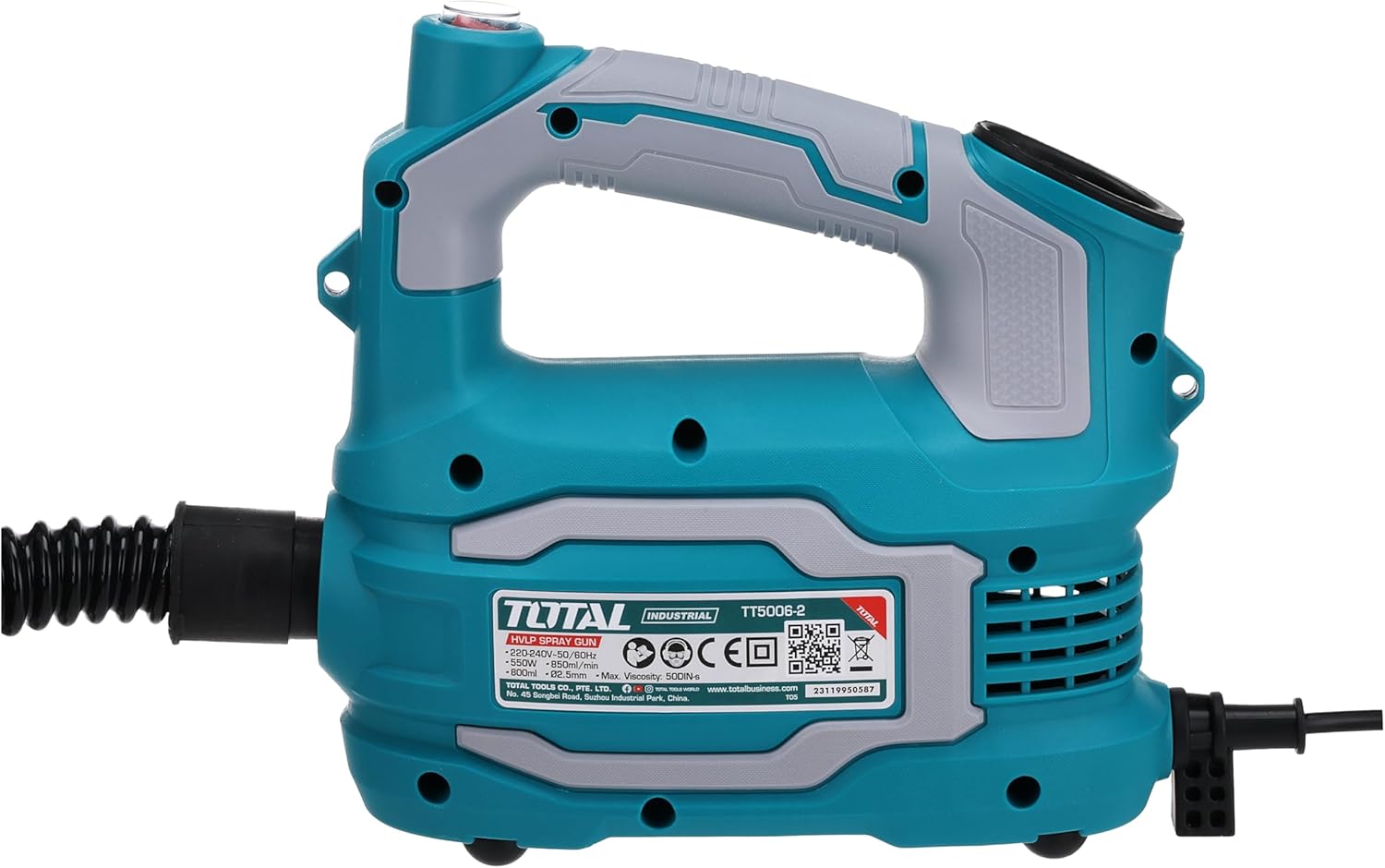

Gambar 4: Tukangeun view of the motor unit, displaying the model number (TT5006-2) and other technical specifications.

Gambar 5: Diagram illustrating the approximate dimensions of the spray gun, including its height and length.

10. Garansi jeung Rojongan

For warranty information, technical support, or to order replacement parts, please refer to the contact details provided with your purchase documentation or visit the official TOTAL Tools websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
