Janome JUNO J3 Sewing Machine User Manual

1. Bubuka

This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your Janome JUNO J3 sewing machine. Please read this manual thoroughly before using the machine to ensure proper function and to prevent damage or injury. Keep this manual in a safe place for future reference.

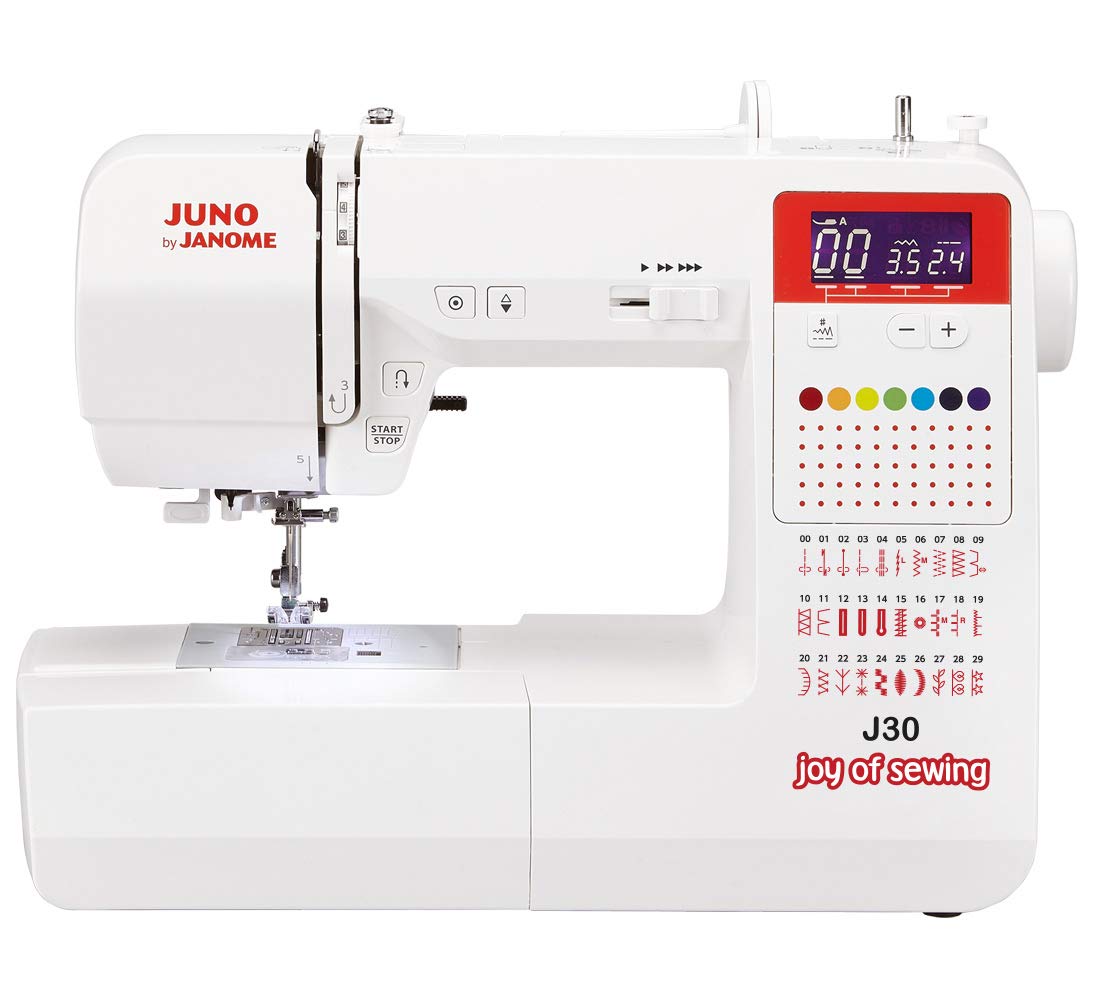

Gambar 1: Hareupeun view of the Janome JUNO J3 Sewing Machine, showcasing desain anu ringkes sareng dial kontrolna.

2. Parentah Kasalametan penting

Nalika nganggo alat listrik, pancegahan kaamanan dasar kedah diturutan, kalebet ieu:

• Maca sadaya pitunjuk sateuacan nganggo mesin jahit ieu.
• Jauhkeun ramo tina sadaya bagian anu obah. Perhatosan khusus diperyogikeun di jarum mesin jahit.
• Salawasna nganggo piring jarum bener. Piring anu salah tiasa nyababkeun jarum rusak.
• Ulah narik atawa nyorong lawon bari stitching. Ieu bisa deflect jarum, ngabalukarkeun éta megatkeun.
• Pareuman mesin jahit nalika ngadamel pangaturan naon waé di daérah jarum, sapertos ngasupkeun benang kana jarum, ngagentos jarum, ngasupkeun benang kana bobin, atanapi ngagentos suku presser.
• Always unplug the sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in this instruction manual.
• Entong pernah ngoperasikeun mesin upami kabel atanapi colokanna rusak, upami henteu tiasa dianggo kalayan leres, atanapi upami parantos murag atanapi ruksak.
• Ulah make di luar.

3. Eusi Paket

Pastikeun yén sadaya item anu didaptarkeun di handap kalebet kana pakét anjeun:

• Janome JUNO J3 Sewing Machine
• Suku Controller
• Kabel listrik
• Standard Accessories (e.g., bobbins, needles, seam ripper, screwdriver)
• Instruksi Manual

Note: Specific accessories may vary by region. Refer to the packaging for a complete list.

4. Setélan

4.1 Ngabongkar sareng Nempatkeun

1. Taliti piceun mesin tina bungkusan na.
2. Teundeun mesin dina stabil, permukaan datar.
3. Pastikeun cahaya sareng rohangan anu cekap pikeun operasi anu nyaman.

4.2 Sambungan Daya

1. Selapkeun kabel listrik kana stop kontak mesin.
2. Colokkeun tungtung kabel listrik anu sanés ka stop kontak listrik anu cocog.
3. Connect the foot controller to its designated socket on the machine.

4.3 Ngagulung Bobbin

1. Pasang spool benang dina pin spool.
2. Pituduh thread ngaliwatan pituduh thread tur sabudeureun disc tegangan pungkal bobbin.
3. Teundeun bobbin kosong kana spindle winder bobbin.
4. Hurungkeun benang saarah jarum jam sababaraha kali sabudeureun bobbin nu.
5. Nyorong spindle winder bobbin ka katuhu.
6. Pencét suku controller pikeun ngamimitian pungkal. Eureun nalika bobbin pinuh.
7. Potong benang sareng nyorong spindle tukang kumparan ka kénca.

4.4 Nyelapkeun Bobbin

1. Buka pelat panutup bobbin.
2. Selapkeun bobbin tatu kana wadah bobbin, mastikeun benang unwinds dina arah nu bener (biasana counter-jarum jam).
3. Arahkan benang ngaliwatan pegas tegangan teras kana slot panduan benang.
4. Tutup piring panutup bobbin.

4.5 Threading Utas Utas

1. Ngangkat angkat alat presser.
2. Pasang spool benang dina pin spool.
3. Pituduh thread ngaliwatan pituduh thread luhur.
4. Bawa benang ka handap saluran katuhu, ka luhur saluran kénca, sarta ngaliwatan uas nyokot-up ti katuhu ka kenca.
5. Continue guiding the thread down to the needle bar thread guide.
6. Thread jarum ti hareup ka tukang.

5. Parentah Operasi

5.1 Pamilihan Jahitan

Turn the stitch selector dial to choose the desired stitch pattern. Refer to the stitch chart on the machine for available options.

5.2 Pangaluyuan Panjang sareng Lebar Jahitan

Adjust the stitch length and width using the corresponding dials. Experiment with different settings on a scrap piece of fabric to achieve the desired result.

5.3 Pangaluyuan Tegangan Ulir

The thread tension dial controls the balance between the upper and bobbin threads. For most general sewing, a setting of "3" to "5" is suitable. Adjust as needed if stitches appear too loose or too tight.

5.4 Ngamimitian ngaput

1. Teundeun lawon handapeun suku presser.
2. Turunkeun suku presser.
3. Turn the handwheel towards you to bring the needle down into the fabric, then up again to pull up the bobbin thread.
4. Hold both thread tails to the back.
5. Gently pencét controller suku pikeun ngamimitian jahit.

5.5 Jahit Tibalik

To secure the beginning and end of a seam, press and hold the reverse lever/button while sewing. Release to resume forward stitching.

6. Pangropéa

6.1 Ngabersihan Mesin

• Salawasna cabut colokan mesin saméméh beberesih.
• Leupaskeun piring jarum jeung kotak bobbin.
• Anggo sikat leutik pikeun ngaleungitkeun lint sareng lebu tina pakan anjing sareng daérah bobbin.
• Ngusap bagian luar mesin ku kaén anu lembut sareng garing.

6.2 Ngarobah Jarum

1. Pareuman teras cabut mesin.
2. Ngaleupaskeun jarum clamp sekrup.
3. Cabut jarum heubeul.
4. Selapkeun jarum anyar kalayan sisi datar nyanghareup ka tukang mesin, nyorong eta nepi sajauh eta bakal balik.
5. Kencangkeun jarum clamp screw aman.

7. Cara ngungkulan

8. Spésifikasi

9. Garansi jeung Rojongan

Kanggo inpormasi garansi sareng dukungan pelanggan, mangga tingal kartu garansi anu kalebet dina produk anjeun atanapi kunjungan ka Janome resmi websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.

For technical assistance or service, contact your authorized Janome dealer or customer service center.
