1. Bubuka
Thank you for choosing the HOFTRONIC LED Batten 150cm 50W 4000K. This ultra-slim LED batten is designed for efficient and bright illumination in various indoor environments such as garages, workshops, and commercial spaces. It features integrated LED light sources, consuming only 50 Watts while providing 6000 lumens of neutral white light (4000K). This manual provides essential information for safe installation, operation, and maintenance of your LED batten.
Gambar 1: Hareupeun view of the HOFTRONIC LED Batten.
2. Parentah Kasalametan
- Baca sagala parentah taliti saméméh instalasi tur pamakéan.
- Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni saluyu sareng peraturan kabel lokal.
- Pastikeun catu daya parantos dicabut sateuacan dipasang, diropéa, atanapi dibersihkeun.
- This product is designed for indoor use only (IP20 rating). Do not expose to moisture or outdoor elements.
- Do not attempt to disassemble or modify the LED batten. There are no user-serviceable parts inside.
- Hindarkeun paparan panon langsung kana sumber cahaya nalika dicaangan.
- Jauhkeun bahan bungkusan tina jangkauan barudak.
3. Eusi Paket
Pastikeun yén sadaya komponén aya sareng henteu ruksak:
- 1x HOFTRONIC LED Batten (Model 496484)
- Pamasangan kurung
- Panyambung gancang
4. Setup jeung Instalasi
The HOFTRONIC LED Batten is designed for easy ceiling installation. Follow these steps:
- Persiapan: Pastikeun catu daya ka area pamasangan dipareuman dina pemutus sirkuit utama.
- Nyirian: Position the LED batten on the desired ceiling location and mark the drilling points for the mounting brackets. The batten measures 150cm in length, 7.4cm in width, and 2.5cm in height.
- Pamasangan kurung: Drill holes at the marked points and securely attach the mounting brackets to the ceiling using appropriate screws and wall plugs (not included).
- Wiring: Connect the electrical wires to the quick connectors provided. Ensure correct polarity (Live, Neutral, Earth). Refer to the wiring diagram on the product label if necessary.
- Attach Batten: Clip the LED batten onto the installed mounting brackets. Ensure it is firmly secured.
- Daya Hurung: Restore power to the circuit. The LED batten should illuminate.
Figure 2: Product dimensions (1500mm length, 74mm width, 25mm height).
Gambar 3: Tukangeun view illustrating mounting points and electrical connection area.
The lightweight and ultra-thin housing (25mm height) allows for easy installation in dry indoor environments.
Figure 4: The ultra-thin design of the LED batten, highlighting its 25mm profile.
5. Parentah Operasi
Once installed and powered, the HOFTRONIC LED Batten operates instantly. It provides a super bright, flicker-free illumination of 6000 lumens with a neutral white color temperature of 4000K.
- Ngalihkeun / Pareuman: Use the wall switch connected to the batten to turn the light on or off.
- Distribusi cahaya: The transparent, milk-colored diffuser ensures a uniform 110-degree beam angle, minimizing shadows and providing consistent lighting across the area.
- Rendering Warna: With a Color Rendering Index (CRI) of >80, the batten accurately displays colors, making it suitable for environments where color perception is important.

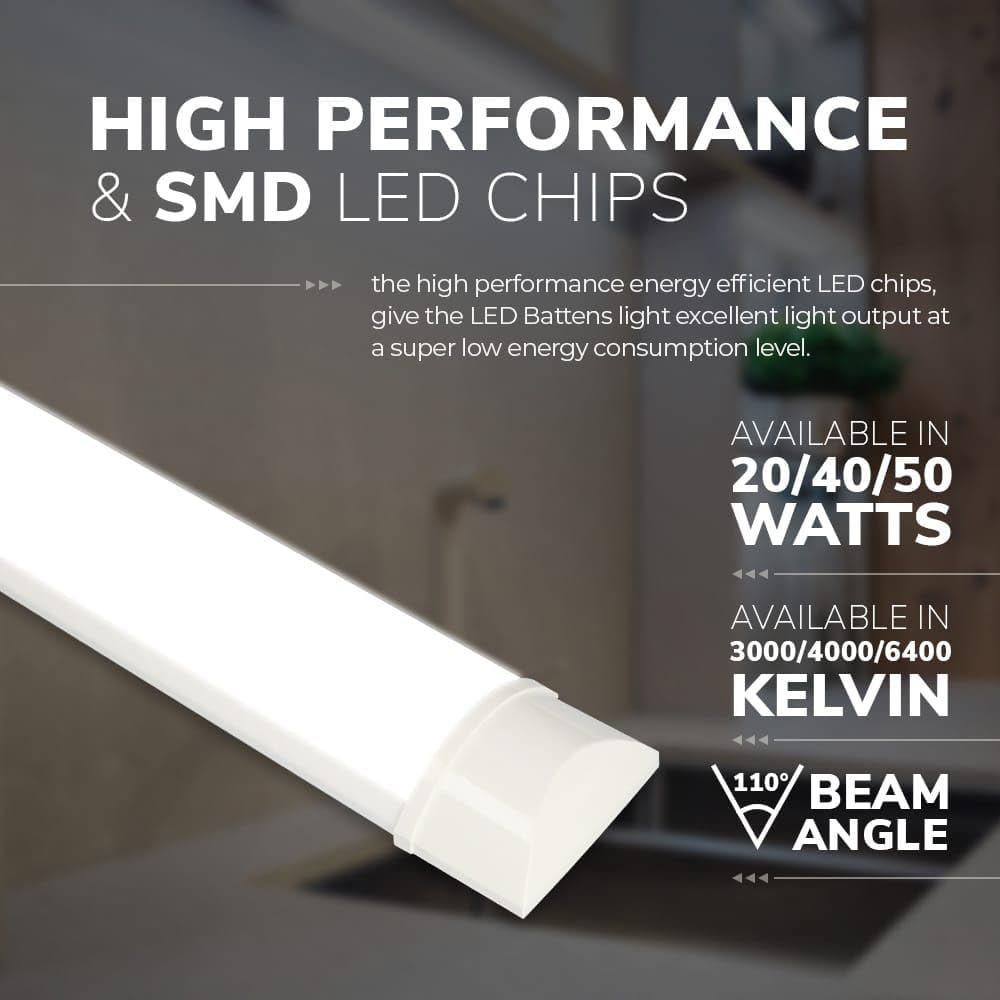

Figure 5: Illustration of the LED batten's high performance and 110-degree beam angle.
6. Pangropéa
The HOFTRONIC LED Batten requires minimal maintenance.
- beberesih: Ensure the power is off before cleaning. Wipe the surface of the batten with a soft, dry, or slightly damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- Pamariksaan: Periodically check the mounting and wiring for any signs of wear or damage. If any damage is observed, disconnect power and consult a qualified electrician.
- Umur LED: The integrated LEDs have an average lifespan of 30,000 hours and do not require replacement.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lampu teu hurung | Taya catu daya; kabel leupas; Saklar lepat | Pariksa circuit breaker; Pariksa sambungan kabel; Uji fungsionalitas switch. |
| Cahya ngageleber | Unstable power supply; Loose connection | Ensure stable power; Check wiring connections. |
| Kacaangan ngurangan | Dust accumulation; End of product lifespan | Clean the batten surface; Consider replacement if beyond average lifespan. |
8. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | HOFTRONIC |
| Nomer modél | 496484 |
| Ukuran produk (L x W x H) | 150 x 7.4 x 2.5 cm |
| Beurat | 5 kg |
| Peunteun IP | IP20 (pamakéan jero rohangan wungkul) |
| Suhu Warna Lampu | 4000K (Bodas Netral) |
| Bahan | palastik |
| Konsumsi Daya | 50 Watt |
| Voltage | 230 volt |
| Fluks Luminous | 6000 lm |
| Sarua Pijar | 400 Watt |
| Rata Kahirupan | 30,000 Jam |
| Sudut Beam | 110 darajat |
| Sertifikasi | CE, RoHS |
| Énergi Efficiency Rating | E |
For detailed product information, refer to the official EU EPREL database: https://eprel.ec.europa.eu/qr/1565762
Figure 6: EU Energy Label for Model 496484, indicating an 'E' efficiency rating.
9. Garansi jeung Rojongan
HOFTRONIC products are designed for quality and durability. This LED Batten comes with a 5-year warranty, covering manufacturing defects and performance issues under normal use.
Figure 7: Visual representation of the 5-year warranty and 30,000-hour lifespan.
For warranty claims, technical support, or any product-related inquiries, please contact HOFTRONIC customer service. Ensure you have your purchase receipt and product model number (496484) available.
10. Émbaran pembuangan
This product contains electronic components and should not be disposed of with household waste. Please dispose of it at an authorized recycling facility in accordance with local environmental regulations. Proper disposal helps prevent potential negative consequences for the environment and human health.
