HOFTRONIC LED Batten 150cm 50W 6400K Integrated Tube Light Instruction Manual

1. Bubuka

Thank you for choosing the HOFTRONIC LED Batten 150cm 50W 6400K Integrated Tube Light. This ultra-thin LED batten is designed for efficient and bright illumination in various indoor environments. It features high-performance LED chips, providing 6000 lumens of cool white daylight at 6400K, while consuming only 50 Watts. This manual provides essential information for safe installation, operation, and maintenance of your new LED batten.

Image 1.1: The HOFTRONIC LED Batten 150cm 50W 6400K integrated tube light.

2. Parentah Kasalametan

Mangga baca parentah kaamanan ieu taliti saméméh instalasi tur pamakéan. Gagalna nuturkeun paréntah ieu tiasa nyababkeun shock listrik, seuneu, atanapi bahaya anu sanés.

• Kasalametan listrik: Salawasna pegatkeun daya dina pemutus sirkuit sateuacan masang, ngalayanan, atanapi ngabersihkeun perlengkapanna.
• Personil anu mumpuni: Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni saluyu sareng sadaya kode listrik lokal sareng nasional.
• Pamakéan jero rohangan wungkul: This fixture has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is designed exclusively for indoor use.
• Pamasangan: Mastikeun beungeut ningkatna bisa ngarojong beurat fixture nu.
• Ventilasi: Do not cover the fixture or restrict airflow, as this may lead to overheating.
• Ruksakna: Ulah ngoperasikeun alatna upami ruksak. Hubungi dukungan palanggan pikeun kéngingkeun bantosan.

3. Eusi Paket

Pastikeun yén sadaya komponén aya sareng henteu ruksak nalika muka bungkusan:

• 1x HOFTRONIC LED Batten 150cm 50W 6400K Integrated Tube Light
• Pamasangan kurung
• Quick connector terminals
• Integrated LED bulb (pre-installed)

4. Fitur Produk

The HOFTRONIC LED Batten offers a range of features designed for optimal performance and ease of use:

• Super Bright & Energy Efficient: Equipped with the latest LED chips, this batten provides 6000 lumens of light output while consuming only 50 Watts, making it up to 80% more economical than traditional fluorescent lamps. Guaranteed flicker-free operation.
• 110° Shadow-Free Illumination: The transparent lampshade ensures excellent light distribution with a wide 110-degree beam angle, illuminating any room without shadows.
• Pamasangan Gampang: Designed for simple ceiling mounting with the included brackets. No need to purchase separate LED tubes as they are integrated into the fixture.
• Natural Color Rendering: With a Color Rendering Index (CRI) of >80, the light accurately displays colors, making it ideal for commercial spaces, garages, workshops, and showrooms.
• Lightweight & Ultra-Thin Housing: The slim design (25mm thickness) allows for easy installation in dry indoor environments.

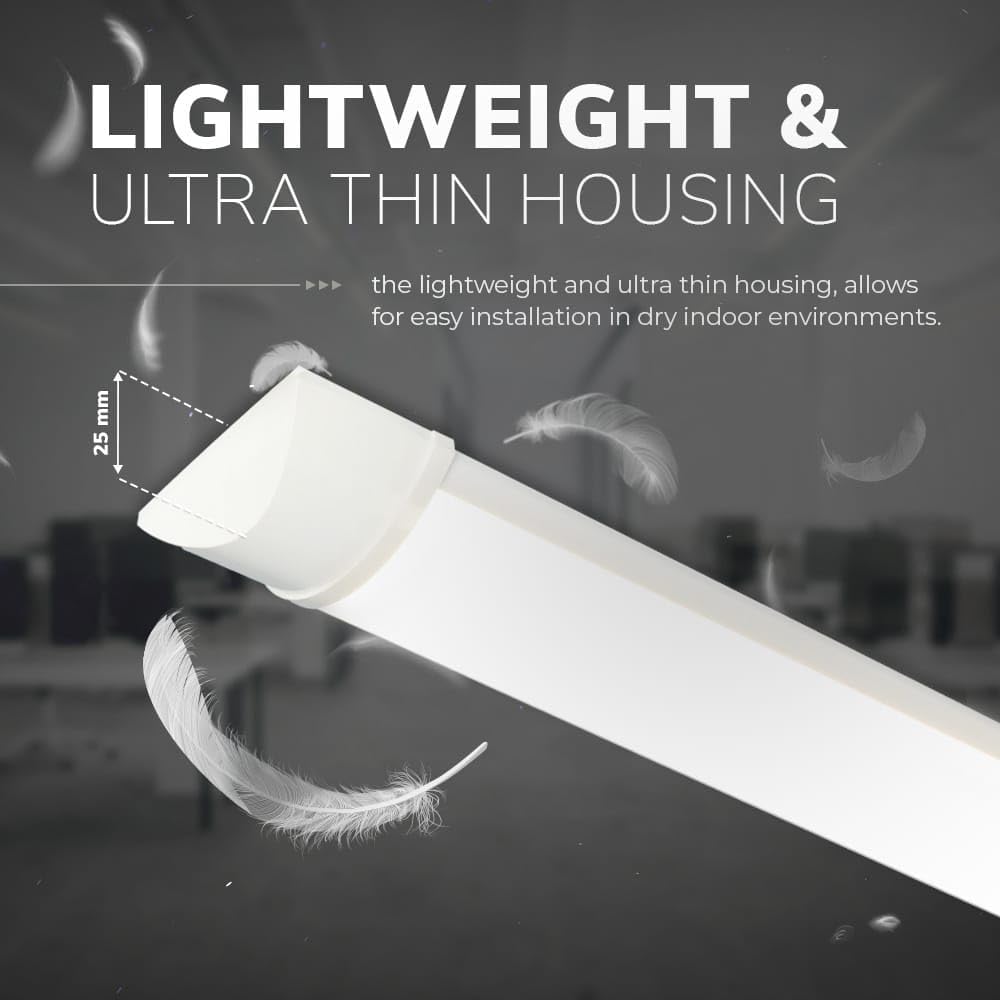

Image 4.1: Lightweight and ultra-thin housing for easy installation.

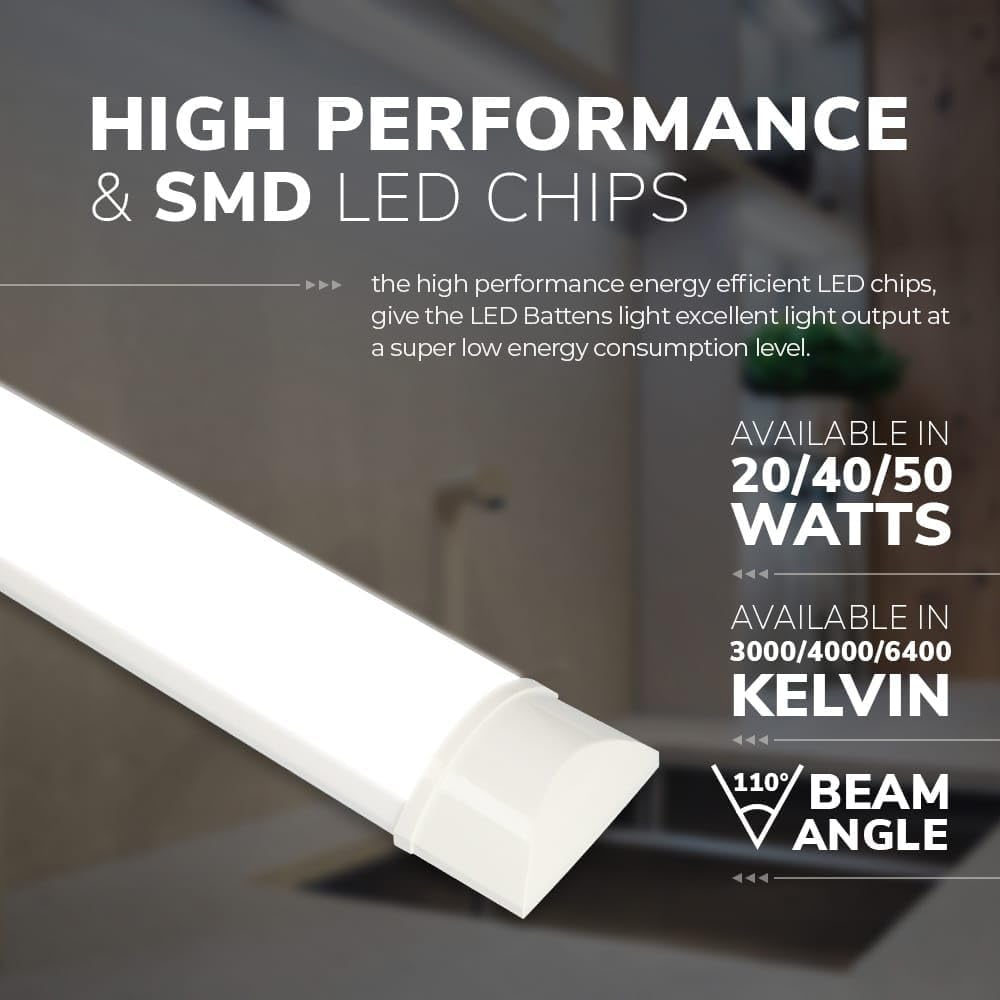

Image 4.2: High performance and SMD LED chips for excellent light output.

Image 4.3: Diffuse light greatly reduces eye strain.

5. Spésifikasi

Image 5.1: Product dimensions (1500mm x 74mm x 25mm).

Image 5.2: Energy Label. For more details, visit Pangkalan data EPREL.

6. Setup (Pasangan)

The HOFTRONIC LED Batten is designed for straightforward ceiling mounting. Follow these steps for a secure installation:

1. Persiapan: Before starting, ensure the power supply to the installation area is switched off at the main circuit breaker.
2. Nyirian: Hold the LED batten in the desired position on the ceiling and mark the locations for the mounting brackets. Ensure the marks are level and spaced correctly for the fixture's length.
3. Pangeboran: Drill pilot holes at the marked locations. Use appropriate drill bits and wall plugs for your ceiling material.
4. Pasang kurung: Secure the mounting brackets to the ceiling using screws.
5. Wiring: Connect the electrical wires from your ceiling to the quick connector terminals on the LED batten. Ensure correct polarity (Live, Neutral, Earth) according to local wiring regulations.
6. Perlengkapan Gunung: Carefully clip or slide the LED batten onto the installed mounting brackets until it is securely in place.
7. Tes: Balikkeun daya dina pemutus sirkuit sareng uji lampuna.

Gambar 6.1: Tukangeun view of the LED batten with mounting clips and wiring terminals.

Gambar 6.2: Example installation in a workshop environment.

7. Parentah Operasi

Operating the HOFTRONIC LED Batten is simple:

• Once installed and connected to the main power supply, use a standard wall switch to turn the light fixture ON or OFF.
• There are no additional controls or settings for this model.

8. Pangropéa

To ensure the longevity and optimal performance of your LED batten, follow these simple maintenance guidelines:

• beberesih: Pegatkeun sambungan kakuatan saméméh beberesih. Make lemes, garing, atawa rada damp cloth to wipe the surface of the fixture. Do not use abrasive cleaners or solvents.
• Pamariksaan: Periodically check the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and contact customer support.
• Henteu aya Bagian anu Bisa Dilayanan Pamaké: The LED components are integrated and not designed to be replaced by the user. Do not attempt to open or repair the fixture.

9. Cara ngungkulan

If you encounter any issues with your HOFTRONIC LED Batten, refer to the following common troubleshooting steps:

• Lampu teu hurung:
  • Pariksa naha catu daya ka fixture aktip.
  • Pariksa yén switch témbok dina posisi 'ON'.
  • Inspect the wiring connections to ensure they are secure and correctly installed.
  • Check the circuit breaker for a tripped fuse.
• Lampu kedip-kedip:
  • Ensure all electrical connections are tight.
  • Konfirmasi voltage supply is stable and within the specified range (230 Volts).
• Ngurangan Caang:
  • Clean the fixture's surface to remove any dust or debris that might be obstructing light output.

Upami léngkah-léngkah ieu henteu ngarengsekeun masalah ieu, mangga ngahubungi dukungan palanggan HOFTRONIC.

10. Garansi jeung Rojongan

HOFTRONIC products are known for their quality and reliability. This LED Batten comes with a garansi 5 taun, ensuring peace of mind.

• Klaim Garansi: In case of any defect or malfunction within the warranty period, please retain your proof of purchase and contact HOFTRONIC customer service.
• Palayanan palanggan: For technical assistance, warranty inquiries, or any other questions, please refer to the contact information provided on the HOFTRONIC official websitus atanapi dokuméntasi pameseran Anjeun.

All HOFTRONIC products are certified FCC and CE, reflecting our commitment to quality and safety standards.
