Koolatron 12V Electric Portable Cooler/Warmer User Manual

Bubuka

This manual provides essential information for the safe and efficient operation of your Koolatron 12V Electric Portable Cooler/Warmer. Please read these instructions thoroughly before using the appliance and retain them for future reference. This unit is designed to keep food and beverages cool or warm, making it suitable for travel, camping, jeung kagiatan outdoor séjén.

Image: The Koolatron 12V Electric Portable Cooler/Warmer shown with its lid open, revealing various food and drink items stored inside. The power cord is visible on the side.

Parentah Kasalametan penting

• Baca sadaya pitunjuk sateuacan ngaoperasikeun alat.
• Ulah neuleumkeun unit, ari, atawa nyolok kana cai atawa cairan séjén.
• Ngawaskeun barudak pikeun mastikeun aranjeunna henteu maén sareng alat.
• Cabut colokan tina stop kontak nalika henteu dianggo sareng sateuacan beberesih.
• Entong ngoperasikeun alat naon waé nganggo kabel atanapi colokan anu ruksak, atanapi saatos alatna teu tiasa dianggo atanapi parantos ruksak dina cara naon waé.
• Use only the provided 12V DC power cord. An AC adapter (sold separately) is required for indoor use.
• Pastikeun ventilasi anu leres di sabudeureun unit. Ulah meungpeuk liang hawa.
• Entong anggo alat pikeun tujuan sanés panggunaan anu dituju.
• Avoid placing hot items directly into the cooler when in cooling mode, or cold items when in warming mode, as this can reduce efficiency.

Komponén Kaasup

• Koolatron Electric Portable Cooler/Warmer Unit
• 12V DC Power Plug (attached)
• Removable Shelf/Divider

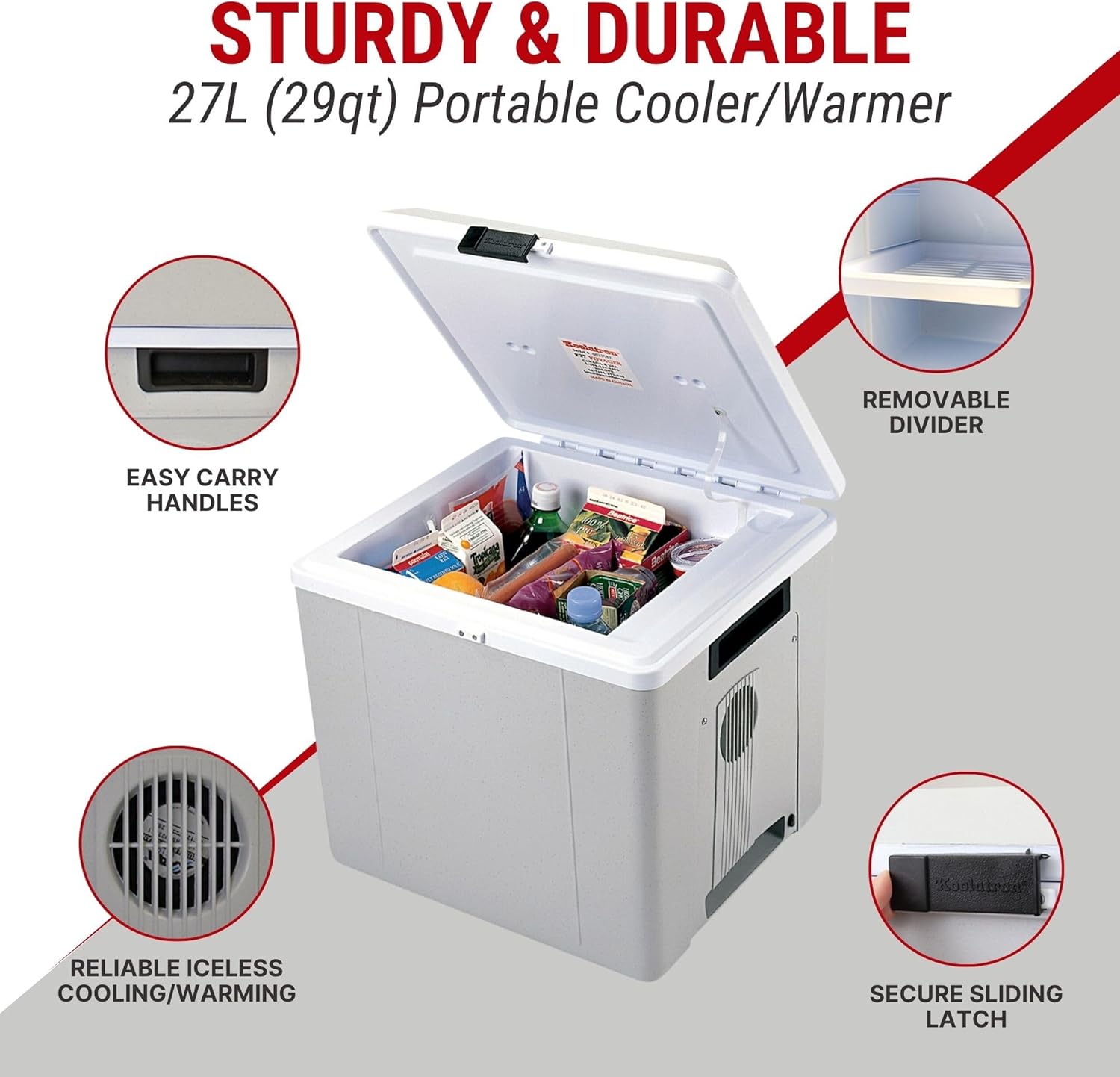

Image: A diagram illustrating the key features of the Koolatron portable cooler, including its easy carry handles, the reliable iceless cooling/warming vent, the removable internal divider, and the secure sliding latch on the lid.

Disetél

1. Ngabongkar bungkusan: Kaluarkeun pendingin tina bungkusna kalawan ati-ati. Pariksa heula bisi aya karuksakan.
2. panempatan: Place the cooler on a stable, level surface. Ensure adequate space around the unit for proper ventilation, especially around the air vents.
3. Konfigurasi Internal: The unit can be used as a chest-style cooler or an upright mini-fridge. The removable shelf/divider can be inserted to organize contents.
4. Power Connection (12V DC): Connect the attached 12V DC power plug into your vehicle's cigarette lighter socket or a compatible 12V power outlet. Ensure the connection is secure.
5. Power Connection (AC - Optional): For indoor use, an AC adapter (110V) is required and sold separately. Connect the 12V DC plug to the AC adapter, then plug the adapter into a standard wall outlet.

Image: A hand inserting the 12V DC power adapter into a vehicle's power socket, demonstrating the primary power connection method.

Parentah Operasi

Your Koolatron cooler/warmer utilizes thermoelectric technology to either cool or warm its contents. The mode is selected by adjusting the power cord connection.

Modeu tiis

• To activate cooling, ensure the arrow on the power cord connector is aligned with the BLUE DOT.
• The unit will cool to approximately 40°F (22°C) below the ambient temperature. For best results, pre-chill items before placing them in the cooler.

Mode pemanasan

• To activate warming, ensure the arrow on the power cord connector is aligned with the TITIK BEUREUM.
• The unit will warm to approximately 135°F (57°C). For best results, pre-heat items before placing them in the warmer.

Image: A visual guide demonstrating how to switch between warming mode (matching arrow to red dot) and cooling mode (matching arrow to blue dot) by adjusting the power cord connection.

Desain serbaguna

The cooler can be used in two primary configurations:

• Chest-Style: Used horizontally with the lid opening upwards, similar to a traditional cooler.
• Upright Mini-Fridge: Used vertically with the lid opening like a refrigerator door. The secure sliding lock helps keep the door closed in this orientation.

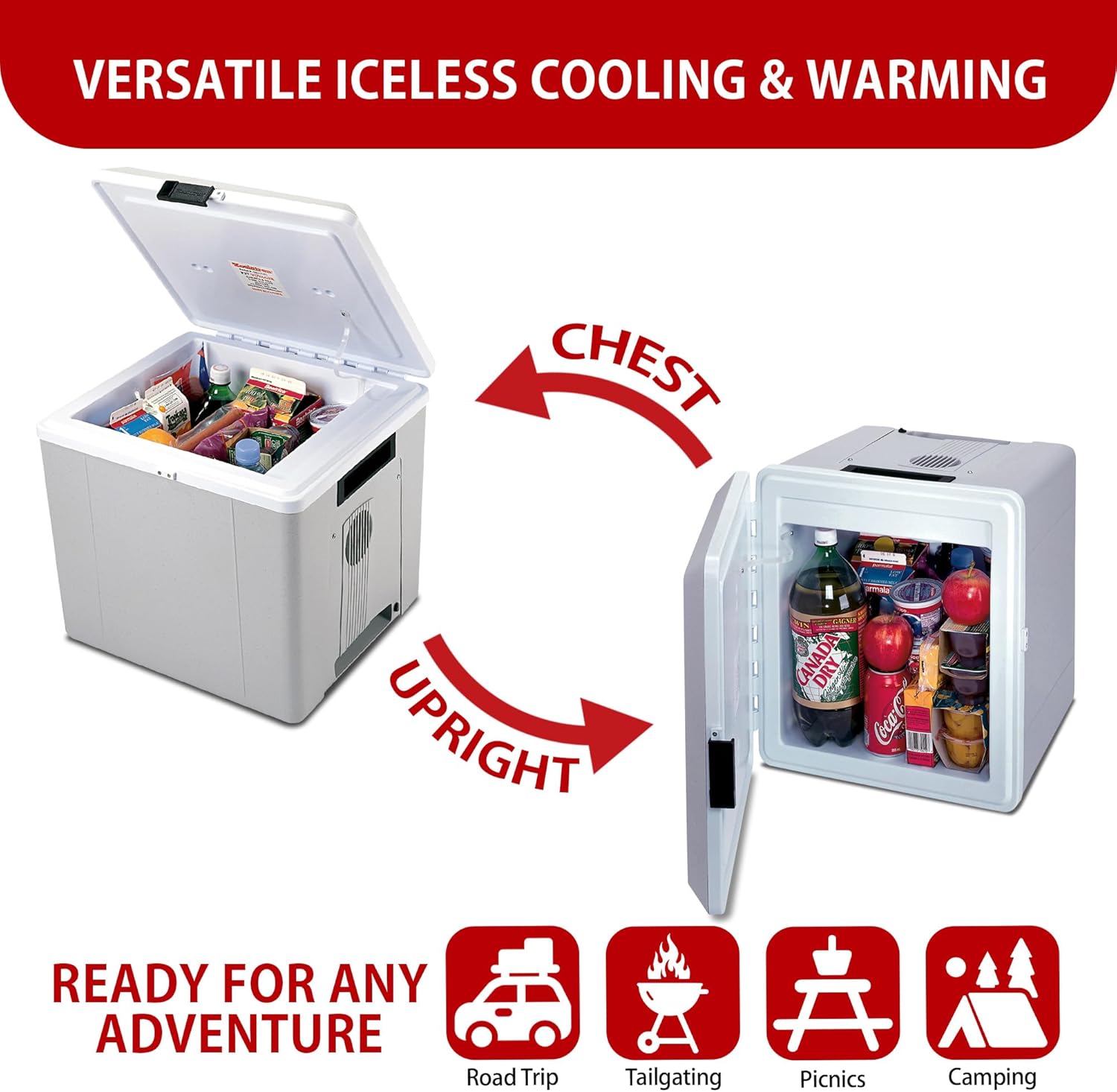

Image: The Koolatron cooler displayed in two configurations: a chest-style orientation with the lid opening upwards, and an upright mini-fridge orientation with the lid opening like a door.

Pangropéa

beberesih

• Salawasna cabut colokan unit saméméh beberesih.
• Ngusap permukaan interior jeung exterior ku damp lawon jeung detergent hampang.
• Ulah make cleaners abrasive atawa bahan kimia kasar, sabab ieu bisa ngaruksak surfaces.
• Pastikeun unit parantos garing sateuacan dicolokkeun deui.
• Periodically check and clean the air vents to ensure unobstructed airflow.

Panyimpenan

• When not in use, store the cooler in a clean, dry place.
• Tutupna rada dibuka pikeun nyegah bau sareng jamur numpuk.

Pamérésan masalah

spésifikasi

• merek: Koolatron
• model: P27UK
• Kapasitas: 27 Liter (29 Quarts)
• Input kakuatan: 12V DC
• Wattage: 48 watt
• Kinerja cooling: Cools to 40°F (22°C) below ambient temperature
• Warming Performance: Warms to 135°F (57°C)
• Ukuran produk: 17.25 x 15.25 x 15.25 inci (43.8 x 38.7 x 38.7 cm)
• Beurat barang: 11.24 pon (5.11 Kilogram)
• Bahan: Hard-sided Plastic
• warna: Japati Gray
• Sistim defrost: Manual

Image: A diagram illustrating the physical dimensions of the Koolatron cooler in centimeters, along with icons indicating the included 12V DC plug and compatibility with a 230V AC adapter (sold separately).

Émbaran jaminan

For specific warranty details and terms, please refer to the documentation included with your purchase or contact Koolatron customer support directly. Warranty coverage typically applies to manufacturing defects and may vary by region.

Rojongan Palanggan

If you have any questions, require assistance, or need to report an issue with your Koolatron Electric Portable Cooler/Warmer, please contact Koolatron customer service. Contact information can typically be found on the manufacturer's websitus atanapi dina bungkusan produk.

Dukungan Online: Visit the official Koolatron websitus pikeun FAQs jeung sumber rojongan.

Rojongan Telepon: Refer to your product packaging or the Koolatron websitus pikeun nomer kontak régional.
