1. Bubuka
The Hiseeu Solar Panel is designed to provide continuous power to compatible Hiseeu battery-powered security cameras, such as models C30, C80, WTD403, and WTD504, as well as other devices featuring a Type-C charging interface. This solar panel ensures your camera remains charged without the need for frequent manual battery replacements, offering a reliable and eco-friendly power solution.
Eusi pakét:
- 1 x Hiseeu Solar Panel
- 1 x 10 ft Type-C Charging Cable
- 1 x Adjustable Bracket Mount
- 1 x Screws Bag (for installation)

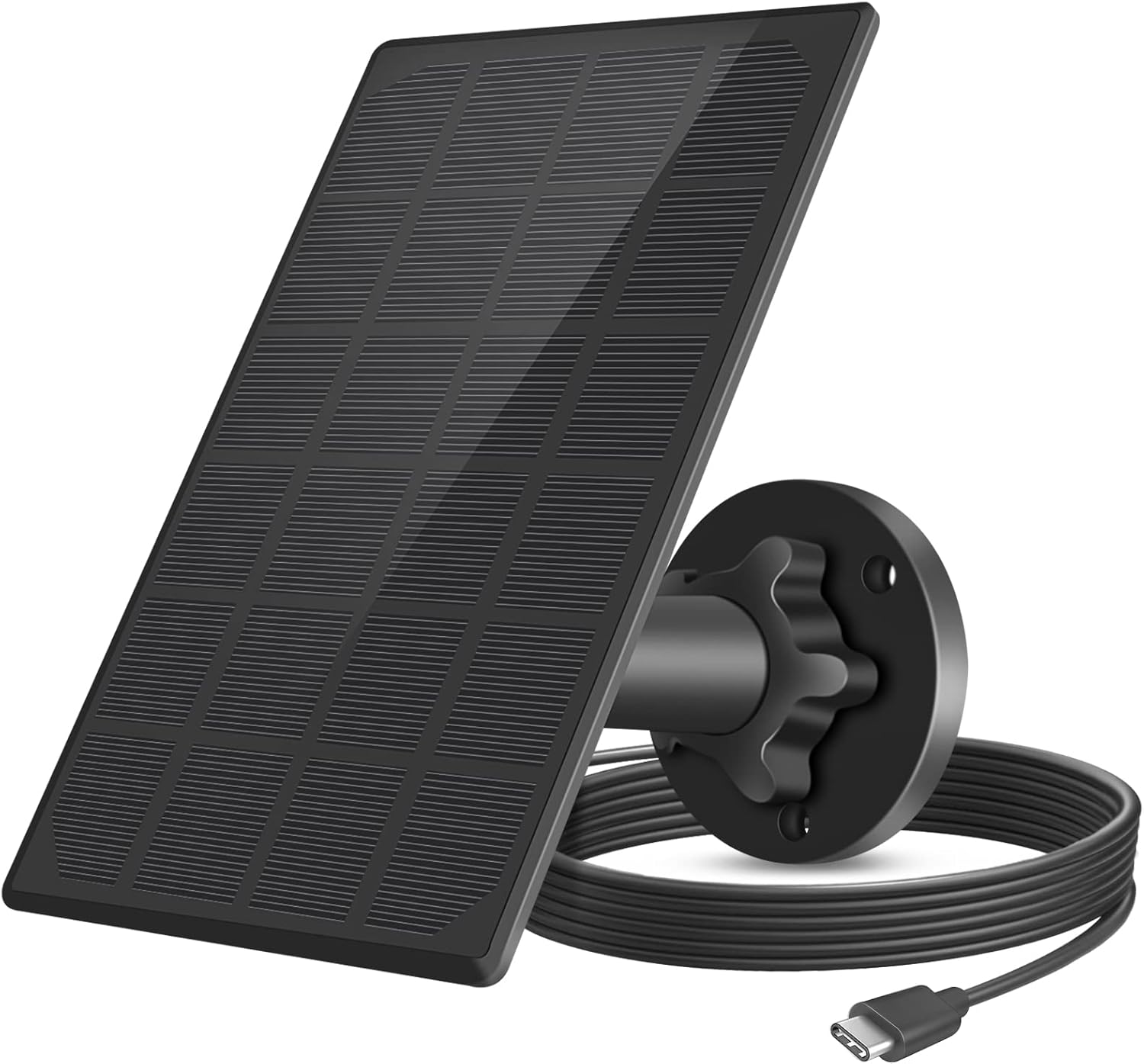

Figure 1: Hiseeu Solar Panel and included accessories.
2. Setup jeung Instalasi
Proper installation is crucial for maximizing the solar panel's charging efficiency. Follow these steps to set up your Hiseeu Solar Panel:
- Ngumpulkeun Gunung: Attach the adjustable bracket mount to the back of the solar panel. Ensure it is securely fastened.
- Pilih Lokasi: Select an outdoor location that receives direct sunlight for the majority of the day. Avoid areas with shade from trees, buildings, or other obstructions. The panel's 360-degree swivel and 90-degree tilt capabilities allow for optimal positioning.
- Pasang Bracket: Use the provided screws and wall anchors to securely attach the bracket mount to your chosen surface.
- Adjust the Panel: Position the solar panel to face the sun directly. Adjust the angle to maximize sunlight exposure throughout the day.
- Sambungkeun ka Kaméra: Connect the 10-foot Type-C charging cable from the solar panel to the Type-C charging port on your compatible Hiseeu camera.
Important Note: When using the solar panel as the primary power source for your camera, it is recommended to remove the camera's internal batteries. This prevents potential conflicts or overcharging issues and ensures the solar panel directly powers the device.
Figure 2: Step-by-step installation process for the solar panel.
Figure 3: Dimensions of the solar panel and mounting components.
Figure 4: The solar panel is compatible with rechargeable battery cameras that have a Type-C charging port.
3. Parentah Operasi
Once installed and connected, the Hiseeu Solar Panel will automatically begin charging your compatible camera when exposed to sufficient sunlight. The panel is designed for high efficiency energy conversion, providing a continuous power supply.
Résistansi Cuaca:
The solar panel features an IP65 weatherproof design, making it suitable for outdoor use in various weather conditions. It is built to withstand temperatures ranging from -20°C to 60°C (-4°F to 140°F), ensuring reliable performance through thunderstorms, snow, and high heat.
Figure 5: The solar panel is designed for IP65 weather resistance across various conditions.
Figure 6: The solar panel provides continuous power to the camera.
4. Pangropéa
To ensure optimal performance and longevity of your Hiseeu Solar Panel, periodic maintenance is recommended:
- beberesih: Rutin ngabersihan permukaan panel surya kalayan lemes, damp cloth to remove dust, dirt, leaves, or other debris that may obstruct sunlight. Avoid abrasive cleaners or harsh chemicals.
- Pamariksaan kabel: Periodically check the Type-C charging cable for any signs of wear, damage, or loose connections. Ensure the connection to the camera is secure.
- Stabilitas Gunung: Verify that the adjustable bracket mount remains securely fastened to its mounting surface and that the panel's angle is still optimized for sunlight exposure.
5. Cara ngungkulan
If your camera is not charging or experiencing power issues, consider the following troubleshooting steps:
- Taya Indikator Ngecas: If the camera's charging indicator light is not on, ensure the Type-C cable is firmly connected to both the solar panel and the camera.
- Kurangna Cahya panonpoé: Verify that the solar panel is receiving direct and unobstructed sunlight for several hours a day. Relocate or adjust the panel if necessary.
- Panel Cleanliness: Clean the solar panel surface to remove any accumulated dirt or debris that might be blocking sunlight.
- Karusakan kabel: Inspect the 10-foot Type-C cable for any visible damage. A damaged cable may prevent proper charging.
- Camera Battery Removal: Confirm that the internal batteries of the camera have been removed, as recommended, when using the solar panel as the primary power source.
6. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | AMZ-TYNB-C30-5V |
| Daya Kaluaran Maksimum | 3.2 W |
| Standar Operasi Voltage | 6 V |
| Standard Operating Current | 540 mA |
| Buka Circuit Voltage | ≥7.2 V |
| Short Circuit Ayeuna | ≥560 mA |
| Cell Conversion Efficiency | ≥19.5% |
| Tipe panganteur | Tipe-C |
| Panjang kabel | 10 kaki (kira-kira 3 méter) |
| Peunteun waterproof | IP65 |
| Suhu Gawé | -20°C nepi ka 60°C (-4°F nepi ka 140°F) |
| Item Beurat | 9.6 ons (0.27 kg) |
| Ukuran Paket | 7.99 x 5.39 x 1.85 inci |

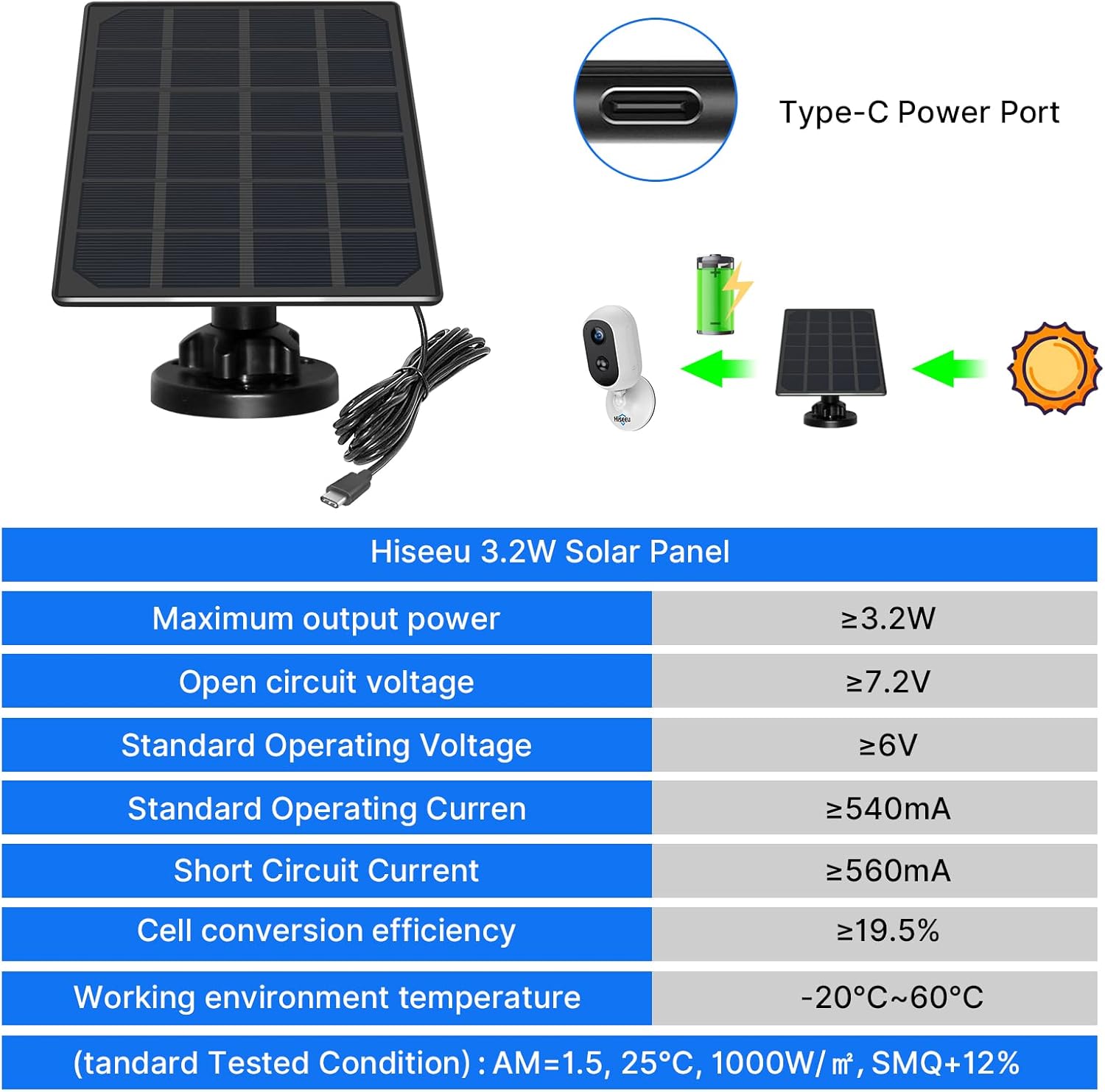

Gambar 7: Leuwihview of the Type-C port and key technical specifications.
7. Garansi jeung Rojongan
Hiseeu products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Hiseeu website. If you encounter any issues or have questions regarding your Hiseeu Solar Panel, please contact Hiseeu customer support. Contact information, including email and phone, can typically be found in the user manual provided in the product packaging or on the official Hiseeu support page.
