Jnaurb 390 LED Connectable Net Lights Instruction Manual

1. Produk Langkungview

The Jnaurb 390 LED Connectable Net Lights are designed for decorative illumination, suitable for both indoor and outdoor use. This set features 390 purple LED lights arranged in a net pattern, measuring 12.5 feet by 5 feet. It operates at a low voltage and includes 8 different lighting modes, controlled by a button on the power adapter. The lights are connectable, allowing for expansion with additional compatible sets.

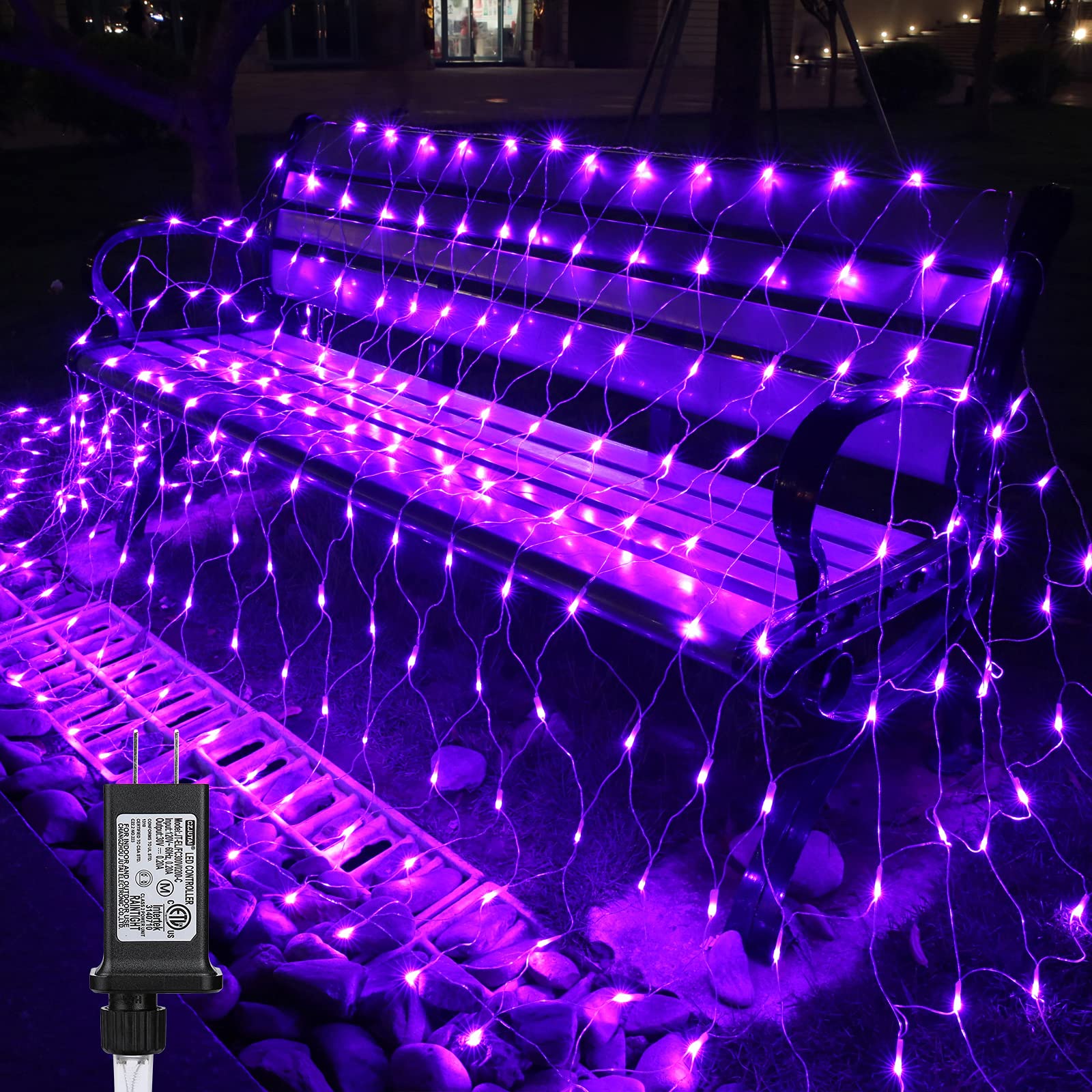

Image 1.1: Coiled Jnaurb 390 LED Connectable Net Lights with power adapter.

2. Parentah Kasalametan

• Always ensure the power adapter is connected to a suitable power source.
• Do not attempt to modify or repair the light set or adapter. Contact qualified personnel for service.
• Keep the power adapter dry. While the net lights are waterproof for outdoor use, the adapter is not. It must be protected with a waterproof receptacle cover when used outdoors.
• Avoid placing the lights near heat sources or flammable materials.
• Do not hang objects from the light strings or net.
• Cabut lampu tina sumber listrik nalika henteu dianggo atanapi sateuacan beberesih.

3. Eusi Paket

Mangga parios pakét kanggo barang-barang ieu:

• 1 x Jnaurb 390 LED Connectable Net Lights (12.5ft x 5ft, Purple)
• 1 x Low Voltage Power Adapter with Mode Control Button

4. Parentah Setup

4.1 Ngabongkar bungkusan

1. Carefully remove the net lights from the packaging.
2. Gently unroll and unfold the net, ensuring the wires are not tangled.

4.2 Nempatkeun

These net lights are versatile and can be draped over bushes, fences, walls, or used to cover larger areas. Ensure the surface is clean and free of sharp objects that could damage the wiring.

Image 4.1: Net lights installed over outdoor bushes.

Image 4.2: Net lights used to cover a patio umbrella for decorative lighting.

4.3 Connecting Multiple Sets

To extend the illuminated area, connect additional compatible Jnaurb net light sets. Locate the male and female connectors at the ends of each light set and securely twist them together. Ensure all connections are tight to prevent moisture ingress.

4.4 Sambungan Daya

1. Connect the power adapter to the main light string.
2. Colokkeun adaptor kakuatan kana stop kontak listrik standar.
3. For outdoor use, ensure the power adapter is placed in a dry location or protected by a certified waterproof receptacle cover to prevent water damage.

Image 4.3: Net lights on bushes during rain, highlighting the need for adapter protection.

5. Parentah Operasi

5.1 Daya Hurung/Pareuman

Once plugged in, the lights will automatically turn on. To turn off, unplug the power adapter from the outlet.

5.2 Changing Lighting Modes

The Jnaurb net lights feature 8 different lighting modes. To cycle through these modes, press the button located on the power adapter. Each press will switch to the next mode in sequence.

5.3 Fungsi Timer

This product includes a timer function. Refer to the specific instructions provided with your power adapter for details on activating and setting the timer. Typically, pressing and holding the mode button for a few seconds will activate the timer, which may set the lights to turn on for 6 hours and off for 18 hours automatically.

6. Pangropéa

6.1 beberesih

Before cleaning, always unplug the lights. Wipe the LED bulbs and wires gently with a soft, damp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.

6.2 Panyimpenan

When not in use, carefully coil the net lights and store them in their original packaging or a suitable container. Store in a cool, dry place away from direct sunlight and extreme temperatures.

6.3 Pamariksaan

Periodically inspect the wires and bulbs for any signs of damage, fraying, or loose connections. Discontinue use if any damage is found and replace the set if necessary.

7. Cara ngungkulan

7.1 Lampu Teu Nyala

• Pastikeun adaptor kakuatan dicolokkeun aman kana stop kontak listrik anu tiasa dianggo.
• Check if the outlet itself is functioning by plugging in another device.
• Verify that the connection between the light string and the adapter is secure.

7.2 Some Lights Not Working

• LED lights are generally durable, but individual bulbs can fail. If a small section is out, it may be due to a damaged wire in that specific area.
• Inspect the wiring for any visible cuts or breaks.

7.3 Mode Button Not Responding

• Ensure the power adapter is receiving power.
• Press the button firmly. If it remains unresponsive, the adapter may be faulty and require replacement.

8. Spésifikasi
