1. Bubuka
This instruction manual provides comprehensive guidance for the ALLIMITY RC-1196 replacement remote control. This remote is designed to function as a direct replacement for the original remote controls of specific Denon AV Receiver models, offering immediate functionality without complex setup procedures.
Compatible Denon AV Receiver Models:
- AVR-S500BT
- AVR-X520BT
- AVR-X510BT
- AVR-S510BT

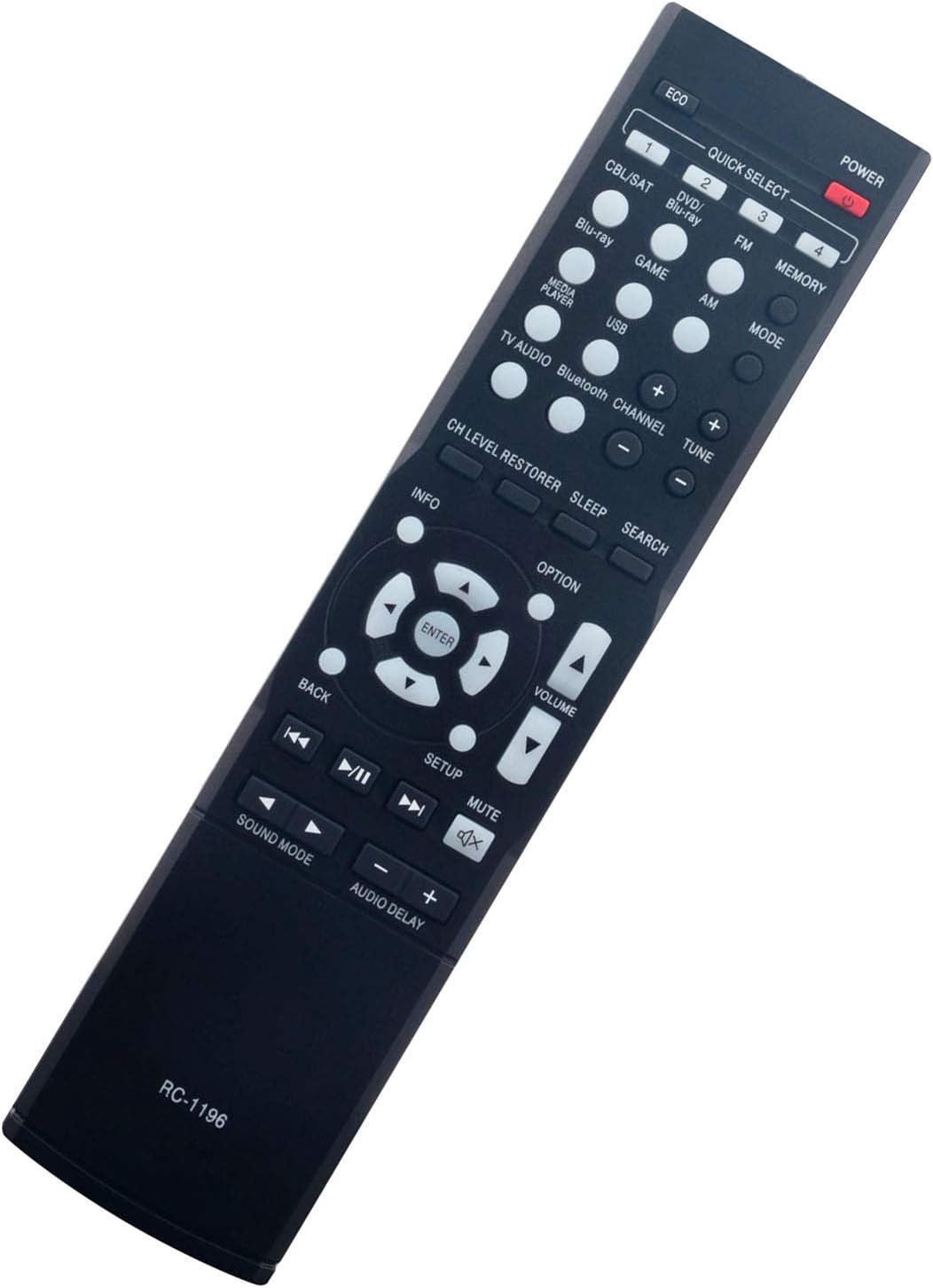

Gambar 1: Hareupeun view of the ALLIMITY RC-1196 Replacement Remote Control. This image displays the layout of all buttons, including power, input selectors, navigation, volume, and playback controls.
2. Setélan
2.1 Pamasangan batré
The ALLIMITY RC-1196 remote control requires two AAA batteries (not included) for operation. Follow these steps to install the batteries:
- Teangan tempat panutup kompartemen batré dina tonggong kadali jauh.
- Pencét tab sareng geser panutup ka handap pikeun muka kompartemen.
- Selapkeun dua batré AAA, mastikeun terminal positif (+) jeung négatip (-) align bener jeung markings jero kompartemen nu.
- Geser panutup kompartemen batré deui kana tempatna nepi ka klik aman.
Gambar 2: Balik view of the RC-1196 remote control with the battery compartment open, showing the slots for two AAA batteries.
2.2 Initial Use (No Programming Required)
This replacement remote control is pre-programmed to work with the specified Denon AV Receiver models. No additional programming or setup is required. Once batteries are installed, the remote is ready for immediate use with your compatible receiver.
3. Operasi
Point the remote control directly towards your Denon AV Receiver. Ensure there are no obstructions between the remote and the receiver's infrared sensor.
3.1 Fungsi Dasar
- kakuatan: Turns the AV Receiver on or off.
- QUICK SELECT (1-4): Allows quick selection of preset input sources.
- CBL/SAT, DVD/Blu-ray, Blu-ray, GAME, MEDIA PLAYER, USB, TV AUDIO, Bluetooth: Direct input selection buttons.
- FM, AM: Selects FM or AM radio tuner.
- MODÉ: Cycles through various modes.
- VOLUME (+/-): Increases or decreases the master volume.
- Bisu: Ngajempékeun atanapi nganonaktipkeun kaluaran audio.
- INFO: Displays information on the screen.
- PILIHAN: Accesses option menus.
- Asupkeun: Ngonfirmasi pilihan dina ménu.
- Tombol Navigasi (Luhur, Handap, Kénca, Katuhu): Navigates ngaliwatan ménu jeung pilihan.
- Balik deui: Mulih ka ménu atawa layar saméméhna.
- DISETÉL: Accesses the receiver's setup menu.
- Kontrol Putereun (Maénkeun, Pause, Eureunkeun, Majukeun Gancang, Mundurkeun, Loncat): Ngadalikeun putereun média.
- MODE SORA: Cycles through different sound modes.
- AUDIO DELAY (+/-): Adjusts audio delay.
- CH LEVEL RESTORER: Activates or deactivates the channel level restorer function.
- SARE: Nyetél waktos bobo.
- Pilarian: Initiates search functions.
- CHANNEL (+/-): Changes radio channels or navigates lists.
- TUNE (+/-): Adjusts radio tuning.
Gambar 3: Angled view of the RC-1196 remote control, highlighting the arrangement of input selection and navigation buttons.
4. Pangropéa
4.1 beberesih
Pikeun ngabersihkeun remot kontrol, anggo lawon anu lemes sareng garing. Pikeun kokotor anu bandel, usap sakedikampen lawon ku cai atawa hampang, cleaner non-abrasive. Hindarkeun ngagunakeun bahan kimia kasar, pangleyur, atawa bahan abrasive, sabab ieu bisa ngaruksak beungeut jauh atawa komponén internal.
4.2 Ngagantian batré
Replace batteries when the remote's response becomes sluggish or stops working. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries, as this can lead to leakage or improper operation. Dispose of used batteries according to local regulations.
4.3 Panyimpenan
Store the remote control in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. If the remote will not be used for an extended period, it is recommended to remove the batteries to prevent potential leakage and damage.
5. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Jauh teu jalan. | Batré paéh atawa salah dipasang. | Ganti batré ku batré AAA anyar, mastikeun polaritasna bener. |
| Remote range is poor or intermittent. | Weak batteries; Obstruction between remote and receiver; Remote not pointed correctly. | Replace batteries. Ensure a clear line of sight to the receiver's IR sensor. Point the remote directly at the receiver. |
| Remote buttons do not respond. | Receiver is off or in standby; Remote is faulty. | Ensure the receiver is powered on. If other solutions fail, the remote may be faulty and require replacement. |
| Ngadalikeun alat-alat séjén tina jarak jauh. | This remote is specifically for Denon AV Receivers. | This remote is not a universal remote. It is designed to control only the specified Denon AV Receiver models. |
6. Spésifikasi
- Jumlah modél: RC-1196
- merek: KAKATAAN
- Alat anu cocog: Denon AV Receivers (AVR-S500BT, AVR-X520BT, AVR-X510BT, AVR-S510BT)
- Téknologi konektipitas: Infrabeureum (IR)
- Sumber Daya: 2 x Batré AAA (teu kalebet)
- Ukuran produk: Kira-kira 2 x 0.6 x 7 inci (5.08 x 1.52 x 17.78 cm)
- Beurat barang: Approximately 1 ounce (28 grams)
- Fitur husus: Taya Programming Diperlukeun
7. Garansi jeung Rojongan
Information regarding specific warranty terms for this ALLIMITY product is not provided in the product details. For warranty claims or technical support, please refer to the retailer or the manufacturer's official website where the product was purchased. Keep your purchase receipt as proof of purchase.
For further assistance, you may also consult online resources or user forums dedicated to Denon AV Receivers, as the operation of this remote directly corresponds to the functions of your receiver.
