WOOX 741617 R4040 Smart Indoor PTZ HD 360° WiFi Camera User Manual

1. Bubuka

Thank you for choosing the WOOX 741617 R4040 Smart Indoor PTZ HD 360° WiFi Camera. This manual provides essential information for the safe and efficient use of your new smart camera. Please read these instructions carefully before installation and operation, and retain them for future reference.

2. Produk Langkungview

The WOOX R4040 is an indoor smart camera designed for home security and monitoring. It features Pan-Tilt-Zoom (PTZ) functionality, allowing for a 360-degree viewing angle, high-definition video recording (1080p), and Wi-Fi connectivity for remote access and control via a smartphone application. Key features include motion detection, two-way audio, and night vision.

Gambar 2.1: Hareupeun view of the WOOX R4040 Smart Indoor PTZ HD 360° WiFi Camera.

Figure 2.2: WOOX R4040 camera highlighting key features such as motion detection, panoramic view, motion tracking, two-way audio, night vision, flexible storage, 1080P resolution, and wireless connectivity.

3. Eusi Paket

Mangga parios eusi bungkusan nalika dibuka pikeun mastikeun sadaya barang aya sareng henteu ruksak.

• WOOX R4040 Smart Indoor PTZ HD 360° WiFi Camera
• Adaptor kakuatan
• Kabel Daya USB
• Ningkatna Kurung
• Screws sareng Plugs Tembok
• Manual pamaké
• Reset Pin (SIM ejector tool style)

Figure 3.1: All items included in the WOOX R4040 camera package, laid out on a wooden surface.

4. Setélan

4.1 Pamasangan Aplikasi

The WOOX R4040 camera operates with the WOOX Home app or the Tuya Smart app.

1. Download the "WOOX Home" app or "Tuya Smart" app from the App Store (iOS) or Google Play Store (Android).
2. Ngadaptarkeun akun anyar atanapi log in sareng akun anu tos aya.

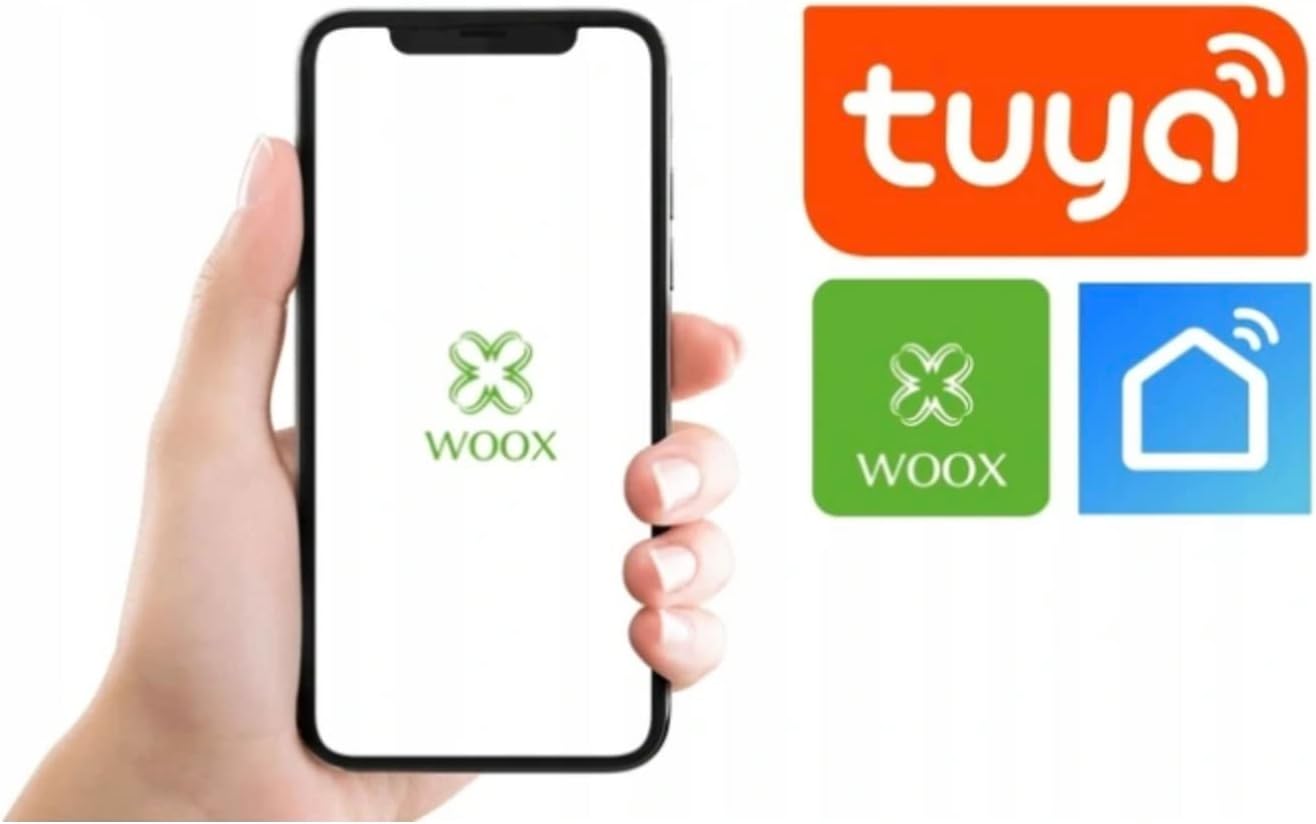

Figure 4.1: Smartphone screen showing the WOOX Home app interface and logos for WOOX and Tuya Smart applications.

4.2 Ngahurungkeun sareng Ngapasangkeun

1. Connect the USB power cable to the camera and the power adapter.
2. Plug the power adapter into a wall outlet. The camera will power on, and an indicator light will flash, indicating it's ready for pairing.
3. Open the WOOX Home or Tuya Smart app.
4. Ketok ikon "+" di pojok katuhu luhur pikeun nambahkeun alat.
5. Select "Security & Video Surveillance" then "Smart Camera (Wi-Fi)".
6. Follow the on-screen instructions to connect the camera to your 2.4GHz Wi-Fi network. Ensure your phone is connected to the same 2.4GHz Wi-Fi network during setup.
7. Scan the QR code displayed on your phone screen with the camera lens. You will hear a confirmation sound from the camera.
8. Sakali disambungkeun, lampu indikator bakal ngahurungkeun biru padet.

4.3 Masang kaméra

The camera can be placed on a flat surface or mounted to a wall or ceiling using the provided mounting bracket.

1. Pilih lokasi anu cocog pikeun optimal viewing.
2. If mounting, use the bracket as a template to mark drill holes.
3. Drill holes, insert wall plugs, and secure the bracket with screws.
4. Gantelkeun kaméra kana bracket pamasangan.

5. Parentah Operasi

5.1 Hirup View jeung Kontrol PTZ

• Open the WOOX Home or Tuya Smart app and select your camera.
• The live video feed will appear.
• Use the on-screen joystick or directional arrows to pan (horizontal) and tilt (vertical) the camera.
• Pinch to zoom in or out on the live feed.

5.2 Audio Dua Arah

• Dina hirup view, ketok ikon mikropon pikeun nyarios ngalangkungan spiker kaméra.
• Ketok ikon spiker pikeun ngadangukeun audio tina sakuliling kaméra.

5.3 Deteksi sareng Pelacakan Gerakan

• Access camera settings in the app.
• Enable "Motion Detection" to receive alerts when movement is detected.
• Saluyukeun tingkat sensitivitas sakumaha diperyogikeun.
• Enable "Motion Tracking" for the camera to automatically follow detected movement.

5.4 Visi Peuting

The camera automatically switches to infrared night vision in low-light conditions, providing clear black and white video. This feature can usually be toggled between auto, on, or off in the app settings.

5.5 Ngarékam sareng Nyimpen Pidéo

• Panyimpenan Lokal: Insert a microSD card (not included) into the camera's slot for continuous recording or event-triggered recording.
• Panyimpenan awan: The app may offer optional cloud storage subscriptions for recorded video footage.
• Recorded videos can be accessed and played back through the app.

6. Pangropéa

• beberesih: Anggo kaén anu lembut sareng garing pikeun ngabersihan lensa sareng awak kaméra. Ulah make cleaners cair atawa bahan abrasive.
• Apdet parangkat lunak: Regularly check the WOOX Home or Tuya Smart app for firmware updates to ensure optimal performance and security.
• panempatan: Ensure the camera is placed in a stable, dry indoor environment, away from direct sunlight, heat sources, and excessive moisture.

7. Cara ngungkulan

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support, please visit the official WOOX websitus atanapi ngahubungan departemén layanan palanggan maranéhna.

WOOX Official Websitus: www.wooxhome.com
