1. Bubuka
Thank you for choosing the V-TAC VT-3450 Wooden Pendant LampManual ieu nyayogikeun inpormasi penting pikeun pamasangan, operasi, sareng pangropéa anu aman pikeun perlengkapan lampu énggal anjeun. Mangga baca pitunjuk ieu kalayan saksama sateuacan dipasang sareng simpen kanggo rujukan ka hareup.
The V-TAC VT-3450 is a contemporary wooden pendant lamp designed for indoor use. It features an E27 lamp holder and is suitable for various residential and commercial settings.
2. Parentah Kasalametan
- Salawasna pegatkeun sambungan catu daya sateuacan dipasang, diropéa, atanapi diganti bohlam.
- Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni saluyu sareng peraturan kabel lokal.
- Pastikeun voltage and frequency of the power supply match the specifications of the lamp.
- Ulah ngaleuwihan wat maksimumtage ditangtukeun pikeun bohlam (60W).
- Produk ieu dirancang pikeun pamakéan jero rohangan wungkul. Ulah kakeunaan cai atanapi kalembaban anu luhur.
- Pastikeun lamp is securely mounted to a stable ceiling structure.
- Ulah nutupan lamp with any material. Allow adequate ventilation.
3. Eusi Paket
Mangga parios bungkusanna pikeun mastikeun sadaya komponén aya sareng henteu ruksak:
- 1 x Wooden Pendant Lamp Fixture (shade, cable, ceiling rose)
- 1 x Mounting Hardware Kit (screws, jangkar témbok)
Note: The E27 bulb is not included and must be purchased separately.
4. Setup jeung Instalasi
Turutan léngkah ieu pikeun pamasangan anu aman sareng leres:
- Persiapan: Pareuman catu daya utama dina pemutus sirkuit sateuacan ngamimitian padamelan listrik.
- Nyirian: Hold the ceiling rose against the ceiling at the desired installation point and mark the drilling positions for the mounting screws.
- Pangeboran: Drill holes at the marked positions. Insert the wall anchors if necessary.
- Wiring: Connect the electrical wires from the ceiling to the terminal block inside the ceiling rose. Ensure correct polarity: Live (L), Neutral (N), and Earth (E).
- Mounting the Ceiling Rose: Secure the ceiling rose to the ceiling using the provided screws.
- Nyaluyukeun Panjang Kabel: If needed, adjust the length of the pendant cable by loosening the cable grip inside the ceiling rose, pulling the cable to the desired length, and then tightening the grip.
- Ngalampirkeun Shade: Ensure the wooden shade is securely attached to the lamp assembly wadah.
- Inserting the Bulb: Pasangkeun bohlam E27 (maks. 60W) kalawan ati-ati kana lampu.amp panyekel.
- Cék ahir: Mastikeun yén sakabéh sambungan aman tur lamp is properly mounted. Restore power at the circuit breaker.
Figure 1: Diagram showing the dimensions of the V-TAC VT-3450 Wooden Pendant Lamp, including a diameter of 350mm and a height of 450mm for the shade, and a total cable length of 1000mm.

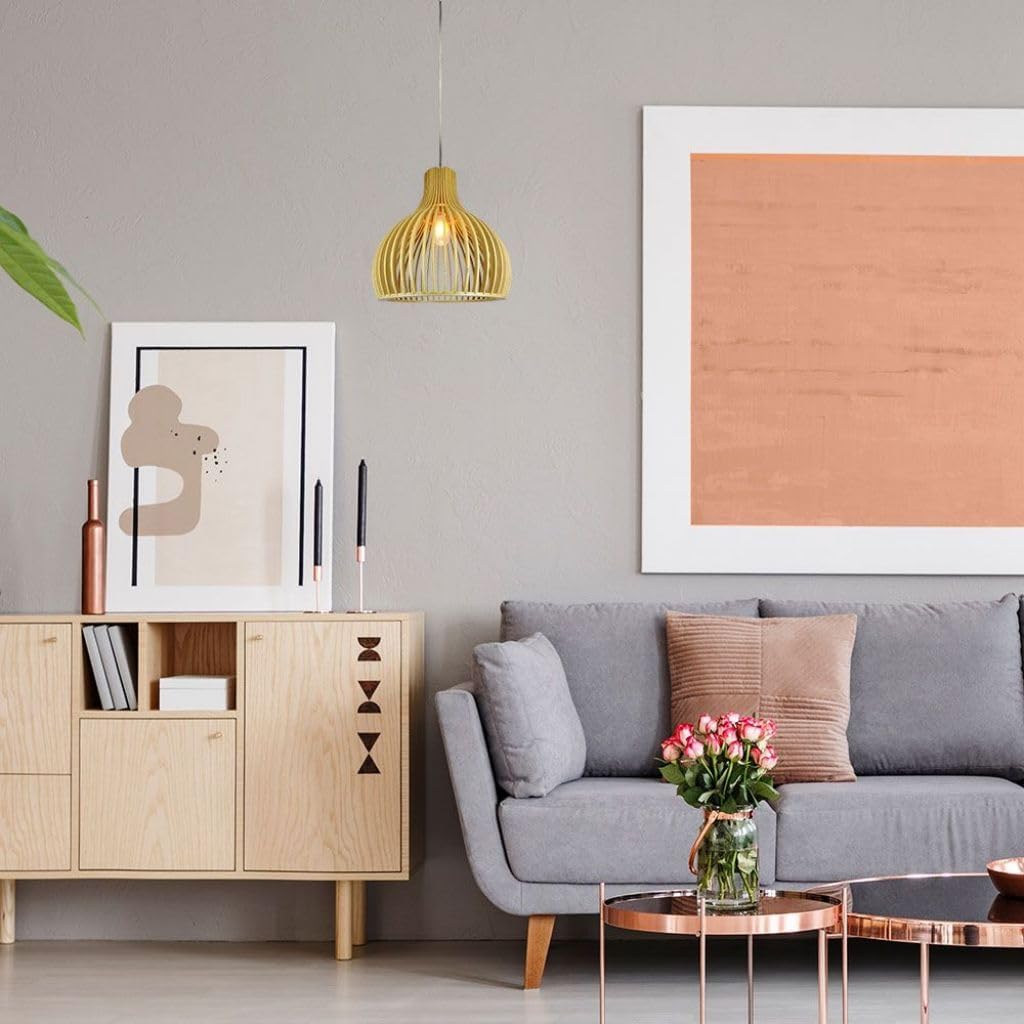

Figure 2: The V-TAC VT-3450 Wooden Pendant Lamp installed in a modern living room setting.
5. Parentah Operasi
Once installed, the V-TAC VT-3450 pendant lamp operates via a standard wall switch connected to its power supply. Simply toggle the wall switch to turn the light on or off.
Ieu lamp is compatible with dimmable E27 bulbs and a suitable dimmer switch (not included). If using a dimmable bulb and dimmer switch, follow the dimmer switch manufacturer's instructions for operation.
6. Pangropéa
- beberesih: Pikeun ngabersihan lamp, mastikeun kakuatan pareum jeung lamp is cool. Wipe gently with a soft, dry cloth. Do not use abrasive cleaners, solvents, or liquids, as these may damage the finish or electrical components.
- Ngagantian bohlam: Always turn off the power supply and allow the bulb to cool completely before attempting to replace it. Unscrew the old bulb and screw in a new E27 bulb, ensuring it does not exceed the maximum wattage tina 60w.
- Cék biasa: périodik mariksa lamp for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lamp henteu hurung | Taya catu daya Bohlam salah Sambungan kabel leupas | Pariksa circuit breaker jeung switch témbok Ganti bohlam Check wiring (ensure power is off) |
| Lamp kedip-kedip | Bohlam leupas Saklar dimmer/bohlam anu teu cocog Wiring lepat | Kencangkeun bohlam Ensure dimmer and bulb are compatible Taroskeun ka tukang listrik anu mumpuni |
| Lamp panas teuing | Bohlam wattage luhur teuing | Replace with a bulb that does not exceed 60W |
8. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | V-TAC |
| Nomer modél | 40501 |
| Gaya | Kontemporer |
| Bahan | Kai |
| Sumber Daya | Kabel Listrik |
| Pindah Tipe Instalasi | Monopoint |
| Max Wattage | 60 Watt |
| Dasar Bulb | E27 |
| Fitur husus | Dimmable (with compatible bulb and dimmer) |
| Beurat produk | 1 kg |
| Tipe Kamar | Dining Room (example) |
9. Garansi jeung Rojongan
Kanggo inpormasi garansi sareng dukungan palanggan, mangga tingali dokuméntasi anu disayogikeun sareng pameseran anjeun atanapi hubungi pangecér anjeun. Simpen bukti pameseran anjeun pikeun klaim garansi naon waé.
If you encounter any issues that cannot be resolved using the troubleshooting guide, please contact a qualified electrician or the V-TAC customer support for assistance.
