PHI VILLA 40-inch Electric Fireplace Insert User Manual

1. Bubuka

Thank you for choosing the PHI VILLA 40-inch Electric Fireplace Insert. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new electric fireplace. Please read all instructions carefully before installation and use, and retain this manual for future reference.

2. Émbaran Kasalametan

• Baca sadaya pitunjuk sateuacan nganggo hawu ieu.
• This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 m) from the front of the fireplace.
• Awas pisan diperlukeun nalika manaskeun mana wae anu dipaké ku atawa deukeut barudak atawa invalids sarta iraha wae hawu ditinggalkeun operasi sarta unattended.
• Do not operate any fireplace with a damaged cord or plug or after the fireplace malfunctions, has been dropped, or damaged in any manner.
• Ulah ngajalankeun ari handapeun karpét. Ulah nutupan ari ku karpet lémparan, runners, atawa panutup sarupa. Atur tali jauh ti wewengkon lalulintas sarta dimana eta moal tripped leuwih.
• Pikeun megatkeun sambungan hawu, mareuman kadali, teras cabut colokan tina stop kontak.
• Ulah nyelapkeun atanapi ngantepkeun barang asing asup kana liang ventilasi atanapi knalpot sabab ieu tiasa nyababkeun sengatan listrik atanapi kahuruan, atanapi ngaruksak perapian.
• Salawasna colokkeun perapian langsung kana stop kontak/stop kontak témbok. Entong dianggo sareng kabel ekstensi atanapi keran listrik anu tiasa dipindahkeun (stop kontak/stop kontak).
• This fireplace is safe for use in North America and includes a safety thermal cut-off device to ensure safe operation.

3. Eusi Paket

Before beginning installation, ensure all parts are present. If any part is missing or damaged, do not attempt to assemble or install the product. Contact customer service for assistance.

Image showing the included components: Electric Fireplace, Remote Control, Metal Bracket, Screw Kits, and Decorative Crystals. It also illustrates the two installation modes: Wall-mounted and Inserted.

• Lebetkeun hawu listrik
• Kadali jauh
• Metal Bracket (for wall mounting)
• Screw Kit
• Kristal Hiasan
• Manual pangguna (dokumén ieu)

4. Pamasangan

This electric fireplace offers versatile installation options: it can be recessed into a wall or wall-mounted. Choose the method that best suits your space.

This image illustrates the flexibility of the PHI VILLA electric fireplace, suitable for both recessed and wall-mounted installations.

4.1. Instalasi anu disumputkeun

For recessed installation, a wall opening must be prepared according to the specified dimensions. Ensure there is adequate clearance around the unit for ventilation.

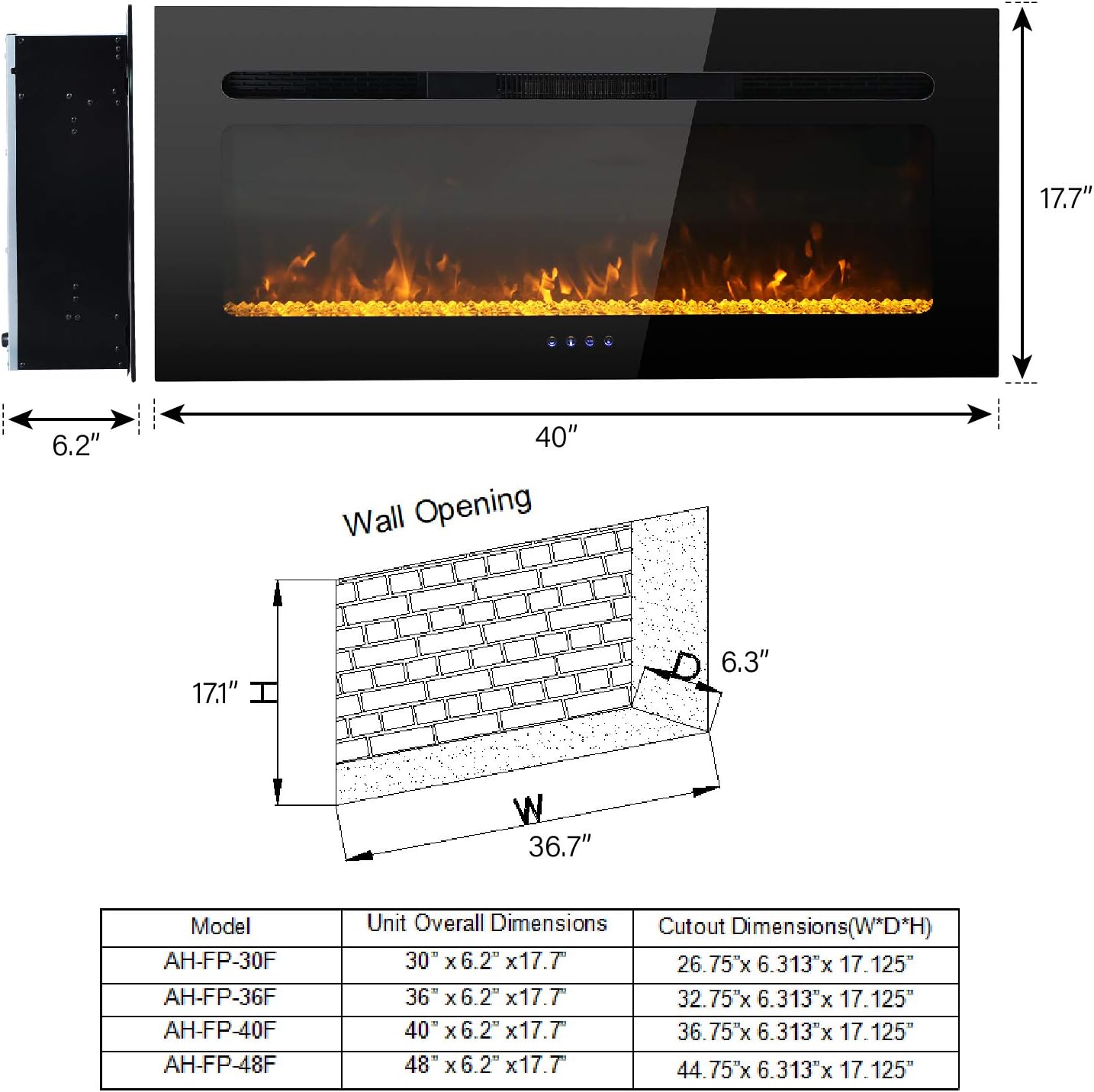

Detailed diagram showing the overall unit dimensions (40"W x 6.2"D x 17.7"H) and the required wall opening cutout dimensions (36.7"W x 6.3"D x 17.1"H) for recessed installation.

Ukuran cutout: 36.8" W x 6.3" D x 17.1" H

1. Carefully measure and cut the wall opening to the specified dimensions.
2. Ensure the opening is structurally sound and can support the weight of the fireplace.
3. Insert the fireplace into the prepared opening.
4. Secure the fireplace using the provided screw kits, ensuring it is flush with the wall.

4.2. Wall Mounted Installation

For wall-mounted installation, use the provided metal bracket to secure the fireplace to a sturdy wall.

1. Locate a suitable wall stud for mounting the metal bracket.
2. Attach the metal bracket to the wall using the provided screws, ensuring it is level and securely fastened.
3. Carefully lift the fireplace and hook it onto the metal bracket.
4. Secure the bottom of the fireplace to the wall, if necessary, to prevent movement.

4.3. Sambungan Listrik

This electric fireplace is designed for simple plug-and-play operation. No hardwiring is involved.

• Ensure the power cord is easily accessible after installation.
• Plug the fireplace directly into a standard 120V AC wall outlet. Do not use extension cords or power strips.

5. Operasi

Your PHI VILLA electric fireplace can be operated using either the touch screen controls on the unit or the included remote control.

5.1. Daya Hurung / Pareum

Press the power button on the control panel or remote control to turn the fireplace on or off.

5.2. Flame Color Adjustment

The fireplace features 3 switchable flame color effects.

This image displays the three available realistic flame effects: classic orange, cool blue, and a vibrant combination of orange and blue.

• Press the flame color button to cycle through the available colors: Orange, Blue, and Orange & Blue.
• Éfék seuneu tiasa dioperasikeun sacara mandiri tina fungsi pemanasan.

5.3. Flame Brightness Control

Adjust the intensity of the flame effect with 6 adjustable brightness levels.

This image shows a visual representation of the six adjustable flame brightness levels, from dim to bright.

• Use the brightness control button to cycle through the 6 levels of flame brightness.

5.4. Kontrol Suhu

The fireplace features a digital temperature adjustment function and a safety thermal cut-off device.

• Set your desired ambient temperature using the temperature control buttons.
• When the room reaches the set temperature, the heater will automatically stop heating.
• If the ambient temperature drops 2°C below the desired setting, the heater will resume heating.

5.5. Fungsi Timer

An 8-hour timer allows for automatic shut-off.

• Activate the timer function to set the fireplace to turn off automatically after up to 8 hours.

5.6. Backlight and Carbon Bed Color

Enhance the ambiance with 10 backlight and 10 carbon bed color options.

This image showcases the wide range of 300 color combinations possible with 3 flame colors, 10 backlight colors, and 10 carbon bed colors, along with adjustable brightness for both flame and carbon bed.

• Use the dedicated buttons on the control panel or remote to cycle through the 10 backlight and 10 carbon bed color options.
• Adjust the brightness of the carbon bed independently.

6. Pangropéa

Pangropéa rutin mastikeun umur panjang sareng kinerja optimal perapian listrik anjeun.

• beberesih: Always disconnect the power before cleaning. Use a soft, damp lawon pikeun ngabersihkeun permukaan luar. Entong nganggo pembersih atanapi semprotan anu abrasif.
• Panel Kaca: Clean the glass panel with a soft cloth and glass cleaner. Do not scratch the surface.
• Ventilasi: Ensure the air intake and exhaust vents are clear of dust and debris to maintain proper airflow.
• Panyimpenan: Upami nyimpen perapian kanggo waktos anu lami, cabut colokanna teras simpen di tempat anu garing sareng bébas kekebul.

7. Cara ngungkulan

Upami anjeun ngalaman masalah sareng perapian anjeun, tingali masalah sareng solusi umum ieu:

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official PHI VILLA websitus. Simpen resi pameseran anjeun salaku bukti pameseran.
