1. Bubuka
This manual provides essential information for the safe and efficient use of your LG GTF916PZPYD Refrigerator with Freezer. Please read all instructions carefully before installation and operation. Keep this manual for future reference.
2. Émbaran Kasalametan
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury when using your appliance.
- Pastikeun alatna dibumikeun leres.
- Entong nganggo peralatan listrik di jero kompartemen neundeun tuang kecuali éta tina jinis anu disarankeun ku pabrik.
- Tetep bukaan ventilasi jelas tina halangan.
- Ulah ngaruksak sirkuit refrigerant.
- Cabut colokan alat sateuacan beberesih atanapi ngalakukeun pangropéa.
- Ulah nyimpen bahan ngabeledug sapertos kaléng aerosol kalayan propelan anu gampang kaduruk dina alat ieu.
- Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kalebet murangkalih) anu ngirangan kamampuan fisik, indrawi atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
3. Setélan
3.1 Ngabongkar bungkusan
Remove all packaging materials, including tape and protective films. Inspect the refrigerator for any damage during transit. Keep packaging materials away from children.
3.2 Nempatkeun
Choose a location with sufficient space for the doors to open fully. Ensure adequate ventilation around the appliance. Maintain a minimum distance of 5 cm (2 inches) from walls and other appliances. Place the refrigerator on a firm, level floor. Use the adjustable feet to level the appliance if necessary.
3.3 Sambungan Listrik
Connect the power cord to a dedicated 220 Volt, 50 Hz grounded electrical outlet. Do not use extension cords or multiple outlet adapters. Allow the refrigerator to stand upright for at least 2-3 hours before plugging it in to allow the refrigerant to settle.
3.4 beberesih Awal
Before first use, clean the interior and exterior of the refrigerator with a soft cloth and a mild detergent solution. Rinse thoroughly and dry. Do not use abrasive cleaners or solvents.
3.5 Operasi Awal
After plugging in, the refrigerator will begin to cool. Allow it to operate for several hours (at least 4-6 hours) before storing food to ensure it reaches the optimal temperature.

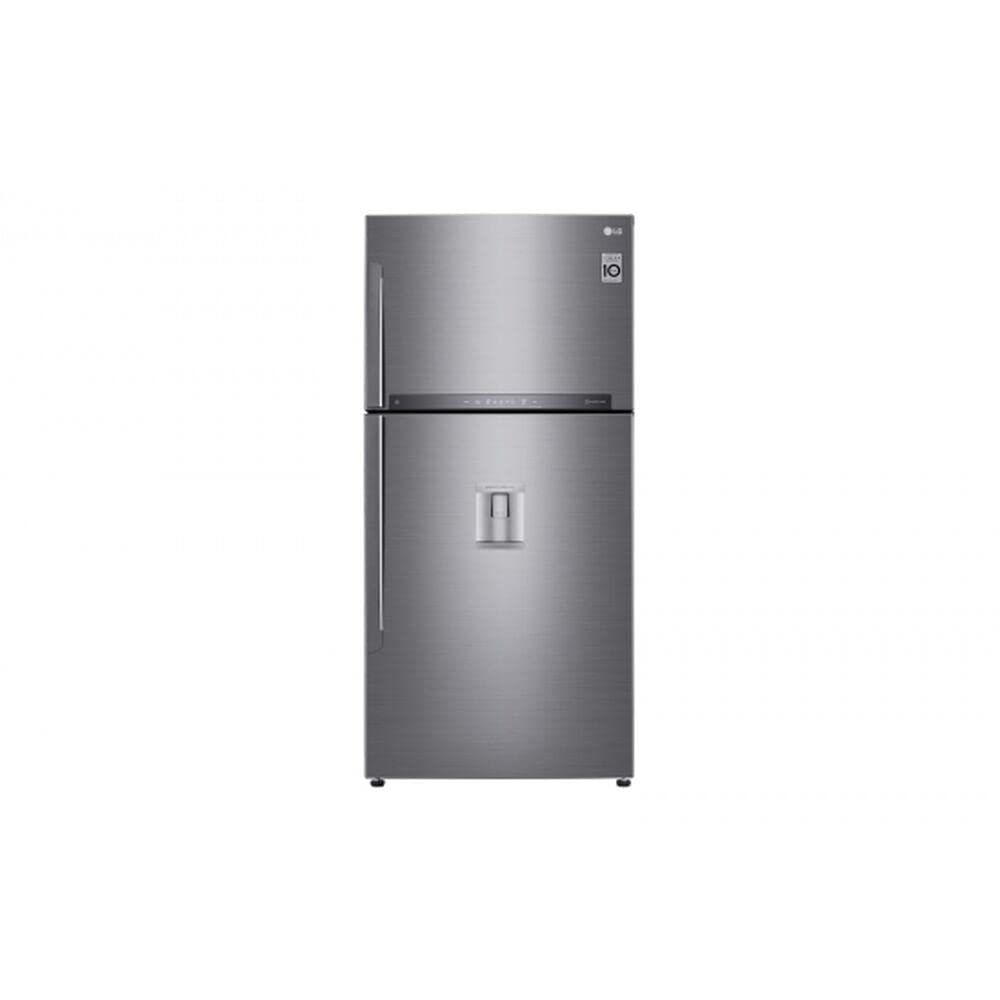

Gambar 1: Hareupeun view of the LG GTF916PZPYD Refrigerator with Freezer.
4. Parentah Operasi
4.1 Kontrol Suhu
The LG GTF916PZPYD features an automatic temperature control system. While specific adjustable temperature control is not listed, the appliance maintains optimal cooling for both the refrigerator and freezer compartments. Avoid frequently opening the doors to maintain stable internal temperatures.
4.2 Panyimpenan Dahareun
- Kompartemen Kulkas: Ideal for fresh foods, dairy products, fruits, and vegetables. Use the glass shelves for organized storage.
- Kompartemen freezer: Suitable for long-term storage of frozen foods. Ensure food is properly sealed to prevent freezer burn.
4.3 Door Features
The appliance is equipped with two doors, one for the refrigerator and one for the top-mounted freezer. Ensure doors are closed completely after each use to maintain energy efficiency and proper cooling.
5. Pangropéa
5.1 Ngabersihan Interior
Clean the interior regularly to prevent odors and maintain hygiene. Unplug the refrigerator before cleaning. Remove all food items and shelves. Wash with a mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive pads or harsh chemicals.
5.2 Ngabersihan Exterior
Ngusap permukaan luar kalayan lemes, damp cloth. For stainless steel finishes, use a specialized stainless steel cleaner. Clean door gaskets regularly to ensure a tight seal.
5.3 Pabersihan Koil Kondensor
For optimal performance and energy efficiency, it is recommended to clean the condenser coils at least once a year. Unplug the appliance. Carefully remove the lower rear cover. Use a vacuum cleaner with a brush attachment to gently remove dust and debris from the condenser coils. Reattach the cover securely.
5.4 Defrosting
This refrigerator model features a No Frost system, which automatically prevents ice buildup in both the refrigerator and freezer compartments. Manual defrosting is generally not required.
6. Cara ngungkulan
Sateuacan ngahubungan jasa, ulangview masalah umum sareng solusi ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kulkas teu cooling | Power cord unplugged; thermostat set too warm; door left open; poor ventilation. | Check power connection; ensure proper temperature setting; close door fully; ensure adequate space around appliance. |
| Sora anu teu biasa | Appliance not level; items vibrating inside; normal compressor operation. | Adjust leveling feet; rearrange items; some operational sounds are normal. |
| Cai dina lantai | Selang solokan mampet; panto teu nutup kalawan bener. | Clear drain hose; check and clean door gaskets. |
| Cahaya henteu jalan | Bohlam lampu rusak; masalah daya. | Replace bulb (if user-replaceable); check power supply. |
7. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | LG |
| Nomer modél | GTF916PZPYD |
| Kapasitas | 592 liter |
| Konfigurasi | Freezer top |
| Tipe Pamasangan | Jalanan |
| Jumlah Panto | 2 |
| Voltage | 220 volt |
| Tipe Rak | Kaca |
| Métode Cooling | Kompresor |
| Kontrol Suhu adjustable | No |
| Item Beurat | 88 kg |
| Konsumsi Énergi Taunan | 330 Kilowatt Jam |
8. Garansi jeung Rojongan
Your LG GTF916PZPYD Refrigerator with Freezer is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical assistance, service requests, or to inquire about warranty details, please contact LG Customer Support.
You can find contact information for LG Customer Support on the official LG website or through the documentation provided with your appliance.
