MISTRAL Mimica MHV901R High Velocity Table Fan User Manual

1. Bubuka

This manual provides instructions for the safe and efficient operation, maintenance, and troubleshooting of your MISTRAL Mimica MHV901R High Velocity Table Fan. Please read this manual thoroughly before using the appliance and retain it for future reference.

2. Parentah Kasalametan

• Always ensure the fan is unplugged from the power outlet before cleaning, maintenance, or when not in use.
• Ulah nyelapkeun ramo atawa objék naon baé ngaliwatan grille nalika kipas keur beroperasi.
• Keep the fan away from water or other liquids. Do not operate in wet or damp lingkungan.
• Pastikeun kabel listrik henteu ruksak, diciwit, atanapi disimpen dina barang beurat.
• Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kaasup murangkalih) anu kakurangan kamampuan fisik, indrawi, atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kasalametanana. .
• Do not use the fan near curtains, plants, or other objects that could obstruct airflow or be drawn into the fan.
• Teundeun kipas dina tempat anu datar sareng stabil pikeun nyegahna tibalik.

3. Produk Langkungview

The MISTRAL Mimica MHV901R is a 9-inch high velocity table fan designed for efficient air circulation. It features sensor touch controls, an LED display, and a remote control for convenient operation.

Gambar 1: Hareupeun view of the MISTRAL Mimica MHV901R High Velocity Table Fan.

Figure 2: Close-up of the control panel on the fan base, showing touch buttons for various functions.

Fitur konci:

• Sénsor kadali touch
• Témbongkeun suhu kamar
• tampilan LED
• 3 speed selections
• 8 jam timer
• Automatic up and down oscillation of 70°
• Automatic left and right oscillation of 70°
• Natural and Eco modes
• kadali jauh kaasup
• Back handle for easy portability

4. Setélan

4.1 Ngabongkar bungkusan

1. Cabut kipas sareng sadaya bahan kemasan tina kotak kalayan ati-ati.
2. Verify that all components are present: the fan unit and the remote control.
3. Retain packaging for storage or in case of return.

4.2 Nempatkeun

Place the fan on a firm, level surface. Ensure there is adequate space around the fan for optimal airflow and oscillation. Avoid placing the fan directly against walls or furniture that could obstruct its movement.

4.3 Sambungan Daya

1. Ensure the fan is in the OFF position before plugging it in.
2. Plug the power cord into a standard electrical outlet. The fan operates on corded electric power.

Gambar 3: Balik view of the fan with the power cord and handle.

5. Parentah Operasi

The fan can be operated using the sensor touch controls on the base or the included remote control.

5.1 Daya Hurung/Pareuman

• Pencét éta Kakuatan tombol () on the control panel or remote to turn the fan ON or OFF.

5.2 Pamilihan Speed

• Pencét éta Laju tombol () repeatedly to cycle through the 3 available fan speeds. The LED display will indicate the current speed setting.

5.3 Osilasi

• Pencét éta Osilasi horisontal tombol () to activate or deactivate the automatic 70° left and right oscillation.
• Pencét éta Osilasi nangtung tombol () to activate or deactivate the automatic 70° up and down oscillation.

5.4 Modes (Natural & Eco)

• Pencét éta Modus tombol () to switch between Normal, Natural, and Eco modes.
• Mode alam: Simulasi angin alami ku cara ngarobah-robah kecepatan kipas.
• Modeu Eco: Adjusts fan speed based on room temperature for energy efficiency.

5.5 Fungsi Timer

• Pencét éta Timer tombol () repeatedly to set the desired operating time up to 8 hours. The fan will automatically turn off after the set time.

5.6 Tampilan Suhu Kamar

The LED display on the fan base shows the current room temperature, providing ambient information at a glance.

6. Pangropéa

6.1 beberesih

1. Sok cabut kipas angin sateuacan beberesih.
2. Ngagunakeun lemes, damp lawon pikeun ngusap surfaces exterior kipas. Ulah make cleaners abrasive atawa pangleyur.
3. For cleaning the fan blades, use a vacuum cleaner with a brush attachment or compressed air to remove dust from the grilles.
4. Pastikeun kipasna garing pisan sateuacan dipasang deui sareng dianggo.

6.2 Panyimpenan

When not in use for extended periods, store the fan in its original packaging in a cool, dry place, away from direct sunlight and moisture.

7. Cara ngungkulan

• Kipas teu hurung:
  • Pariksa naha kabel listrik dicolokkeun sacara aman kana stop kontak listrik.
  • Pastikeun tombol daya geus dipencet.
• Fan is not oscillating:
  • Verify that the oscillation button for the desired direction (horizontal or vertical) has been activated.
• Aliran hawa lemah:
  • Check if the fan speed is set to a higher setting.
  • Ensure the grilles are not blocked by dust or debris. Clean as per maintenance instructions.

Lamun masalah persist, mangga ngahubungan rojongan customer.

8. Spésifikasi

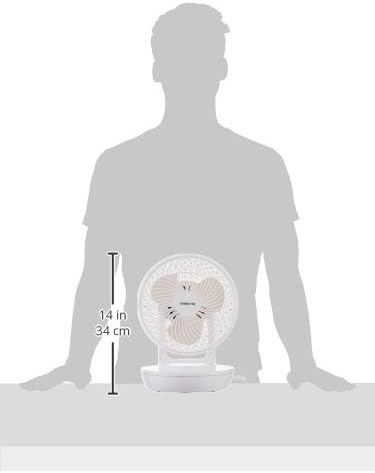

Figure 4: Product dimensions for the MISTRAL Mimica MHV901R fan.

9. Garansi jeung Rojongan

9.1 Émbaran jaminan

This MISTRAL Mimica MHV901R fan comes with a 1-Year Standard Brand Warranty ti tanggal beuli. Punten tahan bukti pameseran anjeun pikeun klaim garansi.

9.2 Sarat jeung Kaayaan Balik deui

For information regarding returns or replacements, please refer to the retailer's specific return policy. For purchases made on Amazon, a 15-day refund/replacement policy typically applies.

9.3 Rojongan Palanggan

For technical assistance, warranty claims, or further inquiries, please contact MISTRAL customer support through their official websitus atanapi detil kontak anu disayogikeun sareng dokuméntasi pameseran anjeun.
