Sharp Carousel II Microwave Oven

1. Bubuka

This operation manual provides detailed instructions for the safe and efficient use of your new Sharp Carousel II Microwave Oven, models R-4P60 and R-5P60. Please read this manual thoroughly before operating your oven and retain it for future reference. Proper use and maintenance will ensure years of reliable service from your appliance.

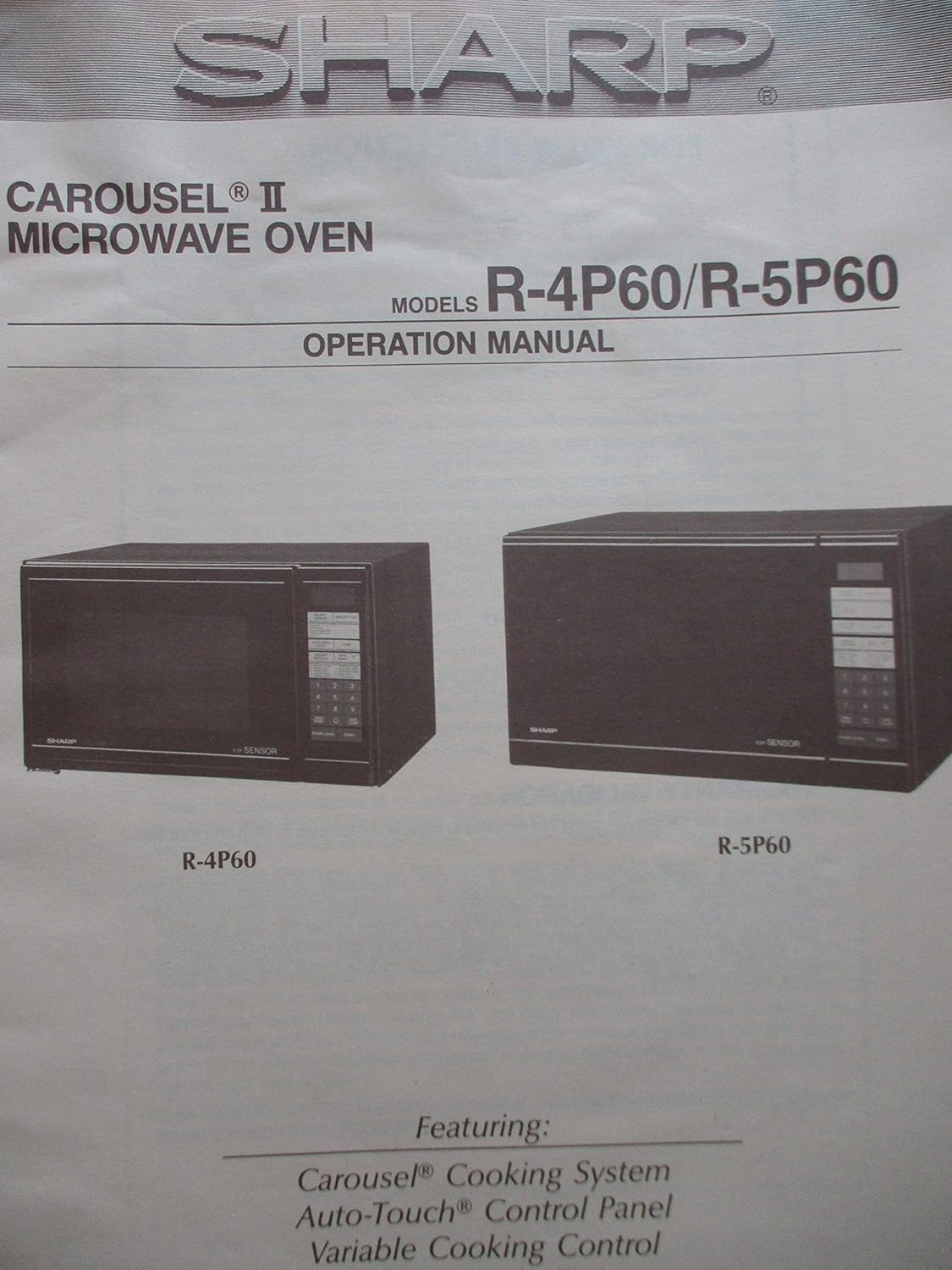

Image 1: Front cover of the operation manual, displaying both the R-4P60 and R-5P60 microwave oven models. The R-4P60 is shown on the left, and the R-5P60 on the right, illustrating their distinct designs.

2. Parentah Kasalametan penting

Nalika nganggo alat listrik, pancegahan kaamanan dasar kedah diturutan, kalebet ieu:

• Maca sadaya pitunjuk sateuacan nganggo oven.
• Ulah nyobian ngajalankeun oven ieu kalawan panto muka sabab ieu bisa ngakibatkeun paparan ngabahayakeun kana énergi gelombang mikro.
• Ulah nempatkeun sagala objék antara beungeut hareup oven jeung panto, atawa ngidinan taneuh atawa résidu cleaner akumulasi dina surfaces sealing.
• Ulah ngajalankeun oven lamun geus ruksak. Ieu hususna penting yén panto oven nutup leres tur teu aya karuksakan kana: (1) panto (ngagulung), (2) hinges na latches (pegat atawa loosened), (3) segel panto na surfaces sealing.
• Oven teu kedah disaluyukeun atanapi repaired ku saha iwal tanaga jasa mumpuni leres.
• Always ensure food is heated thoroughly to kill harmful bacteria.
• Ulah panas wadah disegel, sabab bisa ngabitukeun.

3. Setup jeung Instalasi

Pamasangan anu leres penting pisan pikeun operasi anu aman sareng efisien dina oven microwave anjeun.

1. Ngabongkar bungkusan: Carefully remove the oven from its carton. Remove all packing materials and accessories. Check the oven for any damage, such as dents or a misaligned door. Do not install if damaged.
2. panempatan: Place the oven on a flat, stable surface that can support its weight. Ensure there is adequate ventilation space around the oven: at least 4 inches (10 cm) of space on the top, back, and sides for proper airflow. Do not block air vents.
3. Sasayogian tanaga: Plug the oven into a dedicated 3-prong grounded outlet. Do not use extension cords or adapters. Ensure the voltage and frequency match the specifications on the oven's rating label.
4. Pamasangan Turntable: Place the turntable ring inside the oven cavity. Position the glass turntable plate securely on top of the turntable hub. Ensure it rotates freely.

4. Parentah Operasi

Your Sharp Carousel II Microwave Oven is designed for ease of use with advanced features.

4.1 Operasi Dasar

• Nyetél waktos masak: Open the oven door, place food in the center of the turntable. Close the door. Use the numeric keypad to enter the desired cooking time.
• Ngamimitian Masak: Press the "START" button. The oven will begin cooking and the turntable will rotate.
• Eureun/Eureun: To pause cooking, open the door or press the "STOP/CLEAR" button once. To cancel cooking entirely, press "STOP/CLEAR" twice.

4.2 Carousel® Cooking System

The Carousel® Cooking System ensures even cooking by continuously rotating the food during operation. This eliminates hot spots and provides more uniform heating results. Always ensure the turntable is properly seated before cooking.

4.3 Auto-Touch® Control Panel

The Auto-Touch® control panel features pre-programmed settings for common foods and functions, simplifying your cooking experience. Refer to the specific buttons on your model for functions such as:

• Jagong beledug: Automatically adjusts cooking time for popcorn bags.
• Inuman: Heats beverages to an optimal temperature.
• Panaskeun deui: Quickly reheats various food items.
• Defrost: Offers time or weight defrost options for frozen foods.

To use an Auto-Touch® function, simply press the corresponding button. Some functions may require you to enter the quantity or weight.

4.4 Variable Cooking Control

This feature allows you to select different power levels for precise cooking. Lower power levels are ideal for delicate foods, simmering, or holding food warm, while higher power levels are suitable for quick cooking and boiling.

To adjust power level:

1. Lebetkeun waktos masak anu dipikahoyong.
2. Press the "POWER LEVEL" button.
3. Use the numeric keypad to select the desired power level (e.g., 10 for 100%, 7 for 70%, 5 for 50%).
4. Pencét "MIMITI".

5. Pangropéa jeung beberesih

Pembersih sareng perawatan rutin bakal manjangkeun umur oven microwave anjeun.

• Beberesih interior: Sanggeus unggal pamakéan, usap interior jeung adamp cloth and mild detergent. For stubborn stains, place a bowl of water with lemon slices inside and heat for 2-3 minutes until steam forms, then wipe clean.
• Bersihan Luar: Rapihkan permukaan luar dengan lembut, damp lawon. Ngahindarkeun cleaners abrasive.
• Méja puteran: Meja putar kaca sareng cincin meja putar tiasa dikumbah ku cai sabun haneut atanapi dina mesin cuci piring. Pastikeun aranjeunna garing pisan sateuacan disimpen deui kana oven.
• Segel panto: Regularly inspect and clean the door seals and sealing surfaces to ensure proper closure and prevent microwave leakage.
• Ngaleungitkeun bau: To remove odors, combine 1 cup of water with several tablespoons of lemon juice or vinegar in a microwave-safe bowl. Heat on high for 5-7 minutes.

Caution: Always unplug the oven before cleaning.

6. Cara ngungkulan

Sateuacan nelepon pikeun layanan, mangga parios heula masalah sareng solusi umum ieu:

7. Spésifikasi

Technical specifications for Sharp Carousel II Microwave Oven Models R-4P60 and R-5P60.

• Nomer modél: R-4P60, R-5P60
• Sumber Daya: 120V AC, 60Hz
• Fitur: Carousel® Cooking System, Auto-Touch® Control Panel, Variable Cooking Control

Note: Specific output power, oven capacity, and external dimensions are not provided in this manual. Please refer to the rating label located on your specific unit for precise technical details.

8. Garansi sarta Rojongan Palanggan

For warranty information and customer support, please refer to the warranty card included with your original purchase or visit the official Sharp website. This manual does not contain specific warranty terms or contact details, as they may vary by region and purchase date.

When contacting support, please have your model number (R-4P60 or R-5P60) and serial number ready.
