Behringer PK112 Passive 600 Watt 12" PA Speaker System User Manual

Bubuka

This manual provides essential information for the safe and efficient operation of your Behringer PK112 Passive 600 Watt 12" PA Speaker System. Please read these instructions thoroughly before use to ensure proper setup, operation, and maintenance. Retain this manual for future reference.

Gambar: Hareupeun view of the Behringer PK112 Passive PA Speaker, featuring a robust black grille and the Behringer logo at the bottom. This speaker is designed for sound reinforcement applications.

Parentah Kasalametan penting

• Baca parentah ieu.
• Tetep parentah ieu.
• Heed sagala warnings.
• Turutan sagala parentah.
• Entong nganggo alat ieu caket cai.
• Ngabersihan ngan ku kaén garing.
• Ulah meungpeuk sagala bukaan ventilasi. Install luyu jeung parentah produsén urang.
• Entong dipasang di deukeut sumber panas sapertos radiator, register panas, kompor, atanapi aparat sanésna (kalebet ampLiifiers) anu ngahasilkeun panas.
• Ngan anggo kantétan/aksésori anu ditunjuk ku produsén.
• Rujuk sadayana jasa ka tanaga jasa anu mumpuni. Diperlukeun ngalayanan nalika aparatur ruksak ku cara naon waé, sapertos kabel catu daya atanapi colokan rusak, cairan tumpah atanapi barang murag kana aparatur, aparatur parantos kakeunaan hujan atanapi lembab, henteu beroperasi normal. , atawa geus turun.

Disetél

1. Ngabongkar bungkusan

Carefully remove the speaker from its packaging. Inspect the unit for any signs of damage that may have occurred during transit. If damage is found, contact your dealer immediately.

2. panempatan sarta ningkatna

The PK112 speaker can be placed on a flat, stable surface (tabletop mount) or mounted on a standard 35mm speaker pole. Ensure the mounting surface or pole is capable of supporting the speaker's weight (approximately 22.18 pounds or 10.06 kg).

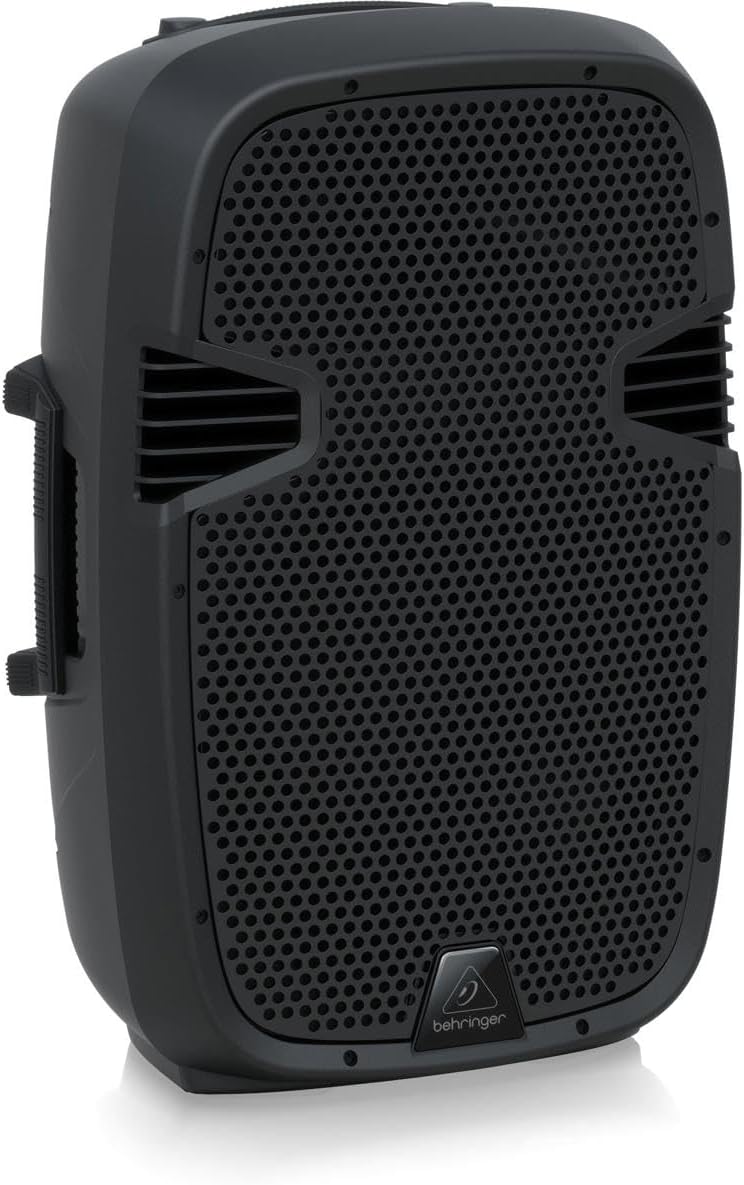

Gambar: Sisi view of the Behringer PK112 PA Speaker, highlighting the integrated handle designed for easy transport and setup.

3. Panyambungan

The PK112 is a passive speaker and requires an external power amplifier. Connect the speaker to your amplifier using appropriate speaker cables with Speakon-compatible connectors. The rear panel features an INPUT for the audio signal from your amplifier and a LINK OUTPUT to daisy-chain the signal to another passive speaker.

Image: Rear panel of a Behringer PA Speaker, displaying the INPUT and LINK OUTPUT connections. These are standard Speakon-compatible ports for connecting to an amplifier and linking to additional speakers.

• Input: Sambungkeun kakuatan anjeun amplifier's output to this input.
• Kaluaran Tumbu: Use this output to send the audio signal to another passive speaker.

Pastikeun sadaya sambungan aman sateuacan ngahurungkeun alat anjeun amppangagung.

Ngoperasikeun

1. Ngahurungkeun

Since the PK112 is a passive speaker, it does not have its own power switch. Power is supplied by the connected external amplifier. Always ensure your amplifier is turned off before making or changing any connections to the speaker.

2. Signal Flow and Volume Control

The audio signal originates from your source (e.g., mixer, instrument) and passes through your power amplifier before reaching the PK112 speaker. All volume adjustments and equalization should be managed at your mixer and/or amplifier. Start with the amplifier's volume at its lowest setting, then gradually increase it to the desired listening level.

3. USB and Bluetooth Connectivity

While the product specifications mention USB and Bluetooth connectivity, these features are typically integrated into active PA systems or associated mixers/amplifiers, not passive speakers like the PK112. If you are using a Behringer mixer or amplifier with these capabilities, refer to that device's manual for instructions on utilizing USB for computer-based audio applications or Bluetooth for wireless audio streaming.

Pangropéa

1. beberesih

To clean the speaker, use a soft, dry cloth. Do not use any liquid cleaners, solvents, or abrasive materials, as these can damage the enclosure and components. Regularly wipe down the grille to prevent dust buildup.

2. Panyimpenan

When not in use, store the speaker in a dry, cool environment, away from direct sunlight and extreme temperatures. If transporting, consider using a protective cover or case to prevent physical damage.

3. Kaperawatan Umum

Avoid exposing the speaker to excessive moisture or rain. Do not place heavy objects on top of the speaker. Handle the speaker by its integrated handles to prevent damage to the enclosure or grille.

Pamérésan masalah

• Henteu aya sora:
  • Pastikeun kakuatan amplifier is turned on and receiving power.
  • Check all speaker cable connections between the amplifier and the PK112.
  • Verify that the audio source (mixer, instrument) is sending a signal and its volume is up.
  • Konfirmasi dina amplifier's output level is not set to minimum.
• Sora distort:
  • Ngurangan tingkat volume on Anjeun amplifier or mixer. Overdriving the speaker can cause distortion.
  • Check for damaged speaker cables.
  • Pastikeun amplifier's impedance matches the speaker's requirements.
• Sora Intermittent:
  • Pariksa sadaya sambungan kabel naha aya anu leupas atanapi ruksak.
  • Uji nganggo kabel anu béda upami tiasa.

spésifikasi

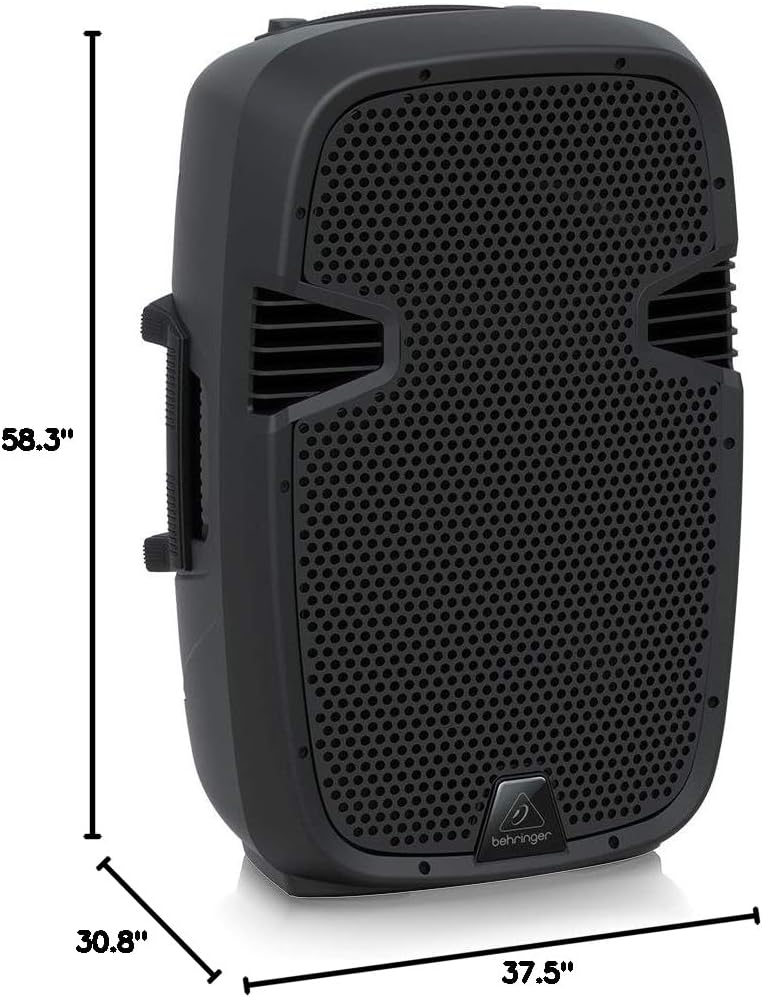

Image: Dimensional diagram of the Behringer PK112 PA Speaker, illustrating its height, width, and depth for planning placement and transport.

Garansi

The Behringer PK112 comes with a Limited Warranty. For detailed information regarding warranty terms, registration, and claims, please visit the official Music Tribe community websitus: komunitas.musictribe.com.

Ngarojong

For technical support, service inquiries, or additional product information, please visit the Behringer section of the Music Tribe website or contact your local Behringer dealer. Online resources, FAQs, and support contacts can typically be found on the official brand websitus.
